2lvg

NMR structure of HCV Non-structural protein AB, NS4B(1-40)

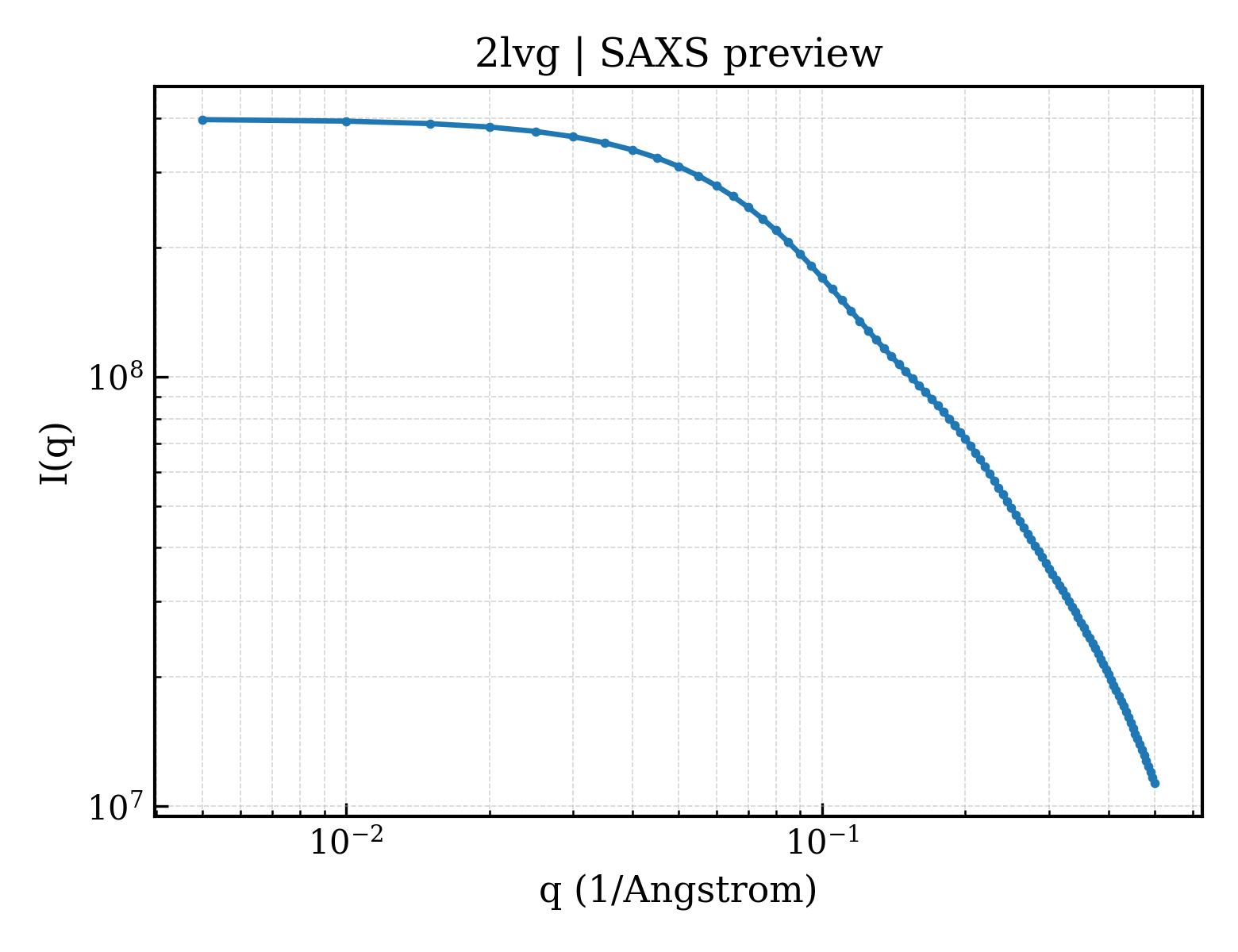

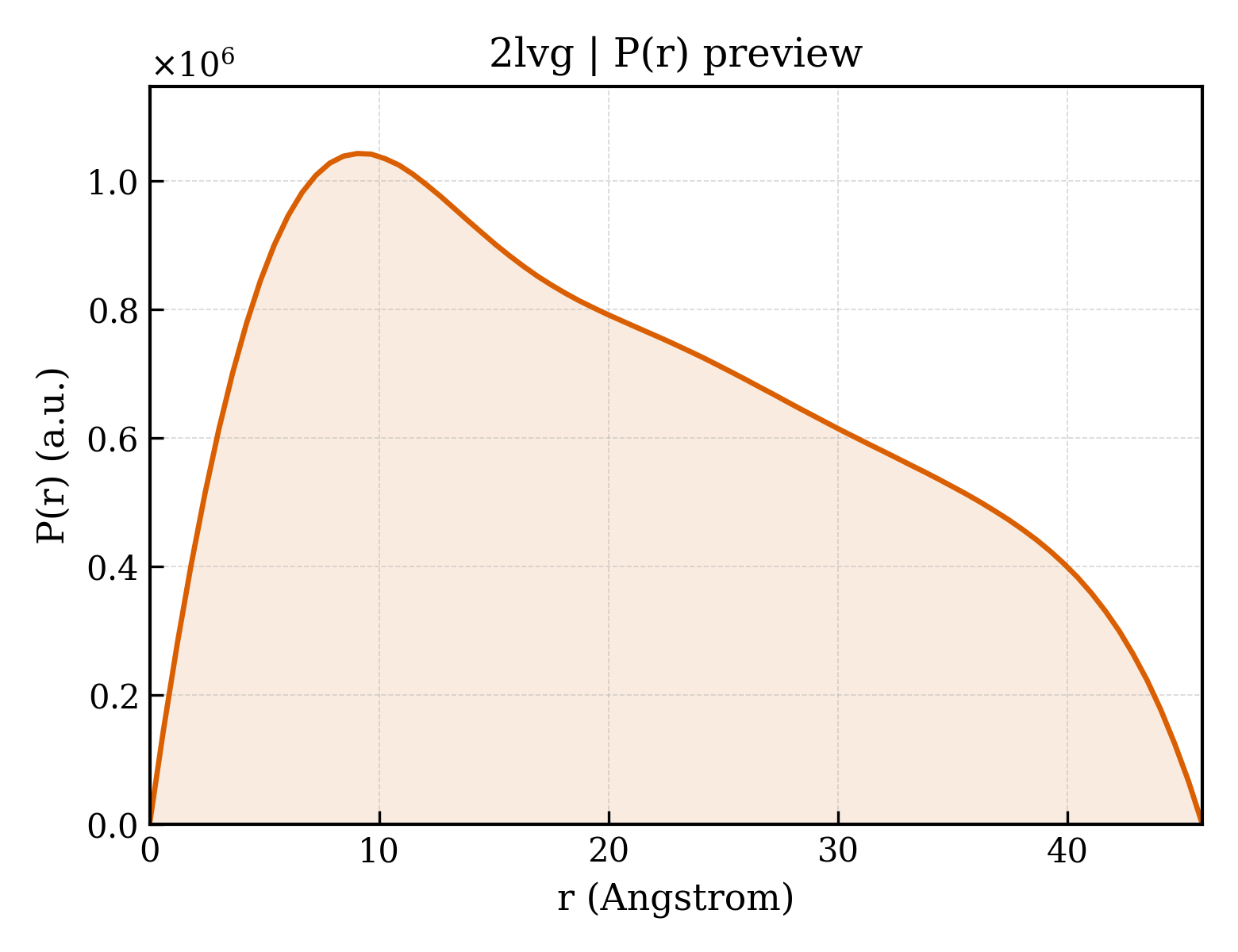

Method: SOLUTION NMR Dmax: 45.9 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Non-structural protein 4B

OrganismNot specified

UniProt Q99IB8

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1716–1755 Fragment：UNP residues 1716-1755 No other associated polymer SOLUTION NMR NMR measurement conditions：pH 5；298 K；Pressure ambient NMR sample composition：40 v/v H2O, 10 v/v [U-100% 2H] D2O, 50 v/v [U-100% 2H] TFE, 0.2 uM DSS, trifluoroethanol/water | trifluoroethanol/water Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2LVG Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2KZQ s34r Structure Deposited 2010-06-21 Different construct Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 684–719（36 aa） Fragment：E2[296-331] segment, UNP residues 684-719
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6；298 K；Pressure ambient
NMR sample composition 50 % trifluoroethanol; 50% H2O; 0.01% DSS; trifluoroethanol/water | trifluoroethanol/water
Resolution not provided
2LIF Solution Structure of KKGF Deposited 2011-08-29 Different construct Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 171–195（25 aa） Fragment：UNP residues 171-195
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions 298 K；Pressure ambient
NMR sample composition 2 mM kkgf, 0.01 mM DSS, trifluoroethanol/water | trifluoroethanol/water
Resolution not provided
2XXD HCV-JFH1 NS5B polymerase structure at 1.9 angstrom Deposited 2010-11-10 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2443–3005（563 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2443-3005
Not recorded PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.2M SODIUM PHOSPHATE PH 6.5, 12% PEG3350.
Resolution 1.88 Å R-free 0.206
2XYM HCV-JFH1 NS5B T385A mutant Deposited 2010-11-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2443–3005（563 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2443-3005
Mutation：YES PO4 PHOSPHATE ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions 0.2M NAH2PO4, 2-5% PEG 35.000
Resolution 1.77 Å R-free 0.222
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007
Not recorded PO4 PHOSPHATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007
Not recorded PO4 PHOSPHATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.228
4AEP HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 1.8 ANGSTROM Deposited 2012-01-12 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013
Not recorded PO4 PHOSPHATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350
Resolution 1.80 Å R-free 0.227
4AEX HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 2.4 ANGSTROM in a primitive orthorhombic space group Deposited 2012-01-12 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013
Not recorded PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350
Resolution 2.41 Å R-free 0.230
4AEX HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 2.4 ANGSTROM in a primitive orthorhombic space group Deposited 2012-01-12 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350
Resolution 2.41 Å R-free 0.230
4E76 Apo crystal structure of HCV NS5B genotype 2A JFH-1 isolate with beta hairpin loop deletion Deposited 2012-03-16 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999
Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999
Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG SO4 SULFATE ION × 7 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；3.95 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG550 MME, 0.1 M Bis-Tris propane, pH 6.5, 50 mM ammonium sulfate, cryoprotectant: 25% ethylene glycol, crystal tracking ID 227386E9, VAPOR DIFFUSION, SITTING DROP, temperature 289K
Resolution 2.50 Å R-free 0.257
4E78 Crystal structure of a product state assembly of HCV NS5B genotype 2a JFH-1 isolate with beta hairpin loop deletion bound to primer-template RNA with 3'-dG Deposited 2012-03-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999
Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999
Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4.37 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG3350, 0.1 M Bis-Tris propane, pH 6.0, 200 mM ammonium acetate soaked overnight in precipitant supplemented with 15% ethylene glycol as cryoprotectant and 0.2 mM UACCG(3'DG), crystal tracking ID 227386E9, VAPOR DIFFUSION, SITTING DROP, temperature 289K
Resolution 2.90 Å R-free 0.242
4E7A Crystal structure of a product state assembly of HCV NS5B genotype 2a JFH-1 isolate with beta hairpin deletion bound to primer-template RNA with a 2',3'-ddC Deposited 2012-03-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999
Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999
Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4.37 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG3350, 0.1 M Bis-Tris propane, pH 6.0, 200 mM ammonium acetate soaked overnight in precipitant supplemented with 15% ethylene glycol as cryoprotectant and 0.2 mM CUAGGC(DOC), crystal tracking ID 228018H11, VAPOR DIFFUSION, SITTING DROP, temperature 289K
Resolution 3.00 Å R-free 0.241
4J1V Functional and structural studies of MOBKL1B, a Salvador/Warts/Hippo tumor suppressor pathway, in HCV replication Deposited 2013-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 2284–2303（20 aa）
Chain G 2284–2303（20 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K
Resolution 1.95 Å R-free 0.225
4J1V Functional and structural studies of MOBKL1B, a Salvador/Warts/Hippo tumor suppressor pathway, in HCV replication Deposited 2013-02-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 2284–2303（20 aa）
Chain H 2284–2303（20 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K
Resolution 1.95 Å R-free 0.225
4OBC Crystal structure of HCV polymerase NS5b genotype 2a JFH-1 isolate with the S15G, C223H, V321I resistance mutations against the guanosine analog GS-0938 (PSI-3529238) Deposited 2014-01-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2443–3012（570 aa）
Mutation：S15G E86Q E87Q C223H V321I MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 2 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；NS5b VCID 5854 at 4.25 mg/mL in 5 mM Tris pH 7.5, 200 mM NH4OAc, 1 mM EDTA 1 mM DTT against PACT screen condition D5, 25% PEG 1500, 0.1M MMT Malic Acid, MES, Tris Buffer pH 8.0 supplemented with 20% glycerol as cryo-protectant, crystal tracking ID 223572d5, puck ID cps0237-1, VAPOR DIFFUSION, SITTING DROP, temperature 289K
Resolution 2.50 Å R-free 0.223
4WT9 APO CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH E86Q E87Q S15G C223H V321I AND DELTA8 MUTATIONS Deposited 2014-10-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker CL CHLORIDE ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；NS5B AT 4.08 MG/ML IN 20 MM TRIS PH 8, 200 MM NACL, 20% GLYCEROL, 2 MM TCEP, 200 MM IMIDAZOLE AGAINST 30% PEG 550 MME, 0.1 M HEPES PH 7.5, 50 MM MAGNESIUM CHLORIDE WITH 15% ETHYLENE GLYCOL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 232769E7
Resolution 2.50 Å R-free 0.245
4WTA CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH UDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM UDP, 2 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148C3, UNIQUE PUCK ID DDL1-9
Resolution 2.80 Å R-free 0.224
4WTC CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH CDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-AGAAAUUU Deposited 2014-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM CDP, 4 MM 5'-AGAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 252991H7, UNIQUE PUCK ID YAT8-8
Resolution 2.75 Å R-free 0.229
4WTD CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH ADP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-AUAAAUUU Deposited 2014-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker MN MANGANESE (II) ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM ADP, 4 MM 5'-AUAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 250962A8, UNIQUE PUCK ID ZMG4-5
Resolution 2.70 Å R-free 0.223
4WTE CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH GDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-ACAAAUUU Deposited 2014-10-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM GDP, 4 MM 5'-ACAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 252991H5, UNIQUE PUCK ID YAT8-1
Resolution 2.90 Å R-free 0.219
4WTF CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH GS-639475, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 5GS 2'-C-methyluridine 5'-(trihydrogen diphosphate) × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM GS-639475, 4 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A12, UNIQUE PUCK ID QXN0-1
Resolution 2.65 Å R-free 0.234
4WTG CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH SOFOSBUVIR DIPHOSPHATE GS-607596, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker MN MANGANESE (II) ION × 3 6GS 2'-deoxy-2'-fluoro-2'-methyluridine 5'-(trihydrogen diphosphate) × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED, INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM GS-607596, 4 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148C4, UNIQUE PUCK ID MCI3-1, PH 6.6
Resolution 2.90 Å R-free 0.232
4WTI CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-ACGG, RNA PRIMER 5'-PCC, MN2+, AND GDP Deposited 2014-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM GDP, 2 MM 5'-ACGG, 2 MM 5'-PCC, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A1, UNIQUE PUCK ID HDW8-2
Resolution 2.80 Å R-free 0.234
4WTJ CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-AUCC, RNA PRIMER 5'-PGG, MN2+, AND ADP Deposited 2014-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM CDP, 2 MM 5'-AGCC, 2 MM 5'-PGG, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A2, UNIQUE PUCK ID HDW8-4
Resolution 2.20 Å R-free 0.211
4WTK CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-AGCC, RNA PRIMER 5'-PGG, MN2+, AND CDP Deposited 2014-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550
Resolution 2.50 Å R-free 0.224
4WTL CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-UACC, RNA PRIMER 5'-PGG, MN2+, AND UDP Deposited 2014-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 25% PEG 3350, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRISPROPANE PH 6.0, 0.05 M TRIS PH 7.2, 0.6 MM MNCL2, 1.0 MM UDP,0.2 MM 5'-UACC, 0.2 MM 5'-PGG, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 238700A1, UNIQUE PUCK ID HAF1-1
Resolution 2.00 Å R-free 0.235
4WTM CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-UAGG, RNA PRIMER 5'-PCC, MN2+, AND UDP Deposited 2014-10-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–3012（570 aa）
Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM UDP, 4 MM 5'-UAGG, 4 MM 5'-PCC, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 247392A4, UNIQUE PUCK ID NRC3-7
Resolution 2.15 Å R-free 0.216
5TWM CRYSTAL STRUCTURE OF THE HEPATITIS C VIRUS GENOTYPE 2A STRAIN JFH1 L30S NS5B RNA-DEPENDENT RNA POLYMERASE IN COMPLEX WITH 5-[3-(tert-butylcarbamoyl)phenyl]-6-(ethylamino)-2-(4-fluorophenyl)-N-methylfuro[2,3-b]pyridine-3-carboxamide Deposited 2016-11-14 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2443–3015（573 aa） Fragment：UNP residues 2443-3015
Mutation：L30S 7NG 5-[3-(tert-butylcarbamoyl)phenyl]-6-(ethylamino)-2-(4-fluorophenyl)-N-methylfuro[2,3-b]pyridine-3-carboxamide × 1 SO4 SULFATE ION × 4 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 1 PG4 TETRAETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM Sodium Acetate, 25% (W/V) PEG 4000, 200 mM (NH4)2SO4
Resolution 1.97 Å R-free 0.207
9LJR Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 2443–2995（553 aa）
Mutation：S15G/E86Q/E87Q/C223H/V321I CDP CYTIDINE-5'-DIPHOSPHATE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/ hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant.
Resolution 2.74 Å R-free 0.219
9LJS Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 2443–2995（553 aa）
Mutation：S15G/E86Q/E87Q/C223H/V321I FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant
Resolution 2.96 Å R-free 0.223
9LJT Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 2443–2995（553 aa）
Mutation：S15G/E86Q/E87Q/C223H/V321I CDP CYTIDINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant
Resolution 3.46 Å R-free 0.217
9LJU Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 2443–2995（553 aa）
Mutation：S15G/E86Q/E87Q/C223H/V321I FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant
Resolution 2.92 Å R-free 0.216
9LJV Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric
Chain A 2443–2995（553 aa）
Mutation：S15G/E86Q/E87Q/C223H/V321I C5P CYTIDINE-5'-MONOPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant
Resolution 2.25 Å R-free 0.218
9LJW Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 2443–2993（551 aa）
Mutation：S15G/E86Q/E87Q/C223H/V321I GDP GUANOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant
Resolution 3.13 Å R-free 0.234

31 other PDB entries and 36 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name POLG_HCVJF
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–40； UniProt 1716–1755

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2lvg

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2lvg
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2lvg
Deposition date deposition_date2012-07-05
Structure title titleNMR structure of HCV Non-structural protein AB, NS4B(1-40)
Keywords keywordsmembrane protein; MEMBRANE PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier17.35 Å
Radius of gyration Rg (electron density) rg_electron17.41 Å
Forward intensity I(0) i0398327000.00
Molecular weight molecular_weight162100.0 kDa
Excluded volume excluded_volume201510 ų
Envelope volume envelope_volume33187 ų
Hydration-shell volume shell_volume13619 ų
Envelope diameter envelope_diameter73.9 Å
Shell Rg shell_rg27.01 Å
Envelope Rg envelope_rg22.79 Å
Shape Rg shape_rg17.37 Å
Total Rg total_rg17.76 Å
Total atoms total_atoms23088
Residues n_residues1480
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax45.9 Å
Rg (real space) rg_real16.05 Å
Rg uncertainty (real space) rg_real_error0.13 Å
I(0) (real space) i0_real3.7940e+08
I(0) uncertainty (real space) i0_real_error3.8050e+06
Rg (reciprocal space) rg_reciprocal17.77 Å
I(0) (reciprocal space) i0_reciprocal398300000.0000
Solution quality estimate total_estimate0.5628
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary9.1 Å
Skewness Skewness skewness0.340
Kurtosis Kurtosis kurtosis-0.940
Angular range angular_range— – 0.4600 Å−1
Current regularization parameter α current_alpha2.9320
Highest regularization parameter α highest_alpha12740.0000
Real-space data points n_real_points77
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.002; Oscil: 0.766; Stabil: 0.961; Sysdev: 0.000; Positv: 1.000; Valcen: 0.146; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id2lvgA00
Class class6 — Special
Architecture architecture10 — Helix non-globular
Topology topology250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily2920 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
