4wtf

CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH GS-639475, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU

Method: X-RAY DIFFRACTION D_max: 77.4 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-directed RNA polymerase

Hepatitis C virus JFH-1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Monomer Protein × 1 RNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 2443–3012	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	RNA PRIMER TEMPLATE CAAAAUUU × 2 MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 5GS 2'-C-methyluridine 5'-(trihydrogen diphosphate) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM GS-639475, 4 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A12, UNIQUE PUCK ID QXN0-1	Resolution 2.65 Å R-free 0.234

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4WTF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2KZQ s34r Structure Deposited 2010-06-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 684–719（36 aa） Fragment：E2[296-331] segment, UNP residues 684-719	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure ambient NMR sample composition 50 % trifluoroethanol; 50% H2O; 0.01% DSS; trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2LIF Solution Structure of KKGF Deposited 2011-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 171–195（25 aa） Fragment：UNP residues 171-195	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 2 mM kkgf, 0.01 mM DSS, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2LVG NMR structure of HCV Non-structural protein AB, NS4B(1-40) Deposited 2012-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1716–1755（40 aa） Fragment：UNP residues 1716-1755	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；298 K；Pressure ambient NMR sample composition 40 v/v H2O, 10 v/v [U-100% 2H] D2O, 50 v/v [U-100% 2H] TFE, 0.2 uM DSS, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2XXD HCV-JFH1 NS5B polymerase structure at 1.9 angstrom Deposited 2010-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3005（563 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2443-3005	Not recorded	PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2M SODIUM PHOSPHATE PH 6.5, 12% PEG3350.	Resolution 1.88 Å R-free 0.206
2XYM HCV-JFH1 NS5B T385A mutant Deposited 2010-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2443–3005（563 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2443-3005	Mutation：YES	PO4 PHOSPHATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M NAH2PO4, 2-5% PEG 35.000	Resolution 1.77 Å R-free 0.222
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
4AEP HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 1.8 ANGSTROM Deposited 2012-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350	Resolution 1.80 Å R-free 0.227
4AEX HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 2.4 ANGSTROM in a primitive orthorhombic space group Deposited 2012-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350	Resolution 2.41 Å R-free 0.230
4AEX HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 2.4 ANGSTROM in a primitive orthorhombic space group Deposited 2012-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350	Resolution 2.41 Å R-free 0.230
4E76 Apo crystal structure of HCV NS5B genotype 2A JFH-1 isolate with beta hairpin loop deletion Deposited 2012-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999 Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999	Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG	SO4 SULFATE ION × 7 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；3.95 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG550 MME, 0.1 M Bis-Tris propane, pH 6.5, 50 mM ammonium sulfate, cryoprotectant: 25% ethylene glycol, crystal tracking ID 227386E9, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.50 Å R-free 0.257
4E78 Crystal structure of a product state assembly of HCV NS5B genotype 2a JFH-1 isolate with beta hairpin loop deletion bound to primer-template RNA with 3'-dG Deposited 2012-03-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999 Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999	Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4.37 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG3350, 0.1 M Bis-Tris propane, pH 6.0, 200 mM ammonium acetate soaked overnight in precipitant supplemented with 15% ethylene glycol as cryoprotectant and 0.2 mM UACCG(3'DG), crystal tracking ID 227386E9, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.90 Å R-free 0.242
4E7A Crystal structure of a product state assembly of HCV NS5B genotype 2a JFH-1 isolate with beta hairpin deletion bound to primer-template RNA with a 2',3'-ddC Deposited 2012-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999 Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999	Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4.37 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG3350, 0.1 M Bis-Tris propane, pH 6.0, 200 mM ammonium acetate soaked overnight in precipitant supplemented with 15% ethylene glycol as cryoprotectant and 0.2 mM CUAGGC(DOC), crystal tracking ID 228018H11, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.00 Å R-free 0.241
4J1V Functional and structural studies of MOBKL1B, a Salvador/Warts/Hippo tumor suppressor pathway, in HCV replication Deposited 2013-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 2284–2303（20 aa） Chain G 2284–2303（20 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 1.95 Å R-free 0.225
4J1V Functional and structural studies of MOBKL1B, a Salvador/Warts/Hippo tumor suppressor pathway, in HCV replication Deposited 2013-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 2284–2303（20 aa） Chain H 2284–2303（20 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 1.95 Å R-free 0.225
4OBC Crystal structure of HCV polymerase NS5b genotype 2a JFH-1 isolate with the S15G, C223H, V321I resistance mutations against the guanosine analog GS-0938 (PSI-3529238) Deposited 2014-01-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3012（570 aa）	Mutation：S15G E86Q E87Q C223H V321I	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 2 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；NS5b VCID 5854 at 4.25 mg/mL in 5 mM Tris pH 7.5, 200 mM NH4OAc, 1 mM EDTA 1 mM DTT against PACT screen condition D5, 25% PEG 1500, 0.1M MMT Malic Acid, MES, Tris Buffer pH 8.0 supplemented with 20% glycerol as cryo-protectant, crystal tracking ID 223572d5, puck ID cps0237-1, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.50 Å R-free 0.223
4WT9 APO CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH E86Q E87Q S15G C223H V321I AND DELTA8 MUTATIONS Deposited 2014-10-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	CL CHLORIDE ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；NS5B AT 4.08 MG/ML IN 20 MM TRIS PH 8, 200 MM NACL, 20% GLYCEROL, 2 MM TCEP, 200 MM IMIDAZOLE AGAINST 30% PEG 550 MME, 0.1 M HEPES PH 7.5, 50 MM MAGNESIUM CHLORIDE WITH 15% ETHYLENE GLYCOL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 232769E7	Resolution 2.50 Å R-free 0.245
4WTA CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH UDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM UDP, 2 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148C3, UNIQUE PUCK ID DDL1-9	Resolution 2.80 Å R-free 0.224
4WTC CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH CDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-AGAAAUUU Deposited 2014-10-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM CDP, 4 MM 5'-AGAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 252991H7, UNIQUE PUCK ID YAT8-8	Resolution 2.75 Å R-free 0.229
4WTD CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH ADP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-AUAAAUUU Deposited 2014-10-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM ADP, 4 MM 5'-AUAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 250962A8, UNIQUE PUCK ID ZMG4-5	Resolution 2.70 Å R-free 0.223
4WTE CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH GDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-ACAAAUUU Deposited 2014-10-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM GDP, 4 MM 5'-ACAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 252991H5, UNIQUE PUCK ID YAT8-1	Resolution 2.90 Å R-free 0.219
4WTG CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH SOFOSBUVIR DIPHOSPHATE GS-607596, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 6GS 2'-deoxy-2'-fluoro-2'-methyluridine 5'-(trihydrogen diphosphate) × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED, INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM GS-607596, 4 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148C4, UNIQUE PUCK ID MCI3-1, PH 6.6	Resolution 2.90 Å R-free 0.232
4WTI CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-ACGG, RNA PRIMER 5'-PCC, MN2+, AND GDP Deposited 2014-10-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM GDP, 2 MM 5'-ACGG, 2 MM 5'-PCC, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A1, UNIQUE PUCK ID HDW8-2	Resolution 2.80 Å R-free 0.234
4WTJ CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-AUCC, RNA PRIMER 5'-PGG, MN2+, AND ADP Deposited 2014-10-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM CDP, 2 MM 5'-AGCC, 2 MM 5'-PGG, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A2, UNIQUE PUCK ID HDW8-4	Resolution 2.20 Å R-free 0.211
4WTK CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-AGCC, RNA PRIMER 5'-PGG, MN2+, AND CDP Deposited 2014-10-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550	Resolution 2.50 Å R-free 0.224
4WTL CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-UACC, RNA PRIMER 5'-PGG, MN2+, AND UDP Deposited 2014-10-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 25% PEG 3350, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRISPROPANE PH 6.0, 0.05 M TRIS PH 7.2, 0.6 MM MNCL2, 1.0 MM UDP,0.2 MM 5'-UACC, 0.2 MM 5'-PGG, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 238700A1, UNIQUE PUCK ID HAF1-1	Resolution 2.00 Å R-free 0.235
4WTM CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-UAGG, RNA PRIMER 5'-PCC, MN2+, AND UDP Deposited 2014-10-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM UDP, 4 MM 5'-UAGG, 4 MM 5'-PCC, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 247392A4, UNIQUE PUCK ID NRC3-7	Resolution 2.15 Å R-free 0.216
5TWM CRYSTAL STRUCTURE OF THE HEPATITIS C VIRUS GENOTYPE 2A STRAIN JFH1 L30S NS5B RNA-DEPENDENT RNA POLYMERASE IN COMPLEX WITH 5-[3-(tert-butylcarbamoyl)phenyl]-6-(ethylamino)-2-(4-fluorophenyl)-N-methylfuro[2,3-b]pyridine-3-carboxamide Deposited 2016-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3015（573 aa） Fragment：UNP residues 2443-3015	Mutation：L30S	7NG 5-[3-(tert-butylcarbamoyl)phenyl]-6-(ethylamino)-2-(4-fluorophenyl)-N-methylfuro[2,3-b]pyridine-3-carboxamide × 1 SO4 SULFATE ION × 4 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 1 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM Sodium Acetate, 25% (W/V) PEG 4000, 200 mM (NH4)2SO4	Resolution 1.97 Å R-free 0.207
9LJR Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	CDP CYTIDINE-5'-DIPHOSPHATE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/ hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant.	Resolution 2.74 Å R-free 0.219
9LJS Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 2.96 Å R-free 0.223
9LJT Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	CDP CYTIDINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 3.46 Å R-free 0.217
9LJU Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 2.92 Å R-free 0.216
9LJV Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	C5P CYTIDINE-5'-MONOPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 2.25 Å R-free 0.218
9LJW Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–2993（551 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 3.13 Å R-free 0.234

31 other PDB entries and 36 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	POLG_HCVJF
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 3–564； UniProt 2443–3012

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

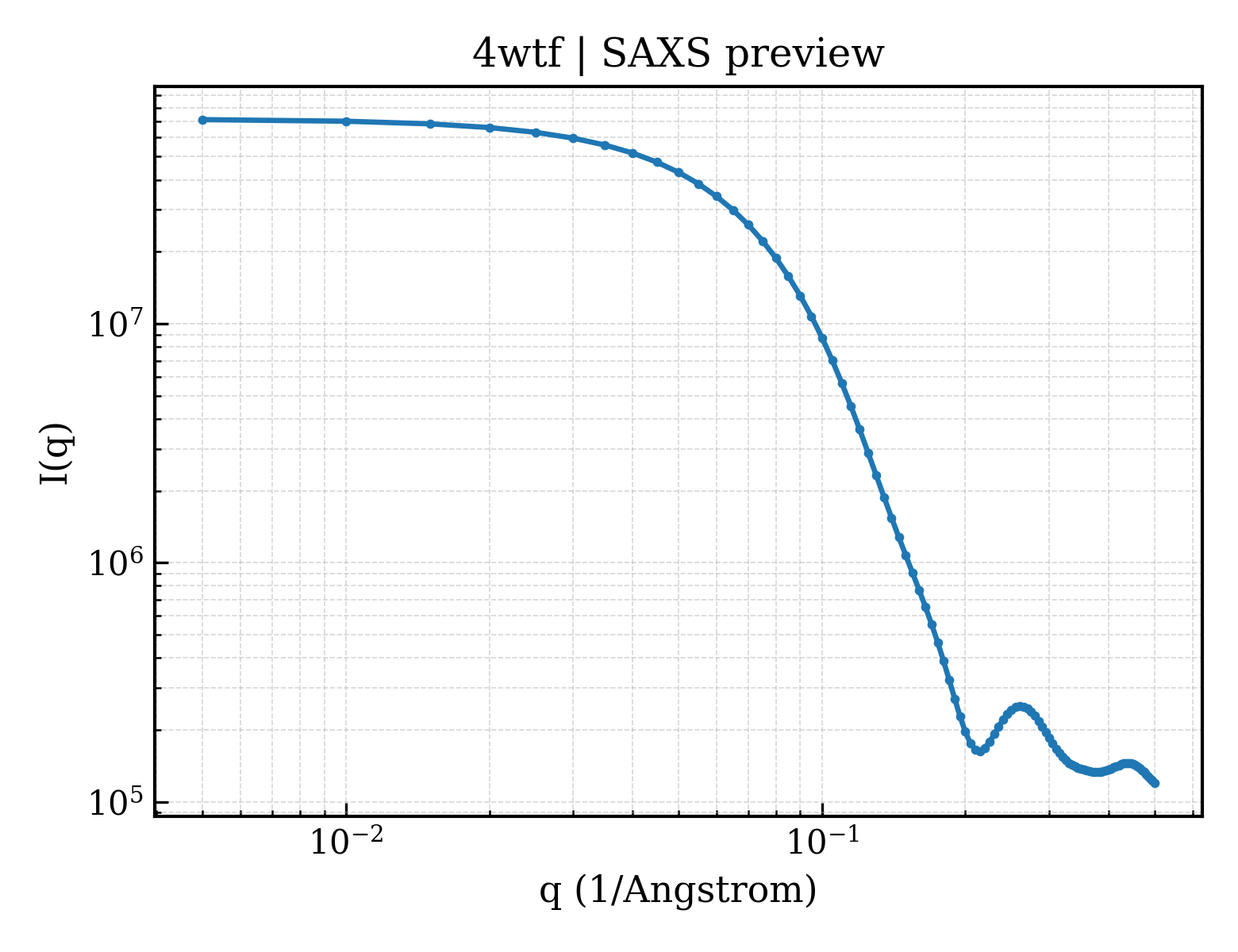

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4wtf
Deposition date deposition_date	2014-10-30
Structure title title	CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH GS-639475, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU
Keywords keywords	;HCV, VIRAL, NS5B, RDRP, RESISTANCE MUTATION, TEMPLATE, PRIMER, PRIMED INITIATION, DELTA8 BETA HAIRPIN LOOP DELETION, Transferase-RNA complex ;; Transferase/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.76 Å
Radius of gyration Rg (electron density) rg_electron	24.26 Å
Forward intensity I(0) i0	71703600.00
Molecular weight molecular_weight	62423.0 kDa
Excluded volume excluded_volume	76467 Å³
Envelope volume envelope_volume	91122 Å³
Hydration-shell volume shell_volume	30695 Å³
Envelope diameter envelope_diameter	81.5 Å
Shell Rg shell_rg	32.09 Å
Envelope Rg envelope_rg	24.22 Å
Shape Rg shape_rg	24.29 Å
Total Rg total_rg	24.98 Å
Total atoms total_atoms	4355
Residues n_residues	550
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	77.4 Å
Rg (real space) rg_real	24.64 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	7.1700e+07
I(0) uncertainty (real space) i0_real_error	8.9470e+05
Rg (reciprocal space) rg_reciprocal	24.67 Å
I(0) (reciprocal space) i0_reciprocal	71700000.0000
Solution quality estimate total_estimate	0.9041
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.5 Å
Skewness Skewness skewness	0.233
Kurtosis Kurtosis kurtosis	-0.482
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	18030000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.917; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	RNA PRIMER TEMPLATE CAAAAUUU
Molecular weight formula_weight	2495.5 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	T,P
Atom count atom_count	4444

CAAAAUUU

Entity 2 Entity 2 polymer

Description description	RNA-directed RNA polymerase
Molecular weight formula_weight	63755.2 kDa
EC 编号 ec_number	2.7.7.48
Mutation mutation	S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MSSMSYSWTGALITPCGPEEEKLPINPLSNSLLRYHNKVYCTTSKSASQRAKKVTFDRTQVLDAHYDSVLKDIKLAASKVSARLLTLQQACQLTPPHSARSKYGFGAKEVRSLSGRAVNHIKSVWKDLLEDPQTPIPTTIMAKNEVFCVDPAKGGKKPARLIVYPDLGVRVCEKMALYDITQKLPQAVMGASYGFQYSPAQRVEYLLKAWAEKKDPMGFSYDTRHFDSTVTERDIRTEESIYQACSLPEEARTAIHSLTERLYVGGPMFNSKGQTCGYRRCRASGVLTTSMGNTITCYVKALAACKAAGIVAPTMLVCGDDLIVISESQGTEEDERNLRAFTEAMTRYSAPPGDPPRPEYDLELITSCSSNVSVALGPRGRRRYYLTRDPTTPLARAAWETVRHSPINSWLGNIIQYAPTIWVRMVLMTHFFSILMVQDTLDQNLGGVNPLDLPAIIERLHGLDAFSMHTYSHHELTRVASALRKLGAPPLRVWKSRARAVRASLISRGGKAAVCGRYLFNWAVKTKLKLTPLPEARLLDLSSWFTVGAGGGDIFHSVSRARPRLEHHHHHH

来源 Source

来源生物 organism	Hepatitis C virus JFH-1
NCBI Class编号 ncbi_taxonomy_id	356411
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	;2'-C-methyluridine 5'-(trihydrogen diphosphate) ;
Molecular weight formula_weight	418.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	81

▶

8. Citations (1)

▶

Unit-cell length a length_a	141.650 Å
Unit-cell length b length_b	141.650 Å
Unit-cell length c length_c	91.640 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1890
R_work r_work	0.1870
R_free r_free	0.2340

fit	/app/data/saxs_computation/wt/4wtf/4wtf.fit
pddf	/app/data/pr_computation/wt/4wtf/4wtf.pr.out
profile	/app/data/saxs_computation/wt/4wtf/4wtf.dat
