4j1v

Functional and structural studies of MOBKL1B, a Salvador/Warts/Hippo tumor suppressor pathway, in HCV replication

Method: X-RAY DIFFRACTION D_max: 90.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MOB kinase activator 1A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 33–216	Not recorded	NS5A domain II peptide × 2 （Q99IB8） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 1.95 Å R-free 0.225
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 33–216	Not recorded	NS5A domain II peptide × 2 （Q99IB8） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 1.95 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4J1V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PI1 Crystal structure of a human Mob1 protein; toward understanding Mob-regulated cell cycle pathways. Deposited 2003-05-29	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 33–216（184 aa） Fragment：sequence database residues 33-216	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；Sodium Citrate, Bis-Tris Propane, isopropanol, DTT, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.242
4JIZ Human Mob1-phosphopeptide complex Deposited 2013-03-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 40–211（172 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å R-free 0.226
5BRK pMob1-Lats1 complex Deposited 2015-05-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–216（216 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；0.2 M di-Ammonium citrate 20% (W/V) PEG 3,350	Resolution 2.30 Å R-free 0.221
5BRM Structural basis for Mob1-dependent activation of the core Mst-Lats kinase cascade in Hippo signaling Deposited 2015-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 41–216（176 aa） Fragment：UNP residues 41-216 Chain B 41–216（176 aa） Fragment：UNP residues 41-216 Chain C 41–216（176 aa） Fragment：UNP residues 41-216 Chain D 41–216（176 aa） Fragment：UNP residues 41-216 Chain E 41–216（176 aa） Fragment：UNP residues 41-216 Chain F 41–216（176 aa） Fragment：UNP residues 41-216	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；2.4 M Na Malonate	Resolution 2.65 Å R-free 0.268
5TWF Regulation of protein interactions by MOB1 phosphorylation Deposited 2016-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–216（216 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；298 K；0.1 M MES pH 5.5, 0.2 M NH4Cl, and 20% PEG 6000	Resolution 3.14 Å R-free 0.291
5TWF Regulation of protein interactions by MOB1 phosphorylation Deposited 2016-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–216（216 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；298 K；0.1 M MES pH 5.5, 0.2 M NH4Cl, and 20% PEG 6000	Resolution 3.14 Å R-free 0.291
5TWF Regulation of protein interactions by MOB1 phosphorylation Deposited 2016-11-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–216（216 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；298 K；0.1 M MES pH 5.5, 0.2 M NH4Cl, and 20% PEG 6000	Resolution 3.14 Å R-free 0.291
5TWF Regulation of protein interactions by MOB1 phosphorylation Deposited 2016-11-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–216（216 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；298 K；0.1 M MES pH 5.5, 0.2 M NH4Cl, and 20% PEG 6000	Resolution 3.14 Å R-free 0.291
5TWG human MOB1A bound to human MST1 phosphorylated T353 peptide Deposited 2016-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–216（216 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；298 K；0.1 M MES pH 6.0, 0.2 M LiCl and 20% PEG 6000	Resolution 2.30 Å R-free 0.252
5TWH human MOB1A bound to MST1 phosphorylated T367 peptide Deposited 2016-11-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–216（216 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；298 K；0.1 M MES pH 6.0, 0.2 M LiCl and 20% PEG 6000	Resolution 2.50 Å R-free 0.260
5XQZ Structure of the MOB1-NDR2 complex Deposited 2017-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 33–216（184 aa） Fragment：UNP RESIDUES 33-216	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；PEG 3350, HEPES, magnesium chloride	Resolution 2.10 Å R-free 0.244
5XQZ Structure of the MOB1-NDR2 complex Deposited 2017-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–216（184 aa） Fragment：UNP RESIDUES 33-216	Not recorded	ZN ZINC ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；PEG 3350, HEPES, magnesium chloride	Resolution 2.10 Å R-free 0.244
6MCP L. pneumophila effector kinase LegK7 (AMP-PNP bound) in complex with human MOB1A Deposited 2018-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–213（181 aa） Fragment：UNP residues 33-213	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 9 P6G HEXAETHYLENE GLYCOL × 3 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1 M HEPES, pH 7.5, 21% PEG600, 0.2 M sodium chloride, 20 mM succinate	Resolution 2.50 Å R-free 0.233
6MCP L. pneumophila effector kinase LegK7 (AMP-PNP bound) in complex with human MOB1A Deposited 2018-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–213（181 aa） Fragment：UNP residues 33-213	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 9 P6G HEXAETHYLENE GLYCOL × 1 ZN ZINC ION × 1 MN MANGANESE (II) ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1 M HEPES, pH 7.5, 21% PEG600, 0.2 M sodium chloride, 20 mM succinate	Resolution 2.50 Å R-free 0.233
6MCQ L. pneumophila effector kinase LegK7 in complex with human MOB1A Deposited 2018-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–216（184 aa） Fragment：UNP residues 33-216	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 10 P6G HEXAETHYLENE GLYCOL × 3 PG4 TETRAETHYLENE GLYCOL × 3 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1 M HEPES, pH 7.5, 23% PEG600, 0.1 M lithium chloride, 20 mM succinate, pH 7.0	Resolution 2.57 Å R-free 0.245
6MCQ L. pneumophila effector kinase LegK7 in complex with human MOB1A Deposited 2018-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–216（184 aa） Fragment：UNP residues 33-216	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 6 PG4 TETRAETHYLENE GLYCOL × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；0.1 M HEPES, pH 7.5, 23% PEG600, 0.1 M lithium chloride, 20 mM succinate, pH 7.0	Resolution 2.57 Å R-free 0.245

10 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MOB1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–184； UniProt 33–216 Author chain C； PDBConstruct 1–184； UniProt 33–216

NS5A domain II peptide

OrganismNot specified

UniProt Q99IB8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain E； UniProt 2284–2303 Chain G； UniProt 2284–2303	Not recorded	MOB kinase activator 1A × 1 （Q9H8S9） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 1.95 Å R-free 0.225
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain F； UniProt 2284–2303 Chain H； UniProt 2284–2303	Not recorded	MOB kinase activator 1A × 1 （Q9H8S9） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；279 K；0.1 M HEPES, 0.1 M KCl, 15% PEG5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 1.95 Å R-free 0.225

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 4J1V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2KZQ s34r Structure Deposited 2010-06-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 684–719（36 aa） Fragment：E2[296-331] segment, UNP residues 684-719	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Pressure ambient NMR sample composition 50 % trifluoroethanol; 50% H2O; 0.01% DSS; trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2LIF Solution Structure of KKGF Deposited 2011-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 171–195（25 aa） Fragment：UNP residues 171-195	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions 298 K；Pressure ambient NMR sample composition 2 mM kkgf, 0.01 mM DSS, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2LVG NMR structure of HCV Non-structural protein AB, NS4B(1-40) Deposited 2012-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1716–1755（40 aa） Fragment：UNP residues 1716-1755	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；298 K；Pressure ambient NMR sample composition 40 v/v H2O, 10 v/v [U-100% 2H] D2O, 50 v/v [U-100% 2H] TFE, 0.2 uM DSS, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
2XXD HCV-JFH1 NS5B polymerase structure at 1.9 angstrom Deposited 2010-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3005（563 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2443-3005	Not recorded	PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2M SODIUM PHOSPHATE PH 6.5, 12% PEG3350.	Resolution 1.88 Å R-free 0.206
2XYM HCV-JFH1 NS5B T385A mutant Deposited 2010-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2443–3005（563 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2443-3005	Mutation：YES	PO4 PHOSPHATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M NAH2PO4, 2-5% PEG 35.000	Resolution 1.77 Å R-free 0.222
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
3I5K Crystal structure of the NS5B polymerase from Hepatitis C Virus (HCV) strain JFH1 Deposited 2009-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2443–3007（565 aa） Fragment：N-terminal catalytic region, UNP residues 2443-3007	Not recorded	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；6 to 7% PEG20000, 0.2M NaH2PO4, pH7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.228
4AEP HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 1.8 ANGSTROM Deposited 2012-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013	Not recorded	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350	Resolution 1.80 Å R-free 0.227
4AEX HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 2.4 ANGSTROM in a primitive orthorhombic space group Deposited 2012-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350	Resolution 2.41 Å R-free 0.230
4AEX HCV-JFH1 NS5B POLYMERASE STRUCTURE AT 2.4 ANGSTROM in a primitive orthorhombic space group Deposited 2012-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2442–3013（572 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 2442-3013	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M SODIUM PHOSPHATE PH 6.5, 8-12% PEG 3350	Resolution 2.41 Å R-free 0.230
4E76 Apo crystal structure of HCV NS5B genotype 2A JFH-1 isolate with beta hairpin loop deletion Deposited 2012-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999 Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999	Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG	SO4 SULFATE ION × 7 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；3.95 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG550 MME, 0.1 M Bis-Tris propane, pH 6.5, 50 mM ammonium sulfate, cryoprotectant: 25% ethylene glycol, crystal tracking ID 227386E9, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.50 Å R-free 0.257
4E78 Crystal structure of a product state assembly of HCV NS5B genotype 2a JFH-1 isolate with beta hairpin loop deletion bound to primer-template RNA with 3'-dG Deposited 2012-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999 Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999	Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4.37 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG3350, 0.1 M Bis-Tris propane, pH 6.0, 200 mM ammonium acetate soaked overnight in precipitant supplemented with 15% ethylene glycol as cryoprotectant and 0.2 mM UACCG(3'DG), crystal tracking ID 227386E9, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.90 Å R-free 0.242
4E7A Crystal structure of a product state assembly of HCV NS5B genotype 2a JFH-1 isolate with beta hairpin deletion bound to primer-template RNA with a 2',3'-ddC Deposited 2012-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–2885（443 aa） Fragment：SEE REMARK 999 Chain A 2896–3012（117 aa） Fragment：SEE REMARK 999	Mutation：E86Q, E87Q, Delta8 replaced with GG Mutation：E86Q, E87Q, Delta8 replaced with GG	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；289 K；4.37 mg/mL NS5B in 20 mM Tris, pH 8, 200 mM sodium chloride, 20% glycerol, 2 mM TCEP, 200 mM imidazole against 30% PEG3350, 0.1 M Bis-Tris propane, pH 6.0, 200 mM ammonium acetate soaked overnight in precipitant supplemented with 15% ethylene glycol as cryoprotectant and 0.2 mM CUAGGC(DOC), crystal tracking ID 228018H11, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.00 Å R-free 0.241
4OBC Crystal structure of HCV polymerase NS5b genotype 2a JFH-1 isolate with the S15G, C223H, V321I resistance mutations against the guanosine analog GS-0938 (PSI-3529238) Deposited 2014-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3012（570 aa）	Mutation：S15G E86Q E87Q C223H V321I	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 2 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；289 K；NS5b VCID 5854 at 4.25 mg/mL in 5 mM Tris pH 7.5, 200 mM NH4OAc, 1 mM EDTA 1 mM DTT against PACT screen condition D5, 25% PEG 1500, 0.1M MMT Malic Acid, MES, Tris Buffer pH 8.0 supplemented with 20% glycerol as cryo-protectant, crystal tracking ID 223572d5, puck ID cps0237-1, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.50 Å R-free 0.223
4WT9 APO CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH E86Q E87Q S15G C223H V321I AND DELTA8 MUTATIONS Deposited 2014-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	CL CHLORIDE ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；NS5B AT 4.08 MG/ML IN 20 MM TRIS PH 8, 200 MM NACL, 20% GLYCEROL, 2 MM TCEP, 200 MM IMIDAZOLE AGAINST 30% PEG 550 MME, 0.1 M HEPES PH 7.5, 50 MM MAGNESIUM CHLORIDE WITH 15% ETHYLENE GLYCOL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 232769E7	Resolution 2.50 Å R-free 0.245
4WTA CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH UDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM UDP, 2 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148C3, UNIQUE PUCK ID DDL1-9	Resolution 2.80 Å R-free 0.224
4WTC CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH CDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-AGAAAUUU Deposited 2014-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM CDP, 4 MM 5'-AGAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 252991H7, UNIQUE PUCK ID YAT8-8	Resolution 2.75 Å R-free 0.229
4WTD CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH ADP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-AUAAAUUU Deposited 2014-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM ADP, 4 MM 5'-AUAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 250962A8, UNIQUE PUCK ID ZMG4-5	Resolution 2.70 Å R-free 0.223
4WTE CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH GDP, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-ACAAAUUU Deposited 2014-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM GDP, 4 MM 5'-ACAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 252991H5, UNIQUE PUCK ID YAT8-1	Resolution 2.90 Å R-free 0.219
4WTF CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH GS-639475, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 5GS 2'-C-methyluridine 5'-(trihydrogen diphosphate) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM GS-639475, 4 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A12, UNIQUE PUCK ID QXN0-1	Resolution 2.65 Å R-free 0.234
4WTG CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS AND DELTA8 BETA HAIRPIN LOOP DELETION IN COMPLEX WITH SOFOSBUVIR DIPHOSPHATE GS-607596, MN2+ AND SYMMETRICAL PRIMER TEMPLATE 5'-CAAAAUUU Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I, UNP residues 2886-2895 NFEMYGSVYS deleted and replaced by GG linker	MN MANGANESE (II) ION × 3 6GS 2'-deoxy-2'-fluoro-2'-methyluridine 5'-(trihydrogen diphosphate) × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 5.1 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED, INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM GS-607596, 4 MM 5'-CAAAAUUU WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148C4, UNIQUE PUCK ID MCI3-1, PH 6.6	Resolution 2.90 Å R-free 0.232
4WTI CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-ACGG, RNA PRIMER 5'-PCC, MN2+, AND GDP Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM GDP, 2 MM 5'-ACGG, 2 MM 5'-PCC, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A1, UNIQUE PUCK ID HDW8-2	Resolution 2.80 Å R-free 0.234
4WTJ CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-AUCC, RNA PRIMER 5'-PGG, MN2+, AND ADP Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 6 MM MNCL2, 10 MM CDP, 2 MM 5'-AGCC, 2 MM 5'-PGG, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 251148A2, UNIQUE PUCK ID HDW8-4	Resolution 2.20 Å R-free 0.211
4WTK CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-AGCC, RNA PRIMER 5'-PGG, MN2+, AND CDP Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550	Resolution 2.50 Å R-free 0.224
4WTL CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-UACC, RNA PRIMER 5'-PGG, MN2+, AND UDP Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 2 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 25% PEG 3350, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRISPROPANE PH 6.0, 0.05 M TRIS PH 7.2, 0.6 MM MNCL2, 1.0 MM UDP,0.2 MM 5'-UACC, 0.2 MM 5'-PGG, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 238700A1, UNIQUE PUCK ID HAF1-1	Resolution 2.00 Å R-free 0.235
4WTM CRYSTAL STRUCTURE OF HCV NS5B GENOTYPE 2A JFH-1 ISOLATE WITH S15G E86Q E87Q C223H V321I MUTATIONS IN COMPLEX WITH RNA TEMPLATE 5'-UAGG, RNA PRIMER 5'-PCC, MN2+, AND UDP Deposited 2014-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–3012（570 aa）	Mutation：S2457G, E2528Q, E2529Q, C2665H, V2763I	MN MANGANESE (II) ION × 3 CL CHLORIDE ION × 1 UDP URIDINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；289 K；NS5B AT 4.7 MG/ML IN 5 MM TRIS PH 7.5, 200 MM NH4OAC, 1 MM EDTA, 1 MM DTT AGAINST 25% PEG 550 MME, 50 MM MGCL2, 0.1 M HEPES PH 7.5 FOR CRYSTAL GROWTH SOAKED INTO 28% PEG 550 MME, 0.2 M AMMONIUM ACETATE, 0.05 M BISTRIS PROPANE PH 6.0, 0.05 M TRIS PH 7.2, 12 MM MNCL2, 20 MM UDP, 4 MM 5'-UAGG, 4 MM 5'-PCC, WITH 8% GLYCEROL AS CRYO-PROTECTANT, CRYSTAL TRACKING ID 247392A4, UNIQUE PUCK ID NRC3-7	Resolution 2.15 Å R-free 0.216
5TWM CRYSTAL STRUCTURE OF THE HEPATITIS C VIRUS GENOTYPE 2A STRAIN JFH1 L30S NS5B RNA-DEPENDENT RNA POLYMERASE IN COMPLEX WITH 5-[3-(tert-butylcarbamoyl)phenyl]-6-(ethylamino)-2-(4-fluorophenyl)-N-methylfuro[2,3-b]pyridine-3-carboxamide Deposited 2016-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2443–3015（573 aa） Fragment：UNP residues 2443-3015	Mutation：L30S	7NG 5-[3-(tert-butylcarbamoyl)phenyl]-6-(ethylamino)-2-(4-fluorophenyl)-N-methylfuro[2,3-b]pyridine-3-carboxamide × 1 SO4 SULFATE ION × 4 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 1 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；100 mM Sodium Acetate, 25% (W/V) PEG 4000, 200 mM (NH4)2SO4	Resolution 1.97 Å R-free 0.207
9LJR Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	CDP CYTIDINE-5'-DIPHOSPHATE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/ hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant.	Resolution 2.74 Å R-free 0.219
9LJS Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 CDP CYTIDINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 2.96 Å R-free 0.223
9LJT Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	CDP CYTIDINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 3.46 Å R-free 0.217
9LJU Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 2.92 Å R-free 0.216
9LJV Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 2443–2995（553 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	C5P CYTIDINE-5'-MONOPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 2.25 Å R-free 0.218
9LJW Structural insights into the polymerase catalyzed FAD-capping of hepatitis C viral RNA Deposited 2025-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 2443–2993（551 aa）	Mutation：S15G/E86Q/E87Q/C223H/V321I	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 2 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289.15 K；PEG 3350, 100 mM Bis-Tris propane/hydrochloric acid, pH 8.5, 200 mM Sodium malonate dibasic precipitant	Resolution 3.13 Å R-free 0.234

31 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	POLG_HCVJF
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–20； UniProt 2284–2303 Author chain F； PDBConstruct 1–20； UniProt 2284–2303 Author chain G； PDBConstruct 1–20； UniProt 2284–2303 Author chain H； PDBConstruct 1–20； UniProt 2284–2303

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

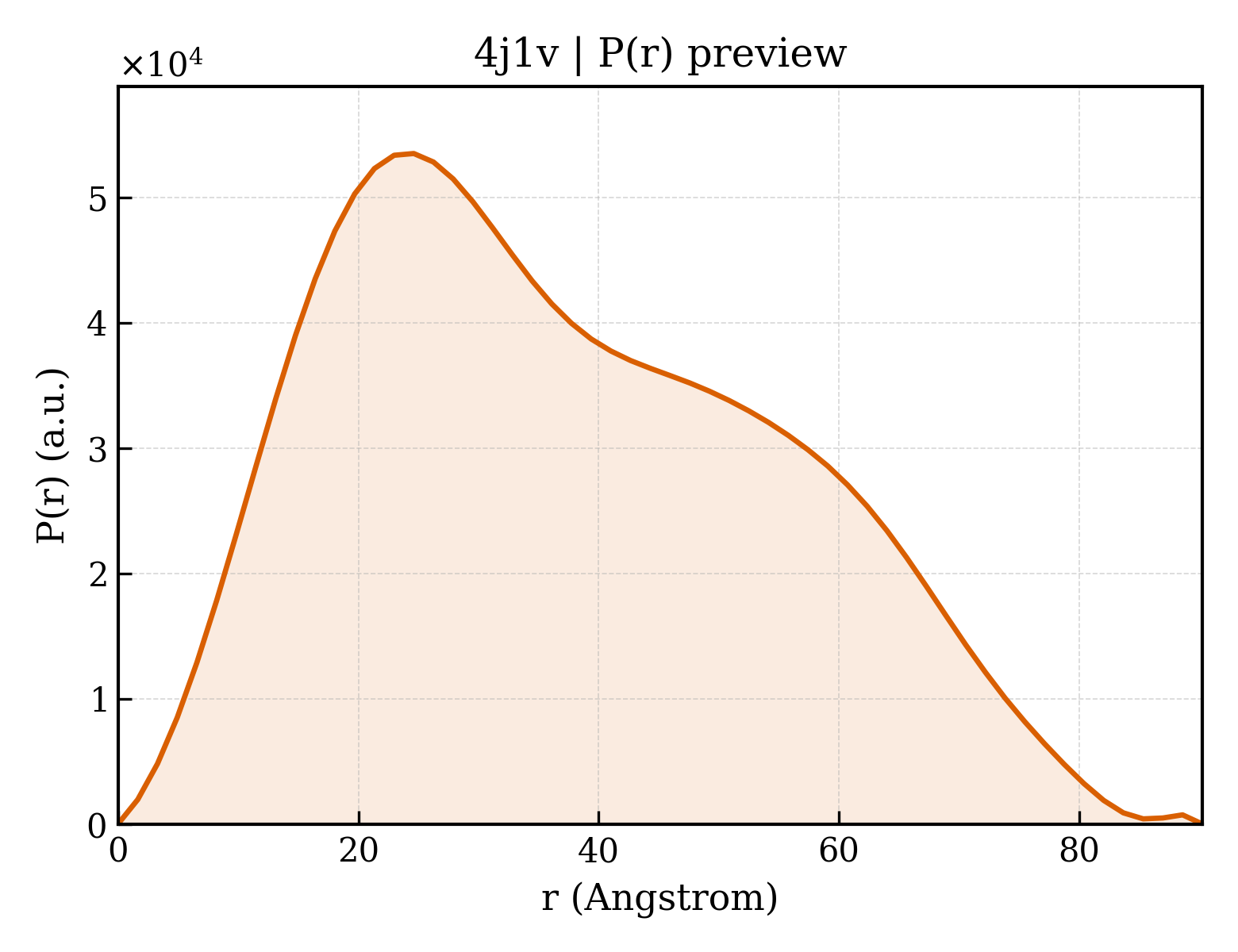

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4j1v
Deposition date deposition_date	2013-02-02
Structure title title	Functional and structural studies of MOBKL1B, a Salvador/Warts/Hippo tumor suppressor pathway, in HCV replication
Keywords keywords	HCV NS5A binding protein, NS5A, PEPTIDE BINDING PROTEIN-VIRAL PROTEIN complex; PEPTIDE BINDING PROTEIN/VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.93 Å
Radius of gyration Rg (electron density) rg_electron	28.25 Å
Forward intensity I(0) i0	30566500.00
Molecular weight molecular_weight	44510.0 kDa
Excluded volume excluded_volume	56231 Å³
Envelope volume envelope_volume	72864 Å³
Hydration-shell volume shell_volume	22445 Å³
Envelope diameter envelope_diameter	95.9 Å
Shell Rg shell_rg	34.26 Å
Envelope Rg envelope_rg	27.76 Å
Shape Rg shape_rg	28.23 Å
Total Rg total_rg	28.99 Å
Total atoms total_atoms	3140
Residues n_residues	380
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	90.3 Å
Rg (real space) rg_real	29.07 Å
Rg uncertainty (real space) rg_real_error	0.85 Å
I(0) (real space) i0_real	3.0570e+07
I(0) uncertainty (real space) i0_real_error	5.2230e+05
Rg (reciprocal space) rg_reciprocal	29.01 Å
I(0) (reciprocal space) i0_reciprocal	30570000.0000
Solution quality estimate total_estimate	0.8591
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.6 Å
Skewness Skewness skewness	0.345
Kurtosis Kurtosis kurtosis	-0.762
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5618000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.871; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.746; Smooth: 0.805

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MOB kinase activator 1A
Molecular weight formula_weight	21397.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	3526

EATLGSGNLRQAVMLPEGEDLNEWIAVNTVDFFNQINMLYGTITEFCTEASCPVMSAGPRYEYHWADGTNIKKPIKCSAPKYIDYLMTWVQDQLDDETLFPSKIGVPFPKNFMSVAKTILKRLFRVYAHIYHQHFDSVMQLQEEAHLNTSFKHFIFFVQEFNLIDRRELAPLQELIEKLGSKDR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	NS5A domain II peptide
Molecular weight formula_weight	2397.7 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,G,F,H

ALPAWARPDYNPPLVESWRR

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	386

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4j1vA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	30 — MOB kinase activator

Domain ID domain_id	4j1vC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	30 — MOB kinase activator

▶

8. Citations (1)

▶

Unit-cell length a length_a	50.094 Å
Unit-cell length b length_b	54.573 Å
Unit-cell length c length_c	86.574 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	89.95 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	36.900 Å
R factor r_factor	—
R_work r_work	0.1960
R_free r_free	0.2250

fit	/app/data/saxs_computation/j1/4j1v/4j1v.fit
pddf	/app/data/pr_computation/j1/4j1v/4j1v.pr.out
profile	/app/data/saxs_computation/j1/4j1v/4j1v.dat
