SAXSdb — 2n73

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Golgi resident protein GCP60

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 241–308	Fragment：UNP residues 241-308	Phosphatidylinositol 4-kinase beta × 1 （A0A0B4J1S8）	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition：0.47 mM [U-13C; U-15N] protein_1, 0.47 mM [U-13C; U-15N] protein_2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2N73	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2N72 Solution structure of the Q domain from ACBD3 Deposited 2015-09-02	Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 241–308（68 aa） Fragment：UNP residues 241-308	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.28 mM [U-13C; U-15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5LZ1 Crystal structure of human ACBD3 GOLD domain Deposited 2016-09-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100mM Tris pH 8.8, 25% w/v PEG 3.350, 20% glycerol, 20mM 2-propanol/1,2 -propanediol/1,3-propanediol/1-butanol/1,4-butanediol/1,6-hexanediol	Resolution 2.00 Å R-free 0.247
5LZ3 Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of Aichivirus A Deposited 2016-09-29	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100mM MOPS/HEPES pH 7.5, 12.5% w/v PEG 1.000, 12.5% w/v PEG 3.350, 12.5% v/v MPD, 20mM D-glucose/D-mannose/D-galactose/L-fucose/D-xylose/N-acetyl-D-glucosamine	Resolution 3.00 Å R-free 0.248
5LZ6 Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of Aichivirus B Deposited 2016-09-29	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	BGC beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；100mM MOPSO/Bis-Tris pH 6.5, 15% w/v PEG 3.000, 1% w/v DDAO, 10% 1,4-butanediol, 10% w/v glucose, 20mM L-arginine/L-threonine/L-histidine/betaine, 10mM trans-4-hydroxy-L-proline	Resolution 2.60 Å R-free 0.260
5TDQ Crystal Structure of the GOLD domain of ACBD3 Deposited 2016-09-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 367–528（162 aa） Fragment：GOLD domain, UNP residues 367-528	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；13% PEG 4000, 200 mM Ammonium Sulfate, 100 mM HEPES, 10% 2-propanol, 10% glycerol	Resolution 2.49 Å R-free 0.262
6HLN Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of enterovirus-D68 Deposited 2018-09-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；10% w/v PEG 8000, 6% v/v 1,5-pentanediol, 14% v/v PEG 200, 10 mM spermine, 10 mM spermidine, 10 mM DL-ornithine, 10 mM 1,4-diaminobutane, 300 mM NaCl, 100 mM GlyGly/AMPD pH 8.5	Resolution 2.10 Å R-free 0.251
6HLT Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of rhinovirus-14 (HRV14) Deposited 2018-09-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 30 mM MgCl2, 30 mM CaCl2, 100 mM bicine/Tris pH 8.5	Resolution 2.81 Å R-free 0.239
6HLT Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of rhinovirus-14 (HRV14) Deposited 2018-09-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；10% w/v PEG 8000, 20% v/v ethylene glycol, 30 mM MgCl2, 30 mM CaCl2, 100 mM bicine/Tris pH 8.5	Resolution 2.81 Å R-free 0.239
6HLV Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of poliovirus-1 (L24A mutant) Deposited 2018-09-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12,5% w/v PEG 4000, 20% v/v 1,2,6-hexanetriol, 4% v/v tert-butanol, 1 mM rubidium chloride, 1 mM strontium chloride, 1 mM cesium acetate, 1 mM barium acetate, 100 mM GlyGly/AMPD pH 8.5	Resolution 2.50 Å R-free 0.241
6HLW Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of enterovirus-A71 (fusion protein) Deposited 2018-09-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；5% w/v PEG 20.000, 25% v/v 1,1,1-tris(hydroxymethyl)propane, 1% w/v NDSB 201, 0.5 mM MgCl2, 0.5mM CoCl2, 0.5 mM NiCl2, 0.5 mM ZnCl2, 100 mM BES/TEA pH 7.5	Resolution 2.73 Å R-free 0.256
6HLW Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of enterovirus-A71 (fusion protein) Deposited 2018-09-11	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；5% w/v PEG 20.000, 25% v/v 1,1,1-tris(hydroxymethyl)propane, 1% w/v NDSB 201, 0.5 mM MgCl2, 0.5mM CoCl2, 0.5 mM NiCl2, 0.5 mM ZnCl2, 100 mM BES/TEA pH 7.5	Resolution 2.73 Å R-free 0.256
6HM8 Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of enterovirus-D68 (fusion protein) Deposited 2018-09-12	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；10% w/v PEG 8000, 6% v/v 1,5-pentanediol, 14% v/v PEG 200, 10 mM spermine, 10 mM spermidine, 10 mM DL-ornithine, 10 mM 1,4-diaminobutane, 200 mM NaCl, 100 mM GlyGly/AMPD pH 8.5	Resolution 2.28 Å R-free 0.233
6HMV Crystal structure of human ACBD3 GOLD domain in complex with 3A protein of enterovirus-D68 (fusion protein, LVVY mutant) Deposited 2018-09-13	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 364–528（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 30 mM MgCl2, 30 mM CaCl2, 100 mM bicine/Tris pH 8.5	Resolution 2.24 Å R-free 0.265

11 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GCP60_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–69； UniProt 241–308

Phosphatidylinositol 4-kinase beta

Homo sapiens

UniProt A0A0B4J1S8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 5–80	Fragment：UNP residues 5-80	Golgi resident protein GCP60 × 1 （Q9H3P7）	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition：0.47 mM [U-13C; U-15N] protein_1, 0.47 mM [U-13C; U-15N] protein_2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2N73	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5LX2 Lt 14-3-3 in complex with PI4KIIIB peptide Deposited 2016-09-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 304–309（6 aa） Fragment：UNP residues 304-309	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；MES, PEG 8000, ethylene glycol	Resolution 2.58 Å R-free 0.263
8Q6F HUMAN PI4KIIIB IN COMPLEX WITH COVALENTLY BOUND INHIBITOR (COMPOUND 4) Deposited 2023-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 531–828（298 aa）	Mutation：R409Q,R412Q	KHR 3-(3-fluorosulfonyloxy-4-methoxy-phenyl)-2,5-dimethyl-7-(pyridin-4-ylmethylamino)pyrazolo[1,5-a]pyrimidine × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 7 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Sodium Formate	Resolution 1.51 Å R-free 0.224
8Q6G HUMAN PI4KIIIB IN COMPLEX WITH COVALENTLY BOUND INHIBITOR (COMPOUND 8) Deposited 2023-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 531–828（298 aa）	Mutation：R409Q,R412Q	KIH 3-(3,4-dimethoxyphenyl)-7-[(4-fluorosulfonyloxyphenyl)methylamino]-2,5-dimethyl-pyrazolo[1,5-a]pyrimidine × 1 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Sodium Formate	Resolution 1.54 Å R-free 0.221
8Q6H HUMAN PI4KIIIB IN COMPLEX WITH COVALENTLY BOUND INHIBITOR (COMPOUND 11) Deposited 2023-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 531–828（298 aa）	Mutation：R409Q,R412Q	MG MAGNESIUM ION × 1 KI7 3-(3-fluorosulfonyloxy-4-methoxy-phenyl)-7-[(4-fluorosulfonyloxyphenyl)methylamino]-2,5-dimethyl-pyrazolo[1,5-a]pyrimidine × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Sodium Formate	Resolution 1.94 Å R-free 0.237

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A0B4J1S8_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–80； UniProt 5–80

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2n73
Deposition date deposition_date	2015-09-02
Structure title title	Solution structure of the ACBD3:PI4KB complex
Keywords keywords	kinase, TRANSFERASE-TRANSFERASE REGULATOR complex; TRANSFERASE/TRANSFERASE REGULATOR
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.84 Å
Radius of gyration Rg (electron density) rg_electron	32.85 Å
Forward intensity I(0) i0	7816160000.00
Molecular weight molecular_weight	733030.0 kDa
Excluded volume excluded_volume	911190 Å³
Envelope volume envelope_volume	547030 Å³
Hydration-shell volume shell_volume	85333 Å³
Envelope diameter envelope_diameter	168.5 Å
Shell Rg shell_rg	55.60 Å
Envelope Rg envelope_rg	52.78 Å
Shape Rg shape_rg	32.79 Å
Total Rg total_rg	33.40 Å
Total atoms total_atoms	102735
Residues n_residues	6705
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

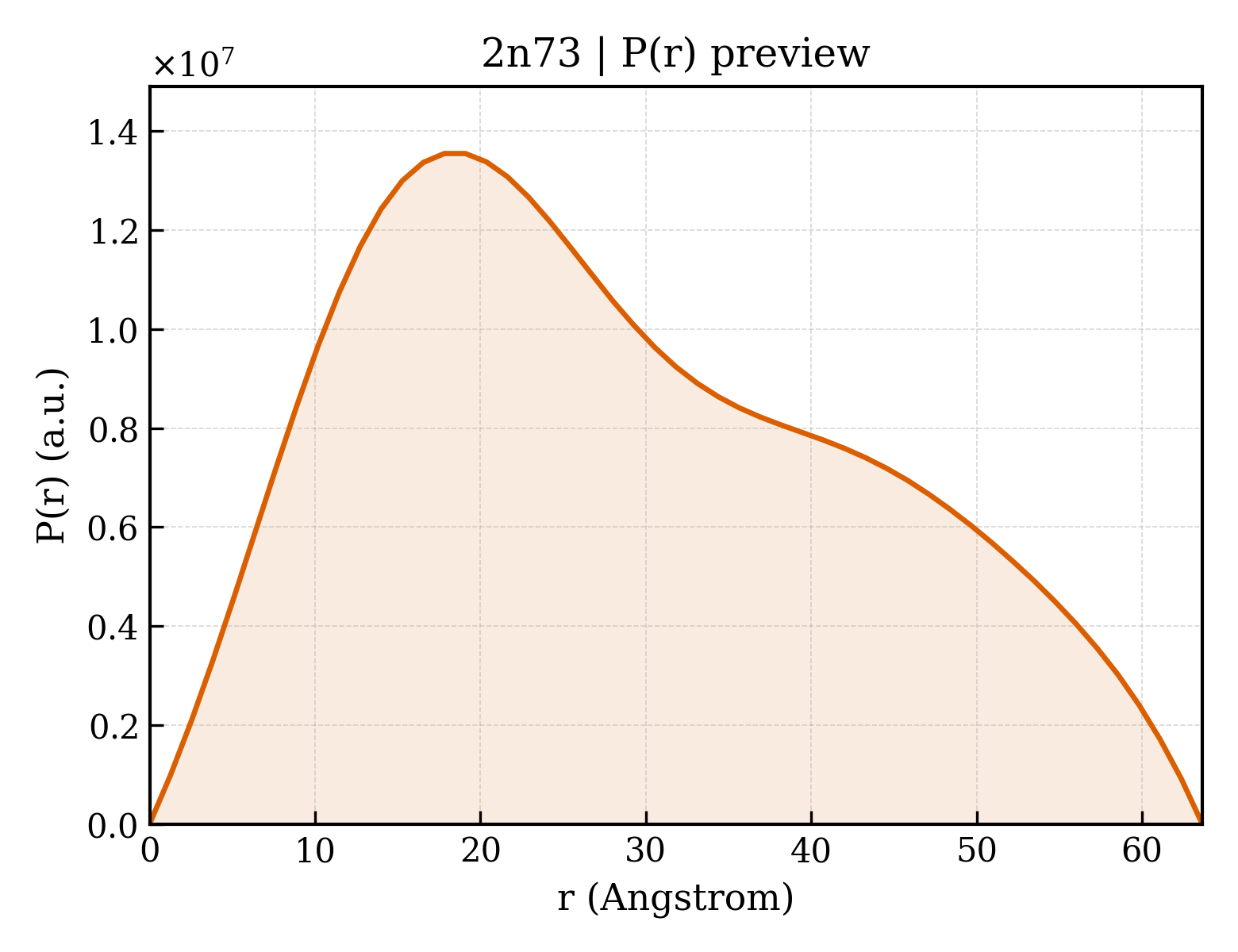

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	63.6 Å
Rg (real space) rg_real	22.47 Å
Rg uncertainty (real space) rg_real_error	0.11 Å
I(0) (real space) i0_real	6.1780e+09
I(0) uncertainty (real space) i0_real_error	5.6810e+07
Rg (reciprocal space) rg_reciprocal	32.48 Å
I(0) (reciprocal space) i0_reciprocal	7813000000.0000
Solution quality estimate total_estimate	0.5620
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	0
Primary peak position r_peak_primary	— Å
Skewness Skewness skewness	0.359
Kurtosis Kurtosis kurtosis	-0.822
Angular range angular_range	— – 0.2500 Å⁻¹
Current regularization parameter α current_alpha	8.5470
Highest regularization parameter α highest_alpha	223700.0000
Real-space data points n_real_points	51
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 0.908; Sysdev: 0.000; Positv: 1.000; Valcen: 0.678; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Golgi resident protein GCP60
Molecular weight formula_weight	8293.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	102735

MQQKQQIMAALNSQTAVQFQQYAAQQYPGNYEQQQILIRQLQEQHYQQYMQQLYQVQLAQQQAALQKQQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Phosphatidylinositol 4-kinase beta
Molecular weight formula_weight	8010.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GAMVEARSLAVAMGDTVVEPAPLKPTSEPTSGPPGNNGGSLLSVITEGVGELSVIDPEVAQKACQEVLEKVKLLHGGVAV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/n7/2n73/2n73.fit
pddf	/app/data/pr_computation/n7/2n73/2n73.pr.out
profile	/app/data/saxs_computation/n7/2n73/2n73.dat

Solution structure of the ACBD3:PI4KB complex
