SAXSdb — 2pv1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chaperone surA

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 172–274	Fragment：PpiC 1	Glycosyl transferase, group 1 × 1 （Q2RHX9）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；25~28% polyethylene glycol monomethylether 5000, 0.2 M ammonium sulfate, 0.1 M MES buffer, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.30 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2PV1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1M5Y Crystallographic Structure of SurA, a Molecular Chaperone that Facilitates Outer Membrane Porin Folding Deposited 2002-07-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 21–428（408 aa） Chain B 21–428（408 aa） Chain C 21–428（408 aa） Chain D 21–428（408 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；303 K；0.75M ammonium sulphate, 100mM sodium citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 303K, VAPOR DIFFUSION, HANGING DROP, temperature 303.0K	Resolution 3.00 Å R-free 0.283
2PV2 Crystallographic Structure of SurA first peptidyl-prolyl isomerase domain complexed with peptide NFTLKFWDIFRK Deposited 2007-05-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 172–274（103 aa） Fragment：PPIC 1 Chain B 172–274（103 aa） Fragment：PPIC 1	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；24% ployethylene glycol 8000, 0.1 M imdidazole, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.30 Å R-free 0.227
2PV2 Crystallographic Structure of SurA first peptidyl-prolyl isomerase domain complexed with peptide NFTLKFWDIFRK Deposited 2007-05-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 172–274（103 aa） Fragment：PPIC 1 Chain D 172–274（103 aa） Fragment：PPIC 1	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；24% ployethylene glycol 8000, 0.1 M imdidazole, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.30 Å R-free 0.227
2PV3 Crystallographic Structure of SurA fragment lacking the second peptidyl-prolyl isomerase domain complexed with peptide NFTLKFWDIFRK Deposited 2007-05-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain not uniquely mapped Reference range not declared Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted Chain A 21–281（261 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted Chain A 391–428（38 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted Chain B 21–281（261 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted Chain B 391–428（38 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；1.4~1.8M sodium chloride, 0.1M potassium dihydrogen phosphate, 0.1 M sodium dihydrogen phosphate, 0.1M MES buffer, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.39 Å R-free 0.299
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 20–428（409 aa）	Mutation：K27C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 21–428（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 21–428（408 aa）	Mutation：K27C	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 21–428（408 aa）	Mutation：K27C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain P 21–428（408 aa）	Mutation：S1299C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 21–428（408 aa）	Mutation：K27C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric	Chain F 21–428（408 aa）	Mutation：K27C,R170C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 21–428（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 21–428（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 21–428（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.73 Å
9HG7 BAM-SurA complex in the swing-out state Deposited 2024-11-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 21–428（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain F 21–428（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 21–428（408 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 21–428（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å

17 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SURA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–103； UniProt 172–274

Glycosyl transferase, group 1

OrganismNot specified

UniProt Q2RHX9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 171–175	Not recorded	Chaperone surA × 1 （P0ABZ6）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；25~28% polyethylene glycol monomethylether 5000, 0.2 M ammonium sulfate, 0.1 M MES buffer, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.30 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q2RHX9_MOOTA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–5； UniProt 171–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2pv1
Deposition date deposition_date	2007-05-09
Structure title title	Crystallographic Structure of SurA first peptidyl-prolyl isomerase domain complexed with peptide WEYIPNV
Keywords keywords	Survival protein A, Peptidyl-prolyl cis-trans isomerase domain, Complex, Isomerase; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.87 Å
Radius of gyration Rg (electron density) rg_electron	13.42 Å
Forward intensity I(0) i0	3028010.00
Molecular weight molecular_weight	11882.0 kDa
Excluded volume excluded_volume	14801 Å³
Envelope volume envelope_volume	16642 Å³
Hydration-shell volume shell_volume	10816 Å³
Envelope diameter envelope_diameter	49.0 Å
Shell Rg shell_rg	18.79 Å
Envelope Rg envelope_rg	13.83 Å
Shape Rg shape_rg	13.40 Å
Total Rg total_rg	14.67 Å
Total atoms total_atoms	839
Residues n_residues	110
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.4 Å
Rg (real space) rg_real	14.81 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	3.0280e+06
I(0) uncertainty (real space) i0_real_error	3.5810e+04
Rg (reciprocal space) rg_reciprocal	14.81 Å
I(0) (reciprocal space) i0_reciprocal	3028000.0000
Solution quality estimate total_estimate	0.8743
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	48.1 Å
Skewness Skewness skewness	0.252
Kurtosis Kurtosis kurtosis	-0.217
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	677900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.966

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Chaperone surA
Molecular weight formula_weight	10977.3 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	971

TELNLSHILIPLPENPTSDQVNEAESQARAIVDQARNGADFGKLAIAHSADQQALNGGQMGWGRIQELPGIFAQALSTAKKGDIVGPIRSGVGFHILKVNDLR

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Glycosyl transferase, group 1
Molecular weight formula_weight	920.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

WEYIPNV

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	132

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2pv1a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.26 — FKBP-like
Superfamily Superfamily superfamily	d.26.1 — FKBP-like
Family Family family	d.26.1.1 — FKBP immunophilin/proline isomerase

CATH v4.4 (1 domains)

Domain ID domain_id	2pv1A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	50 — Chitinase A; domain 3
Homologous superfamily homologous superfamily	40 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	51.886 Å
Unit-cell length b length_b	98.820 Å
Unit-cell length c length_c	41.053 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 2
Space-group number int_tables_number	21
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	41.050 Å
R factor r_factor	—
R_work r_work	0.2260
R_free r_free	0.2430

fit	/app/data/saxs_computation/pv/2pv1/2pv1.fit
pddf	/app/data/pr_computation/pv/2pv1/2pv1.pr.out
profile	/app/data/saxs_computation/pv/2pv1/2pv1.dat

Crystallographic Structure of SurA first peptidyl-prolyl isomerase domain complexed with peptide WEYIPNV

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chaperone surA

State in the Current Structure

Other States of the Same Protein in the Database

Glycosyl transferase, group 1

State in the Current Structure

Other States of the Same Protein in the Database

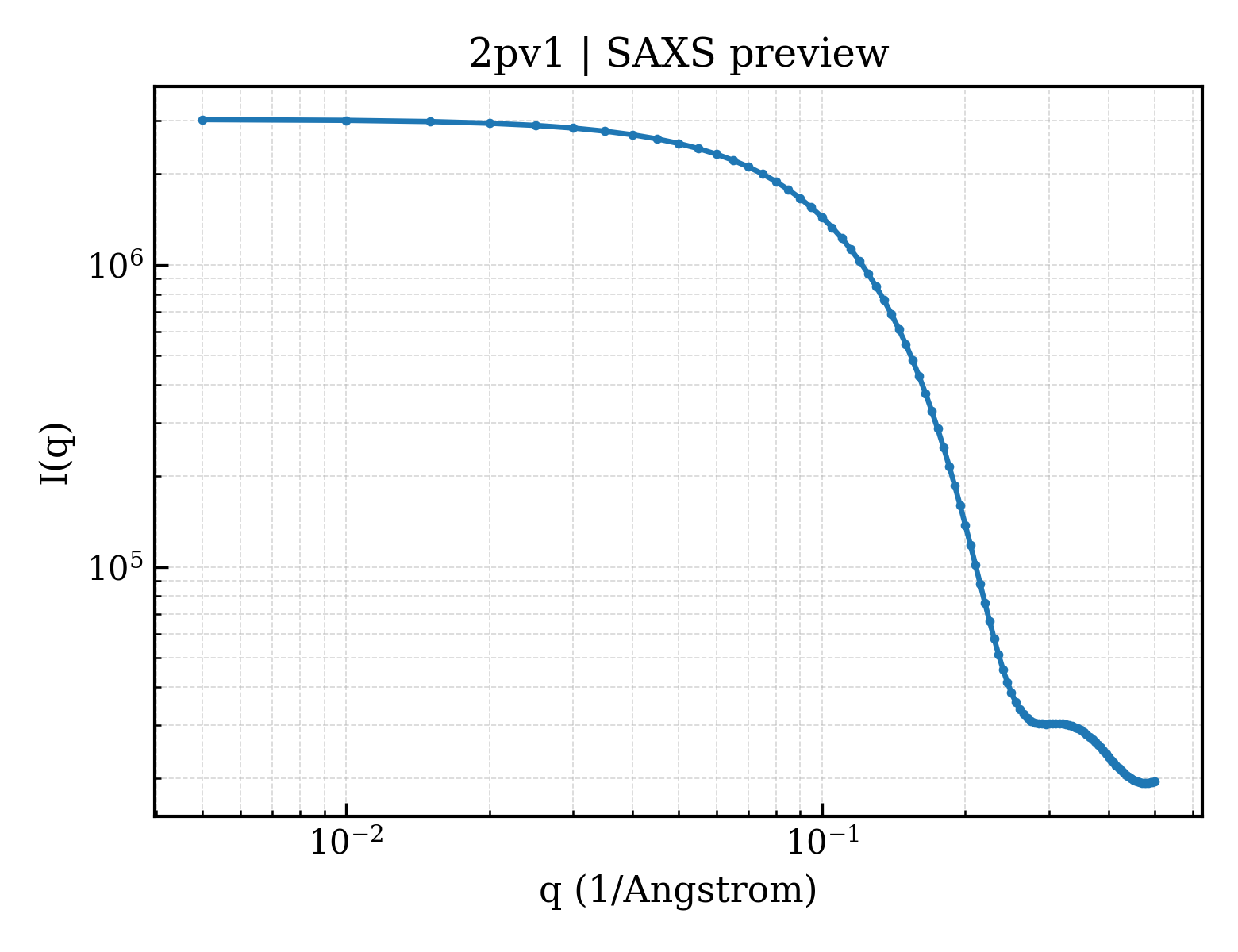

SAXS scattering curve SAXS Profile
