9hg9

BAM-SurA-darobactin complex in the swing-in state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein assembly factor BamA

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） Darobactin A × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–790； UniProt 21–810

Outer membrane protein assembly factor BamB

Escherichia coli K-12

UniProt P77774

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） Darobactin A × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMB_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–373； UniProt 20–392

Outer membrane protein assembly factor BamC

Escherichia coli K-12

UniProt P0A903

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） Darobactin A × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–320； UniProt 25–344

Outer membrane protein assembly factor BamD

Escherichia coli K-12

UniProt P0AC02

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） Darobactin A × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMD_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–226； UniProt 20–245

Outer membrane protein assembly factor BamE

Escherichia coli K-12

UniProt P0A937

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Chaperone SurA × 1 （P0ABZ6） Darobactin A × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAME_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–94； UniProt 20–113

Chaperone SurA

Escherichia coli K-12

UniProt P0ABZ6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） Darobactin A × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SURA_ECOLI
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 5–412； UniProt 21–428

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9hg9
Deposition date deposition_date	2024-11-19
Last revision last_revision	2025-04-16
Structure title title	BAM-SurA-darobactin complex in the swing-in state
Keywords keywords	insertase, outer membrane protein, chaperone, protein folding, protein complex, darobactin, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9hg9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

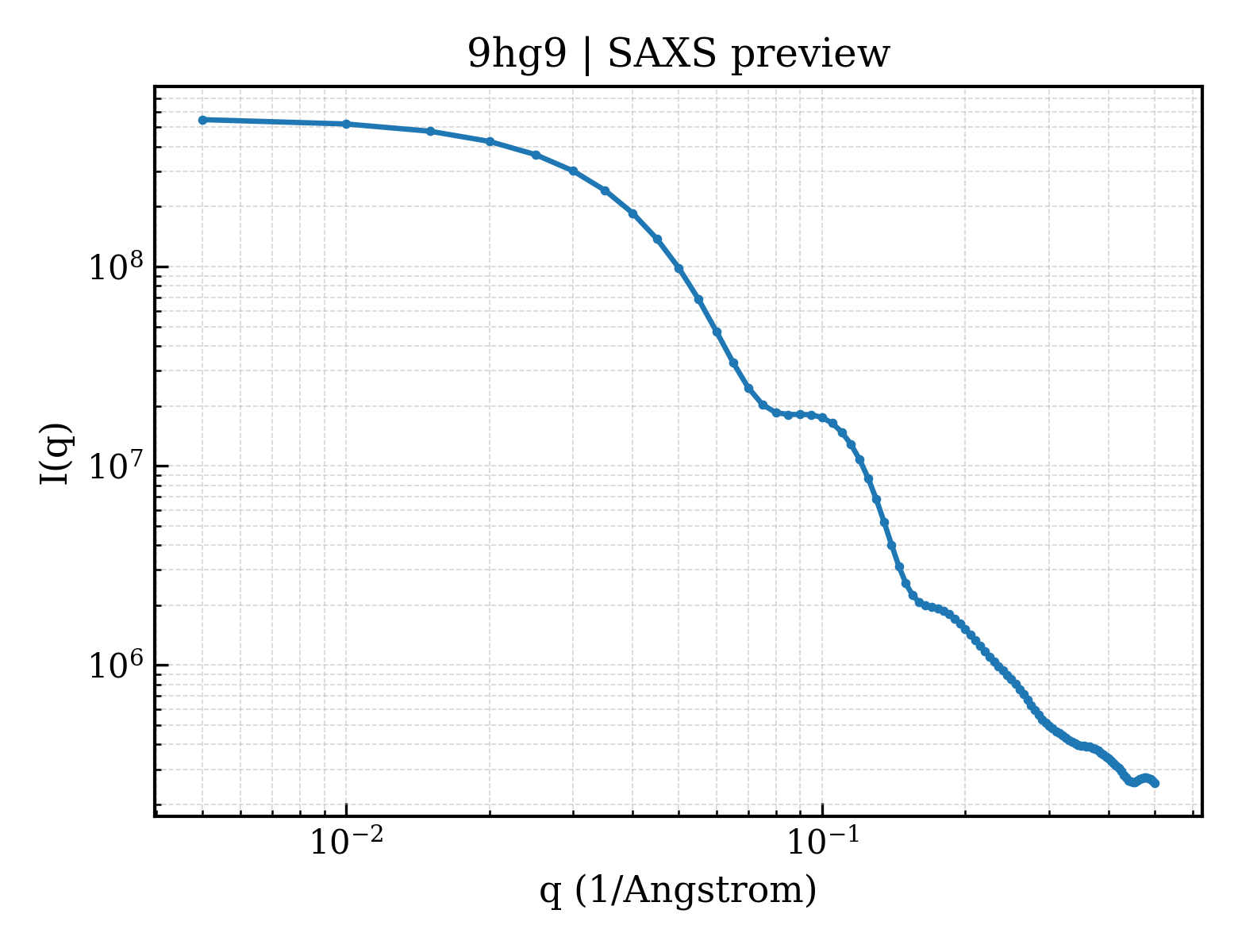

9hg9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9hg9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.83 Å
Rg (electron density)	44.25 Å
Total Rg	44.51 Å
Atom count	26335
Residues	1707
Excluded volume	236240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9hg9__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Outer membrane protein assembly factor BamA
Molecular weight formula_weight	88514.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	26335

AEGFVVKDIHFEGLQRVAVGAALLSMPVRTGDTVNDEDISNTIRALFATGNFEDVRVLRDGDTLLVQVKERPTIASITFSGNKSVKDDMLKQNLEASGVRVGESLDRTTIADIEKGLEDFYYSVGKYSASVKAVVTPLPRNRVDLKLVFQEGVSAEIQQINIVGNHAFTTDELISHFQLRDEVPWWNVVGDRKYQKQKLAGDLETLRSYYLDRGYARFNIDSTQVSLTPDKKGIYVTVNITEGDQYKLSGVEVSGNLAGHSAEIEQLTKIEPGELYNGTKVTKMEDDIKKLLGRYGYAYPRVQSMPEINDADKTVKLRVNVDAGNRFYVRKIRFEGNDTSKDAVLRREMRQMEGAWLGSDLVDQGKERLNRLGFFETVDTDTQRVPGSPDQVDVVYKVKERNTGSFNFGIGYGTESGVSFQAGVQQDNWLGTGYAVGINGTKNDYQTYAELSVTNPYFTVDGVSLGGRLFYNDFQADDADLSDYTNKSYGTDVTLGFPINEYNSLRAGLGYVHNSLSNMQPQVAMWRYLYSMGEHPSTSDQDNSFKTDDFTFNYGWTYNKLDRGYFPTDGSRVNLTGKVTIPGSDNEYYKVTLDTATYVPIDDDHKWVVLGRTRWGYGDGLGGKEMPFYENFYAGGSSTVRGFQSNTIGPKAVYFPHQASNYDPDYDYECATQDGAKDLCKSDDAVGGNAMAVASLEFITPTPFISDKYANSVRTSFFWDMGTVWDTNWDSSQYSGYPDYSDPSNIRMSAGIALQWMSPLGPLVFSYAQPFKKYDGDKAEQFQFNIGKTW

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Outer membrane protein assembly factor BamB
Molecular weight formula_weight	40924.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

CSLFNSEEDVVKMSPLPTVENQFTPTTAWSTSVGSGIGNFYSNLHPALADNVVYAADRAGLVKALNADDGKEIWSVSLAEKDGWFSKEPALLSGGVTVSGGHVYIGSEKAQVYALNTSDGTVAWQTKVAGEALSRPVVSDGLVLIHTSNGQLQALNEADGAVKWTVNLDMPSLSLRGESAPTTAFGAAVVGGDNGRVSAVLMEQGQMIWQQRISQATGSTEIDRLSDVDTTPVVVNGVVFALAYNGNLTALDLRSGQIMWKRELGSVNDFIVDGNRIYLVDQNDRVMALTIDGGVTLWTQSDLLHRLLTSPVLYNGNLVVGDSEGYLHWINVEDGRFVAQQKVDSSGFQTEPVAADGKLLIQAKDGTVYSITRWSHPQFEK

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Outer membrane protein assembly factor BamC
Molecular weight formula_weight	34401.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

CSSDSRYKRQVSGDEAYLEAAPLAELHAPAGMILPVTSGDYAIPVTNGSGAVGKALDIRPPAQPLALVSGARTQFTGDTASLLVENGRGNTLWPQVVSVLQAKNYTITQRDDAGQTLTTDWVQWNRLDEDEQYRGRYQISVKPQGYQQAVTVKLLNLEQAGKPVADAASMQRYSTEMMNVISAGLDKSATDAANAAQNRASTTMDVQSAADDTGLPMLVVRGPFNVVWQRLPAALEKVGMKVTDSTRSQGNMAVTYKPLSDSDWQELGASDPGLASGDYKLQVGDLDNRSSLQFIDPKGHTLTQSQNDALVAVFQAAFSK

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Outer membrane protein assembly factor BamD
Molecular weight formula_weight	25816.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

CSGSKEEVPDNPPNEIYATAQQKLQDGNWRQAITQLEALDNRYPFGPYSQQVQLDLIYAYYKNADLPLAQAAIDRFIRLNPTHPNIDYVMYMRGLTNMALDDSALQGFFGVDRSDRDPQHARAAFSDFSKLVRGYPNSQYTTDATKRLVFLKDRLAKYEYSVAEYYTERGAWVAVVNRVEGMLRDYPDTQATRDALPLMENAYRQMQMNAQAEKVAKIIAANSSNT

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	Outer membrane protein assembly factor BamE
Molecular weight formula_weight	11462.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

CSTLERVVYRPDINQGNYLTANDVSKIRVGMTQQQVAYALGTPLMSDPFGTNTWFYVFRQQPGHEGVTQQTLTLTFNSSGVLTNIDNKPALSGNKLHHHHHH

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	Chaperone SurA
Molecular weight formula_weight	45545.4 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

GSHMAPQVVDKVAAVVNNGVVLESDVDGLMQSVKLNAAQARQQLPDDATLRHQIMERLIMDQIILQMGQKMGVKISDEQLDQAIANIAKQNNMTLDQMRSRLAYDGLNYNTYRNQIRKEMIISEVRNNEVRRRITILPQEVESLAQQVGNQNDASTELNLSHILIPLPENPTSDQVNEAESQARAIVDQARNGADFGKLAIAHSADQQALNGGQMGWGRIQELPGIFAQALSTAKKGDIVGPIRSGVGFHILKVNDLRGESKNISVTEVHARHILLKPSPIMTDEQARVKLEQIAADIKSGKTTFAAAAKEFSQDPGSANQGGDLGWATPDIFDPAFRDALTRLNKGQMSAPVHSSFGWHLIELLDTRNVDKTDAAQKDRAYRMLMNRKFSEEAASWMQEQRASAYVKILSN

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 7 Entity 7 polymer

Description description	Darobactin A
Molecular weight formula_weight	971.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

WNXSKSF

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.88 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	220992
