4xga

Crystal structure of BamB and BamA P3-5 complex from E.coli

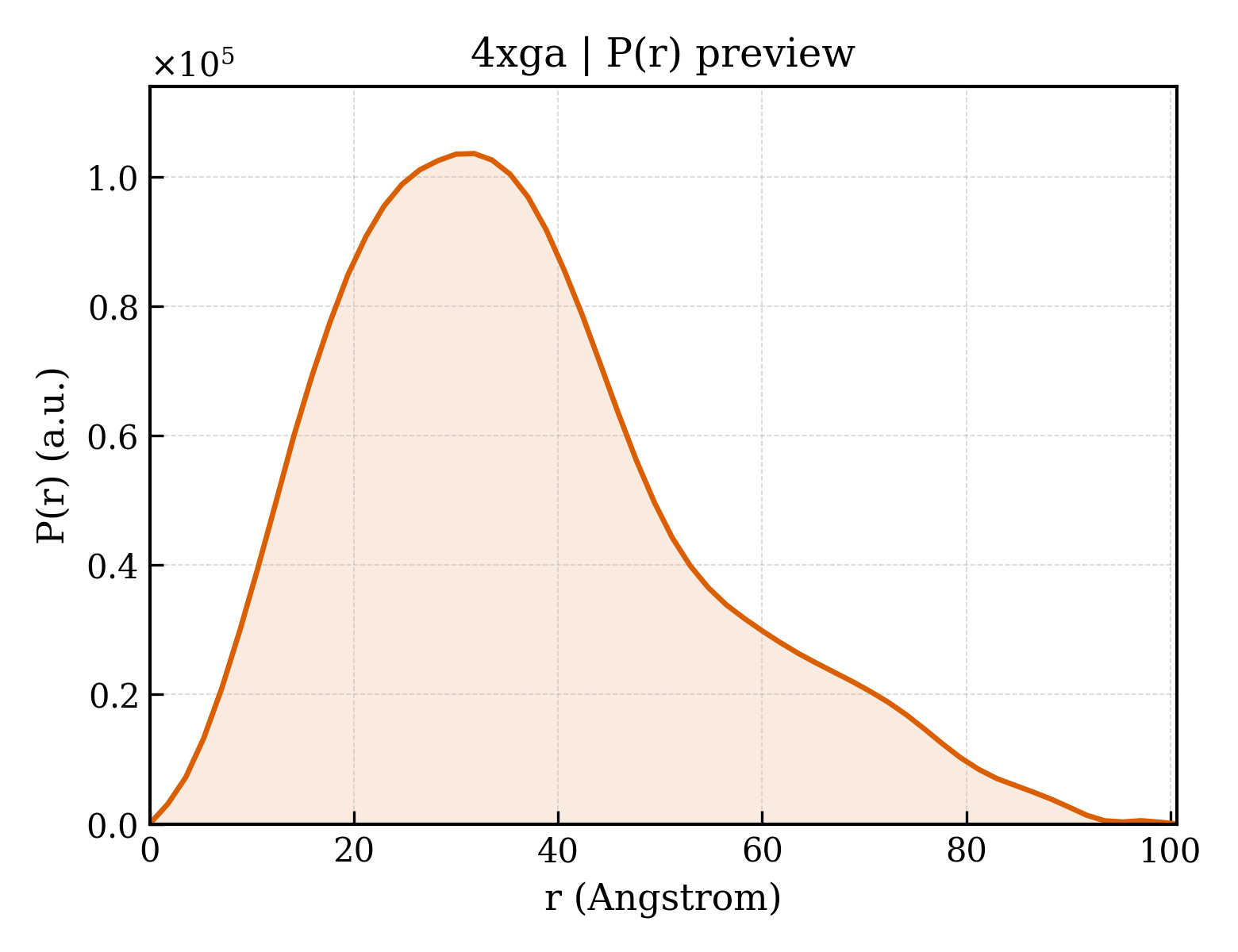

Method: X-RAY DIFFRACTION Dmax: 100.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein assembly factor BamB

Escherichia coli (strain K12)

UniProt P77774

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 20–392 Not recorded Outer membrane protein assembly factor BamA × 1 （P0A940） CA CALCIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1% w/v Tryptone, 20% w/v Polyethylene glycol 3350, 0.05M HEPES sodium pH 7.0 Resolution 2.15 Å R-free 0.231

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4XGA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2YH3 The structure of BamB from E. coli Deposited 2011-04-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–392（371 aa） Fragment：RESIDUES 22-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；3.5M NH4CL, 0.1M NA-ACETATE PH 4.6
Resolution 2.60 Å R-free 0.270
2YMS Structure and assembly of a b-propeller with nine blades and a new conserved repetitive sequence motif Deposited 2012-10-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 62–191（130 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 62-191
Chain B 113–186（74 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 113-186
Chain C 248–322（75 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 248-322
Chain D 247–320（74 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 249-320
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.239
3P1L Crystal structure of Escherichia coli BamB, a lipoprotein component of the beta-barrel assembly machinery complex, native crystals. Deposited 2010-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa）
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；295 K；0.1M Citric acid, 2M NaCl, pH 4.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.60 Å R-free 0.233
3PRW Crystal structure of the lipoprotein BamB Deposited 2010-11-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP Residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；292 K；100 mM Tris, pH 6.9, 20% PEG 3350, 200 mM ammonium citrate, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 1.80 Å R-free 0.204
3Q7M The crystal structure of BamB from the BAM complex in spacegroup I222 Deposited 2011-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP residues 21-392
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.18 M triammonium citrate, 20% PEG3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.65 Å R-free 0.193
3Q7N The crystal structure of BamB from the BAM complex in spacegroup P212121 Deposited 2011-01-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP residues 21-392
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.18 M triammonium citrate, 20% PEG3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.77 Å R-free 0.232
3Q7O The crystal structure of BamB from the BAM complex in spacegroup P213 Deposited 2011-01-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；298 K；1.0 M lithium sulfate, 2% PEG8000, pH 7.5, temperature 298K
Resolution 2.09 Å R-free 0.263
4PK1 Structure of BamB fused to a BamA POTRA domain fragment Deposited 2014-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP P0A940 residues 175-424,UNP P77774 residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；The BamA-BamB chimera protein was crystallized at 16 degC by sitting drop vapor diffusion method. Initial crystallizing conditions were refined in a hanging drop in the following solution: 1.4M Ammonium sulfate, 9% 2-propanol, and 0.1M Sodium acetate pH 5.5. We used 1.5 uL of the 20mg/ml protein mixed with 1.5 uL mother liquor in a reservoir filled with 500 uL precipitant solution
Resolution 3.10 Å R-free 0.281
5AYW Structure of a membrane complex Deposited 2015-09-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa） Fragment：UNP residues 20-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；289 K；Tris-HCl, NaCl, PEG 400
Resolution 3.56 Å R-free 0.314
5D0O BamABCDE complex, outer membrane beta barrel assembly machinery entire complex Deposited 2015-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH7.5, 30% PEG600, CYMAL-4
Resolution 2.90 Å R-free 0.304
5LJO E. coli BAM complex (BamABCDE) by cryoEM Deposited 2016-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 22–392（371 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Double blot. 3 ul sampel applied and blotted by hand, then additional 3 ul sample applied, blotted, and plunge frozen
Resolution 4.90 Å
6LYQ Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.19 Å R-free 0.293
6LYR Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.28 Å R-free 0.280
6LYS Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.05 Å R-free 0.284
6LYU Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6V05 Cryo-EM structure of a substrate-engaged Bam complex Deposited 2019-11-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7BNQ Lateral-closed conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7NBX Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NCS Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) bound by a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
7ND0 lateral-open conformation of the wild-type BAM complex (BamABCDE) bound to a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
7NRI Structure of the darobactin-bound E. coli BAM complex (BamABCDE) Deposited 2021-03-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4microL of sample applied
Resolution 3.03 Å
7R1W E. coli BAM complex (BamABCDE) bound to dynobactin A Deposited 2022-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 150 mM NaCl, 0.05% (w/v) n-dodecyl Beta-D-maltopyranoside (DDM)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7TTC BamABCDE bound to substrate EspP Deposited 2022-02-01 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded K33 2,3-dideoxy-6-O-[2-deoxy-4-O-phosphono-2-(tetradecanoylamino)-alpha-L-gulopyranosyl]-1-O-phosphono-beta-D-threo-hexopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7YE4 BAM-EspP complex structure with BamA-G431C and G781C/EspP-N1293C and A1043C mutations in nanodisc Deposited 2022-07-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7YE6 BAM-EspP complex structure with BamA-N427C/EspP-R1297C mutations in nanodisc Deposited 2022-07-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ADG Cryo-EM structure of Darobactin 22 bound BAM complex Deposited 2022-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8ADI Cryo-EM structure of Darobactin 9 bound BAM complex Deposited 2022-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8BNZ BAM-EspP complex structure with BamA-G431C/EspP-N1293C mutations in nanodisc Deposited 2022-11-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BO2 BAM-EspP complex structure with BamA-S425C/EspP-S1299C mutations in nanodisc Deposited 2022-11-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8BVQ E. coli BAM complex (BamABCDE) bound to darobactin B Deposited 2022-12-05 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8BWC E. coli BAM complex (BamABCDE) wild-type Deposited 2022-12-06 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8PZV Wait Complex: BAM bound Darobactin-B and Extended SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QN4 Structure of the BAM-EspP complex in an open EspP intermediate state Deposited 2023-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
8SPR The cryo-EM structure of the EcBAM/EspP(beta1-12) complex Deposited 2023-05-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 21–392（372 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8SQA The cryo-EM structure of the EcBAM/EspP(beta8-12) complex Deposited 2023-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 21–392（372 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8SQB The cryo-EM structure of the EcBAM/EspP(beta7-12) complex Deposited 2023-05-04 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 21–392（372 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9CNW CryoEM structure of the APO-BAM complex in DDM detergent Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9CNX CryoEM structure of BAM in complex with the PTB1 closed-state inhibitor (in DDM detergent) Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9CNY CryoEM structure of the APO-BAM complex in SMA nanodisc Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9CNZ Structure of BAM complexed with PTB2 ligand in detergent Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CO0 CryoEM structure of BAM in complex with the PTB2 open-state inhibitor (in SMA nanodisc) Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9H84 BAM-hinge (LVPR) Deposited 2024-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 22–392（371 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9H85 BAM-hinge (GSGS) Deposited 2024-10-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9H89 BAM-hinge (LVPR) suppressor (T434A) Deposited 2024-10-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9HE1 Structure of the Xenorceptide A2-bound E. coli BAM complex (BamABCDE) Deposited 2024-11-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0
cryo-EM vitrification conditions Cryogen ETHANE；3.5uL sample, blot time 3sec, Blotforce 1, Blot total 1,
Resolution 3.00 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG7 BAM-SurA complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9MGE beta-barrel assembly machine from Escherichia coli in an early state of substrate assembly Deposited 2024-12-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MGF beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MGG beta-barrel assembly machine from Escherichia coli in a late state of substrate assembly Deposited 2024-12-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9P1U beta-barrel assembly machine from Escherichia coli in an late state of LptD assembly Deposited 2025-06-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

63 other PDB entries and 63 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAMB_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–373； UniProt 20–392

Outer membrane protein assembly factor BamA

Escherichia coli (strain K12)

UniProt P0A940

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 175–420 Fragment：UNP RESIDUES 175-420 Outer membrane protein assembly factor BamB × 1 （P77774） CA CALCIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1% w/v Tryptone, 20% w/v Polyethylene glycol 3350, 0.05M HEPES sodium pH 7.0 Resolution 2.15 Å R-free 0.231

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4XGA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2QCZ Structure of N-terminal domain of E. Coli YaeT Deposited 2007-06-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–351（331 aa） Fragment：residues 21-351
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；10% PEG 10K, 100mM sodium acetate, 100 mM magnesium formate, 10%glycerol, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.70 Å R-free 0.329
2QCZ Structure of N-terminal domain of E. Coli YaeT Deposited 2007-06-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 21–351（331 aa） Fragment：residues 21-351
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；10% PEG 10K, 100mM sodium acetate, 100 mM magnesium formate, 10%glycerol, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.70 Å R-free 0.329
2QDF Structure of N-terminal domain of E. Coli YaeT Deposited 2007-06-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–351（331 aa） Fragment：residues 21-351
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；10% PEG 10K, 100mM sodium acetate, 100 mM magnesium formate, 10%glycerol, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.20 Å R-free 0.286
2V9H Solution Structure of an Escherichia coli YaeT tandem POTRA domain Deposited 2007-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–174（154 aa） Fragment：POTRA DOMAINS 1 AND 2, RESIDUES 21-174
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 86；Pressure 1.0
NMR sample composition 50 MM MES, 50 MM NACL
Resolution not provided
3EFC Crystal Structure of YaeT periplasmic domain Deposited 2008-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–410（390 aa） Fragment：periplasmic domain (UNP residues 21-410)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289.15 K；1.3-1.6M (NH4)2SO4, 3-6% polyethylene glycol 400, 10% Dioxane, 0.1M MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289.15K
Resolution 3.30 Å R-free 0.295
4C4V Structure of the outer membrane protein insertase BamA with one POTRA domain. Deposited 2013-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 347–810（464 aa） Fragment：BAMA TRUNCATED BY 4 POTRA DOMAINS, RESIDUES 347-808
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；pH 7.5
Resolution 3.00 Å R-free 0.292
4C4V Structure of the outer membrane protein insertase BamA with one POTRA domain. Deposited 2013-09-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 344–810（467 aa） Fragment：BAMA TRUNCATED BY 4 POTRA DOMAINS, RESIDUES 344-808
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；pH 7.5
Resolution 3.00 Å R-free 0.292
4N75 Structural Basis of BamA-mediate Outer Membrane Protein Biogenesis Deposited 2013-10-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 427–810（384 aa） Fragment：barrel domain, UNP residues 427-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；0.1M MES PH 6.0, 6% Tacsimate, 25% PEG 4000, 0.6% C8E4, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.60 Å R-free 0.253
4N75 Structural Basis of BamA-mediate Outer Membrane Protein Biogenesis Deposited 2013-10-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 427–810（384 aa） Fragment：barrel domain, UNP residues 427-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；0.1M MES PH 6.0, 6% Tacsimate, 25% PEG 4000, 0.6% C8E4, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.60 Å R-free 0.253
4PK1 Structure of BamB fused to a BamA POTRA domain fragment Deposited 2014-05-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 175–424（250 aa） Fragment：UNP P0A940 residues 175-424,UNP P77774 residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；The BamA-BamB chimera protein was crystallized at 16 degC by sitting drop vapor diffusion method. Initial crystallizing conditions were refined in a hanging drop in the following solution: 1.4M Ammonium sulfate, 9% 2-propanol, and 0.1M Sodium acetate pH 5.5. We used 1.5 uL of the 20mg/ml protein mixed with 1.5 uL mother liquor in a reservoir filled with 500 uL precipitant solution
Resolution 3.10 Å R-free 0.281
5AYW Structure of a membrane complex Deposited 2015-09-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 22–810（789 aa） Fragment：UNP residues 22-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；289 K；Tris-HCl, NaCl, PEG 400
Resolution 3.56 Å R-free 0.314
5D0O BamABCDE complex, outer membrane beta barrel assembly machinery entire complex Deposited 2015-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH7.5, 30% PEG600, CYMAL-4
Resolution 2.90 Å R-free 0.304
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–810（809 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 2–810（809 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5EKQ The structure of the BamACDE subcomplex from E. coli Deposited 2015-11-04 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 21–810（790 aa） Fragment：UNP residues 21-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；294 K；100 mM Tris-HCl, pH 8.5, 200 mM MgCl2, 10 mM MnCl2, and 8% PEG 4000
Resolution 3.39 Å R-free 0.281
6LYQ Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.19 Å R-free 0.293
6LYR Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.28 Å R-free 0.280
6LYS Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.05 Å R-free 0.284
6LYU Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6T1W Structure of E. coli BamA in complex with lipoprotein RcsF Deposited 2019-10-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.03 M sodium nitrate, 0.03 M sodium phosphate dibasic, 0.03 M ammonium sulfate, 0.10 M Tris-base [pH 8.5]; BICINE, 20 % (v/v) ethylene glycol; 10 % w/v PEG 8000
Resolution 3.79 Å R-free 0.317
6T1W Structure of E. coli BamA in complex with lipoprotein RcsF Deposited 2019-10-07 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.03 M sodium nitrate, 0.03 M sodium phosphate dibasic, 0.03 M ammonium sulfate, 0.10 M Tris-base [pH 8.5]; BICINE, 20 % (v/v) ethylene glycol; 10 % w/v PEG 8000
Resolution 3.79 Å R-free 0.317
6V05 Cryo-EM structure of a substrate-engaged Bam complex Deposited 2019-11-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Chain F 1–21（21 aa）
Chain F 22–171（150 aa）
Chain F 422–429（8 aa）
Chain F 440–810（371 aa）
Mutation：C690S, C700S, F804C Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7BNQ Lateral-closed conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Mutation：E435C S665C C690S C700S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7NBX Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Mutation：E435C S665C C690S C700S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NCS Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) bound by a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–810（810 aa）
Mutation：E435C S665C C690S C700S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
7ND0 lateral-open conformation of the wild-type BAM complex (BamABCDE) bound to a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
7NRI Structure of the darobactin-bound E. coli BAM complex (BamABCDE) Deposited 2021-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–808（788 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4microL of sample applied
Resolution 3.03 Å
7R1W E. coli BAM complex (BamABCDE) bound to dynobactin A Deposited 2022-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–809（809 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 150 mM NaCl, 0.05% (w/v) n-dodecyl Beta-D-maltopyranoside (DDM)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7RI4 Structure of a BAM/EspP(beta9-12) hybrid-barrel intermediate Deposited 2021-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7RI5 Structure of a BAM in MSP1E3D1 nanodiscs at 4 Angstrom resolution Deposited 2021-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7RI6 Structure of BAM in MSP1E3D1 nanodiscs prepared from E. coli outer membranes Deposited 2021-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
7RI7 The structure of BAM in MSP1D1 nanodiscs Deposited 2021-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
7RI8 The structure of BAM in MSP2N2 nanodiscs Deposited 2021-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.50 Å
7RI9 The structure of BAM in MSP1E3D1 at 6.9 Angstrom resolution Deposited 2021-07-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
7RJ5 The structure of BAM in complex with EspP at 7 Angstrom resolution Deposited 2021-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å
7YE4 BAM-EspP complex structure with BamA-G431C and G781C/EspP-N1293C and A1043C mutations in nanodisc Deposited 2022-07-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：G431C,G781C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7YE6 BAM-EspP complex structure with BamA-N427C/EspP-R1297C mutations in nanodisc Deposited 2022-07-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：N427C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ADG Cryo-EM structure of Darobactin 22 bound BAM complex Deposited 2022-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8ADI Cryo-EM structure of Darobactin 9 bound BAM complex Deposited 2022-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8BNZ BAM-EspP complex structure with BamA-G431C/EspP-N1293C mutations in nanodisc Deposited 2022-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：G431C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BVQ E. coli BAM complex (BamABCDE) bound to darobactin B Deposited 2022-12-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Mutation：R76C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Mutation：R76C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：R76C MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QN4 Structure of the BAM-EspP complex in an open EspP intermediate state Deposited 2023-09-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：G431C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
9CNW CryoEM structure of the APO-BAM complex in DDM detergent Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9CNX CryoEM structure of BAM in complex with the PTB1 closed-state inhibitor (in DDM detergent) Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9CNY CryoEM structure of the APO-BAM complex in SMA nanodisc Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9CNZ Structure of BAM complexed with PTB2 ligand in detergent Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CO0 CryoEM structure of BAM in complex with the PTB2 open-state inhibitor (in SMA nanodisc) Deposited 2024-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9H84 BAM-hinge (LVPR) Deposited 2024-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 92–810（719 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9H85 BAM-hinge (GSGS) Deposited 2024-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9H89 BAM-hinge (LVPR) suppressor (T434A) Deposited 2024-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 21–810（790 aa）
Mutation：T434A No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9HE1 Structure of the Xenorceptide A2-bound E. coli BAM complex (BamABCDE) Deposited 2024-11-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0
cryo-EM vitrification conditions Cryogen ETHANE；3.5uL sample, blot time 3sec, Blotforce 1, Blot total 1,
Resolution 3.00 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG7 BAM-SurA complex in the swing-out state Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.83 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9MGE beta-barrel assembly machine from Escherichia coli in an early state of substrate assembly Deposited 2024-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 24–810（787 aa）
Chain F 22–171（150 aa）
Chain F 422–810（389 aa）
Mutation：D512C Mutation：Y637C Mutation：Y637C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MGF beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly Deposited 2024-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain A 21–810（790 aa）
Chain F 22–171（150 aa）
Chain F 422–810（389 aa）
Mutation：D512C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MGG beta-barrel assembly machine from Escherichia coli in a late state of substrate assembly Deposited 2024-12-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 24–810（787 aa）
Chain F 22–171（150 aa）
Chain F 422–810（389 aa）
Mutation：D512C Mutation：I458C Mutation：I458C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9P1U beta-barrel assembly machine from Escherichia coli in an late state of LptD assembly Deposited 2025-06-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

64 other PDB entries and 69 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAMA_ECOLI
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–246； UniProt 175–420

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 4xga

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 4xga
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id4xga
Deposition date deposition_date2014-12-30
Structure title titleCrystal structure of BamB and BamA P3-5 complex from E.coli
Keywords keywordsouter member protein, PROTEIN BINDING-MEMBRANE PROTEIN complex; PROTEIN BINDING/MEMBRANE PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier28.02 Å
Radius of gyration Rg (electron density) rg_electron27.90 Å
Forward intensity I(0) i053620100.00
Molecular weight molecular_weight56775.0 kDa
Excluded volume excluded_volume70880 ų
Envelope volume envelope_volume89136 ų
Hydration-shell volume shell_volume28437 ų
Envelope diameter envelope_diameter104.7 Å
Shell Rg shell_rg32.78 Å
Envelope Rg envelope_rg28.66 Å
Shape Rg shape_rg27.92 Å
Total Rg total_rg28.33 Å
Total atoms total_atoms4004
Residues n_residues521
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax100.6 Å
Rg (real space) rg_real28.36 Å
Rg uncertainty (real space) rg_real_error1.21 Å
I(0) (real space) i0_real5.3620e+07
I(0) uncertainty (real space) i0_real_error8.8660e+05
Rg (reciprocal space) rg_reciprocal28.25 Å
I(0) (reciprocal space) i0_reciprocal53620000.0000
Solution quality estimate total_estimate0.8106
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary31.8 Å
Skewness Skewness skewness0.667
Kurtosis Kurtosis kurtosis0.066
Angular range angular_range— – 0.2850 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha17700000.0000
Real-space data points n_real_points58
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.596; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.783; Smooth: 0.964
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd4xgab1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.391 — POlypeptide TRansport Associated (PORTRA) domain-like
Superfamily Superfamily superfamilyd.391.1 — POlypeptide TRansport Associated (PORTRA) domain-like
Family Family familyd.391.1.0 — automated matches
Domain ID domain_idd4xgab2
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.391 — POlypeptide TRansport Associated (PORTRA) domain-like
Superfamily Superfamily superfamilyd.391.1 — POlypeptide TRansport Associated (PORTRA) domain-like
Family Family familyd.391.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id4xgaB01
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily310 — membrane protein fhac
Domain ID domain_id4xgaB02
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily310 — membrane protein fhac
▶

8. Citations (1)

▶

9. Files and Curves (10)
