SAXSdb — 9cnz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein assembly factor BamA

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （W8SZY2） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） PTB2 circular peptide × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–810； UniProt 1–810

Outer membrane protein assembly factor BamB

Escherichia coli

UniProt P77774

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamC × 1 （W8SZY2） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） PTB2 circular peptide × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMB_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–392； UniProt 1–392

Outer membrane protein assembly factor BamC

Escherichia coli

UniProt W8SZY2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） PTB2 circular peptide × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	W8SZY2_ECOLX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–344； UniProt 1–344

Outer membrane protein assembly factor BamD

Escherichia coli

UniProt C3SYV7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （W8SZY2） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） PTB2 circular peptide × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3SYV7_ECOLX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–245； UniProt 1–245

Outer membrane protein assembly factor BamE

Escherichia coli

UniProt A0A366UU94

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （W8SZY2） Outer membrane protein assembly factor BamD × 1 （C3SYV7） PTB2 circular peptide × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A366UU94_ECOLX
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–113； UniProt 1–113

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9cnz
Deposition date deposition_date	2024-07-15
Last revision last_revision	2024-12-25
Structure title title	Structure of BAM complexed with PTB2 ligand in detergent
Keywords keywords	protein structure, circular peptide, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9cnz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9cnz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

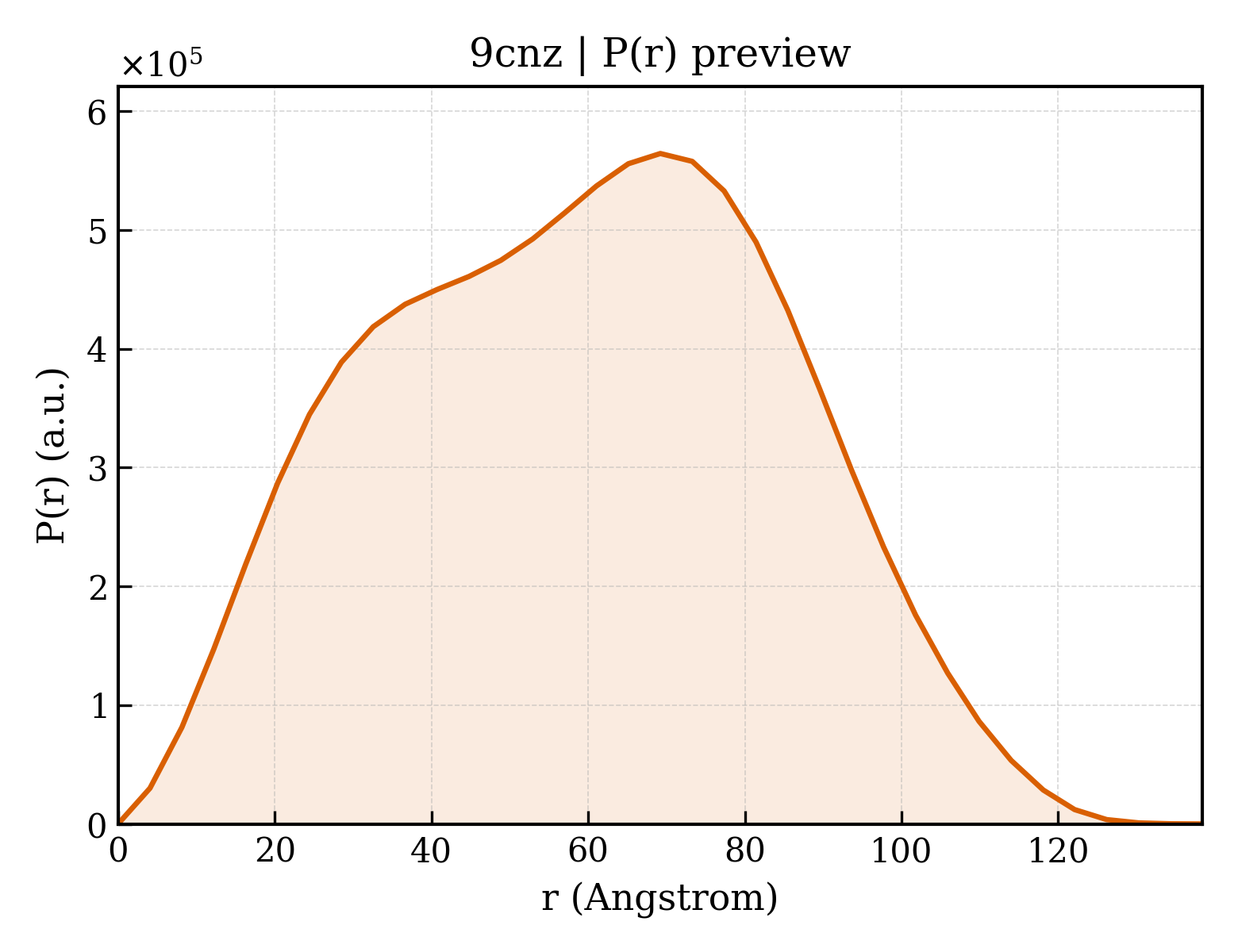

9cnz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.78 Å
Rg (electron density)	45.28 Å
Total Rg	45.50 Å
Atom count	12854
Residues	1638
Excluded volume	226680 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9cnz__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Outer membrane protein assembly factor BamA
Molecular weight formula_weight	90643.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	12854

MAMKKLLIASLLFSSATVYGAEGFVVKDIHFEGLQRVAVGAALLSMPVRTGDTVNDEDISNTIRALFATGNFEDVRVLRDGDTLLVQVKERPTIASITFSGNKSVKDDMLKQNLEASGVRVGESLDRTTIADIEKGLEDFYYSVGKYSASVKAVVTPLPRNRVDLKLVFQEGVSAEIQQINIVGNHAFTTDELISHFQLRDEVPWWNVVGDRKYQKQKLAGDLETLRSYYLDRGYARFNIDSTQVSLTPDKKGIYVTVNITEGDQYKLSGVEVSGNLAGHSAEIEQLTKIEPGELYNGTKVTKMEDDIKKLLGRYGYAYPRVQSMPEINDADKTVKLRVNVDAGNRFYVRKIRFEGNDTSKDAVLRREMRQMEGAWLGSDLVDQGKERLNRLGFFETVDTDTQRVPGSPDQVDVVYKVKERNTGSFNFGIGYGTESGVSFQAGVQQDNWLGTGYAVGINGTKNDYQTYAELSVTNPYFTVDGVSLGGRLFYNDFQADDADLSDYTNKSYGTDVTLGFPINEYNSLRAGLGYVHNSLSNMQPQVAMWRYLYSMGEHPSTSDQDNSFKTDDFTFNYGWTYNKLDRGYFPTDGSRVNLTGKVTIPGSDNEYYKVTLDTATYVPIDDDHKWVVLGRTRWGYGDGLGGKEMPFYENFYAGGSSTVRGFQSNTIGPKAVYFPHQASNYDPDYDYECATQDGAKDLCKSDDAVGGNAMAVASLEFITPTPFISDKYANSVRTSFFWDMGTVWDTNWDSSQYSGYPDYSDPSNIRMSAGIALQWMSPLGPLVFSYAQPFKKYDGDKAEQFQFNIGKTW

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Outer membrane protein assembly factor BamB
Molecular weight formula_weight	41918.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQLRKLLLPGLLSVTLLSGCSLFNSEEDVVKMSPLPTVENQFTPTTAWSTSVGSGIGNFYSNLHPALADNVVYAADRAGLVKALNADDGKEIWSVSLAEKDGWFSKEPALLSGGVTVSGGHVYIGSEKAQVYALNTSDGTVAWQTKVAGEALSRPVVSDGLVLIHTSNGQLQALNEADGAVKWTVNLDMPSLSLRGESAPTTAFGAAVVGGDNGRVSAVLMEQGQMIWQQRISQATGSTEIDRLSDVDTTPVVVNGVVFALAYNGNLTALDLRSGQIMWKRELGSVNDFIVDGNRIYLVDQNDRVMALTIDGGVTLWTQSDLLHRLLTSPVLYNGNLVVGDSEGYLHWINVEDGRFVAQQKVDSSGFQTEPVAADGKLLIQAKDGTVYSITR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Outer membrane protein assembly factor BamC
Molecular weight formula_weight	36875.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MAYSVQKSRLAKVAGVSLVLLLAACSSDSRYKRQVSGDEAYLEAAPLAELHAPAGMILPVTSGDYAIPVTNGSGAVGKALDIRPPAQPLALVSGARTQFTGDTASLLVENGRGNTLWPQVVSVLQAKNYTITQRDDAGQTLTTDWVQWNRLDEDEQYRGRYQISVKPQGYQQAVTVKLLNLEQAGKPVADAASMQRYSTEMMNVISAGLDKSATDAANAAQNRASTTMDVQSAADDTGLPMLVVRGPFNVVWQRLPAALEKVGMKVTDSTRSQGNMAVTYKPLSDSDWQELGASDPGLASGDYKLQVGDLDNRSSLQFIDPKGHTLTQSQNDALVAVFQAAFSK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Outer membrane protein assembly factor BamD
Molecular weight formula_weight	27858.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MTRMKYLVAAATLSLFLAGCSGSKEEVPDNPPNEIYATAQQKLQDGNWRQAITQLEALDNRYPFGPYSQQVQLDLIYAYYKNADLPLAQAAIDRFIRLNPTHPNIDYVMYMRGLTNMALDDSALQGFFGVDRSDRDPQHARAAFSDFSKLVRGYPNSQYTTDATKRLVFLKDRLAKYEYSVAEYYTERGAWVAVVNRVEGMLRDYPDTQATRDALPLMENAYRQMQMNAQAEKVAKIIAANSSNT

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Outer membrane protein assembly factor BamE
Molecular weight formula_weight	13530.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MRCKTLTAAAAVLLMLTAGCSTLERVVYRPDINQGNYLTANDVSKIRVGMTQQQVAYALGTPLMSDPFGTNTWFYVFRQQPGHEGVTQQTLTLTFNSSGVLTNIDNKPALSGNGGHHHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	PTB2 circular peptide
Molecular weight formula_weight	2019.4 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

XFGTIHKRRFRYWFCGX

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	181444

Structure of BAM complexed with PTB2 ligand in detergent
