SAXSdb — 8spr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein assembly factor BamA

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） Serine protease EspP × 1 （Q7BSW5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3TPJ2_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–787； UniProt 24–810

Outer membrane protein assembly factor BamB

Escherichia coli

UniProt P77774

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Outer membrane protein assembly factor BamA × 1 （C3TPJ2） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） Serine protease EspP × 1 （Q7BSW5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMB_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–372； UniProt 21–392

Outer membrane protein assembly factor BamC

Escherichia coli 0.1288

UniProt P0A903

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Outer membrane protein assembly factor BamA × 1 （C3TPJ2） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） Serine protease EspP × 1 （Q7BSW5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAMC_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–319； UniProt 26–344

Outer membrane protein assembly factor BamD

Escherichia coli

UniProt C3SYV7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Outer membrane protein assembly factor BamA × 1 （C3TPJ2） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamE × 1 （A0A366UU94） Serine protease EspP × 1 （Q7BSW5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3SYV7_ECOLX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–225； UniProt 21–245

Outer membrane protein assembly factor BamE

Escherichia coli

UniProt A0A366UU94

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Outer membrane protein assembly factor BamA × 1 （C3TPJ2） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Serine protease EspP × 1 （Q7BSW5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A366UU94_ECOLX
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–93； UniProt 21–113

Serine protease EspP

Escherichia coli O157

UniProt Q7BSW5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Outer membrane protein assembly factor BamA × 1 （C3TPJ2） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （C3SYV7） Outer membrane protein assembly factor BamE × 1 （A0A366UU94）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ESPP_ECO57
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 3–354； UniProt 949–1300

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8spr
Deposition date deposition_date	2023-05-03
Structure title title	The cryo-EM structure of the EcBAM/EspP(beta1-12) complex
Keywords keywords	membrane proteins, protein folding, BAM complex, outer membrane protein, MEMBRANE PROTEIN, MEMBRANE PROTEIN-Hydrolase complex; MEMBRANE PROTEIN/Hydrolase
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8spr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8spr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

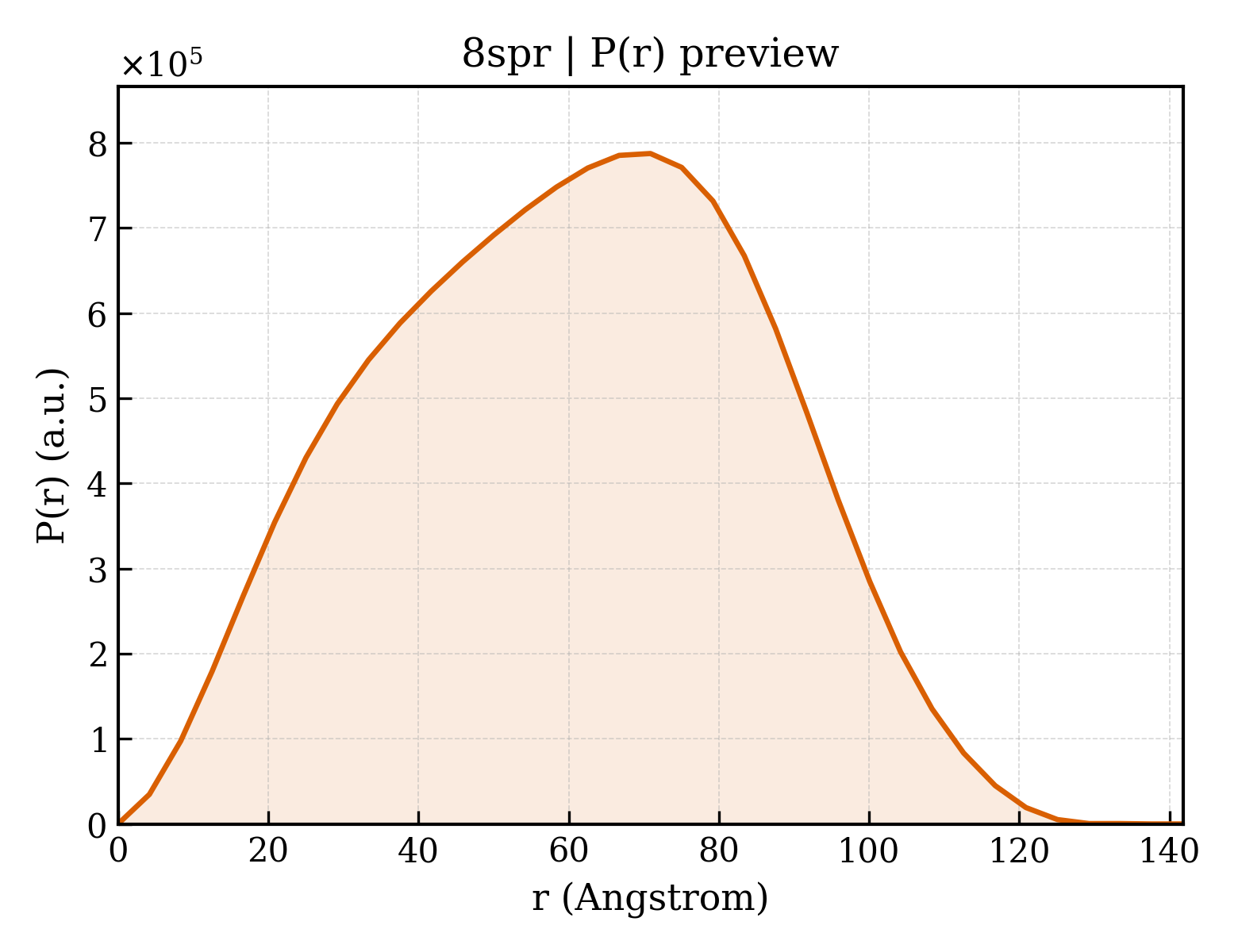

8spr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.43 Å
Rg (electron density)	45.87 Å
Total Rg	46.12 Å
Atom count	15020
Residues	1932
Excluded volume	264090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8spr__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Outer membrane protein assembly factor BamA
Molecular weight formula_weight	88247.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	15032

FVVKDIHFEGLQRVAVGAALLSMPVRTGDTVNDEDISNTIRALFATGNFEDVRVLRDGDTLLVQVKERPTIASITFSGNKSVKDDMLKQNLEASGVRVGESLDRTTIADIEKGLEDFYYSVGKYSASVKAVVTPLPRNRVDLKLVFQEGVSAEIQQINIVGNHAFTTDELISHFQLRDEVPWWNVVGDRKYQKQKLAGDLETLRSYYLDRGYARFNIDSTQVSLTPDKKGIYVTVNITEGDQYKLSGVEVSGNLAGHSAEIEQLTKIEPGELYNGTKVTKMEDDIKKLLGRYGYAYPRVQSMPEINDADKTVKLRVNVDAGNRFYVRKIRFEGNDTSKDAVLRREMRQMEGAWLGSDLVDQGKERLNRLGFFETVDTDTQRVPGSPDQVDVVYKVKERNTGSFNFGIGYGTESGVSFQAGVQQDNWLGTGYAVGINGTKNDYQTYAELSVTNPYFTVDGVSLGGRLFYNDFQADDADLSDYTNKSYGTDVTLGFPINEYNSLRAGLGYVHNSLSNMQPQVAMWRYLYSMGEHPSTSDQDNSFKTDDFTFNYGWTYNKLDRGYFPTDGSRVNLTGKVTIPGSDNEYYKVTLDTATYVPIDDDHKWVVLGRTRWGYGDGLGGKEMPFYENFYAGGSSTVRGFQSNTIGPKAVYFPHQASNYDPDYDYECATQDGAKDLCKSDDAVGGNAMAVASLEFITPTPFISDKYANSVRTSFFWDMGTVWDTNWDSSQYSGYPDYSDPSNIRMSAGIALQWMSPLGPLVFSYAQPFKKYDGDKAEQFQFNCGKTW

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Outer membrane protein assembly factor BamB
Molecular weight formula_weight	39779.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SLFNSEEDVVKMSPLPTVENQFTPTTAWSTSVGSGIGNFYSNLHPALADNVVYAADRAGLVKALNADDGKEIWSVSLAEKDGWFSKEPALLSGGVTVSGGHVYIGSEKAQVYALNTSDGTVAWQTKVAGEALSRPVVSDGLVLIHTSNGQLQALNEADGAVKWTVNLDMPSLSLRGESAPTTAFGAAVVGGDNGRVSAVLMEQGQMIWQQRISQATGSTEIDRLSDVDTTPVVVNGVVFALAYNGNLTALDLRSGQIMWKRELGSVNDFIVDGNRIYLVDQNDRVMALTIDGGVTLWTQSDLLHRLLTSPVLYNGNLVVGDSEGYLHWINVEDGRFVAQQKVDSSGFQTEPVAADGKLLIQAKDGTVYSITR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Outer membrane protein assembly factor BamC
Molecular weight formula_weight	34298.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SSDSRYKRQVSGDEAYLEAAPLAELHAPAGMILPVTSGDYAIPVTNGSGAVGKALDIRPPAQPLALVSGARTQFTGDTASLLVENGRGNTLWPQVVSVLQAKNYTITQRDDAGQTLTTDWVQWNRLDEDEQYRGRYQISVKPQGYQQAVTVKLLNLEQAGKPVADAASMQRYSTEMMNVISAGLDKSATDAANAAQNRASTTMDVQSAADDTGLPMLVVRGPFNVVWQRLPAALEKVGMKVTDSTRSQGNMAVTYKPLSDSDWQELGASDPGLASGDYKLQVGDLDNRSSLQFIDPKGHTLTQSQNDALVAVFQAAFSK

Source Source

Source organism organism	Escherichia coli 0.1288
NCBI taxonomy ID ncbi_taxonomy_id	1005442
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Outer membrane protein assembly factor BamD
Molecular weight formula_weight	25713.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

SGSKEEVPDNPPNEIYATAQQKLQDGNWRQAITQLEALDNRYPFGPYSQQVQLDLIYAYYKNADLPLAQAAIDRFIRLNPTHPNIDYVMYMRGLTNMALDDSALQGFFGVDRSDRDPQHARAAFSDFSKLVRGYPNSQYTTDATKRLVFLKDRLAKYEYSVAEYYTERGAWVAVVNRVEGMLRDYPDTQATRDALPLMENAYRQMQMNAQAEKVAKIIAANSSNT

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	Outer membrane protein assembly factor BamE
Molecular weight formula_weight	10540.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

STLERVVYRPDINQGNYLTANDVSKIRVGMTQQQVAYALGTPLMSDPFGTNTWFYVFRQQPGHEGVTQQTLTLTFNSSGVLTNIDNKPALSGNGGH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	Serine protease EspP
Molecular weight formula_weight	38773.8 kDa
EC 编号 ec_number	3.4.21.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

GSIELVSAPKDTNENVFKASKQTIGFSDVTPVITTRETDDKITWSLTGYNTVANKEATRNAAALFSVDYKAFLNEVSNLNKRMGDLRDINGEAGCWARIMSGTGSASGGFSDNYTHVQVGVDKKHELDGLDLFTGFTVTHTDSSASADVFSGKTKSVGAGLYASAMFDSGAYIDLIGKYVHHDNEYTATFAGLGTRDYSTHSWYAGAEAGYRYHVTEDAWIEPQAELVYGSVSGKQFAWKDQGMHLSMKDKDYNPLIGRTGVDVGKSFSGKDWKVTARAGLGYQFDLLANGETVLRDASGEKRIKGEKDSRMLMSVGLNAEIRDNVRFGLEFEKSAFGKYNVDNAVNANFRYSF

Source Source

Source organism organism	Escherichia coli O157
NCBI taxonomy ID ncbi_taxonomy_id	1045010
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	145290

The cryo-EM structure of the EcBAM/EspP(beta1-12) complex
