9hg7

BAM-SurA complex in the swing-out state

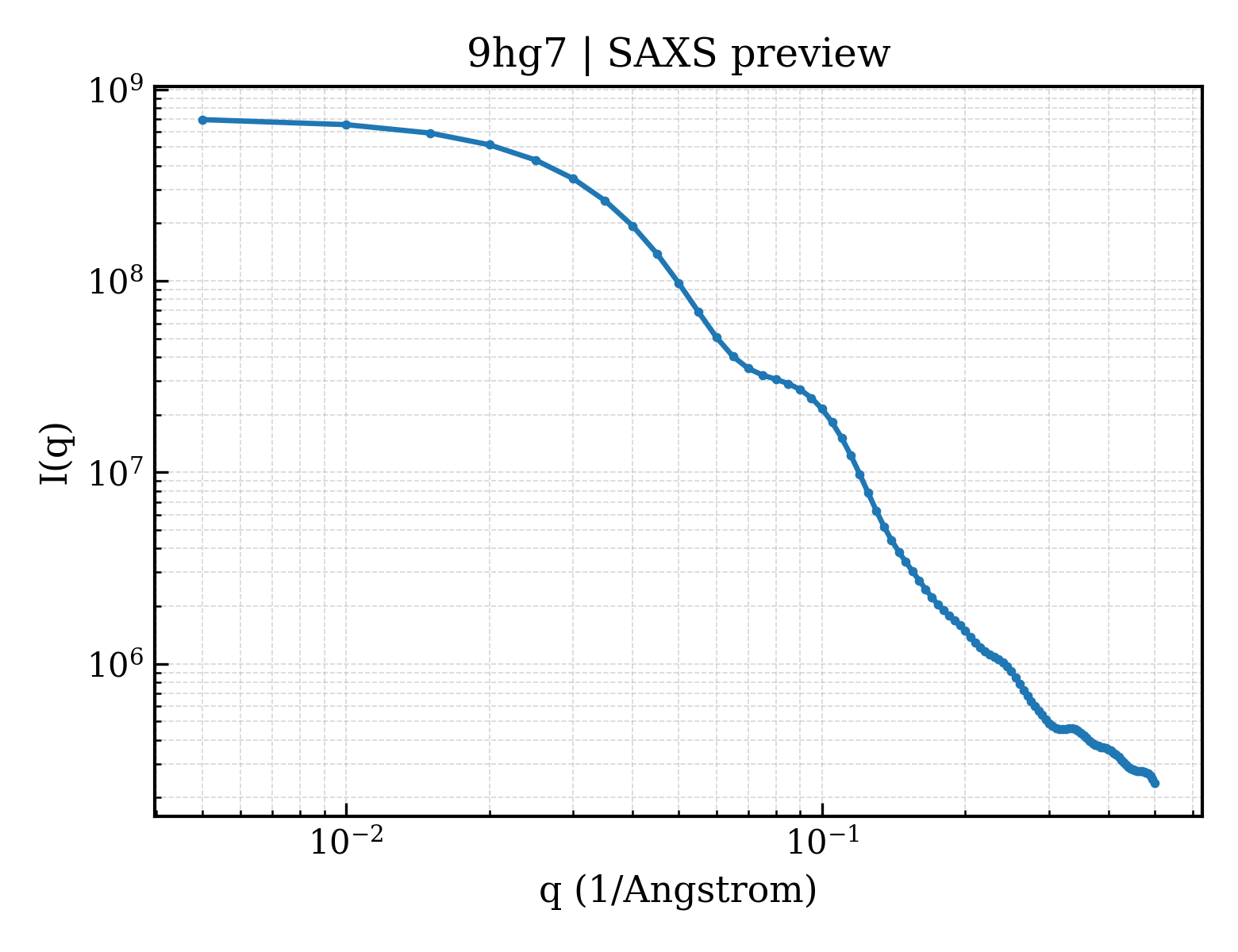

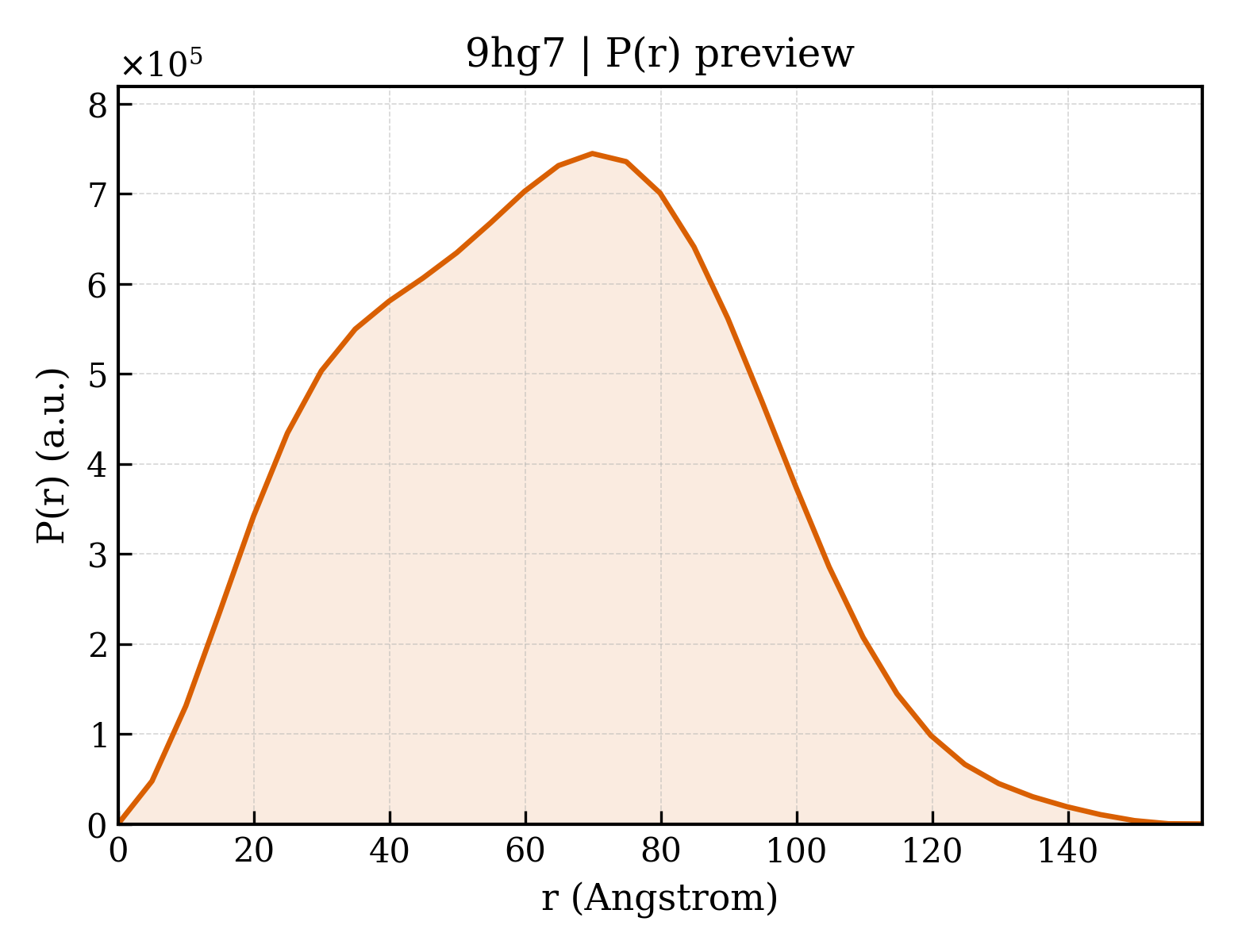

Method: ELECTRON MICROSCOPY Dmax: 159.8 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane protein assembly factor BamA

Escherichia coli K-12

UniProt P0A940

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain A； UniProt 21–810 Not recorded Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） ELECTRON MICROSCOPY cryo-EM buffer：pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.83 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9HG7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2QCZ Structure of N-terminal domain of E. Coli YaeT Deposited 2007-06-20 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–351（331 aa） Fragment：residues 21-351
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；10% PEG 10K, 100mM sodium acetate, 100 mM magnesium formate, 10%glycerol, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.70 Å R-free 0.329
2QCZ Structure of N-terminal domain of E. Coli YaeT Deposited 2007-06-20 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 21–351（331 aa） Fragment：residues 21-351
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；10% PEG 10K, 100mM sodium acetate, 100 mM magnesium formate, 10%glycerol, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.70 Å R-free 0.329
2QDF Structure of N-terminal domain of E. Coli YaeT Deposited 2007-06-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–351（331 aa） Fragment：residues 21-351
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.8；295 K；10% PEG 10K, 100mM sodium acetate, 100 mM magnesium formate, 10%glycerol, pH 4.8, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.20 Å R-free 0.286
2V9H Solution Structure of an Escherichia coli YaeT tandem POTRA domain Deposited 2007-08-23 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–174（154 aa） Fragment：POTRA DOMAINS 1 AND 2, RESIDUES 21-174
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；303 K；Ionic strength (raw mmCIF value) 86；Pressure 1.0
NMR sample composition 50 MM MES, 50 MM NACL
Resolution not provided
3EFC Crystal Structure of YaeT periplasmic domain Deposited 2008-09-08 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–410（390 aa） Fragment：periplasmic domain (UNP residues 21-410)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289.15 K；1.3-1.6M (NH4)2SO4, 3-6% polyethylene glycol 400, 10% Dioxane, 0.1M MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289.15K
Resolution 3.30 Å R-free 0.295
4C4V Structure of the outer membrane protein insertase BamA with one POTRA domain. Deposited 2013-09-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 347–810（464 aa） Fragment：BAMA TRUNCATED BY 4 POTRA DOMAINS, RESIDUES 347-808
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；pH 7.5
Resolution 3.00 Å R-free 0.292
4C4V Structure of the outer membrane protein insertase BamA with one POTRA domain. Deposited 2013-09-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 344–810（467 aa） Fragment：BAMA TRUNCATED BY 4 POTRA DOMAINS, RESIDUES 344-808
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；pH 7.5
Resolution 3.00 Å R-free 0.292
4N75 Structural Basis of BamA-mediate Outer Membrane Protein Biogenesis Deposited 2013-10-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 427–810（384 aa） Fragment：barrel domain, UNP residues 427-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；0.1M MES PH 6.0, 6% Tacsimate, 25% PEG 4000, 0.6% C8E4, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.60 Å R-free 0.253
4N75 Structural Basis of BamA-mediate Outer Membrane Protein Biogenesis Deposited 2013-10-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 427–810（384 aa） Fragment：barrel domain, UNP residues 427-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；0.1M MES PH 6.0, 6% Tacsimate, 25% PEG 4000, 0.6% C8E4, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.60 Å R-free 0.253
4PK1 Structure of BamB fused to a BamA POTRA domain fragment Deposited 2014-05-13 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 175–424（250 aa） Fragment：UNP P0A940 residues 175-424,UNP P77774 residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；The BamA-BamB chimera protein was crystallized at 16 degC by sitting drop vapor diffusion method. Initial crystallizing conditions were refined in a hanging drop in the following solution: 1.4M Ammonium sulfate, 9% 2-propanol, and 0.1M Sodium acetate pH 5.5. We used 1.5 uL of the 20mg/ml protein mixed with 1.5 uL mother liquor in a reservoir filled with 500 uL precipitant solution
Resolution 3.10 Å R-free 0.281
4XGA Crystal structure of BamB and BamA P3-5 complex from E.coli Deposited 2014-12-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 175–420（246 aa） Fragment：UNP RESIDUES 175-420
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1% w/v Tryptone, 20% w/v Polyethylene glycol 3350, 0.05M HEPES sodium pH 7.0
Resolution 2.15 Å R-free 0.231
5AYW Structure of a membrane complex Deposited 2015-09-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 22–810（789 aa） Fragment：UNP residues 22-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；289 K；Tris-HCl, NaCl, PEG 400
Resolution 3.56 Å R-free 0.314
5D0O BamABCDE complex, outer membrane beta barrel assembly machinery entire complex Deposited 2015-08-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH7.5, 30% PEG600, CYMAL-4
Resolution 2.90 Å R-free 0.304
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 2–810（809 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 2–810（809 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5EKQ The structure of the BamACDE subcomplex from E. coli Deposited 2015-11-04 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 21–810（790 aa） Fragment：UNP residues 21-810
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；294 K；100 mM Tris-HCl, pH 8.5, 200 mM MgCl2, 10 mM MnCl2, and 8% PEG 4000
Resolution 3.39 Å R-free 0.281
6LYQ Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.19 Å R-free 0.293
6LYR Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.28 Å R-free 0.280
6LYS Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.05 Å R-free 0.284
6LYU Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6T1W Structure of E. coli BamA in complex with lipoprotein RcsF Deposited 2019-10-07 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.03 M sodium nitrate, 0.03 M sodium phosphate dibasic, 0.03 M ammonium sulfate, 0.10 M Tris-base [pH 8.5]; BICINE, 20 % (v/v) ethylene glycol; 10 % w/v PEG 8000
Resolution 3.79 Å R-free 0.317
6T1W Structure of E. coli BamA in complex with lipoprotein RcsF Deposited 2019-10-07 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–810（810 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.03 M sodium nitrate, 0.03 M sodium phosphate dibasic, 0.03 M ammonium sulfate, 0.10 M Tris-base [pH 8.5]; BICINE, 20 % (v/v) ethylene glycol; 10 % w/v PEG 8000
Resolution 3.79 Å R-free 0.317
6V05 Cryo-EM structure of a substrate-engaged Bam complex Deposited 2019-11-18 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Chain F 1–21（21 aa）
Chain F 22–171（150 aa）
Chain F 422–429（8 aa）
Chain F 440–810（371 aa）
Mutation：C690S, C700S, F804C Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 Mutation：T467C,C690S,C700S,deletion of residues 172-421,deletion of residues 430-439 No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7BNQ Lateral-closed conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-22 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Mutation：E435C S665C C690S C700S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7NBX Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-28 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Mutation：E435C S665C C690S C700S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NCS Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) bound by a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–810（810 aa）
Mutation：E435C S665C C690S C700S No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
7ND0 lateral-open conformation of the wild-type BAM complex (BamABCDE) bound to a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
7NRI Structure of the darobactin-bound E. coli BAM complex (BamABCDE) Deposited 2021-03-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–808（788 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4microL of sample applied
Resolution 3.03 Å
7R1W E. coli BAM complex (BamABCDE) bound to dynobactin A Deposited 2022-02-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–809（809 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 150 mM NaCl, 0.05% (w/v) n-dodecyl Beta-D-maltopyranoside (DDM)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7RI4 Structure of a BAM/EspP(beta9-12) hybrid-barrel intermediate Deposited 2021-07-19 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7RI5 Structure of a BAM in MSP1E3D1 nanodiscs at 4 Angstrom resolution Deposited 2021-07-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
7RI6 Structure of BAM in MSP1E3D1 nanodiscs prepared from E. coli outer membranes Deposited 2021-07-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
7RI7 The structure of BAM in MSP1D1 nanodiscs Deposited 2021-07-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
7RI8 The structure of BAM in MSP2N2 nanodiscs Deposited 2021-07-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.50 Å
7RI9 The structure of BAM in MSP1E3D1 at 6.9 Angstrom resolution Deposited 2021-07-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
7RJ5 The structure of BAM in complex with EspP at 7 Angstrom resolution Deposited 2021-07-20 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å
7YE4 BAM-EspP complex structure with BamA-G431C and G781C/EspP-N1293C and A1043C mutations in nanodisc Deposited 2022-07-05 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：G431C,G781C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7YE6 BAM-EspP complex structure with BamA-N427C/EspP-R1297C mutations in nanodisc Deposited 2022-07-05 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：N427C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ADG Cryo-EM structure of Darobactin 22 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8ADI Cryo-EM structure of Darobactin 9 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8BNZ BAM-EspP complex structure with BamA-G431C/EspP-N1293C mutations in nanodisc Deposited 2022-11-14 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：G431C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BVQ E. coli BAM complex (BamABCDE) bound to darobactin B Deposited 2022-12-05 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Mutation：R76C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Mutation：R76C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：R76C MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QN4 Structure of the BAM-EspP complex in an open EspP intermediate state Deposited 2023-09-25 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Mutation：G431C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain A 21–810（790 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
9CNW CryoEM structure of the APO-BAM complex in DDM detergent Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9CNX CryoEM structure of BAM in complex with the PTB1 closed-state inhibitor (in DDM detergent) Deposited 2024-07-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9CNY CryoEM structure of the APO-BAM complex in SMA nanodisc Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9CNZ Structure of BAM complexed with PTB2 ligand in detergent Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CO0 CryoEM structure of BAM in complex with the PTB2 open-state inhibitor (in SMA nanodisc) Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9H84 BAM-hinge (LVPR) Deposited 2024-10-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 92–810（719 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9H85 BAM-hinge (GSGS) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9H89 BAM-hinge (LVPR) suppressor (T434A) Deposited 2024-10-28 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 21–810（790 aa）
Mutation：T434A No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9HE1 Structure of the Xenorceptide A2-bound E. coli BAM complex (BamABCDE) Deposited 2024-11-13 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0
cryo-EM vitrification conditions Cryogen ETHANE；3.5uL sample, blot time 3sec, Blotforce 1, Blot total 1,
Resolution 3.00 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 21–810（790 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9MGE beta-barrel assembly machine from Escherichia coli in an early state of substrate assembly Deposited 2024-12-10 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 24–810（787 aa）
Chain F 22–171（150 aa）
Chain F 422–810（389 aa）
Mutation：D512C Mutation：Y637C Mutation：Y637C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MGF beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly Deposited 2024-12-10 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain A 21–810（790 aa）
Chain F 22–171（150 aa）
Chain F 422–810（389 aa）
Mutation：D512C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MGG beta-barrel assembly machine from Escherichia coli in a late state of substrate assembly Deposited 2024-12-10 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 24–810（787 aa）
Chain F 22–171（150 aa）
Chain F 422–810（389 aa）
Mutation：D512C Mutation：I458C Mutation：I458C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9P1U beta-barrel assembly machine from Escherichia coli in an late state of LptD assembly Deposited 2025-06-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–810（810 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

64 other PDB entries and 69 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAMA_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–790； UniProt 21–810

Outer membrane protein assembly factor BamB

Escherichia coli K-12

UniProt P77774

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain B； UniProt 20–392 Not recorded Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） ELECTRON MICROSCOPY cryo-EM buffer：pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.83 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9HG7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2YH3 The structure of BamB from E. coli Deposited 2011-04-27 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 22–392（371 aa） Fragment：RESIDUES 22-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.6；3.5M NH4CL, 0.1M NA-ACETATE PH 4.6
Resolution 2.60 Å R-free 0.270
2YMS Structure and assembly of a b-propeller with nine blades and a new conserved repetitive sequence motif Deposited 2012-10-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 62–191（130 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 62-191
Chain B 113–186（74 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 113-186
Chain C 248–322（75 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 248-322
Chain D 247–320（74 aa） Fragment：FRAGMENTS OF BAMB FROM E. COLI, RESIDUES 249-320
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.10 Å R-free 0.239
3P1L Crystal structure of Escherichia coli BamB, a lipoprotein component of the beta-barrel assembly machinery complex, native crystals. Deposited 2010-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa）
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；295 K；0.1M Citric acid, 2M NaCl, pH 4.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.60 Å R-free 0.233
3PRW Crystal structure of the lipoprotein BamB Deposited 2010-11-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP Residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；292 K；100 mM Tris, pH 6.9, 20% PEG 3350, 200 mM ammonium citrate, VAPOR DIFFUSION, SITTING DROP, temperature 292K
Resolution 1.80 Å R-free 0.204
3Q7M The crystal structure of BamB from the BAM complex in spacegroup I222 Deposited 2011-01-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP residues 21-392
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.18 M triammonium citrate, 20% PEG3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.65 Å R-free 0.193
3Q7N The crystal structure of BamB from the BAM complex in spacegroup P212121 Deposited 2011-01-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP residues 21-392
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.18 M triammonium citrate, 20% PEG3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.77 Å R-free 0.232
3Q7O The crystal structure of BamB from the BAM complex in spacegroup P213 Deposited 2011-01-05 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；298 K；1.0 M lithium sulfate, 2% PEG8000, pH 7.5, temperature 298K
Resolution 2.09 Å R-free 0.263
4PK1 Structure of BamB fused to a BamA POTRA domain fragment Deposited 2014-05-13 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–392（372 aa） Fragment：UNP P0A940 residues 175-424,UNP P77774 residues 21-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；The BamA-BamB chimera protein was crystallized at 16 degC by sitting drop vapor diffusion method. Initial crystallizing conditions were refined in a hanging drop in the following solution: 1.4M Ammonium sulfate, 9% 2-propanol, and 0.1M Sodium acetate pH 5.5. We used 1.5 uL of the 20mg/ml protein mixed with 1.5 uL mother liquor in a reservoir filled with 500 uL precipitant solution
Resolution 3.10 Å R-free 0.281
4XGA Crystal structure of BamB and BamA P3-5 complex from E.coli Deposited 2014-12-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 20–392（373 aa）
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；1% w/v Tryptone, 20% w/v Polyethylene glycol 3350, 0.05M HEPES sodium pH 7.0
Resolution 2.15 Å R-free 0.231
5AYW Structure of a membrane complex Deposited 2015-09-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa） Fragment：UNP residues 20-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；289 K；Tris-HCl, NaCl, PEG 400
Resolution 3.56 Å R-free 0.314
5D0O BamABCDE complex, outer membrane beta barrel assembly machinery entire complex Deposited 2015-08-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH7.5, 30% PEG600, CYMAL-4
Resolution 2.90 Å R-free 0.304
5LJO E. coli BAM complex (BamABCDE) by cryoEM Deposited 2016-07-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 22–392（371 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Double blot. 3 ul sampel applied and blotted by hand, then additional 3 ul sample applied, blotted, and plunge frozen
Resolution 4.90 Å
6LYQ Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.19 Å R-free 0.293
6LYR Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.28 Å R-free 0.280
6LYS Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.05 Å R-free 0.284
6LYU Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6V05 Cryo-EM structure of a substrate-engaged Bam complex Deposited 2019-11-18 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7BNQ Lateral-closed conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-22 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7NBX Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NCS Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) bound by a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
7ND0 lateral-open conformation of the wild-type BAM complex (BamABCDE) bound to a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
7NRI Structure of the darobactin-bound E. coli BAM complex (BamABCDE) Deposited 2021-03-03 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4microL of sample applied
Resolution 3.03 Å
7R1W E. coli BAM complex (BamABCDE) bound to dynobactin A Deposited 2022-02-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 150 mM NaCl, 0.05% (w/v) n-dodecyl Beta-D-maltopyranoside (DDM)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7TTC BamABCDE bound to substrate EspP Deposited 2022-02-01 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded K33 2,3-dideoxy-6-O-[2-deoxy-4-O-phosphono-2-(tetradecanoylamino)-alpha-L-gulopyranosyl]-1-O-phosphono-beta-D-threo-hexopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7YE4 BAM-EspP complex structure with BamA-G431C and G781C/EspP-N1293C and A1043C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7YE6 BAM-EspP complex structure with BamA-N427C/EspP-R1297C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ADG Cryo-EM structure of Darobactin 22 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8ADI Cryo-EM structure of Darobactin 9 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8BNZ BAM-EspP complex structure with BamA-G431C/EspP-N1293C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BO2 BAM-EspP complex structure with BamA-S425C/EspP-S1299C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8BVQ E. coli BAM complex (BamABCDE) bound to darobactin B Deposited 2022-12-05 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8BWC E. coli BAM complex (BamABCDE) wild-type Deposited 2022-12-06 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8PZV Wait Complex: BAM bound Darobactin-B and Extended SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QN4 Structure of the BAM-EspP complex in an open EspP intermediate state Deposited 2023-09-25 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Mutation：S425C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
8SPR The cryo-EM structure of the EcBAM/EspP(beta1-12) complex Deposited 2023-05-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 21–392（372 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
8SQA The cryo-EM structure of the EcBAM/EspP(beta8-12) complex Deposited 2023-05-04 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 21–392（372 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8SQB The cryo-EM structure of the EcBAM/EspP(beta7-12) complex Deposited 2023-05-04 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 21–392（372 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9CNW CryoEM structure of the APO-BAM complex in DDM detergent Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9CNX CryoEM structure of BAM in complex with the PTB1 closed-state inhibitor (in DDM detergent) Deposited 2024-07-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.55 Å
9CNY CryoEM structure of the APO-BAM complex in SMA nanodisc Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9CNZ Structure of BAM complexed with PTB2 ligand in detergent Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9CO0 CryoEM structure of BAM in complex with the PTB2 open-state inhibitor (in SMA nanodisc) Deposited 2024-07-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9H84 BAM-hinge (LVPR) Deposited 2024-10-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 22–392（371 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9H85 BAM-hinge (GSGS) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9H89 BAM-hinge (LVPR) suppressor (T434A) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9HE1 Structure of the Xenorceptide A2-bound E. coli BAM complex (BamABCDE) Deposited 2024-11-13 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0
cryo-EM vitrification conditions Cryogen ETHANE；3.5uL sample, blot time 3sec, Blotforce 1, Blot total 1,
Resolution 3.00 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9MGE beta-barrel assembly machine from Escherichia coli in an early state of substrate assembly Deposited 2024-12-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MGF beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain B 20–392（373 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MGG beta-barrel assembly machine from Escherichia coli in a late state of substrate assembly Deposited 2024-12-10 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9P1U beta-barrel assembly machine from Escherichia coli in an late state of LptD assembly Deposited 2025-06-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain B 1–392（392 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

63 other PDB entries and 63 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAMB_ECOLI
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–373； UniProt 20–392

Outer membrane protein assembly factor BamC

Escherichia coli K-12

UniProt P0A903

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain C； UniProt 25–344 Not recorded Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） ELECTRON MICROSCOPY cryo-EM buffer：pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.83 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9HG7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2LAE NMR solution structure of the C-terminal domain of the E. coli lipoprotein BamC Deposited 2011-03-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 101–344（244 aa） Fragment：sequence database residues 229-344
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.6；303 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient
NMR sample composition 50 mM sodium phosphate, 50 mM sodium chloride, 0.1 mM EDTA, 0.02 % sodium azide, 1 X HALT, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 50 mM sodium phosphate, 50 mM sodium chloride, 0.1 mM EDTA, 0.02 % sodium azide, 1 X HALT, 100% D2O | 100% D2O
NMR sample composition 50 mM sodium phosphate, 50 mM sodium chloride, 0.1 mM EDTA, 0.02 % sodium azide, 1 X HALT, 21 mg/ml Pf1 phage, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2LAF NMR solution structure of the N-terminal domain of the E. coli lipoprotein BamC Deposited 2011-03-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 101–344（244 aa） Fragment：sequence database residues 101-212
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.6；303 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient
NMR sample composition 50 mM sodium phosphate, 50 mM sodium chloride, 0.1 mM EDTA, 0.02 % sodium azide, 1 X HALT, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 50 mM sodium phosphate, 50 mM sodium chloride, 0.1 mM EDTA, 0.02 % sodium azide, 1 X HALT, 100% D2O | 100% D2O
NMR sample composition 50 mM sodium phosphate, 50 mM sodium chloride, 0.1 mM EDTA, 0.02 % sodium azide, 1 X HALT, 21 mg/ml Pf1 phage, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2YH6 Structure of the N-terminal domain of BamC from E. coli Deposited 2011-04-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 101–212（112 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 101-212
Chain D 101–212（112 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 101-212
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 3.5；2 M (NH4)2SO4, 0.1 M CITRIC ACID PH 3.5
Resolution 1.55 Å R-free 0.234
2YH6 Structure of the N-terminal domain of BamC from E. coli Deposited 2011-04-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 101–212（112 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 101-212
Chain B 101–212（112 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 101-212
Not recorded SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 3.5；2 M (NH4)2SO4, 0.1 M CITRIC ACID PH 3.5
Resolution 1.55 Å R-free 0.234
3SNS Crystal structure of the C-terminal domain of Escherichia coli lipoprotein BamC Deposited 2011-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 224–343（120 aa） Fragment：C-terminal domain (UNP residues 224-343)
Not recorded CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；0.1 M sodium chloride, 0.1 M HEPES, pH 6.5, 1.6 M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.50 Å R-free 0.183
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 26–344（319 aa） Fragment：UNP residues 26-344
Not recorded K POTASSIUM ION × 1 GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 26–344（319 aa） Fragment：UNP residues 26-344
Not recorded GOL GLYCEROL × 3 CL CHLORIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 26–344（319 aa） Fragment：UNP residues 26-344
Chain D 26–344（319 aa） Fragment：UNP residues 26-344
Not recorded K POTASSIUM ION × 1 GOL GLYCEROL × 4 CL CHLORIDE ION × 1 PO4 PHOSPHATE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 26–344（319 aa） Fragment：UNP residues 26-344
Chain D 26–344（319 aa） Fragment：UNP residues 26-344
Not recorded K POTASSIUM ION × 2 GOL GLYCEROL × 8 CL CHLORIDE ION × 2 PO4 PHOSPHATE ION × 2 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
5AYW Structure of a membrane complex Deposited 2015-09-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 33–88（56 aa） Fragment：UNP residues 33-88
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；289 K；Tris-HCl, NaCl, PEG 400
Resolution 3.56 Å R-free 0.314
5D0O BamABCDE complex, outer membrane beta barrel assembly machinery entire complex Deposited 2015-08-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH7.5, 30% PEG600, CYMAL-4
Resolution 2.90 Å R-free 0.304
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 2–344（343 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 2–344（343 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5EKQ The structure of the BamACDE subcomplex from E. coli Deposited 2015-11-04 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 25–344（320 aa） Fragment：UNP residues 25-344
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；294 K；100 mM Tris-HCl, pH 8.5, 200 mM MgCl2, 10 mM MnCl2, and 8% PEG 4000
Resolution 3.39 Å R-free 0.281
5LJO E. coli BAM complex (BamABCDE) by cryoEM Deposited 2016-07-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 25–189（165 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Double blot. 3 ul sampel applied and blotted by hand, then additional 3 ul sample applied, blotted, and plunge frozen
Resolution 4.90 Å
6LYQ Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.19 Å R-free 0.293
6LYR Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.28 Å R-free 0.280
6LYS Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.05 Å R-free 0.284
6LYU Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7BNQ Lateral-closed conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-22 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7NBX Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NCS Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) bound by a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
7ND0 lateral-open conformation of the wild-type BAM complex (BamABCDE) bound to a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
7NRI Structure of the darobactin-bound E. coli BAM complex (BamABCDE) Deposited 2021-03-03 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4microL of sample applied
Resolution 3.03 Å
7R1W E. coli BAM complex (BamABCDE) bound to dynobactin A Deposited 2022-02-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 150 mM NaCl, 0.05% (w/v) n-dodecyl Beta-D-maltopyranoside (DDM)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7YE4 BAM-EspP complex structure with BamA-G431C and G781C/EspP-N1293C and A1043C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7YE6 BAM-EspP complex structure with BamA-N427C/EspP-R1297C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ADG Cryo-EM structure of Darobactin 22 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8ADI Cryo-EM structure of Darobactin 9 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8BNZ BAM-EspP complex structure with BamA-G431C/EspP-N1293C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BO2 BAM-EspP complex structure with BamA-S425C/EspP-S1299C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8BVQ E. coli BAM complex (BamABCDE) bound to darobactin B Deposited 2022-12-05 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8PZV Wait Complex: BAM bound Darobactin-B and Extended SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QN4 Structure of the BAM-EspP complex in an open EspP intermediate state Deposited 2023-09-25 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
8SPR The cryo-EM structure of the EcBAM/EspP(beta1-12) complex Deposited 2023-05-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 26–344（319 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9H84 BAM-hinge (LVPR) Deposited 2024-10-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 25–91（67 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9H85 BAM-hinge (GSGS) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9H89 BAM-hinge (LVPR) suppressor (T434A) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9HE1 Structure of the Xenorceptide A2-bound E. coli BAM complex (BamABCDE) Deposited 2024-11-13 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0
cryo-EM vitrification conditions Cryogen ETHANE；3.5uL sample, blot time 3sec, Blotforce 1, Blot total 1,
Resolution 3.00 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9MGE beta-barrel assembly machine from Escherichia coli in an early state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MGF beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain C 25–344（320 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MGG beta-barrel assembly machine from Escherichia coli in a late state of substrate assembly Deposited 2024-12-10 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9P1U beta-barrel assembly machine from Escherichia coli in an late state of LptD assembly Deposited 2025-06-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–344（344 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

51 other PDB entries and 56 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAMC_ECOLI
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–320； UniProt 25–344

Outer membrane protein assembly factor BamD

Escherichia coli K-12

UniProt P0AC02

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain D； UniProt 20–245 Not recorded Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamE × 1 （P0A937） Chaperone SurA × 1 （P0ABZ6） ELECTRON MICROSCOPY cryo-EM buffer：pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.83 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9HG7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2YHC Structure of BamD from E. coli Deposited 2011-04-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–245（217 aa） Fragment：RESIDUES 29-245
Not recorded URE UREA × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7；30% PEG 4000, 10% I-PROH, 0.1 M HEPES PH 7.5 .
Resolution 1.80 Å R-free 0.233
3Q5M Crystal structure of Escherichia coli BamD Deposited 2010-12-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 23–245（223 aa）
Not recorded IOD IODIDE ION × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.14M KI, 26%-27% PEG3350, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.60 Å R-free 0.261
3Q5M Crystal structure of Escherichia coli BamD Deposited 2010-12-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 23–245（223 aa）
Not recorded IOD IODIDE ION × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.14M KI, 26%-27% PEG3350, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.60 Å R-free 0.261
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 21–245（225 aa） Fragment：UNP residues 21-245
Not recorded K POTASSIUM ION × 1 GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 21–245（225 aa） Fragment：UNP residues 21-245
Not recorded GOL GLYCEROL × 3 CL CHLORIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 21–245（225 aa） Fragment：UNP residues 21-245
Chain B 21–245（225 aa） Fragment：UNP residues 21-245
Not recorded K POTASSIUM ION × 1 GOL GLYCEROL × 4 CL CHLORIDE ION × 1 PO4 PHOSPHATE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
3TGO Crystal structure of the E. coli BamCD complex Deposited 2011-08-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 21–245（225 aa） Fragment：UNP residues 21-245
Chain B 21–245（225 aa） Fragment：UNP residues 21-245
Not recorded K POTASSIUM ION × 2 GOL GLYCEROL × 8 CL CHLORIDE ION × 2 PO4 PHOSPHATE ION × 2 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 9.2；295 K；0.2 M K2HPO4 and 20% PEG3350, pH 9.2, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.90 Å R-free 0.243
5AYW Structure of a membrane complex Deposited 2015-09-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 20–245（226 aa） Fragment：UNP residues 20-245
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；289 K；Tris-HCl, NaCl, PEG 400
Resolution 3.56 Å R-free 0.314
5D0O BamABCDE complex, outer membrane beta barrel assembly machinery entire complex Deposited 2015-08-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH7.5, 30% PEG600, CYMAL-4
Resolution 2.90 Å R-free 0.304
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 2–245（244 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 2–245（244 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5EKQ The structure of the BamACDE subcomplex from E. coli Deposited 2015-11-04 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 20–245（226 aa） Fragment：UNP residues 20-245
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；294 K；100 mM Tris-HCl, pH 8.5, 200 mM MgCl2, 10 mM MnCl2, and 8% PEG 4000
Resolution 3.39 Å R-free 0.281
6LYQ Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.19 Å R-free 0.293
6LYR Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.28 Å R-free 0.280
6LYS Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.05 Å R-free 0.284
6LYU Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7BNQ Lateral-closed conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-22 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7NBX Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NCS Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) bound by a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
7ND0 lateral-open conformation of the wild-type BAM complex (BamABCDE) bound to a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
7NRI Structure of the darobactin-bound E. coli BAM complex (BamABCDE) Deposited 2021-03-03 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4microL of sample applied
Resolution 3.03 Å
7R1W E. coli BAM complex (BamABCDE) bound to dynobactin A Deposited 2022-02-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 150 mM NaCl, 0.05% (w/v) n-dodecyl Beta-D-maltopyranoside (DDM)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7YE4 BAM-EspP complex structure with BamA-G431C and G781C/EspP-N1293C and A1043C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7YE6 BAM-EspP complex structure with BamA-N427C/EspP-R1297C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ADG Cryo-EM structure of Darobactin 22 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8ADI Cryo-EM structure of Darobactin 9 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8BNZ BAM-EspP complex structure with BamA-G431C/EspP-N1293C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BO2 BAM-EspP complex structure with BamA-S425C/EspP-S1299C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8BVQ E. coli BAM complex (BamABCDE) bound to darobactin B Deposited 2022-12-05 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8PZV Wait Complex: BAM bound Darobactin-B and Extended SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QN4 Structure of the BAM-EspP complex in an open EspP intermediate state Deposited 2023-09-25 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
9H85 BAM-hinge (GSGS) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9H89 BAM-hinge (LVPR) suppressor (T434A) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9HE1 Structure of the Xenorceptide A2-bound E. coli BAM complex (BamABCDE) Deposited 2024-11-13 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0
cryo-EM vitrification conditions Cryogen ETHANE；3.5uL sample, blot time 3sec, Blotforce 1, Blot total 1,
Resolution 3.00 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9MGE beta-barrel assembly machine from Escherichia coli in an early state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MGF beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain D 20–245（226 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MGG beta-barrel assembly machine from Escherichia coli in a late state of substrate assembly Deposited 2024-12-10 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9P1U beta-barrel assembly machine from Escherichia coli in an late state of LptD assembly Deposited 2025-06-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain D 1–245（245 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

46 other PDB entries and 51 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAMD_ECOLI
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 1–226； UniProt 20–245

Outer membrane protein assembly factor BamE

Escherichia coli K-12

UniProt P0A937

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain E； UniProt 20–113 Not recorded Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Chaperone SurA × 1 （P0ABZ6） ELECTRON MICROSCOPY cryo-EM buffer：pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.83 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9HG7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2KM7 Solution Structure of BamE, a component of the outer membrane protein assembly machinery in Escherichia coli Deposited 2009-07-24 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–114（94 aa）
Mutation：C20S No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；303 K；Pressure ambient
NMR sample composition 2.0 mM [U-100% 13C; U-100% 15N] BamE, 50 mM sodium phosphate, 50 mM sodium chloride, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
2KXX NMR Structure of Escherichia coli BamE, a Lipoprotein Component of the beta-Barrel Assembly Machinery Complex Deposited 2010-05-13 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–113（93 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.6；288 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient
NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] E. coli protein, 15 % D2O, 85 % H2O, 20 mM Na2HPO4/NaH2PO4, 85% H2O/15% D2O | 85% H2O/15% D2O
Resolution not provided
2YH9 Crystal structure of the dimeric BamE from E. coli Deposited 2011-04-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 34–113（80 aa） Fragment：RESIDUES 34-113
Chain B 34–113（80 aa） Fragment：RESIDUES 34-113
Chain C 34–113（80 aa） Fragment：RESIDUES 34-113
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；30% PEG 4000, 10% I-PROH, 0.1 M HEPES PH 7.5
Resolution 1.80 Å R-free 0.229
5AYW Structure of a membrane complex Deposited 2015-09-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 20–113（94 aa） Fragment：UNP residues 20-113
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；289 K；Tris-HCl, NaCl, PEG 400
Resolution 3.56 Å R-free 0.314
5D0O BamABCDE complex, outer membrane beta barrel assembly machinery entire complex Deposited 2015-08-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, pH7.5, 30% PEG600, CYMAL-4
Resolution 2.90 Å R-free 0.304
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 2–113（112 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5D0Q BamACDE complex, outer membrane beta-barrel assembly machinery (BAM) complex Deposited 2015-08-03 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 2–113（112 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；297 K；0.1 M Tris, pH8.0, 0.1 M MgCl2, 24% PEG500 MME.
Resolution 3.50 Å R-free 0.340
5EKQ The structure of the BamACDE subcomplex from E. coli Deposited 2015-11-04 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 20–113（94 aa） Fragment：UNP residues 20-113
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；294 K；100 mM Tris-HCl, pH 8.5, 200 mM MgCl2, 10 mM MnCl2, and 8% PEG 4000
Resolution 3.39 Å R-free 0.281
6LYQ Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.19 Å R-free 0.293
6LYR Structure of the BAM complex Deposited 2020-02-15 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.28 Å R-free 0.280
6LYS Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl
Resolution 3.05 Å R-free 0.284
6LYU Structure of the BAM complex Deposited 2020-02-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
7BNQ Lateral-closed conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-22 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7NBX Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) by cryoEM Deposited 2021-01-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7NCS Lateral-open conformation of the lid-locked BAM complex (BamA E435C S665C, BamBDCE) bound by a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
7ND0 lateral-open conformation of the wild-type BAM complex (BamABCDE) bound to a bactericidal Fab fragment Deposited 2021-01-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
7NRI Structure of the darobactin-bound E. coli BAM complex (BamABCDE) Deposited 2021-03-03 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；4microL of sample applied
Resolution 3.03 Å
7R1W E. coli BAM complex (BamABCDE) bound to dynobactin A Deposited 2022-02-03 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20 mM Tris pH 8.0, 150 mM NaCl, 0.05% (w/v) n-dodecyl Beta-D-maltopyranoside (DDM)
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7YE4 BAM-EspP complex structure with BamA-G431C and G781C/EspP-N1293C and A1043C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7YE6 BAM-EspP complex structure with BamA-N427C/EspP-R1297C mutations in nanodisc Deposited 2022-07-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；20 mM Tris-HCl, pH 7.8, 150 mM NaCl
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ADG Cryo-EM structure of Darobactin 22 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
8ADI Cryo-EM structure of Darobactin 9 bound BAM complex Deposited 2022-07-08 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.40 Å
8BNZ BAM-EspP complex structure with BamA-G431C/EspP-N1293C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8BO2 BAM-EspP complex structure with BamA-S425C/EspP-S1299C mutations in nanodisc Deposited 2022-11-14 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8BVQ E. coli BAM complex (BamABCDE) bound to darobactin B Deposited 2022-12-05 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8PZV Wait Complex: BAM bound Darobactin-B and Extended SurA Deposited 2023-07-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QN4 Structure of the BAM-EspP complex in an open EspP intermediate state Deposited 2023-09-25 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
9H85 BAM-hinge (GSGS) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9H89 BAM-hinge (LVPR) suppressor (T434A) Deposited 2024-10-28 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9HE1 Structure of the Xenorceptide A2-bound E. coli BAM complex (BamABCDE) Deposited 2024-11-13 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0
cryo-EM vitrification conditions Cryogen ETHANE；3.5uL sample, blot time 3sec, Blotforce 1, Blot total 1,
Resolution 3.00 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å
9MGE beta-barrel assembly machine from Escherichia coli in an early state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9MGF beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly Deposited 2024-12-10 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: heptameric
Chain E 20–113（94 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9MGG beta-barrel assembly machine from Escherichia coli in a late state of substrate assembly Deposited 2024-12-10 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9P1U beta-barrel assembly machine from Escherichia coli in an late state of LptD assembly Deposited 2025-06-10 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain E 1–113（113 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å

46 other PDB entries and 47 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAME_ECOLI
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 1–94； UniProt 20–113

Chaperone SurA

Escherichia coli K-12

UniProt P0ABZ6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count Chain F； UniProt 21–428 Not recorded Outer membrane protein assembly factor BamA × 1 （P0A940） Outer membrane protein assembly factor BamB × 1 （P77774） Outer membrane protein assembly factor BamC × 1 （P0A903） Outer membrane protein assembly factor BamD × 1 （P0AC02） Outer membrane protein assembly factor BamE × 1 （P0A937） ELECTRON MICROSCOPY cryo-EM buffer：pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.83 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9HG7 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1M5Y Crystallographic Structure of SurA, a Molecular Chaperone that Facilitates Outer Membrane Porin Folding Deposited 2002-07-10 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 21–428（408 aa）
Chain B 21–428（408 aa）
Chain C 21–428（408 aa）
Chain D 21–428（408 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；303 K；0.75M ammonium sulphate, 100mM sodium citrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 303K, VAPOR DIFFUSION, HANGING DROP, temperature 303.0K
Resolution 3.00 Å R-free 0.283
2PV1 Crystallographic Structure of SurA first peptidyl-prolyl isomerase domain complexed with peptide WEYIPNV Deposited 2007-05-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 172–274（103 aa） Fragment：PpiC 1
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；25~28% polyethylene glycol monomethylether 5000, 0.2 M ammonium sulfate, 0.1 M MES buffer, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 1.30 Å R-free 0.243
2PV2 Crystallographic Structure of SurA first peptidyl-prolyl isomerase domain complexed with peptide NFTLKFWDIFRK Deposited 2007-05-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 172–274（103 aa） Fragment：PPIC 1
Chain B 172–274（103 aa） Fragment：PPIC 1
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；24% ployethylene glycol 8000, 0.1 M imdidazole, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.30 Å R-free 0.227
2PV2 Crystallographic Structure of SurA first peptidyl-prolyl isomerase domain complexed with peptide NFTLKFWDIFRK Deposited 2007-05-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 172–274（103 aa） Fragment：PPIC 1
Chain D 172–274（103 aa） Fragment：PPIC 1
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；24% ployethylene glycol 8000, 0.1 M imdidazole, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.30 Å R-free 0.227
2PV3 Crystallographic Structure of SurA fragment lacking the second peptidyl-prolyl isomerase domain complexed with peptide NFTLKFWDIFRK Deposited 2007-05-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain not uniquely mapped Reference range not declared Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted
Chain A 21–281（261 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted
Chain A 391–428（38 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted
Chain B 21–281（261 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted
Chain B 391–428（38 aa） Fragment：Survivial protein A fragment from which the second peptidyl-prolyl isomerase domain has been deleted
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；1.4~1.8M sodium chloride, 0.1M potassium dihydrogen phosphate, 0.1 M sodium dihydrogen phosphate, 0.1M MES buffer, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 3.39 Å R-free 0.299
8PZ1 Wait Complex: Lateral open BAM bound Compact SurA Deposited 2023-07-26 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 20–428（409 aa）
Mutation：K27C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8PZ2 Wait Complex: Lateral open BAM bound Extended SurA Deposited 2023-07-26 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 21–428（408 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8PZU Wait Complex: BAM bound Darobactin-B and Compact SurA Deposited 2023-07-27 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 21–428（408 aa）
Mutation：K27C MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8Q0G Release Complex: BAM bound EspP and Compact SurA Deposited 2023-07-28 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 21–428（408 aa）
Mutation：K27C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
8QP5 Release Complex: BAM bound EspP (SurA released) Deposited 2023-09-29 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain P 21–428（408 aa）
Mutation：S1299C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
8QPU Release Complex: BAM bound EspP and Extended SurA Deposited 2023-10-03 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 21–428（408 aa）
Mutation：K27C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8QPV Handover Complex: BAM bound OmpX and extended SurA Deposited 2023-10-03 Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: heptameric
Chain F 21–428（408 aa）
Mutation：K27C,R170C No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8QPW Arrival Complex: Lateral open BAM bound extended SurA plus OmpX Deposited 2023-10-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 21–428（408 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
9HG5 BAM-SurA complex in the swing-in state with full length BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 21–428（408 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.82 Å
9HG6 BAM-SurA complex in the swing-in state Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 21–428（408 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9HG8 BAM-SurA complex in the swing-out state with BamC resolved Deposited 2024-11-19 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 21–428（408 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9HG9 BAM-SurA-darobactin complex in the swing-in state Deposited 2024-11-19 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 21–428（408 aa）
Not recorded MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.88 Å
9HGA BAM-SurA-darobactin complex in the swing-out state Deposited 2024-11-19 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain F 21–428（408 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；20mM Tris-HCl, 150mM NaCl, 0.05% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.62 Å

17 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SURA_ECOLI
Isoform —
PDB entities 6
Chains and sequence ranges Author chain F； PDBConstruct 5–412； UniProt 21–428

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9hg7

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9hg7
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9hg7
Deposition date deposition_date2024-11-19
最后修订 last_revision2025-04-16
Structure title titleBAM-SurA complex in the swing-out state
Keywords keywordsinsertase, outer membrane protein, chaperone, protein folding, protein complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier49.16 Å
Radius of gyration Rg (electron density) rg_electron48.52 Å
Forward intensity I(0) i0709373000.00
Molecular weight molecular_weight216130.0 kDa
Excluded volume excluded_volume268360 ų
Envelope volume envelope_volume404320 ų
Hydration-shell volume shell_volume69142 ų
Envelope diameter envelope_diameter162.0 Å
Shell Rg shell_rg53.58 Å
Envelope Rg envelope_rg46.95 Å
Shape Rg shape_rg48.52 Å
Total Rg total_rg48.70 Å
Total atoms total_atoms30038
Residues n_residues1953
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax159.8 Å
Rg (real space) rg_real49.00 Å
Rg uncertainty (real space) rg_real_error1.37 Å
I(0) (real space) i0_real7.0940e+08
I(0) uncertainty (real space) i0_real_error1.2840e+07
Rg (reciprocal space) rg_reciprocal49.16 Å
I(0) (reciprocal space) i0_reciprocal709500000.0000
Solution quality estimate total_estimate0.8798
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary69.9 Å
Skewness Skewness skewness0.125
Kurtosis Kurtosis kurtosis-0.548
Angular range angular_range— – 0.1600 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha57600000.0000
Real-space data points n_real_points33
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.747
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

▶

8. Citations (1)

▶

9. Files and Curves (10)
