SAXSdb — 2rmy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myc box-dependent-interacting protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–33	Fragment：UNP residues 1-33	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 7.4；298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition：1mM [U-100% 15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2RMY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1MUZ NMR STRUCTURE OF THE TUMOR SUPPRESSOR BIN1: ALTERNATIVE SPLICING IN MELANOMA AND INTERACTION WITH C-MYC Deposited 2002-09-24	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 513–593（81 aa） Fragment：residues 513-593	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 300e-3；Pressure ambient NMR sample composition 1.5 mM Bin1(402-482) U-15N, 13C 25 mM sodium phosphate buffer, 150 mM NaCl, 1 mM DTT, 95% H2O, 5% D2O pH=6.5 \| 95% H2O/5% D2O	Resolution not provided
1MV0 NMR STRUCTURE OF THE TUMOR SUPPRESSOR BIN1: ALTERNATIVE SPLICING IN MELANOMA AND INTERACTION WITH C-MYC Deposited 2002-09-24	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 513–593（81 aa） Fragment：residues 513-593	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 300e-3；Pressure ambient NMR sample composition 1.4 mM Bin1(402-482)/c-Myc(55-68) U-15N, 13C, 25 mM sodium phosphate, 150 mM NaCl, 1 mM DTT, 95% H2O, 5% D2O pH=6.5 \| 95% H2O/5% D2O	Resolution not provided
1MV3 NMR STRUCTURE OF THE TUMOR SUPPRESSOR BIN1: ALTERNATIVE SPLICING IN MELANOMA AND INTERACTION WITH C-MYC Deposited 2002-09-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 301–377（77 aa） Fragment：isoform BIN1+12A (residues 301-377, 458-594) Chain A 458–593（136 aa） Fragment：isoform BIN1+12A (residues 301-377, 458-594)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 300e-3；Pressure ambient NMR sample composition 1.3 mM Bin1(270-482,+12A) U-15N, 13C, 25 mM sodium phosphate, 150 mM NaCl, 1 mM DTT, 95 % H2O, 5% D2O \| 95% H2O/5% D2O	Resolution not provided
2FIC The crystal structure of the BAR domain from human Bin1/Amphiphysin II and its implications for molecular recognition Deposited 2005-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–241（241 aa） Fragment：BAR domain Chain B 1–241（241 aa） Fragment：BAR domain	Not recorded	XE XENON × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% monomethylether-PEG550, 100mM Tris (pH 8), 100mM NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.280
2FIC The crystal structure of the BAR domain from human Bin1/Amphiphysin II and its implications for molecular recognition Deposited 2005-12-29	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–241（241 aa） Fragment：BAR domain	Not recorded	XE XENON × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% monomethylether-PEG550, 100mM Tris (pH 8), 100mM NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.280
2FIC The crystal structure of the BAR domain from human Bin1/Amphiphysin II and its implications for molecular recognition Deposited 2005-12-29	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–241（241 aa） Fragment：BAR domain	Not recorded	XE XENON × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% monomethylether-PEG550, 100mM Tris (pH 8), 100mM NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.99 Å R-free 0.280
2RND Structure of the N-terminal BARpeptide in DPC micelles Deposited 2007-12-16	Different construct	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–33（33 aa） Fragment：BARpeptide, UNP residues 1-33	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 0；Pressure ambient NMR sample composition 1mM [U-100% 15N] protein, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5I22 Amphiphysin SH3 in complex with Chikungunya virus nsP3 peptide Deposited 2016-02-04	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 513–593（81 aa） Fragment：SH3 fragment, UNP residue 513-593	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298.15 K；Pressure 1 NMR sample composition 0.5 mM [U-13C; U-15N] amphiphysin 2 SH3, 0.5 mM [U-13C; U-15N] CHIKV nsP3 peptide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–33； UniProt 1–33

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2rmy
Deposition date deposition_date	2007-12-03
Structure title title	Structure of the N-terminal BARpeptide in SDS micelles
Keywords keywords	;BARpeptide, micelle, NMR-structure, Alternative splicing, Anti-oncogene, Cell cycle, Coiled coil, Cytoplasm, Developmental protein, Differentiation, Endocytosis, Host-virus interaction, Nucleus, Phosphoprotein, SH3 domain ;; ENDOCYTOSIS
Experimental Method method	SOLUTION NMR

▼

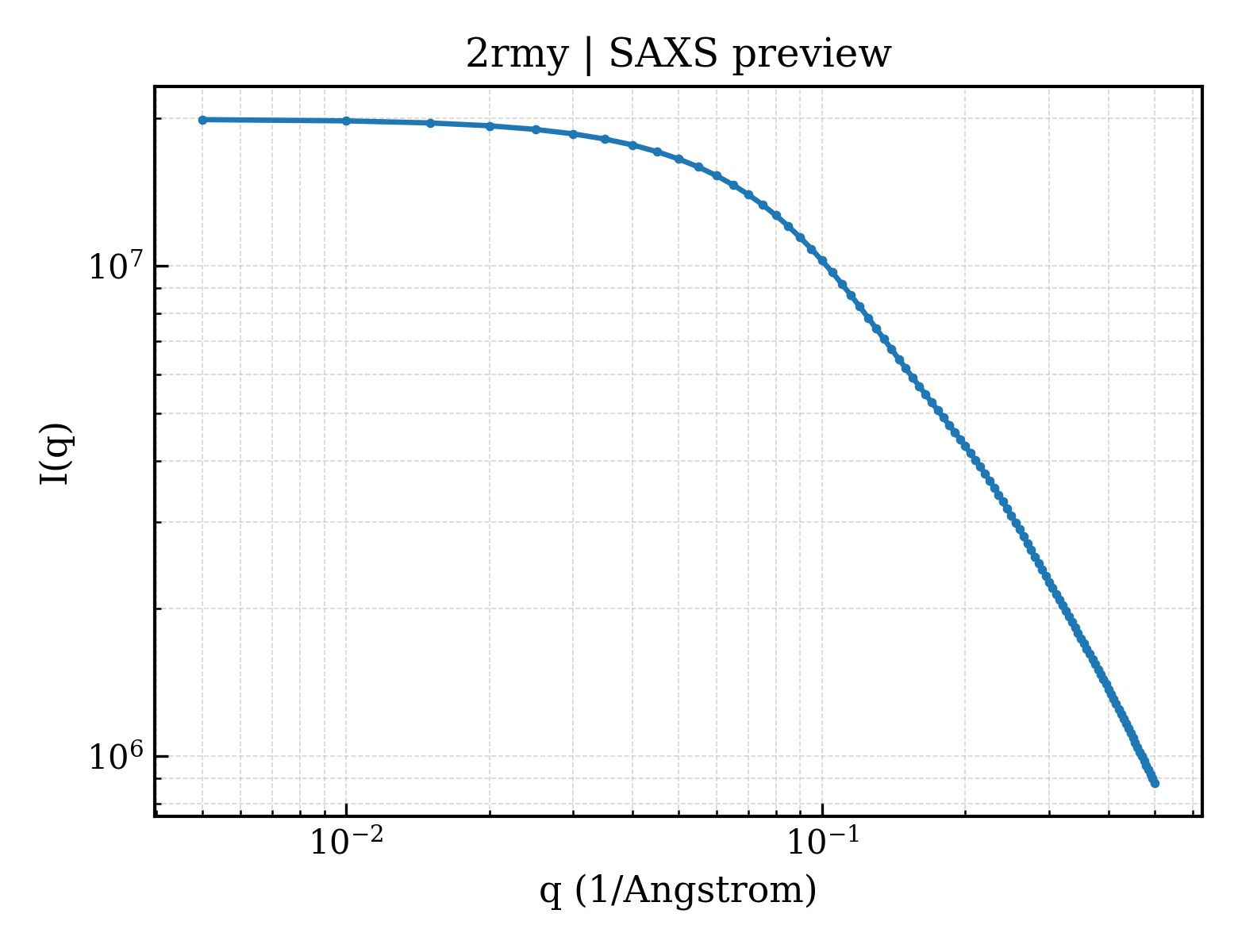

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.78 Å
Radius of gyration Rg (electron density) rg_electron	15.03 Å
Forward intensity I(0) i0	19871400.00
Molecular weight molecular_weight	37125.0 kDa
Excluded volume excluded_volume	47143 Å³
Envelope volume envelope_volume	14380 Å³
Hydration-shell volume shell_volume	8215 Å³
Envelope diameter envelope_diameter	59.2 Å
Shell Rg shell_rg	20.78 Å
Envelope Rg envelope_rg	17.86 Å
Shape Rg shape_rg	14.95 Å
Total Rg total_rg	15.66 Å
Total atoms total_atoms	5440
Residues n_residues	340
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

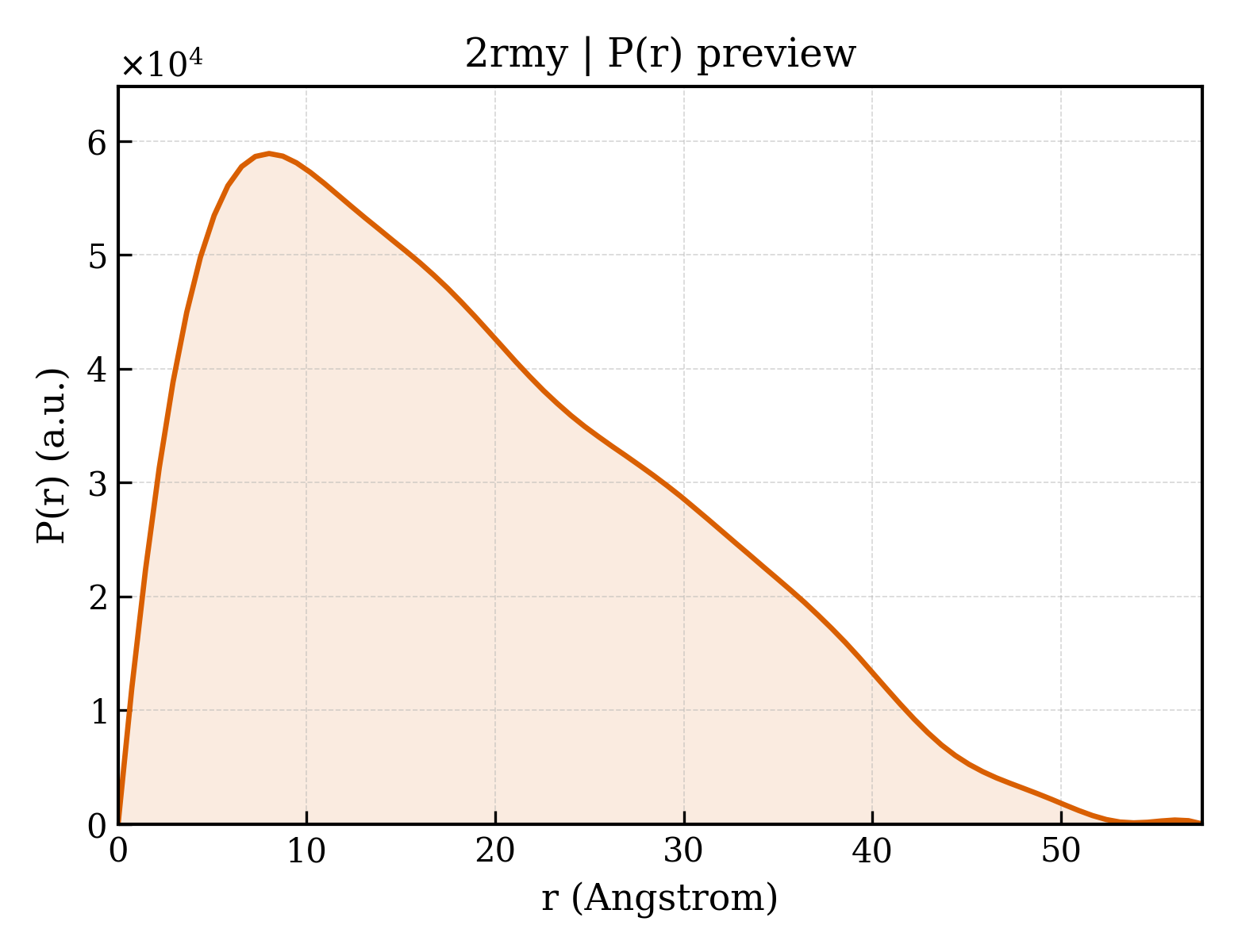

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.5 Å
Rg (real space) rg_real	15.20 Å
Rg uncertainty (real space) rg_real_error	0.68 Å
I(0) (real space) i0_real	1.9870e+07
I(0) uncertainty (real space) i0_real_error	2.7570e+05
Rg (reciprocal space) rg_reciprocal	15.17 Å
I(0) (reciprocal space) i0_reciprocal	19870000.0000
Solution quality estimate total_estimate	0.6501
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	8.0 Å
Skewness Skewness skewness	0.566
Kurtosis Kurtosis kurtosis	-0.482
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10350.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.150; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.014; Smooth: 0.983

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	Myc box-dependent-interacting protein 1
Molecular weight formula_weight	3714.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5440

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/rm/2rmy/2rmy.fit
pddf	/app/data/pr_computation/rm/2rmy/2rmy.pr.out
profile	/app/data/saxs_computation/rm/2rmy/2rmy.dat

Structure of the N-terminal BARpeptide in SDS micelles
