2stt

SOLUTION NMR STRUCTURE OF THE HUMAN ETS1/DNA COMPLEX, 25 STRUCTURES

Method: SOLUTION NMR Dmax: 58.8 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ETS1

OrganismNot specified

UniProt P14921

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts Chain A； UniProt 320–415 Not recorded ;DNA (5'-D(*TP*CP*GP*AP*GP*CP*CP*GP*GP*AP*AP*GP*TP*TP*CP*GP*A)-3') ; × 1 ;DNA (5'-D(*TP*CP*GP*AP*AP*CP*TP*TP*CP*CP*GP*GP*CP*TP*CP*GP*A)-3') ; × 1 SOLUTION NMR NMR measurement conditions：pH 6.8；305 K Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2STT Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1GVJ ETS-1 DNA BINDING AND AUTOINHIBITORY DOMAINS Deposited 2002-02-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 297–441（145 aa） Fragment：RESIDUES 297-441
Chain B 297–441（145 aa） Fragment：RESIDUES 297-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；297 K；0.2 M AMMONIUM ACETATE, 30% W/V PEG 4000, 0.1 M SODIUM CITRATE PH 5.6, PROTEIN CONCENTRATION 15 MG/ML PLUS 10 MM DTT, TEMPERATURE 297 K, FOR CRYOPROTECTION 10% OF PEG 400 WAS ADDED.
Resolution 1.53 Å R-free 0.235
2NNY Crystal structure of the Ets1 dimer DNA complex. Deposited 2006-10-24 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 280–441（162 aa） Fragment：residues 280-441
Chain B 280–441（162 aa） Fragment：residues 280-441
Mutation：C350S , C416S Mutation：C350S , C416S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；0.2 M ammonium acetate 28% PEG 2000 0.1 M sodium citrate, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 100K, temperature 298K
Resolution 2.58 Å R-free 0.271
2STW SOLUTION NMR STRUCTURE OF THE HUMAN ETS1/DNA COMPLEX, RESTRAINED REGULARIZED MEAN STRUCTURE Deposited 1996-08-05 Parsed fields agree Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 320–415（96 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；305 K
Resolution not provided
3MFK Ets1 complex with stromelysin-1 promoter DNA Deposited 2010-04-02 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 280–441（162 aa） Fragment：UNP residues 280-441
Chain B 280–441（162 aa） Fragment：UNP residues 280-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；15 mM ammonium chloride, 15 mM magnesium chloride, 0.7 M NDSB-195, 40 mM MES buffer (pH 6.5) and 11.5% v/v 2-Propanol, VAPOR DIFFUSION, SITTING DROP, temperature 295 K
Resolution 3.00 Å R-free 0.289
3RI4 Ets1 cooperative binding to widely separated sites on promoter DNA Deposited 2011-04-12 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: hexameric
Chain A 64–225（162 aa） Fragment：UNP residues 280-441
Chain D 64–225（162 aa） Fragment：UNP residues 280-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions sitting drop vapor diffusion and macroseeding；pH 8.5；295 K；200 mM ammonium chloride, 10 mM calcium chloride, 50 mM Tris-HCl buffer (pH 8.5), 18.5% v/v PEG MME 2000, 3% v/v glycerol, sitting drop vapor diffusion and macroseeding, temperature 295K
Resolution 3.00 Å R-free 0.284
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTX Crystal structure of the complex comprised of ETS1(Y329A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Mutation：Y329A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.80 Å R-free 0.271
3WTX Crystal structure of the complex comprised of ETS1(Y329A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Mutation：Y329A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.80 Å R-free 0.271
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Mutation：G333P No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Mutation：G333P No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268
3WTZ Crystal structure of ETS-1 DNA binding and autoinhibitory domains (276-441) Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Chain B 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；9% MPD, 6% PEG 6000, 0.1M HEPES, pH 7.8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.61 Å R-free 0.252
3WU0 Crystal structure of phosphorylated ETS-1 DNA binding and autoinhibitory domains (276-441) Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Chain B 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；5% PEG 3000, 25% MPD, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP
Resolution 2.60 Å R-free 0.277
3WU1 Crystal structure of the ETS1-RUNX1-DNA ternary complex Deposited 2014-04-21 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 333–441（109 aa） Fragment：UNP RESIDUES 333-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；11% PEG MME 550, 0.1M KCL, 0.015M MGCL2, 0.05M TRIS, pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 2.40 Å R-free 0.249
4L0Y Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 1) Deposited 2013-06-01 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；298 K；Plate-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, temperature 298K
Resolution 2.50 Å R-free 0.245
4L0Z Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 2) Deposited 2013-06-01 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；Square bipyramid-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.272
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.280
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain F 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.280
4LG0 Structure of a ternary FOXO1-ETS1 DNA complex Deposited 2013-06-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 331–440（110 aa） Fragment：DNA binding domain, UNP residues 331-440
Not recorded CA CALCIUM ION × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；30% PEG 400, 0.05M 2-Amino-2-hydroxymethyl-propane-1,3-diol, 0.1M potassium chloride, 0.01M magnesium chloride, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.19 Å R-free 0.243
5ZMC Structural Basis for Reactivation of -146C>T Mutant TERT Promoter by cooperative binding of p52 and ETS1/2 Deposited 2018-04-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 331–441（111 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；0.1 M HEPES pH 7.0 and 2.0 M Ammonium sulphate
Resolution 2.99 Å R-free 0.288

20 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ETS1_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain A； PDBConstruct 1–96； UniProt 320–415

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2stt

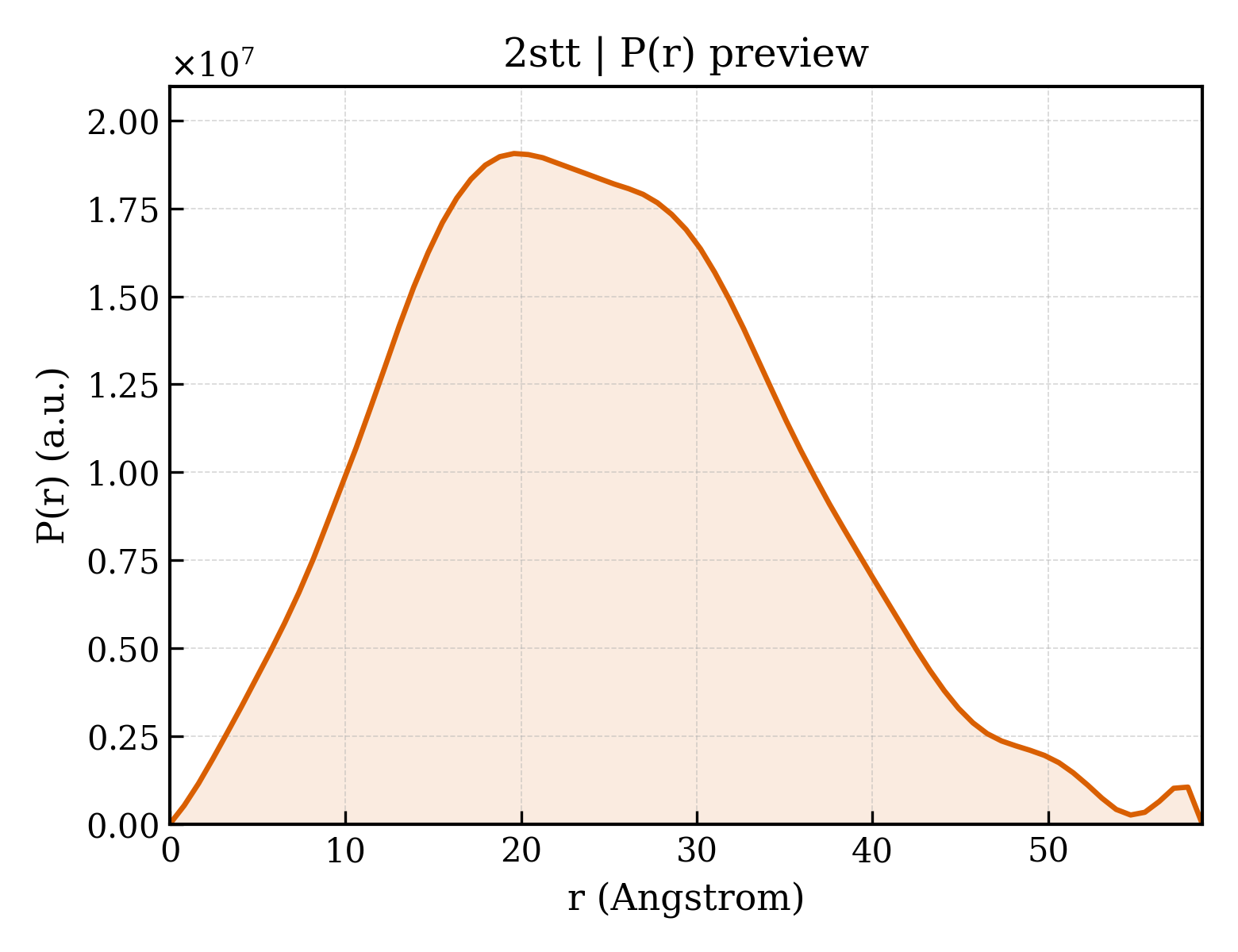

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2stt
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2stt
Deposition date deposition_date1996-08-05
Structure title titleSOLUTION NMR STRUCTURE OF THE HUMAN ETS1/DNA COMPLEX, 25 STRUCTURES
Keywords keywordsDEOXYRIBONUCLEIC ACID, COMPLEX (DNA-BINDING PROTEIN-DNA), DNA BINDING PROTEIN-DNA COMPLEX; DNA BINDING PROTEIN/DNA
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier18.84 Å
Radius of gyration Rg (electron density) rg_electron18.20 Å
Forward intensity I(0) i06851970000.00
Molecular weight molecular_weight541450.0 kDa
Excluded volume excluded_volume608710 ų
Envelope volume envelope_volume47325 ų
Hydration-shell volume shell_volume20537 ų
Envelope diameter envelope_diameter68.4 Å
Shell Rg shell_rg25.91 Å
Envelope Rg envelope_rg19.68 Å
Shape Rg shape_rg18.11 Å
Total Rg total_rg18.46 Å
Total atoms total_atoms66750
Residues n_residues3250
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax58.8 Å
Rg (real space) rg_real18.84 Å
Rg uncertainty (real space) rg_real_error0.39 Å
I(0) (real space) i0_real6.8520e+09
I(0) uncertainty (real space) i0_real_error8.5220e+07
Rg (reciprocal space) rg_reciprocal18.84 Å
I(0) (reciprocal space) i0_reciprocal6852000000.0000
Solution quality estimate total_estimate0.8323
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary19.6 Å
Skewness Skewness skewness0.341
Kurtosis Kurtosis kurtosis-0.231
Angular range angular_range— – 0.4200 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha881900.0000
Real-space data points n_real_points73
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.913; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.081
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd2stta_
Class classa — All alpha proteins
Fold Fold folda.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamilya.4.5 — 'Winged helix' DNA-binding domain
Family Family familya.4.5.21 — ets domain

CATH v4.4 (1 domains)

Domain ID domain_id2sttA00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain
▶

8. Citations (1)

▶

9. Files and Curves (10)
