3wtx

Crystal structure of the complex comprised of ETS1(Y329A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA

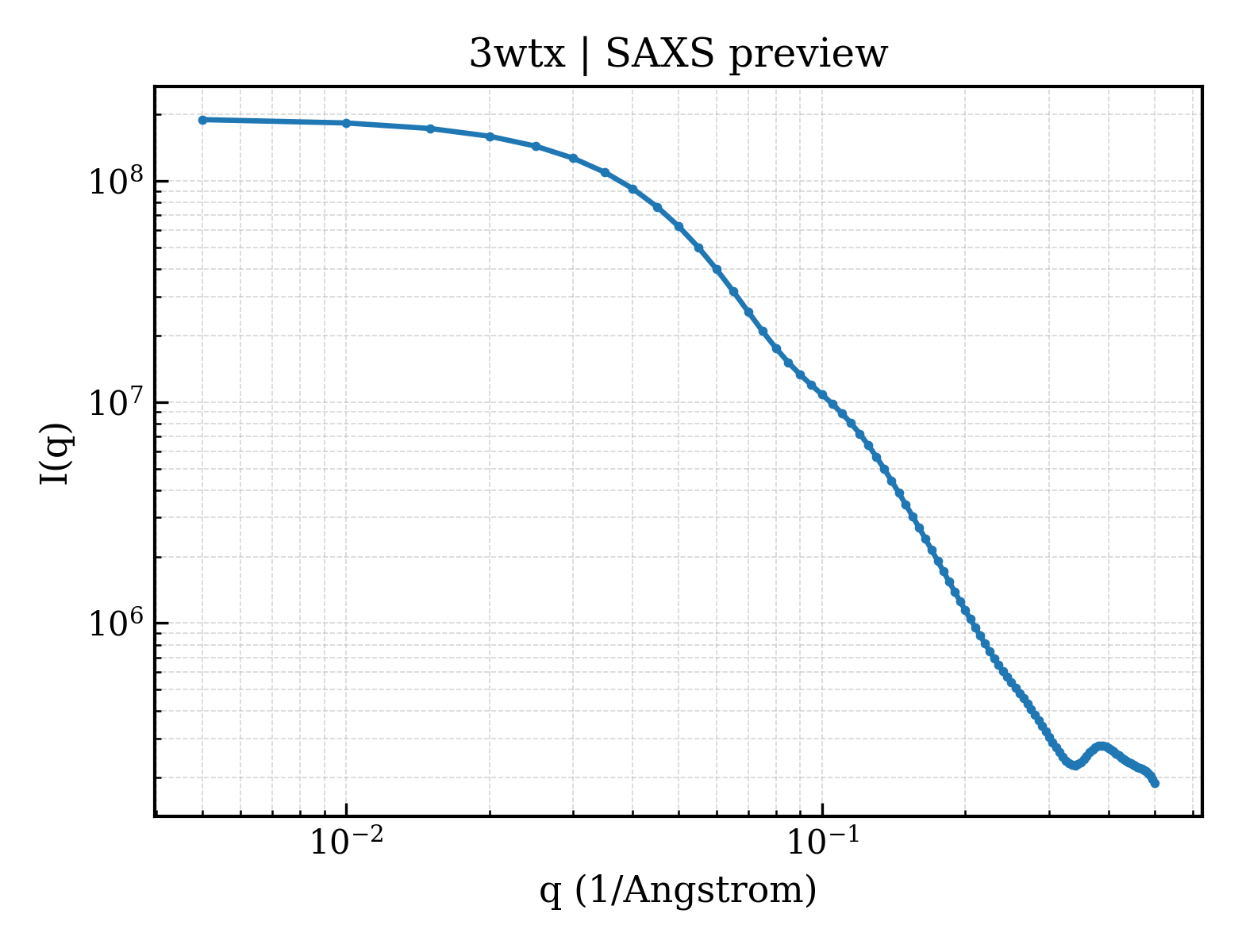

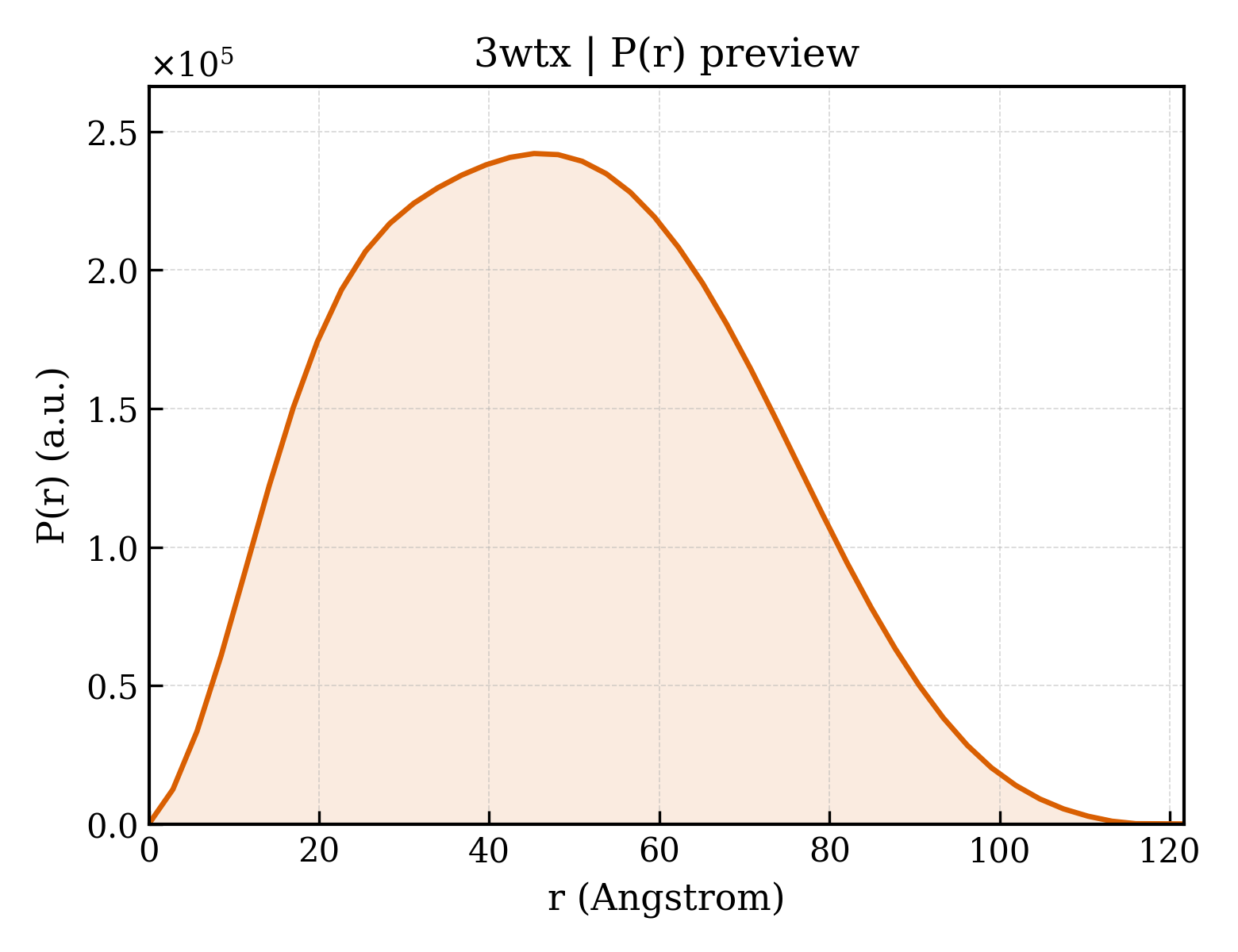

Method: X-RAY DIFFRACTION Dmax: 121.7 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Runt-related transcription factor 1

Mus musculus

UniProt Q03347

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts Chain A； UniProt 60–263 Fragment：UNP RESIDUES 60-263 Mutation：L94K Core-binding factor subunit beta × 1 （Q08024） Protein C-ets-1 × 1 （P14921） ;DNA (5'-D(*GP*AP*AP*GP*CP*CP*AP*CP*AP*TP*CP*CP*TP*CP*T)-3') ; × 1 ;DNA (5'-D(*AP*GP*AP*GP*GP*AP*TP*GP*TP*GP*GP*CP*TP*TP*C)-3') ; × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K Resolution 2.80 Å R-free 0.271
2 Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts Chain F； UniProt 60–263 Fragment：UNP RESIDUES 60-263 Mutation：L94K Core-binding factor subunit beta × 1 （Q08024） Protein C-ets-1 × 1 （P14921） ;DNA (5'-D(*GP*AP*AP*GP*CP*CP*AP*CP*AP*TP*CP*CP*TP*CP*T)-3') ; × 1 ;DNA (5'-D(*AP*GP*AP*GP*GP*AP*TP*GP*TP*GP*GP*CP*TP*TP*C)-3') ; × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K Resolution 2.80 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3WTX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EAN THE RUNX1 Runt domain at 1.70A resolution: A structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 46-185
Mutation：YES CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；30% MPEG 350, 5-10% PEG 3350, 70 MM NA CACODYLATE, PH 6.5
Resolution 1.70 Å R-free 0.222
1EAO THE RUNX1 Runt domain at 1.4A resolution: a structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 46-185
Mutation：YES BR BROMIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4
Resolution 1.40 Å R-free 0.173
1EAO THE RUNX1 Runt domain at 1.4A resolution: a structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 46-185
Mutation：YES BR BROMIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4
Resolution 1.40 Å R-free 0.173
1EAQ The RUNX1 Runt domain at 1.25A resolution: A structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 36-185
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4
Resolution 1.25 Å R-free 0.167
1EAQ The RUNX1 Runt domain at 1.25A resolution: A structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 36-185
Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4
Resolution 1.25 Å R-free 0.167
1HJB CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 60–182（123 aa） Fragment：RESIDUES 60-182
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C
Resolution 3.00 Å R-free 0.313
1HJB CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11 Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 60–182（123 aa） Fragment：RESIDUES 60-182
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C
Resolution 3.00 Å R-free 0.313
1HJC CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 60–182（123 aa） Fragment：RESIDUES 60-182
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；297 K；0.2 M AMMONIUM ACETATE, 0.15 M MAGNESIUM ACETATE, 5% W/V PEG 4000, 50 MM HEPES BUFFER, PH 7.0 AT 24 DEGREES C
Resolution 2.65 Å R-free 0.263
1HJC CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain D 60–182（123 aa） Fragment：RESIDUES 60-182
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；297 K；0.2 M AMMONIUM ACETATE, 0.15 M MAGNESIUM ACETATE, 5% W/V PEG 4000, 50 MM HEPES BUFFER, PH 7.0 AT 24 DEGREES C
Resolution 2.65 Å R-free 0.263
1IO4 CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN-CBFBETA CORE DOMAIN HETERODIMER AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain C 60–182（123 aa） Fragment：RUNT DOMAIN
Not recorded AU GOLD ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；0.2 M potassium chloride, 0.01 M magnesium chloride, 0.01 M DTT, 4.5% V/V PEG 8000, 1% V/V glycerol, 1% V/V MPD, 0.05 M MES buffer pH 5.6, pH 5.60, VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 3.00 Å R-free 0.299
2J6W R164N mutant of the RUNX1 Runt domain Deposited 2006-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 46–185（140 aa） Fragment：RUNT DOMAIN, RESIDUES 46-185
Mutation：YES CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；22% PEG 8000, 0.1M SODIUM CACODYLATE PH=6.5, 0.2M AMMONIUM SULFATE
Resolution 2.60 Å R-free 0.268
2J6W R164N mutant of the RUNX1 Runt domain Deposited 2006-10-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 46–185（140 aa） Fragment：RUNT DOMAIN, RESIDUES 46-185
Mutation：YES CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；22% PEG 8000, 0.1M SODIUM CACODYLATE PH=6.5, 0.2M AMMONIUM SULFATE
Resolution 2.60 Å R-free 0.268
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K, V170A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K, V170A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K, V170G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K, V170G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K, K167A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K, K167A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263
Mutation：L94K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268
3WU1 Crystal structure of the ETS1-RUNX1-DNA ternary complex Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 55–177（123 aa） Fragment：UNP RESIDUES 55-177
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；11% PEG MME 550, 0.1M KCL, 0.015M MGCL2, 0.05M TRIS, pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 2.40 Å R-free 0.249
4L0Y Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 1) Deposited 2013-06-01 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–242（242 aa） Fragment：UNP residues 1-242
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；298 K；Plate-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, temperature 298K
Resolution 2.50 Å R-free 0.245
4L0Z Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 2) Deposited 2013-06-01 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 1–242（242 aa） Fragment：UNP residues 1-242
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；Square bipyramid-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.272
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain A 48–214（167 aa） Fragment：UNP residues 48-214
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.280
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain E 48–214（167 aa） Fragment：UNP residues 48-214
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.280

17 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RUNX1_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–204； UniProt 60–263 Author chain F； PDBConstruct 1–204； UniProt 60–263

Core-binding factor subunit beta

Mus musculus

UniProt Q08024

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts Chain B； UniProt 1–142 Fragment：UNP RESIDUES 1-142 Runt-related transcription factor 1 × 1 （Q03347） Protein C-ets-1 × 1 （P14921） ;DNA (5'-D(*GP*AP*AP*GP*CP*CP*AP*CP*AP*TP*CP*CP*TP*CP*T)-3') ; × 1 ;DNA (5'-D(*AP*GP*AP*GP*GP*AP*TP*GP*TP*GP*GP*CP*TP*TP*C)-3') ; × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K Resolution 2.80 Å R-free 0.271
2 Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts Chain G； UniProt 1–142 Fragment：UNP RESIDUES 1-142 Runt-related transcription factor 1 × 1 （Q03347） Protein C-ets-1 × 1 （P14921） ;DNA (5'-D(*GP*AP*AP*GP*CP*CP*AP*CP*AP*TP*CP*CP*TP*CP*T)-3') ; × 1 ;DNA (5'-D(*AP*GP*AP*GP*GP*AP*TP*GP*TP*GP*GP*CP*TP*TP*C)-3') ; × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K Resolution 2.80 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3WTX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1ILF NMR STRUCTURE OF APO CBFB Deposited 2001-05-08 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–141（141 aa） Fragment：BETA-SUBUNIT
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.6；297 K；Ionic strength (raw mmCIF value) 150mM sodium chloride；Pressure 1
NMR sample composition 1.6mM CBFb U-15N, 13C | 25mM phosphate buffer, 3mM DTT, 100 % D2O
NMR sample composition 1.6mM CBFb U-15N | 25mM phosphate buffer, 3mM DTT, 10 % D2O
NMR sample composition 0.8mM CBFb | 25mM phosphate buffer,3mM DTT, 100 % D2O
Resolution not provided
1IO4 CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN-CBFBETA CORE DOMAIN HETERODIMER AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric
Chain D 1–141（141 aa） Fragment：CORE DOMAIN
Not recorded AU GOLD ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；0.2 M potassium chloride, 0.01 M magnesium chloride, 0.01 M DTT, 4.5% V/V PEG 8000, 1% V/V glycerol, 1% V/V MPD, 0.05 M MES buffer pH 5.6, pH 5.60, VAPOR DIFFUSION, SITTING DROP, temperature 297K
Resolution 3.00 Å R-free 0.299
2JHB CORE BINDING FACTOR BETA Deposited 1999-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–141（141 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；293 K；Pressure 1
Resolution not provided
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain G 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain G 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain G 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain G 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain G 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain B 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain G 1–142（142 aa） Fragment：UNP RESIDUES 1-142
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268

9 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PEBB_MOUSE
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–142； UniProt 1–142 Author chain G； PDBConstruct 1–142； UniProt 1–142

Protein C-ets-1

Homo sapiens

UniProt P14921

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts Chain C； UniProt 276–441 Fragment：UNP RESIDUES 276-441 Mutation：Y329A Runt-related transcription factor 1 × 1 （Q03347） Core-binding factor subunit beta × 1 （Q08024） ;DNA (5'-D(*GP*AP*AP*GP*CP*CP*AP*CP*AP*TP*CP*CP*TP*CP*T)-3') ; × 1 ;DNA (5'-D(*AP*GP*AP*GP*GP*AP*TP*GP*TP*GP*GP*CP*TP*TP*C)-3') ; × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K Resolution 2.80 Å R-free 0.271
2 Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts Chain H； UniProt 276–441 Fragment：UNP RESIDUES 276-441 Mutation：Y329A Runt-related transcription factor 1 × 1 （Q03347） Core-binding factor subunit beta × 1 （Q08024） ;DNA (5'-D(*GP*AP*AP*GP*CP*CP*AP*CP*AP*TP*CP*CP*TP*CP*T)-3') ; × 1 ;DNA (5'-D(*AP*GP*AP*GP*GP*AP*TP*GP*TP*GP*GP*CP*TP*TP*C)-3') ; × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K Resolution 2.80 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 3WTX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1GVJ ETS-1 DNA BINDING AND AUTOINHIBITORY DOMAINS Deposited 2002-02-14 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 297–441（145 aa） Fragment：RESIDUES 297-441
Chain B 297–441（145 aa） Fragment：RESIDUES 297-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；297 K；0.2 M AMMONIUM ACETATE, 30% W/V PEG 4000, 0.1 M SODIUM CITRATE PH 5.6, PROTEIN CONCENTRATION 15 MG/ML PLUS 10 MM DTT, TEMPERATURE 297 K, FOR CRYOPROTECTION 10% OF PEG 400 WAS ADDED.
Resolution 1.53 Å R-free 0.235
2NNY Crystal structure of the Ets1 dimer DNA complex. Deposited 2006-10-24 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 280–441（162 aa） Fragment：residues 280-441
Chain B 280–441（162 aa） Fragment：residues 280-441
Mutation：C350S , C416S Mutation：C350S , C416S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；0.2 M ammonium acetate 28% PEG 2000 0.1 M sodium citrate, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 100K, temperature 298K
Resolution 2.58 Å R-free 0.271
2STT SOLUTION NMR STRUCTURE OF THE HUMAN ETS1/DNA COMPLEX, 25 STRUCTURES Deposited 1996-08-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 320–415（96 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；305 K
Resolution not provided
2STW SOLUTION NMR STRUCTURE OF THE HUMAN ETS1/DNA COMPLEX, RESTRAINED REGULARIZED MEAN STRUCTURE Deposited 1996-08-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric
Chain A 320–415（96 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；305 K
Resolution not provided
3MFK Ets1 complex with stromelysin-1 promoter DNA Deposited 2010-04-02 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 280–441（162 aa） Fragment：UNP residues 280-441
Chain B 280–441（162 aa） Fragment：UNP residues 280-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；15 mM ammonium chloride, 15 mM magnesium chloride, 0.7 M NDSB-195, 40 mM MES buffer (pH 6.5) and 11.5% v/v 2-Propanol, VAPOR DIFFUSION, SITTING DROP, temperature 295 K
Resolution 3.00 Å R-free 0.289
3RI4 Ets1 cooperative binding to widely separated sites on promoter DNA Deposited 2011-04-12 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: hexameric
Chain A 64–225（162 aa） Fragment：UNP residues 280-441
Chain D 64–225（162 aa） Fragment：UNP residues 280-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions sitting drop vapor diffusion and macroseeding；pH 8.5；295 K；200 mM ammonium chloride, 10 mM calcium chloride, 50 mM Tris-HCl buffer (pH 8.5), 18.5% v/v PEG MME 2000, 3% v/v glycerol, sitting drop vapor diffusion and macroseeding, temperature 295K
Resolution 3.00 Å R-free 0.284
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.279
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.35 Å R-free 0.277
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.282
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.284
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.90 Å R-free 0.264
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Mutation：G333P No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21 Different mutation/modification Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain H 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Mutation：G333P No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.268
3WTZ Crystal structure of ETS-1 DNA binding and autoinhibitory domains (276-441) Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Chain B 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；9% MPD, 6% PEG 6000, 0.1M HEPES, pH 7.8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.61 Å R-free 0.252
3WU0 Crystal structure of phosphorylated ETS-1 DNA binding and autoinhibitory domains (276-441) Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Chain B 276–441（166 aa） Fragment：UNP RESIDUES 276-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；5% PEG 3000, 25% MPD, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP
Resolution 2.60 Å R-free 0.277
3WU1 Crystal structure of the ETS1-RUNX1-DNA ternary complex Deposited 2014-04-21 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 333–441（109 aa） Fragment：UNP RESIDUES 333-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；11% PEG MME 550, 0.1M KCL, 0.015M MGCL2, 0.05M TRIS, pH 7.5, VAPOR DIFFUSION, temperature 298K
Resolution 2.40 Å R-free 0.249
4L0Y Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 1) Deposited 2013-06-01 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；298 K；Plate-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, temperature 298K
Resolution 2.50 Å R-free 0.245
4L0Z Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 2) Deposited 2013-06-01 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；Square bipyramid-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.70 Å R-free 0.272
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.280
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain F 296–441（146 aa） Fragment：UNP residues 296-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.30 Å R-free 0.280
4LG0 Structure of a ternary FOXO1-ETS1 DNA complex Deposited 2013-06-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 331–440（110 aa） Fragment：DNA binding domain, UNP residues 331-440
Not recorded CA CALCIUM ION × 1 PG4 TETRAETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；30% PEG 400, 0.05M 2-Amino-2-hydroxymethyl-propane-1,3-diol, 0.1M potassium chloride, 0.01M magnesium chloride, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K
Resolution 2.19 Å R-free 0.243
5ZMC Structural Basis for Reactivation of -146C>T Mutant TERT Promoter by cooperative binding of p52 and ETS1/2 Deposited 2018-04-02 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain B 331–441（111 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；290 K；0.1 M HEPES pH 7.0 and 2.0 M Ammonium sulphate
Resolution 2.99 Å R-free 0.288

20 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ETS1_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–166； UniProt 276–441 Author chain H； PDBConstruct 1–166； UniProt 276–441

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 3wtx

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 3wtx
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id3wtx
Deposition date deposition_date2014-04-21
Structure title titleCrystal structure of the complex comprised of ETS1(Y329A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA
Keywords keywords;PROTEIN-DNA COMPLEX, DNA-BINDING, METHYLATION, NUCLEUS, PHOSPHOPROTEIN, TRANSCRIPTION REGULATION, ISOPEPTIDE BOND, PROTO-ONCOGENE, TRANSCRIPTION-DNA COMPLEX ;; TRANSCRIPTION/DNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier37.10 Å
Radius of gyration Rg (electron density) rg_electron37.38 Å
Forward intensity I(0) i0191092000.00
Molecular weight molecular_weight99245.0 kDa
Excluded volume excluded_volume118850 ų
Envelope volume envelope_volume168320 ų
Hydration-shell volume shell_volume38560 ų
Envelope diameter envelope_diameter121.5 Å
Shell Rg shell_rg42.40 Å
Envelope Rg envelope_rg36.43 Å
Shape Rg shape_rg37.41 Å
Total Rg total_rg37.62 Å
Total atoms total_atoms6919
Residues n_residues761
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax121.7 Å
Rg (real space) rg_real37.12 Å
Rg uncertainty (real space) rg_real_error0.99 Å
I(0) (real space) i0_real1.9110e+08
I(0) uncertainty (real space) i0_real_error3.6080e+06
Rg (reciprocal space) rg_reciprocal37.11 Å
I(0) (reciprocal space) i0_reciprocal191100000.0000
Solution quality estimate total_estimate0.6728
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary45.3 Å
Skewness Skewness skewness0.223
Kurtosis Kurtosis kurtosis-0.624
Angular range angular_range— – 0.2150 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha10540000.0000
Real-space data points n_real_points44
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 0.048; Positv: 1.000; Valcen: 0.925; Smooth: 0.853
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd3wtxa_
Class classb — All beta proteins
Fold Fold foldb.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamilyb.2.5 — p53-like transcription factors
Family Family familyb.2.5.6 — RUNT domain
Domain ID domain_idd3wtxb_
Class classb — All beta proteins
Fold Fold foldb.54 — Core binding factor beta, CBF
Superfamily Superfamily superfamilyb.54.1 — Core binding factor beta, CBF
Family Family familyb.54.1.1 — Core binding factor beta, CBF
Domain ID domain_idd3wtxf_
Class classb — All beta proteins
Fold Fold foldb.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamilyb.2.5 — p53-like transcription factors
Family Family familyb.2.5.6 — RUNT domain
Domain ID domain_idd3wtxg_
Class classb — All beta proteins
Fold Fold foldb.54 — Core binding factor beta, CBF
Superfamily Superfamily superfamilyb.54.1 — Core binding factor beta, CBF
Family Family familyb.54.1.1 — Core binding factor beta, CBF

CATH v4.4 (6 domains)

Domain ID domain_id3wtxA00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily720 —
Domain ID domain_id3wtxB00
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology250 — Polyomavirus Enhancer Binding Protein 2; Chain: A;
Homologous superfamily homologous superfamily10 — Core binding factor, beta subunit
Domain ID domain_id3wtxC00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain
Domain ID domain_id3wtxF00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily720 —
Domain ID domain_id3wtxG00
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology250 — Polyomavirus Enhancer Binding Protein 2; Chain: A;
Homologous superfamily homologous superfamily10 — Core binding factor, beta subunit
Domain ID domain_id3wtxH00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain
▶

8. Citations (1)

▶

9. Files and Curves (10)
