1. Protein Identity and Related Structures Protein Identity & Related Structures

CCAAT/ENHANCER BINDING PROTEIN BETA

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain A； UniProt 259–345 Chain B； UniProt 259–345	Fragment：RESIDUES 259-345	RUNT-RELATED TRANSCRIPTION FACTOR 1 × 1 （Q03347） ;DNA (5'-(GPAPAPGPAPTPTPTPCPCP* APAPAPCPTPCPTPGPTPGPGPTPTPGPCPG)-3') ; × 1 ;DNA (5'-(CPCPGPCPAPAPCPCPAPCP APGPAPGPTPTPTPGPGPAPAPAPTPCPTP*T)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C	Resolution 3.00 Å R-free 0.313
2	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain D； UniProt 259–345 Chain E； UniProt 259–345	Fragment：RESIDUES 259-345	RUNT-RELATED TRANSCRIPTION FACTOR 1 × 1 （Q03347） ;DNA (5'-(GPAPAPGPAPTPTPTPCPCP* APAPAPCPTPCPTPGPTPGPGPTPTPGPCPG)-3') ; × 1 ;DNA (5'-(CPCPGPCPAPAPCPCPAPCP APGPAPGPTPTPTPGPGPAPAPAPTPCPTP*T)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C	Resolution 3.00 Å R-free 0.313

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HJB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GTW crystal structure of C/EBPbeta bZip homodimer bound to a DNA fragment from the tom-1A promoter Deposited 2002-01-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: octameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M POTASSIUM CHLORIDE, 0.1 M MAGNESIUM ACETATE, 10.0% W/V PEG 8000, 0.05 M SODIUM CACODYLATE CACODYLATE BUFFER PH 6.5, PROTEIN-DNA COMPLEX SOLUTION CONTAINS 0.01 M DTT AND 0.005 M NAN3, PROTEIN:DNA RATIO IS 1:1.2	Resolution 1.85 Å R-free 0.271
1GTW crystal structure of C/EBPbeta bZip homodimer bound to a DNA fragment from the tom-1A promoter Deposited 2002-01-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M POTASSIUM CHLORIDE, 0.1 M MAGNESIUM ACETATE, 10.0% W/V PEG 8000, 0.05 M SODIUM CACODYLATE CACODYLATE BUFFER PH 6.5, PROTEIN-DNA COMPLEX SOLUTION CONTAINS 0.01 M DTT AND 0.005 M NAN3, PROTEIN:DNA RATIO IS 1:1.2	Resolution 1.85 Å R-free 0.271
1GU4 Crystal structure of C/EBPBETA BZIP homodimer bound to a high affinity DNA fragment Deposited 2002-01-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；0.2 M POTASSIUM CHLORIDE, 0.01 M MAGNESIUM SULFATE, 10.0% V/V PEG 400, 0.05 M MES BUFFER PH 6.0, PROTEIN-DNA COMPLEX CONCENTRATION WAS 12 MG/ML AND CONTAINS 0.01 M DTT, PROTEIN:DNA RATIO WAS 1:1.2. FOR CRYOPROTECTION THE CONCENTRATION OF PEG 400 WAS ADJUSTED TO 36% V/V	Resolution 1.80 Å R-free 0.266
1GU5 Crystal structure of C/EBPBETA BZIP homodimer bound to a DNA fragment from the MIM-1 promoter Deposited 2002-01-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.08 M MAGNESIUM ACETATE, 15.0% V/V PEG 400, 0.05 M SODIUM CACODYLATE BUFFER PH 6.5, PROTEIN-DNA COMPLEX CONCENTRATION WAS 12 MG/ML WITH ADDITION OF 0.01 M DTT, PROTEIN:DNA RATIO WAS 1:1.2 FOR CRYOPROTECTION THE CONCENTRATION OF PEG 400 WAS ADJUSTED TO 36% V/V	Resolution 2.10 Å R-free 0.277
1H88 CRYSTAL STRUCTURE OF TERNARY PROTEIN-DNA COMPLEX1 Deposited 2001-01-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 259–336（78 aa） Fragment：RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：RESIDUES 259-336	Not recorded	NH4 AMMONIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.05 M AMMONIUM ACETATE, 0.01 M MAGNESIUM CHLORIDE, 10% V/V MPD, 6% V/V GLYCEROL, 0.05 M TRIS HCL BUFFER PH 7.5 AT 24 DEGREES C	Resolution 2.80 Å R-free 0.277
1H89 CRYSTAL STRUCTURE OF TERNARY PROTEIN-DNA COMPLEX2 Deposited 2001-01-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 273–336（64 aa） Fragment：RESIDUES 273-336 Chain B 273–336（64 aa） Fragment：RESIDUES 273-336	Not recorded	K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；297 K；0.1 M KCL, 0.05 MGSO4, 4% V/V MPD, 6% V/V GLYCEROL, 0.05 M NA HEPES PH 7.0 AT 24 DEGREES C	Resolution 2.45 Å R-free 0.267
1H8A CRYSTAL STRUCTURE OF TERNARY PROTEIN-DNA COMPLEX3 Deposited 2001-01-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 259–336（78 aa） Fragment：RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；297 K；0.04 M MAGNESIUM CHLORIDE, 20% V/V MPD, 0.05 M SODIUM CACODYLATE BUFFER PH 6.0 AT 24 DEGREES C	Resolution 2.23 Å R-free 0.288
1IO4 CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN-CBFBETA CORE DOMAIN HETERODIMER AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN Chain B 259–336（78 aa） Fragment：BZIP DOMAIN	Not recorded	AU GOLD ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；0.2 M potassium chloride, 0.01 M magnesium chloride, 0.01 M DTT, 4.5% V/V PEG 8000, 1% V/V glycerol, 1% V/V MPD, 0.05 M MES buffer pH 5.6, pH 5.60, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.299
2E42 Crystal structure of C/EBPbeta Bzip homodimer V285A mutant bound to A High Affinity DNA fragment Deposited 2006-12-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：residues 259-336 Chain B 259–336（78 aa） Fragment：residues 259-336	Mutation：V285A Mutation：V285A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；magnesium chloride, MES, PEG400, PH 6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K	Resolution 1.80 Å R-free 0.252
2E43 Crystal structure of C/EBPbeta Bzip homodimer K269A mutant bound to A High Affinity DNA fragment Deposited 2006-12-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：residues 259-336 Chain B 259–336（78 aa） Fragment：residues 259-336	Mutation：K269A Mutation：K269A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；magnesium chloride, Tris-Hcl, PEG4000, PH 7.5, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K	Resolution 2.10 Å R-free 0.259
6MG1 C-terminal bZIP domain of human C/EBPbeta with 16bp Methylated Oligonucleotide Containing Consensus Recognition Sequence-C2 Crystal Form Deposited 2018-09-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.2 M sodium chloride, 0.1 M BIS-TRIS pH 6.5, 25% (w/v) polyethylene glycol 3350	Resolution 1.75 Å R-free 0.250
6MG2 C-terminal bZIP domain of human C/EBPbeta with 16bp Methylated Oligonucleotide Containing Consensus Recognition Sequence-C2221 Crystal Form Deposited 2018-09-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.1 M sodium acetate trihydrate pH 7.0, 12% (w/v) polyethylene glycol 3350	Resolution 1.93 Å R-free 0.210
6MG3 V285A Mutant of the C-terminal bZIP domain of human C/EBPbeta with 16bp Methylated Oligonucleotide Containing Consensus Recognition Sequence Deposited 2018-09-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Mutation：V285A Mutation：V285A	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.1 M sodium acetate trihydrate pH 7.0, 12% (w/v) polyethylene glycol 3350	Resolution 2.05 Å R-free 0.249
7L4V C-terminal bZIP domain of human C/EBPbeta Bound to DNA with Consensus Recognition with GT Mismatch Deposited 2020-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；50 mM ammonium sulfate, 50 mM BIS-TRIS pH 6.5, 30% (v/v) pentaerythritol ethoxylate (15/4 EO/OH)	Resolution 1.75 Å R-free 0.221
7UPZ Structural basis for cell type specific DNA binding of C/EBPbeta: the case of cell cycle inhibitor p15INK4b promoter Deposited 2022-04-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 257–336（80 aa） Fragment：UNP residues 257-336 Chain B 257–336（80 aa） Fragment：UNP residues 257-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM potassium chloride, 10 mM magnesium chloride, 50 mM MES, pH 6.0, 10% v/v PEG400, 5% v/v glycerol	Resolution 2.49 Å R-free 0.264
8K8D Crystal structure of C/EBPbeta BZIP domain bound to a high affinity DNA Deposited 2023-07-29	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Chain B 259–336（78 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.02 M Calcium chloride dihydrate,0.1 M Sodium acetate trihydrate pH 4.6 and 20% v/v 2-Propanol	Resolution 2.20 Å R-free 0.292

15 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CEBB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–87； UniProt 259–345 Author chain B； PDBConstruct 1–87； UniProt 259–345 Author chain D； PDBConstruct 1–87； UniProt 259–345 Author chain E； PDBConstruct 1–87； UniProt 259–345

RUNT-RELATED TRANSCRIPTION FACTOR 1

MUS MUSCULUS

UniProt Q03347

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain C； UniProt 60–182	Fragment：RESIDUES 60-182	CCAAT/ENHANCER BINDING PROTEIN BETA × 2 （P17676） ;DNA (5'-(GPAPAPGPAPTPTPTPCPCP* APAPAPCPTPCPTPGPTPGPGPTPTPGPCPG)-3') ; × 1 ;DNA (5'-(CPCPGPCPAPAPCPCPAPCP APGPAPGPTPTPTPGPGPAPAPAPTPCPTP*T)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C	Resolution 3.00 Å R-free 0.313
2	Protein–DNA Heteromer Protein × 3 DNA 2 PDB declaration: pentameric（5） Consistent with all polymer counts	Chain F； UniProt 60–182	Fragment：RESIDUES 60-182	CCAAT/ENHANCER BINDING PROTEIN BETA × 2 （P17676） ;DNA (5'-(GPAPAPGPAPTPTPTPCPCP* APAPAPCPTPCPTPGPTPGPGPTPTPGPCPG)-3') ; × 1 ;DNA (5'-(CPCPGPCPAPAPCPCPAPCP APGPAPGPTPTPTPGPGPAPAPAPTPCPTP*T)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C	Resolution 3.00 Å R-free 0.313

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1HJB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EAN THE RUNX1 Runt domain at 1.70A resolution: A structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 46-185	Mutation：YES	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% MPEG 350, 5-10% PEG 3350, 70 MM NA CACODYLATE, PH 6.5	Resolution 1.70 Å R-free 0.222
1EAO THE RUNX1 Runt domain at 1.4A resolution: a structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 46-185	Mutation：YES	BR BROMIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4	Resolution 1.40 Å R-free 0.173
1EAO THE RUNX1 Runt domain at 1.4A resolution: a structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 46-185	Mutation：YES	BR BROMIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4	Resolution 1.40 Å R-free 0.173
1EAQ The RUNX1 Runt domain at 1.25A resolution: A structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 36-185	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4	Resolution 1.25 Å R-free 0.167
1EAQ The RUNX1 Runt domain at 1.25A resolution: A structural switch and specifically bound chloride ions modulate DNA binding Deposited 2001-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 46–185（140 aa） Fragment：RUNT DOMAIN RESIDUES 36-185	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；25 % PEG 3350, 16% GLYCEROL, 130 MM NA CACODYLATE, PH 6.4	Resolution 1.25 Å R-free 0.167
1HJC CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 60–182（123 aa） Fragment：RESIDUES 60-182	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；297 K；0.2 M AMMONIUM ACETATE, 0.15 M MAGNESIUM ACETATE, 5% W/V PEG 4000, 50 MM HEPES BUFFER, PH 7.0 AT 24 DEGREES C	Resolution 2.65 Å R-free 0.263
1HJC CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain D 60–182（123 aa） Fragment：RESIDUES 60-182	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；297 K；0.2 M AMMONIUM ACETATE, 0.15 M MAGNESIUM ACETATE, 5% W/V PEG 4000, 50 MM HEPES BUFFER, PH 7.0 AT 24 DEGREES C	Resolution 2.65 Å R-free 0.263
1IO4 CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN-CBFBETA CORE DOMAIN HETERODIMER AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain C 60–182（123 aa） Fragment：RUNT DOMAIN	Not recorded	AU GOLD ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；0.2 M potassium chloride, 0.01 M magnesium chloride, 0.01 M DTT, 4.5% V/V PEG 8000, 1% V/V glycerol, 1% V/V MPD, 0.05 M MES buffer pH 5.6, pH 5.60, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.299
2J6W R164N mutant of the RUNX1 Runt domain Deposited 2006-10-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 46–185（140 aa） Fragment：RUNT DOMAIN, RESIDUES 46-185	Mutation：YES	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；22% PEG 8000, 0.1M SODIUM CACODYLATE PH=6.5, 0.2M AMMONIUM SULFATE	Resolution 2.60 Å R-free 0.268
2J6W R164N mutant of the RUNX1 Runt domain Deposited 2006-10-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 46–185（140 aa） Fragment：RUNT DOMAIN, RESIDUES 46-185	Mutation：YES	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；22% PEG 8000, 0.1M SODIUM CACODYLATE PH=6.5, 0.2M AMMONIUM SULFATE	Resolution 2.60 Å R-free 0.268
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.35 Å R-free 0.279
3WTS Crystal structure of the complex comprised of ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；10% PEG 4000, 0.1M AMMONIUM ACETATE, 0.05M TRIS HCL, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.35 Å R-free 0.279
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.35 Å R-free 0.277
3WTT Crystal structure of the complex comprised of phosphorylated ETS1, RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.35 Å R-free 0.277
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K, V170A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.282
3WTU Crystal structure of the complex comprised of ETS1 (V170A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K, V170A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.282
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K, V170G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.284
3WTV Crystal structure of the complex comprised of ETS1(V170G), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K, V170G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；4% PEG 8000, 0.1M AMMONIUM ACETATE, 0.02M MAGNESIUM CHLORIDE, 0.05M HEPES, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.284
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K, K167A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.90 Å R-free 0.264
3WTW Crystal structure of the complex comprised of ETS1(K167A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K, K167A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；12% ISOPROPANOL, 0.02M MAGNESIUM CHLORIDE, 0.05M MES, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.90 Å R-free 0.264
3WTX Crystal structure of the complex comprised of ETS1(Y329A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.80 Å R-free 0.271
3WTX Crystal structure of the complex comprised of ETS1(Y329A), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；10% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE PH5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.80 Å R-free 0.271
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.268
3WTY Crystal structure of the complex comprised of ETS1(G333P), RUNX1, CBFBETA, and the tcralpha gene enhancer DNA Deposited 2014-04-21	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain F 60–263（204 aa） Fragment：UNP RESIDUES 60-263	Mutation：L94K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；298 K；4% PEG 4000, 0.25M AMMONIUM ACETATE, 0.05M SODIUM ACETATE, pH 5.8, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.268
3WU1 Crystal structure of the ETS1-RUNX1-DNA ternary complex Deposited 2014-04-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 55–177（123 aa） Fragment：UNP RESIDUES 55-177	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；11% PEG MME 550, 0.1M KCL, 0.015M MGCL2, 0.05M TRIS, pH 7.5, VAPOR DIFFUSION, temperature 298K	Resolution 2.40 Å R-free 0.249
4L0Y Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 1) Deposited 2013-06-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 1–242（242 aa） Fragment：UNP residues 1-242	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；298 K；Plate-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, temperature 298K	Resolution 2.50 Å R-free 0.245
4L0Z Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 2) Deposited 2013-06-01	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 1–242（242 aa） Fragment：UNP residues 1-242	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；Square bipyramid-shaped crystals grown from 100 mM potassium chloride, 15 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 14% v/v PEG550 MME, 6% v/v glycerol, crystal size improved by macroseeding, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.70 Å R-free 0.272
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 48–214（167 aa） Fragment：UNP residues 48-214	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.280
4L18 Crystal structure of Runx1 and Ets1 bound to TCR alpha promoter (crystal form 3) Deposited 2013-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain E 48–214（167 aa） Fragment：UNP residues 48-214	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；2.5% w/v PEG4000, 5 mM magnesium chloride hexahydrate, 25 mM MES, pH 5.6, 5% v/v glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.280

17 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AML1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–123； UniProt 60–182 Author chain F； PDBConstruct 1–123； UniProt 60–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hjb
Deposition date deposition_date	2001-01-11
Structure title title	CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER
Keywords keywords	;TRANSCRIPTION/DNA, PROTEIN-DNA COMPLEX, TRANSCRIPTION FACTOR, BZIP, RUNX, RUNT, C/EBP, CBF, CORE BINDING FACTOR, AML1, AML, TRANSCRIPTION-DNA complex ;; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	50.80 Å
Radius of gyration Rg (electron density) rg_electron	52.52 Å
Forward intensity I(0) i0	192182000.00
Molecular weight molecular_weight	91033.0 kDa
Excluded volume excluded_volume	104450 Å³
Envelope volume envelope_volume	188670 Å³
Hydration-shell volume shell_volume	32892 Å³
Envelope diameter envelope_diameter	177.8 Å
Shell Rg shell_rg	47.84 Å
Envelope Rg envelope_rg	51.62 Å
Shape Rg shape_rg	52.57 Å
Total Rg total_rg	52.23 Å
Total atoms total_atoms	6270
Residues n_residues	613
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

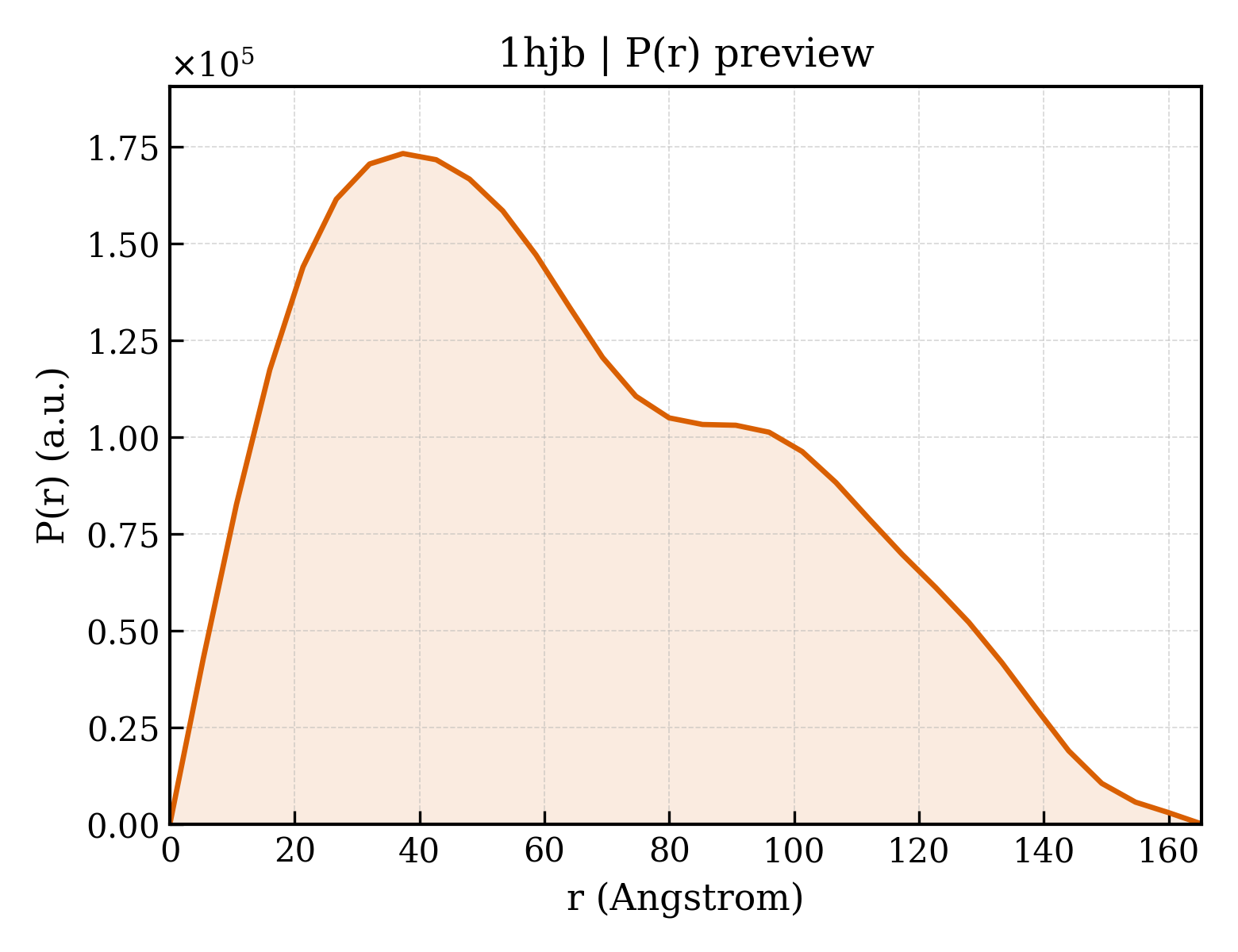

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	165.3 Å
Rg (real space) rg_real	51.31 Å
Rg uncertainty (real space) rg_real_error	1.70 Å
I(0) (real space) i0_real	1.9220e+08
I(0) uncertainty (real space) i0_real_error	3.5200e+06
Rg (reciprocal space) rg_reciprocal	50.36 Å
I(0) (reciprocal space) i0_reciprocal	191900000.0000
Solution quality estimate total_estimate	0.7496
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	37.3 Å
Skewness Skewness skewness	0.434
Kurtosis Kurtosis kurtosis	-0.735
Angular range angular_range	— – 0.1550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3591000.0000
Real-space data points n_real_points	32
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.760; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.443; Smooth: 0.017

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CCAAT/ENHANCER BINDING PROTEIN BETA
Molecular weight formula_weight	10248.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E
Atom count atom_count	6270

VKSKAKKTVDKHSDEYKIRRERNNIAVRKSRDKAKMRNLETQHKVLELTAENERLQKKVEQLSRELSTLRNLFKQLPEPLLASSGHC

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	RUNT-RELATED TRANSCRIPTION FACTOR 1
Molecular weight formula_weight	13715.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

GELVRTDSPNFLCSVLPTHWRCNKTLPIAFKVVALGDVPDGTLVTVMAGNDENYSAELRNATAAMKNQVARFNDLRFVGRSGRGKSFTLTITVFTNPPQVATYHRAIKITVDGPREPRRHRQK

来源 Source

来源生物 organism	MUS MUSCULUS
通用名 common_name	MOUSE
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 polymer

Description description	;DNA (5'-(GPAPAPGPAPTPTPTPCPCP* APAPAPCPTPCPTPGPTPGPGPTPTPGPCP*G)-3') ;
Molecular weight formula_weight	8018.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	G,I

GAAGATTTCCAAACTCTGTGGTTGCG

Entity 4 Entity 4 polymer

Description description	;DNA (5'-(CPCPGPCPAPAPCPCPAPCP* APGPAPGPTPTPTPGPGPAPAPAPTPCPTP*T)-3') ;
Molecular weight formula_weight	7956.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	H,J

CCGCAACCACAGAGTTTGGAAATCTT

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1hjba_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1hjbb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1hjbc_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.6 — RUNT domain

Domain ID domain_id	d1hjbd_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1hjbe_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1hjbf_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.6 — RUNT domain

CATH v4.4 (6 domains)

Domain ID domain_id	1hjbA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1hjbB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1hjbC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	1hjbD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1hjbE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1hjbF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	102.165 Å
Unit-cell length b length_b	109.273 Å
Unit-cell length c length_c	127.405 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2440
R_work r_work	0.2440
R_free r_free	0.3130

fit	/app/data/saxs_computation/hj/1hjb/1hjb.fit
pddf	/app/data/pr_computation/hj/1hjb/1hjb.pr.out
profile	/app/data/saxs_computation/hj/1hjb/1hjb.dat

CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER

1. Protein Identity and Related Structures Protein Identity & Related Structures

CCAAT/ENHANCER BINDING PROTEIN BETA

State in the Current Structure

Other States of the Same Protein in the Database

RUNT-RELATED TRANSCRIPTION FACTOR 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
