SAXSdb — 1gu5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CAAT/ENHANCER BINDING PROTEIN BETA

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 259–336 Chain B； UniProt 259–336	Fragment：BZIP DOMAIN, RESIDUES 259-336	;5'-D(TPTPGPTPGPTPTPGPGPCP* CPAPAPTPCPA)-3' ; × 1 ;5'-D(APTPGPAPTPTPGPGPCPCP APAPCPAPCP*A)-3' ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；0.08 M MAGNESIUM ACETATE, 15.0% V/V PEG 400, 0.05 M SODIUM CACODYLATE BUFFER PH 6.5, PROTEIN-DNA COMPLEX CONCENTRATION WAS 12 MG/ML WITH ADDITION OF 0.01 M DTT, PROTEIN:DNA RATIO WAS 1:1.2 FOR CRYOPROTECTION THE CONCENTRATION OF PEG 400 WAS ADJUSTED TO 36% V/V	Resolution 2.10 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1GU5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GTW crystal structure of C/EBPbeta bZip homodimer bound to a DNA fragment from the tom-1A promoter Deposited 2002-01-22	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: octameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M POTASSIUM CHLORIDE, 0.1 M MAGNESIUM ACETATE, 10.0% W/V PEG 8000, 0.05 M SODIUM CACODYLATE CACODYLATE BUFFER PH 6.5, PROTEIN-DNA COMPLEX SOLUTION CONTAINS 0.01 M DTT AND 0.005 M NAN3, PROTEIN:DNA RATIO IS 1:1.2	Resolution 1.85 Å R-free 0.271
1GTW crystal structure of C/EBPbeta bZip homodimer bound to a DNA fragment from the tom-1A promoter Deposited 2002-01-22	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；0.2 M POTASSIUM CHLORIDE, 0.1 M MAGNESIUM ACETATE, 10.0% W/V PEG 8000, 0.05 M SODIUM CACODYLATE CACODYLATE BUFFER PH 6.5, PROTEIN-DNA COMPLEX SOLUTION CONTAINS 0.01 M DTT AND 0.005 M NAN3, PROTEIN:DNA RATIO IS 1:1.2	Resolution 1.85 Å R-free 0.271
1GU4 Crystal structure of C/EBPBETA BZIP homodimer bound to a high affinity DNA fragment Deposited 2002-01-23	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：BZIP DOMAIN, RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；0.2 M POTASSIUM CHLORIDE, 0.01 M MAGNESIUM SULFATE, 10.0% V/V PEG 400, 0.05 M MES BUFFER PH 6.0, PROTEIN-DNA COMPLEX CONCENTRATION WAS 12 MG/ML AND CONTAINS 0.01 M DTT, PROTEIN:DNA RATIO WAS 1:1.2. FOR CRYOPROTECTION THE CONCENTRATION OF PEG 400 WAS ADJUSTED TO 36% V/V	Resolution 1.80 Å R-free 0.266
1H88 CRYSTAL STRUCTURE OF TERNARY PROTEIN-DNA COMPLEX1 Deposited 2001-01-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 259–336（78 aa） Fragment：RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：RESIDUES 259-336	Not recorded	NH4 AMMONIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.05 M AMMONIUM ACETATE, 0.01 M MAGNESIUM CHLORIDE, 10% V/V MPD, 6% V/V GLYCEROL, 0.05 M TRIS HCL BUFFER PH 7.5 AT 24 DEGREES C	Resolution 2.80 Å R-free 0.277
1H89 CRYSTAL STRUCTURE OF TERNARY PROTEIN-DNA COMPLEX2 Deposited 2001-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 273–336（64 aa） Fragment：RESIDUES 273-336 Chain B 273–336（64 aa） Fragment：RESIDUES 273-336	Not recorded	K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；297 K；0.1 M KCL, 0.05 MGSO4, 4% V/V MPD, 6% V/V GLYCEROL, 0.05 M NA HEPES PH 7.0 AT 24 DEGREES C	Resolution 2.45 Å R-free 0.267
1H8A CRYSTAL STRUCTURE OF TERNARY PROTEIN-DNA COMPLEX3 Deposited 2001-01-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 259–336（78 aa） Fragment：RESIDUES 259-336 Chain B 259–336（78 aa） Fragment：RESIDUES 259-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；297 K；0.04 M MAGNESIUM CHLORIDE, 20% V/V MPD, 0.05 M SODIUM CACODYLATE BUFFER PH 6.0 AT 24 DEGREES C	Resolution 2.23 Å R-free 0.288
1HJB CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 259–345（87 aa） Fragment：RESIDUES 259-345 Chain B 259–345（87 aa） Fragment：RESIDUES 259-345	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C	Resolution 3.00 Å R-free 0.313
1HJB CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain D 259–345（87 aa） Fragment：RESIDUES 259-345 Chain E 259–345（87 aa） Fragment：RESIDUES 259-345	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；5 MM MGSO4, 3% W/V PEG 4000, 1% V/V DIOXANE, 50 MM MES BUFFER, PH 5.6 AT 24 DEGREES C	Resolution 3.00 Å R-free 0.313
1IO4 CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN-CBFBETA CORE DOMAIN HETERODIMER AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER Deposited 2001-01-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain A 259–336（78 aa） Fragment：BZIP DOMAIN Chain B 259–336（78 aa） Fragment：BZIP DOMAIN	Not recorded	AU GOLD ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；297 K；0.2 M potassium chloride, 0.01 M magnesium chloride, 0.01 M DTT, 4.5% V/V PEG 8000, 1% V/V glycerol, 1% V/V MPD, 0.05 M MES buffer pH 5.6, pH 5.60, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.299
2E42 Crystal structure of C/EBPbeta Bzip homodimer V285A mutant bound to A High Affinity DNA fragment Deposited 2006-12-01	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：residues 259-336 Chain B 259–336（78 aa） Fragment：residues 259-336	Mutation：V285A Mutation：V285A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；magnesium chloride, MES, PEG400, PH 6, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K	Resolution 1.80 Å R-free 0.252
2E43 Crystal structure of C/EBPbeta Bzip homodimer K269A mutant bound to A High Affinity DNA fragment Deposited 2006-12-01	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Fragment：residues 259-336 Chain B 259–336（78 aa） Fragment：residues 259-336	Mutation：K269A Mutation：K269A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；magnesium chloride, Tris-Hcl, PEG4000, PH 7.5, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K	Resolution 2.10 Å R-free 0.259
6MG1 C-terminal bZIP domain of human C/EBPbeta with 16bp Methylated Oligonucleotide Containing Consensus Recognition Sequence-C2 Crystal Form Deposited 2018-09-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.2 M sodium chloride, 0.1 M BIS-TRIS pH 6.5, 25% (w/v) polyethylene glycol 3350	Resolution 1.75 Å R-free 0.250
6MG2 C-terminal bZIP domain of human C/EBPbeta with 16bp Methylated Oligonucleotide Containing Consensus Recognition Sequence-C2221 Crystal Form Deposited 2018-09-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.1 M sodium acetate trihydrate pH 7.0, 12% (w/v) polyethylene glycol 3350	Resolution 1.93 Å R-free 0.210
6MG3 V285A Mutant of the C-terminal bZIP domain of human C/EBPbeta with 16bp Methylated Oligonucleotide Containing Consensus Recognition Sequence Deposited 2018-09-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Mutation：V285A Mutation：V285A	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；0.1 M sodium acetate trihydrate pH 7.0, 12% (w/v) polyethylene glycol 3350	Resolution 2.05 Å R-free 0.249
7L4V C-terminal bZIP domain of human C/EBPbeta Bound to DNA with Consensus Recognition with GT Mismatch Deposited 2020-12-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 246–321（76 aa） Chain B 246–321（76 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；50 mM ammonium sulfate, 50 mM BIS-TRIS pH 6.5, 30% (v/v) pentaerythritol ethoxylate (15/4 EO/OH)	Resolution 1.75 Å R-free 0.221
7UPZ Structural basis for cell type specific DNA binding of C/EBPbeta: the case of cell cycle inhibitor p15INK4b promoter Deposited 2022-04-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 257–336（80 aa） Fragment：UNP residues 257-336 Chain B 257–336（80 aa） Fragment：UNP residues 257-336	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM potassium chloride, 10 mM magnesium chloride, 50 mM MES, pH 6.0, 10% v/v PEG400, 5% v/v glycerol	Resolution 2.49 Å R-free 0.264
8K8D Crystal structure of C/EBPbeta BZIP domain bound to a high affinity DNA Deposited 2023-07-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–336（78 aa） Chain B 259–336（78 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.02 M Calcium chloride dihydrate,0.1 M Sodium acetate trihydrate pH 4.6 and 20% v/v 2-Propanol	Resolution 2.20 Å R-free 0.292

15 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	P17676
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–78； UniProt 259–336 Author chain B； PDBConstruct 1–78； UniProt 259–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gu5
Deposition date deposition_date	2002-01-24
Structure title title	Crystal structure of C/EBPBETA BZIP homodimer bound to a DNA fragment from the MIM-1 promoter
Keywords keywords	TRANSCRIPTION/DNA, PROTEIN-DNA COMPLEX, TRANSCRIPTION FACTOR, BZIP, C/EBP, TRANSCRIPTION-DNA complex; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

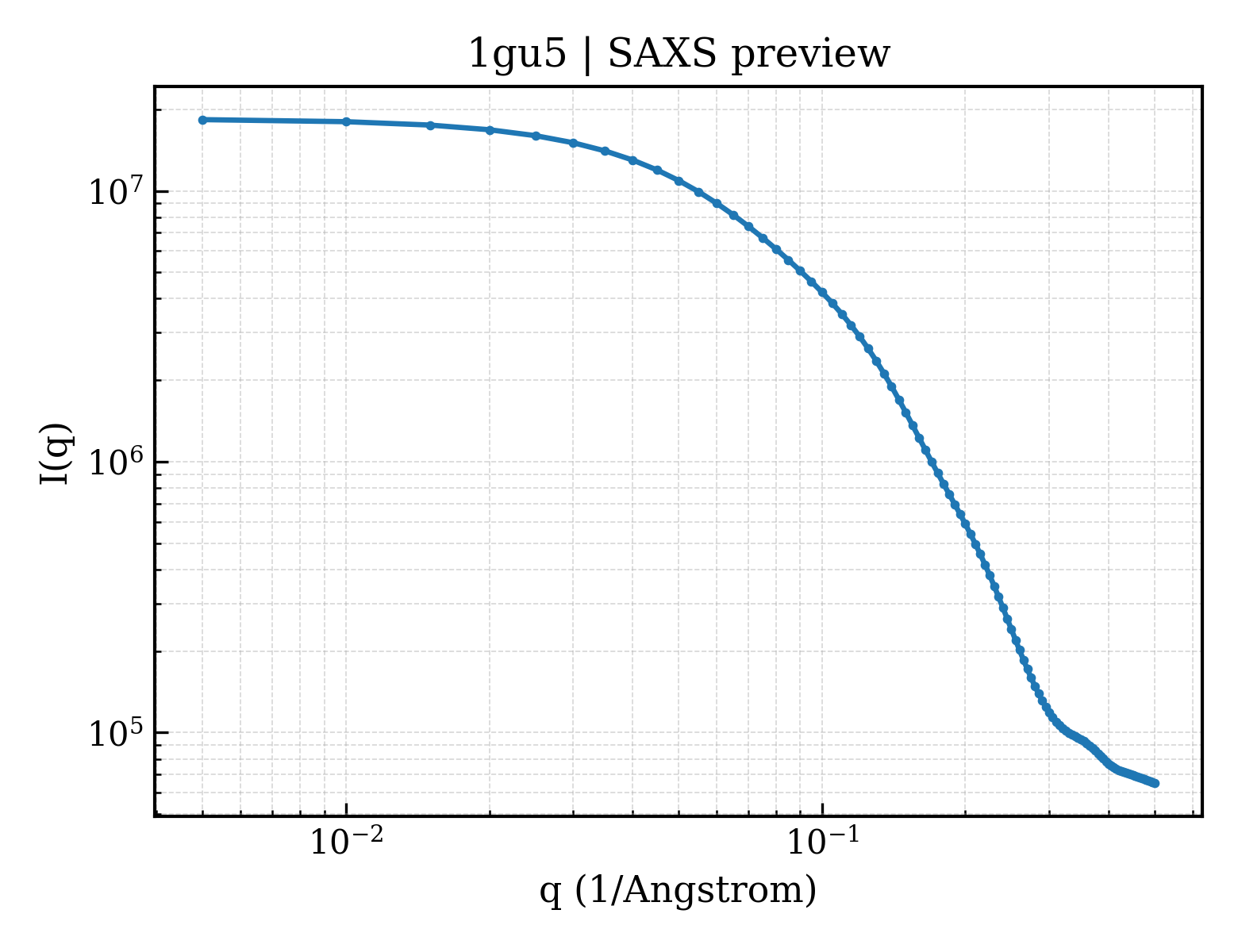

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.78 Å
Radius of gyration Rg (electron density) rg_electron	27.72 Å
Forward intensity I(0) i0	18427300.00
Molecular weight molecular_weight	25880.0 kDa
Excluded volume excluded_volume	29439 Å³
Envelope volume envelope_volume	41414 Å³
Hydration-shell volume shell_volume	15074 Å³
Envelope diameter envelope_diameter	100.9 Å
Shell Rg shell_rg	29.20 Å
Envelope Rg envelope_rg	28.27 Å
Shape Rg shape_rg	27.80 Å
Total Rg total_rg	27.70 Å
Total atoms total_atoms	1779
Residues n_residues	166
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

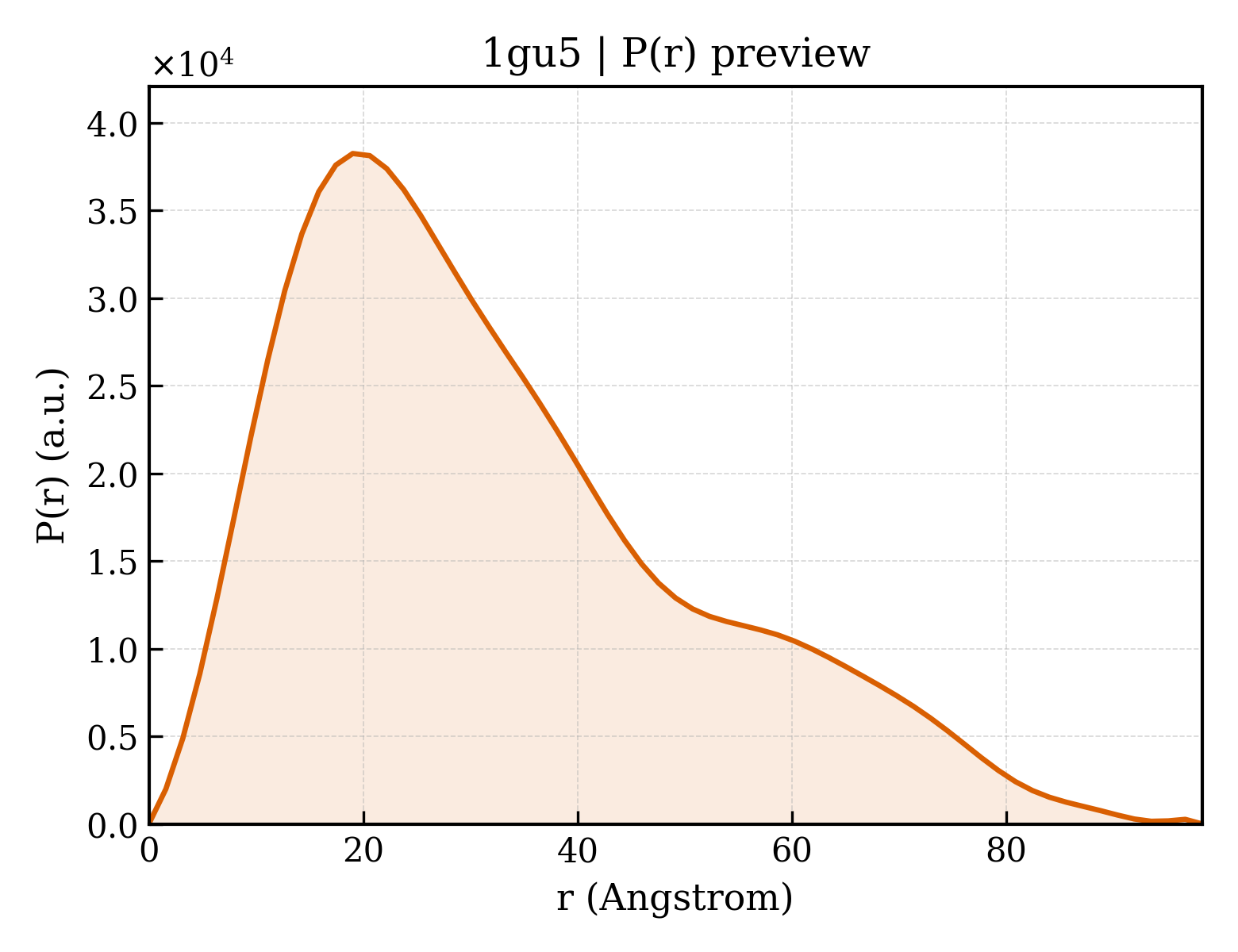

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.3 Å
Rg (real space) rg_real	26.41 Å
Rg uncertainty (real space) rg_real_error	1.31 Å
I(0) (real space) i0_real	1.8430e+07
I(0) uncertainty (real space) i0_real_error	2.9030e+05
Rg (reciprocal space) rg_reciprocal	26.22 Å
I(0) (reciprocal space) i0_reciprocal	18420000.0000
Solution quality estimate total_estimate	0.6866
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.0 Å
Skewness Skewness skewness	0.776
Kurtosis Kurtosis kurtosis	-0.075
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1295000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.295; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.090; Smooth: 0.946

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CAAT/ENHANCER BINDING PROTEIN BETA
Molecular weight formula_weight	9381.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2003

VKSKAKKTVDKHSDEYKIRRERNNIAVRKSRDKAKMRNLETQHKVLELTAENERLQKKVEQLSRELSTLRNLFKQLPE

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	;5'-D(TPTPGPTPGPTPTPGPGPCP* CPAPAPTPCP*A)-3' ;
Molecular weight formula_weight	4904.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

TTGTGTTGGCCAATCA

Entity 3 Entity 3 polymer

Description description	;5'-D(APTPGPAPTPTPGPGPCPCP* APAPCPAPCP*A)-3' ;
Molecular weight formula_weight	4891.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

ATGATTGGCCAACACA

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	224

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1gu5a_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1gu5b_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

CATH v4.4 (2 domains)

Domain ID domain_id	1gu5A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1gu5B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

▶

8. Citations (6)

Structural Basis for Flexible Base Recognition by C/Ebpbeta

To be Published

PRIMARY

Mechanism of C-Myb-C/Ebpbeta Cooperation from Separated Sites on a Promoter

Cell (Cambridge,Mass.) (2002)

PMID: 11792321 · DOI: 10.1016/S0092-8674(01)00636-5

Crystallization and Preliminary X-Ray Analysis of the C/Ebpbeta C-Terminal Region in Complex with DNA

Acta Crystallogr.,Sect.D (2001)

PMID: 11375506 · DOI: 10.1107/S0907444901003912

Structural Analyses of DNA Recognition by the Aml1/ Runx-1 Runt Domain and its Allosteric Control by Cbfbeta

Cell (Cambridge,Mass.) (2001)

PMID: 11257229 · DOI: 10.1016/S0092-8674(01)00271-9

;Crystallization and Preliminary X-Ray Analyses of Quaternary, Ternary and Binary Protein-DNA Complexes with Involvement of Aml1/Runx-1/Cbfalpha Runt Domain, Cbfbeta and the C/Ebpbeta bZIP Region ;

Acta Crystallogr.,Sect.D (2001)

PMID: 11375505 · DOI: 10.1107/S0907444901003900

;Crystals of Ternary Protein-DNA Complexes Composed of DNA-Binding Domains C-Myb or V-Myb, C/Ebpalpha or C/Ebpbeta and Tom-1A Promoter Fragment ;

Acta Crystallogr.,Sect.D (2001)

PMID: 11679735 · DOI: 10.1107/S0907444901011982

▶

Unit-cell length a length_a	101.596 Å
Unit-cell length b length_b	113.037 Å
Unit-cell length c length_c	74.498 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	29.740 Å
R factor r_factor	0.2290
R_work r_work	0.2290
R_free r_free	0.2770

fit	/app/data/saxs_computation/gu/1gu5/1gu5.fit
pddf	/app/data/pr_computation/gu/1gu5/1gu5.pr.out
profile	/app/data/saxs_computation/gu/1gu5/1gu5.dat
