SAXSdb — 1io4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CAAT/ENHANCER BINDING PROTEIN BETA

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	CSF-1R PROMOTER × 1 CSF-1R PROMOTER × 1 RUNT-RELATED TRANSCRIPTION FACTOR 1 × 1 （Q03347） CORE-BINDING FACTOR, BETA SUBUNIT × 1 （Q08024） GOLD ION × 3 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CEBPB_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–78； UniProt 259–336 Author chain B； PDBConstruct 1–78； UniProt 259–336

RUNT-RELATED TRANSCRIPTION FACTOR 1

Mus musculus

UniProt Q03347

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	CSF-1R PROMOTER × 1 CSF-1R PROMOTER × 1 CAAT/ENHANCER BINDING PROTEIN BETA × 2 （P17676） CORE-BINDING FACTOR, BETA SUBUNIT × 1 （Q08024） GOLD ION × 3 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUNX1_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 1–123； UniProt 60–182

CORE-BINDING FACTOR, BETA SUBUNIT

Mus musculus

UniProt Q08024

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 2	CSF-1R PROMOTER × 1 CSF-1R PROMOTER × 1 CAAT/ENHANCER BINDING PROTEIN BETA × 2 （P17676） RUNT-RELATED TRANSCRIPTION FACTOR 1 × 1 （Q03347） GOLD ION × 3 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PEBB_MOUSE
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain D； PDBConstruct 1–141； UniProt 1–141

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1io4
Deposition date deposition_date	2001-01-10
Structure title title	CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN-CBFBETA CORE DOMAIN HETERODIMER AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER
Keywords keywords	PROTEIN-DNA COMPLEX, TRANSCRIPTION FACTOR, BZIP, RUNX, RUNT, C/EBP, CBF, CORE BINDING FACTOR, AML1, AML, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1io4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1io4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

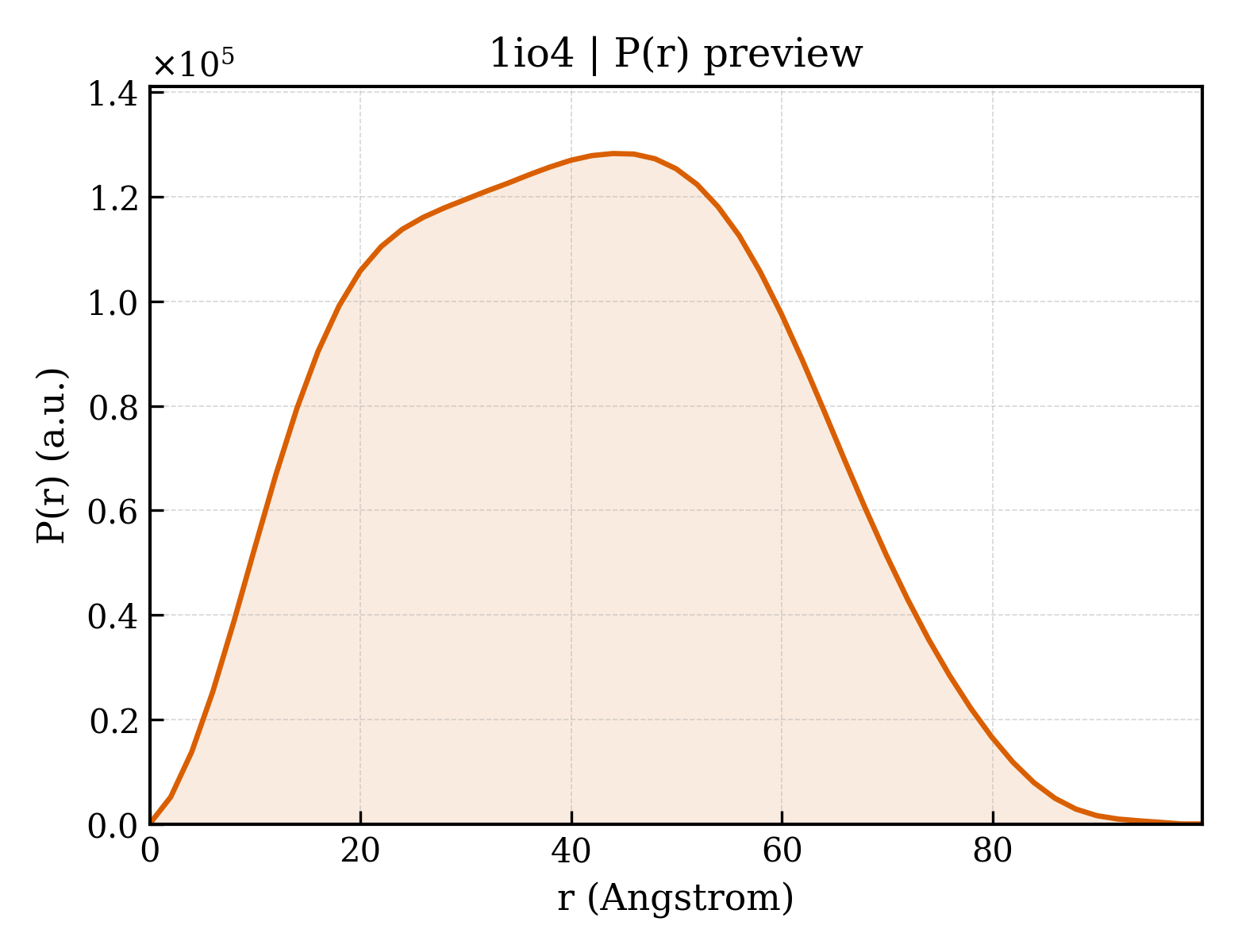

1io4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.59 Å
Rg (electron density)	31.20 Å
Total Rg	31.61 Å
Atom count	4189
Residues	433
Excluded volume	70804 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1io4__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	CSF-1R PROMOTER
Molecular weight formula_weight	8018.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E
Atom count atom_count	4197

GAAGATTTCCAAACTCTGTGGTTGCG

Entity 2 Entity 2 polymer

Description description	CSF-1R PROMOTER
Molecular weight formula_weight	7956.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	F

CCGCAACCACAGAGTTTGGAAATCTT

Entity 3 Entity 3 polymer

Description description	CAAT/ENHANCER BINDING PROTEIN BETA
Molecular weight formula_weight	9381.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

VKSKAKKTVDKHSDEYKIRRERNNIAVRKSRDKAKMRNLETQHKVLELTAENERLQKKVEQLSRELSTLRNLFKQLPE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	RUNT-RELATED TRANSCRIPTION FACTOR 1
Molecular weight formula_weight	13715.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GELVRTDSPNFLCSVLPTHWRCNKTLPIAFKVVALGDVPDGTLVTVMAGNDENYSAELRNATAAMKNQVARFNDLRFVGRSGRGKSFTLTITVFTNPPQVATYHRAIKITVDGPREPRRHRQK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	CORE-BINDING FACTOR, BETA SUBUNIT
Molecular weight formula_weight	16613.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MPRVVPDQRSKFENEEFFRKLSRECEIKYTGFRDRPHEERQTRFQNACRDGRSEIAFVATGTNLSLQFFPASWQGEQRQTPSREYVDLEREAGKVYLKAPMILNGVCVIWKGWIDLHRLDGMGCLEFDEERAQQEDALAQQ

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 non-polymer

Description description	GOLD ION
Molecular weight formula_weight	197.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1io4a_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1io4b_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1io4c_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.6 — RUNT domain

Domain ID domain_id	d1io4d_
Class class	b — All beta proteins
Fold Fold fold	b.54 — Core binding factor beta, CBF
Superfamily Superfamily superfamily	b.54.1 — Core binding factor beta, CBF
Family Family family	b.54.1.1 — Core binding factor beta, CBF

CATH v4.4 (4 domains)

Domain ID domain_id	1io4A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1io4B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	1io4C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	1io4D00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	250 — Polyomavirus Enhancer Binding Protein 2; Chain: A;
Homologous superfamily homologous superfamily	10 — Core binding factor, beta subunit

▶

Unit-cell length a length_a	121.108 Å
Unit-cell length b length_b	163.600 Å
Unit-cell length c length_c	109.326 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	19.950 Å
R factor r_factor	—
R_work r_work	0.2470
R_free r_free	0.2990

CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN-CBFBETA CORE DOMAIN HETERODIMER AND C/EBPBETA BZIP HOMODIMER BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER
