SAXSdb — 1hjc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RUNT-RELATED TRANSCRIPTION FACTOR 1

MUS MUSCULUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-(GPAPAPCPTPCPTPGPTPGPGP TPTPGPCPG)-3') ; × 1 ;DNA (5'-(CPCPGPCPAPAPCPCPAPCPAP* GPAPGPTPT)-3') ; × 1 water × 3	Consistent with all polymers
2	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-(GPAPAPCPTPCPTPGPTPGPGP TPTPGPCPG)-3') ; × 1 ;DNA (5'-(CPCPGPCPAPAPCPCPAPCPAP* GPAPGPTPT)-3') ; × 1 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AML1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–123； UniProt 60–182 Author chain D； PDBConstruct 1–123； UniProt 60–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1hjc
Deposition date deposition_date	2001-01-11
Structure title title	CRYSTAL STRUCTURE OF RUNX-1/AML1/CBFALPHA RUNT DOMAIN BOUND TO A DNA FRAGMENT FROM THE CSF-1R PROMOTER
Keywords keywords	;TRANSCRIPTION/DNA, PROTEIN-DNA COMPLEX, TRANSCRIPTION FACTOR, BZIP, RUNX, RUNT, C/EBP, CBF, CORE BINDING FACTOR, AML1, AML, ONCOPROTEIN, TRANSCRIPTION-DNA complex ;; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1hjc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

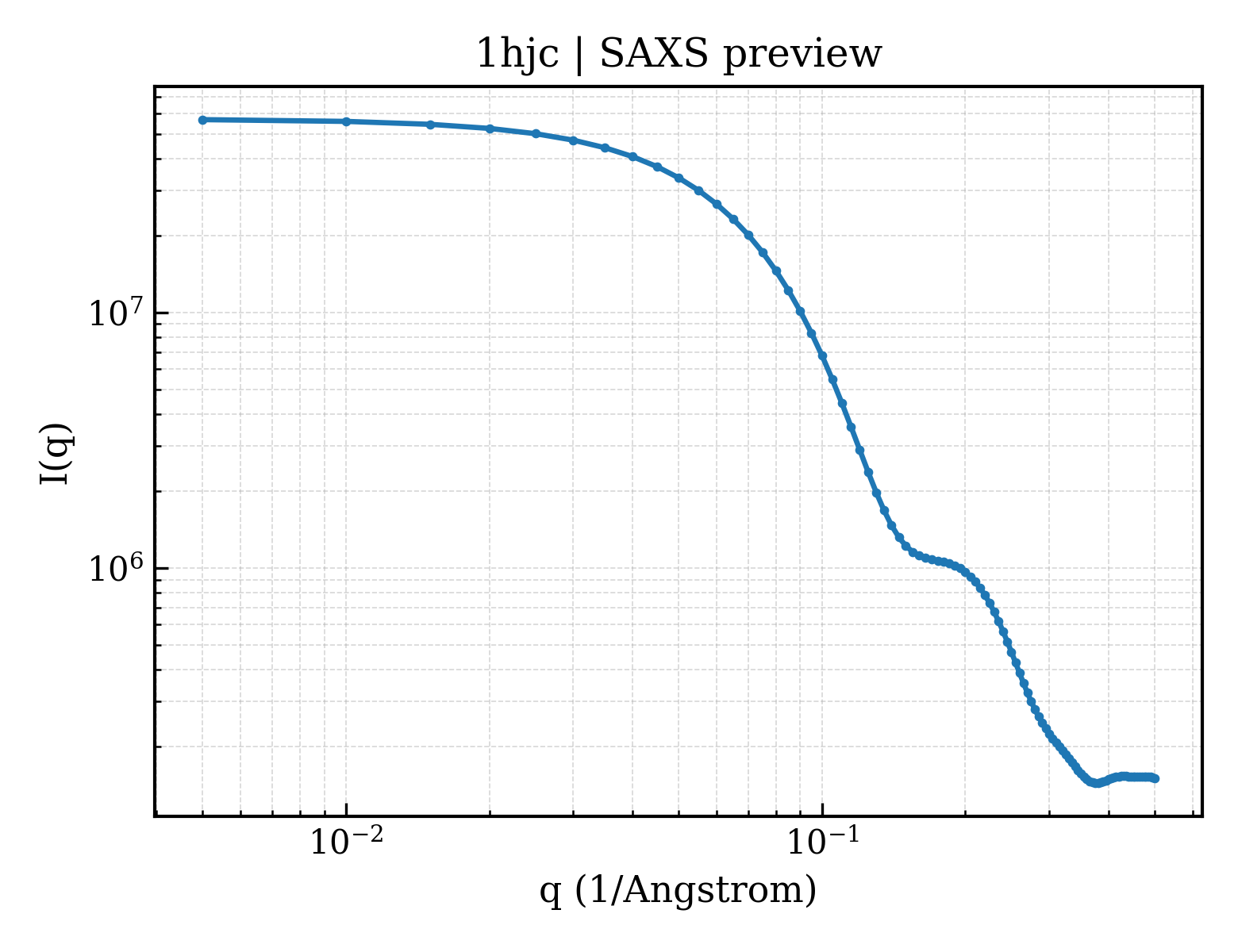

1hjc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1hjc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.45 Å
Rg (electron density)	19.71 Å
Total Rg	20.42 Å
Atom count	1563
Residues	150
Excluded volume	25699 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1hjc__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1hjc__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	RUNT-RELATED TRANSCRIPTION FACTOR 1
Molecular weight formula_weight	13715.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	3184

GELVRTDSPNFLCSVLPTHWRCNKTLPIAFKVVALGDVPDGTLVTVMAGNDENYSAELRNATAAMKNQVARFNDLRFVGRSGRGKSFTLTITVFTNPPQVATYHRAIKITVDGPREPRRHRQK

Source Source

Source organism organism	MUS MUSCULUS
Common name common_name	MOUSE
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	;DNA (5'-(GPAPAPCPTPCPTPGPTPGPGP TPTPGPCPG)-3') ;
Molecular weight formula_weight	4945.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B,E

GAACTCTGTGGTTGCG

Entity 3 Entity 3 polymer

Description description	;DNA (5'-(CPCPGPCPAPAPCPCPAPCPAP* GPAPGPTPT)-3') ;
Molecular weight formula_weight	4852.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,F

CCGCAACCACAGAGTT

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1hjca_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.6 — RUNT domain

Domain ID domain_id	d1hjcd_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.6 — RUNT domain

CATH v4.4 (2 domains)

Domain ID domain_id	1hjcA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

Domain ID domain_id	1hjcD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	720 —

▶

Unit-cell length a length_a	51.094 Å
Unit-cell length b length_b	104.073 Å
Unit-cell length c length_c	116.185 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	18.010 Å
R factor r_factor	0.2230
R_work r_work	0.2230
R_free r_free	0.2630
