SAXSdb — 2e43

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CCAAT/enhancer-binding protein beta

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	;DNA (5'-D(PDTPDAPDGPDGPDAPDTPDTPDGPDCPDGPDCPDAPDAPDTPDAPDT)-3') ; × 1 ;DNA (5'-D(PDAPDAPDTPDAPDTPDTPDGPDCPDGPDCPDAPDAPDTPDCPDCPDT)-3') ; × 1 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CEBPB_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–78； UniProt 259–336 Author chain B； PDBConstruct 1–78； UniProt 259–336

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2e43
Deposition date deposition_date	2006-12-01
Structure title title	Crystal structure of C/EBPbeta Bzip homodimer K269A mutant bound to A High Affinity DNA fragment
Keywords keywords	PROTEIN-DNA COMPLEX, TRANSCRIPTION/DNA, TRANSCRIPTION-DNA complex; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2e43__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2e43__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

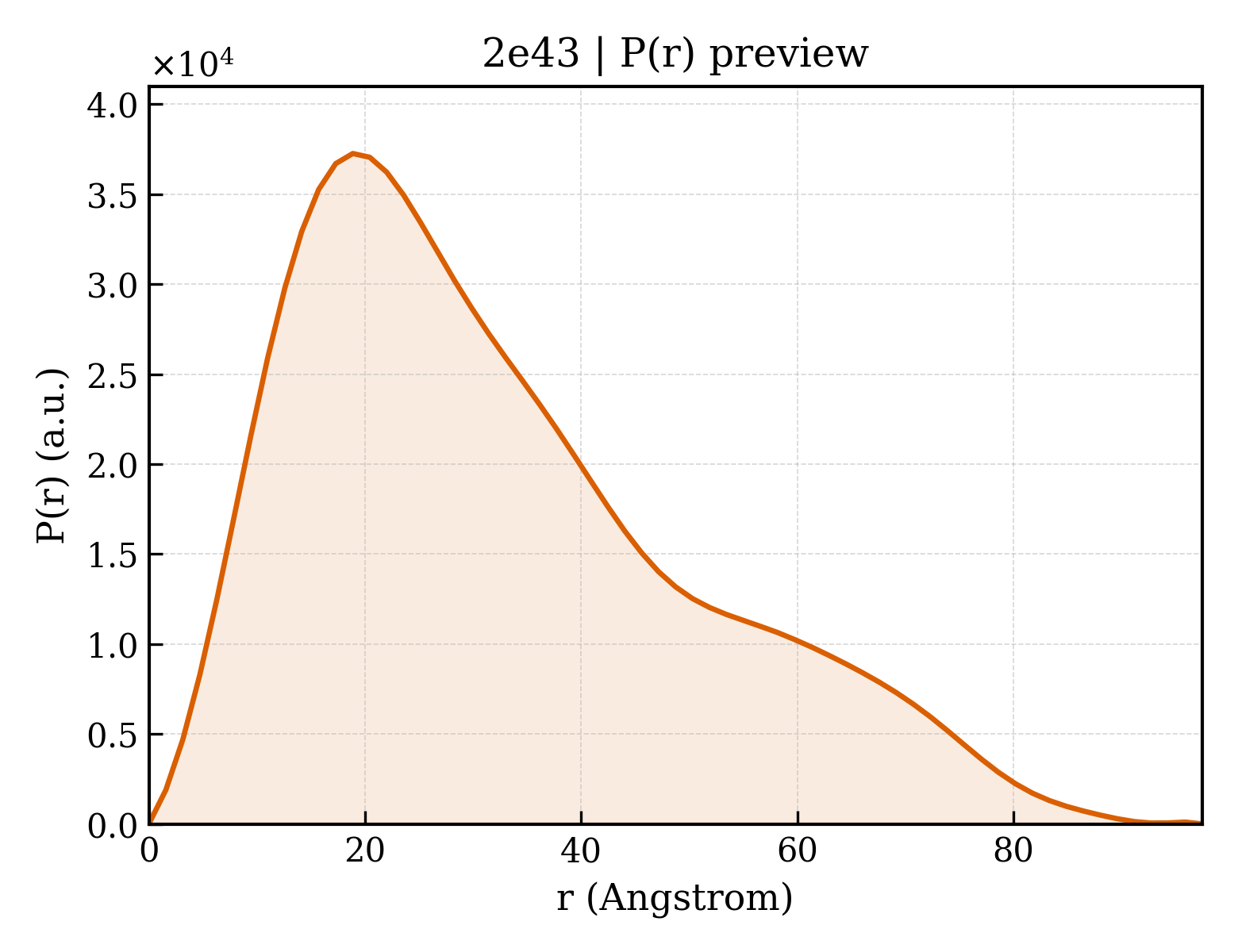

2e43__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.59 Å
Rg (electron density)	27.43 Å
Total Rg	27.50 Å
Atom count	1731
Residues	158
Excluded volume	28641 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2e43__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(PDTPDAPDGPDGPDAPDTPDTPDGPDCPDGPDCPDAPDAPDTPDAPDT)-3') ;
Molecular weight formula_weight	4937.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C
Atom count atom_count	2062

TAGGATTGCGCAATAT

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PDAPDAPDTPDAPDTPDTPDGPDCPDGPDCPDAPDAPDTPDCPDCPDT)-3') ;
Molecular weight formula_weight	4857.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

AATATTGCGCAATCCT

Entity 3 Entity 3 polymer

Description description	CCAAT/enhancer-binding protein beta
Molecular weight formula_weight	9323.8 kDa
Mutation mutation	K269A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

VKSKAKKTVDAHSDEYKIRRERNNIAVRKSRDKAKMRNLETQHKVLELTAENERLQKKVEQLSRELSTLRNLFKQLPE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	331

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2e43a_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d2e43b_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

CATH v4.4 (2 domains)

Domain ID domain_id	2e43A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	2e43B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

▶

Unit-cell length a length_a	101.681 Å
Unit-cell length b length_b	112.731 Å
Unit-cell length c length_c	74.932 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	42.070 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2590
