2tbs

COLD-ADAPTION OF ENZYMES: STRUCTURAL COMPARISON BETWEEN SALMON AND BOVINE TRYPSINS

Method: X-RAY DIFFRACTION Dmax: 58.3 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPSIN

Salmo salar

UniProt P35031

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 21–242 Not recorded CA CALCIUM ION × 1 BEN BENZAMIDINE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 1.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2TBS Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BZX THE CRYSTAL STRUCTURE OF ANIONIC SALMON TRYPSIN IN COMPLEX WITH BOVINE PANCREATIC TRYPSIN INHIBITOR Deposited 1998-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 21–242（222 aa）
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；0.1 M HEPES PH 7.5, 0.8-1.2 M POTASSIUM SODIUM TARTRATE
Resolution 2.10 Å R-free 0.238
1HJ8 1.00 AA Trypsin from Atlantic Salmon Deposited 2001-01-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 21–242（222 aa） Fragment：RESIDUES 21-242
Not recorded BEN BENZAMIDINE × 2 SO4 SULFATE ION × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.8；pH 5.80
Resolution 1.00 Å R-free 0.149
1UTJ Trypsin specificity as elucidated by LIE calculations, X-ray structures and association constant measurements Deposited 2003-12-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–242（242 aa）
Not recorded ABN BENZYLAMINE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.00
Resolution 1.83 Å R-free 0.207
1UTK Trypsin specificity as elucidated by LIE calculations, X-ray structures and association constant measurements Deposited 2003-12-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–242（242 aa）
Not recorded SO4 SULFATE ION × 2 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.00
Resolution 1.53 Å R-free 0.229
1UTL Trypsin specificity as elucidated by LIE calculations, X-ray structures and association constant measurements Deposited 2003-12-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain M 1–242（242 aa）
Not recorded PRA 3-PHENYLPROPYLAMINE × 1 CA CALCIUM ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.00
Resolution 1.70 Å R-free 0.216
1UTM Trypsin specificity as elucidated by LIE calculations, X-ray structures and association constant measurements Deposited 2003-12-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–242（242 aa）
Not recorded PEA 2-PHENYLETHYLAMINE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.00
Resolution 1.50 Å R-free 0.217
2STA ANIONIC SALMON TRYPSIN IN COMPLEX WITH SQUASH SEED INHIBITOR (CUCURBITA MAXIMA TRYPSIN INHIBITOR I) Deposited 1998-12-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 21–242（222 aa）
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 1.80 Å R-free 0.233
2STB ANIONIC SALMON TRYPSIN IN COMPLEX WITH SQUASH SEED INHIBITOR (CUCURBITA PEPO TRYPSIN INHIBITOR II) Deposited 1998-12-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 21–242（222 aa）
Not recorded CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；pH 6.0
Resolution 1.80 Å R-free 0.201

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TRY1_SALSA
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–222； UniProt 21–242

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2tbs

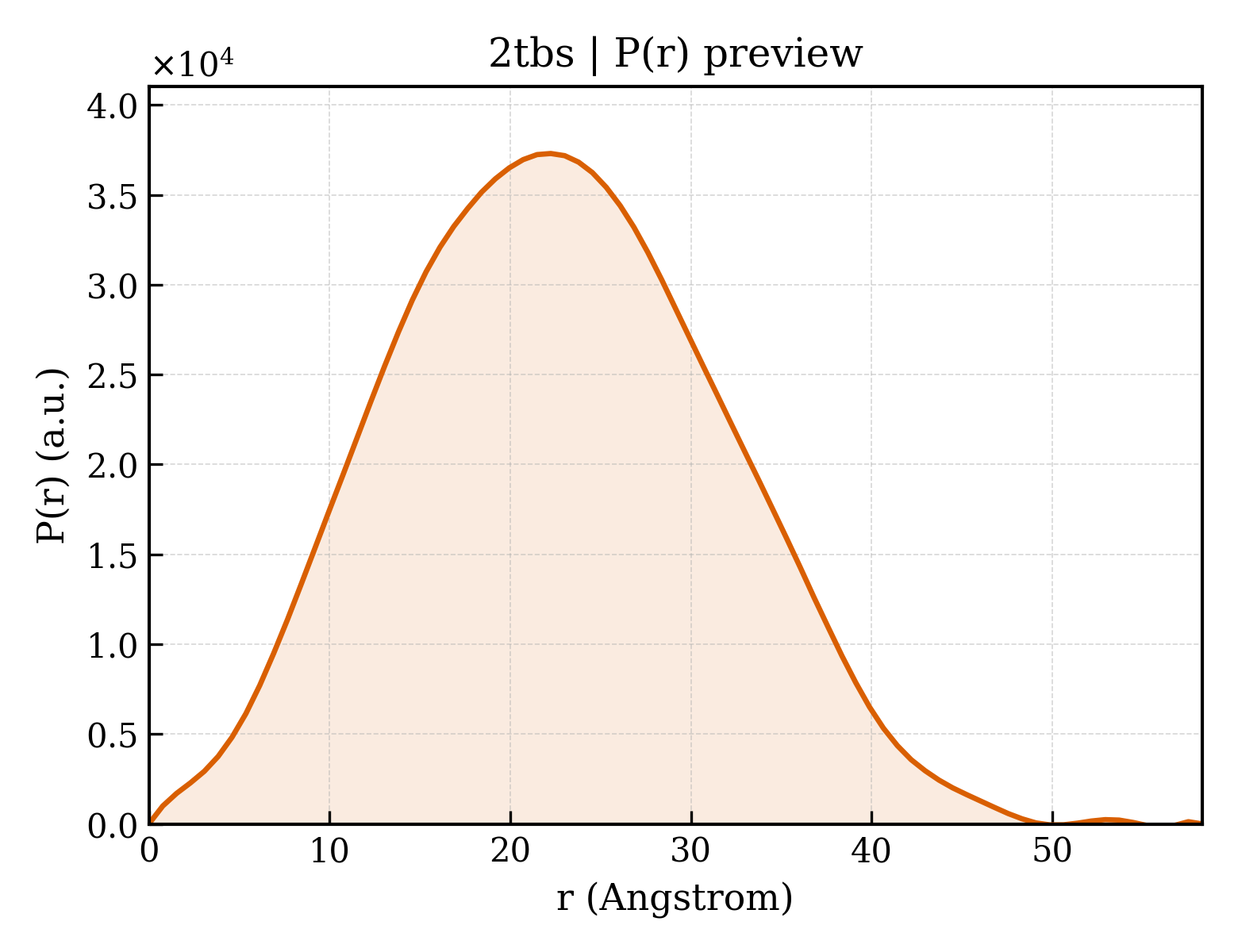

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2tbs
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2tbs
Deposition date deposition_date1994-01-14
Structure title titleCOLD-ADAPTION OF ENZYMES: STRUCTURAL COMPARISON BETWEEN SALMON AND BOVINE TRYPSINS
Keywords keywordsHYDROLASE(SERINE PROTEINASE); HYDROLASE(SERINE PROTEINASE)
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier17.23 Å
Radius of gyration Rg (electron density) rg_electron16.21 Å
Forward intensity I(0) i011144200.00
Molecular weight molecular_weight23905.0 kDa
Excluded volume excluded_volume29411 ų
Envelope volume envelope_volume32608 ų
Hydration-shell volume shell_volume16598 ų
Envelope diameter envelope_diameter55.1 Å
Shell Rg shell_rg22.55 Å
Envelope Rg envelope_rg16.50 Å
Shape Rg shape_rg16.22 Å
Total Rg total_rg17.15 Å
Total atoms total_atoms1669
Residues n_residues222
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax58.3 Å
Rg (real space) rg_real17.11 Å
Rg uncertainty (real space) rg_real_error0.37 Å
I(0) (real space) i0_real1.1140e+07
I(0) uncertainty (real space) i0_real_error1.3420e+05
Rg (reciprocal space) rg_reciprocal17.13 Å
I(0) (reciprocal space) i0_reciprocal11140000.0000
Solution quality estimate total_estimate0.7904
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary22.2 Å
Skewness Skewness skewness0.133
Kurtosis Kurtosis kurtosis-0.433
Angular range angular_range— – 0.4600 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha3145000.0000
Real-space data points n_real_points77
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.759; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd2tbsa_
Class classb — All beta proteins
Fold Fold foldb.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamilyb.47.1 — Trypsin-like serine proteases
Family Family familyb.47.1.2 — Eukaryotic proteases

CATH v4.4 (2 domains)

Domain ID domain_id2tbsA01
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily10 — Trypsin-like serine proteases
Domain ID domain_id2tbsA02
Class class2 — Mainly Beta
Architecture architecture40 — Beta Barrel
Topology topology10 — Thrombin, subunit H
Homologous superfamily homologous superfamily10 — Trypsin-like serine proteases
▶

8. Citations (4)

▶

9. Files and Curves (10)
