2wou

ALK5 IN COMPLEX WITH 4-((4-((2,6-dimethyl-3-pyridyl)oxy)-2-pyridyl) amino)benzenesulfonamide

Method: X-RAY DIFFRACTION D_max: 79.9 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TGF-BETA RECEPTOR TYPE-1

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 200–503	Fragment：CATALYTIC DOMAIN, RESIDUES 200-503	EDO 1,2-ETHANEDIOL × 1 ZZF 4-({4-[(2,6-DIMETHYLPYRIDIN-3-YL)OXY]PYRIDIN-2-YL}AMINO)BENZENESULFONAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；SITTING DROP METHOD. DROPS PROTEIN-PRECIPITANT 1-1, PROTEIN: 10MG/ML ALK5, PRECIPITANT: 20-30% PEG8K, 100 MM PCTP BUFFER PH 8.5-9.2, 0.2 M NAAC	Resolution 2.30 Å R-free 0.302

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2WOU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 162–503（342 aa） Fragment：CYTOPLASMIC PORTION	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 162–503（342 aa） Fragment：CYTOPLASMIC PORTION	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 162–503（342 aa） Fragment：CYTOPLASMIC PORTION	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 162–503（342 aa） Fragment：CYTOPLASMIC PORTION	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 162–503（342 aa） Fragment：CYTOPLASMIC PORTION Chain D 162–503（342 aa） Fragment：CYTOPLASMIC PORTION Chain F 162–503（342 aa） Fragment：CYTOPLASMIC PORTION Chain H 162–503（342 aa） Fragment：CYTOPLASMIC PORTION	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.60 Å R-free 0.269
1IAS CYTOPLASMIC DOMAIN OF UNPHOSPHORYLATED TYPE I TGF-BETA RECEPTOR CRYSTALLIZED WITHOUT FKBP12 Deposited 2001-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503) Chain B 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503) Chain C 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503) Chain D 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503) Chain E 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503)	Not recorded	SO4 SULFATE ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；100 mM MES pH 5.8, 2.4 M ammonium sulfate, 10 % glycerol v/v, 150 mM NaCl, 1 mM NPC-30345, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.284
1PY5 Crystal Structure of TGF-beta receptor I kinase with inhibitor Deposited 2003-07-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 175–500（326 aa） Fragment：Truncated kinase domain, residues 175-500	Not recorded	SO4 SULFATE ION × 1 PY1 4-(3-PYRIDIN-2-YL-1H-PYRAZOL-4-YL)QUINOLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；Tris, ATP, MgCl2, DTT, Hexanediol, PEG4000, LiSO4, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.30 Å R-free 0.292
1RW8 Crystal Structure of TGF-beta receptor I kinase with ATP site inhibitor Deposited 2003-12-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–500（301 aa） Fragment：Truncated kinase domain (residues 200-500)	Not recorded	580 3-(4-FLUOROPHENYL)-2-(6-METHYLPYRIDIN-2-YL)-5,6-DIHYDRO-4H-PYRROLO[1,2-B]PYRAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Tris, ATP, MgCl2, DTT, Hexanediol, PEG 4000, LiSo4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.291
1VJY Crystal Structure of a Naphthyridine Inhibitor of Human TGF-beta Type I Receptor Deposited 2004-04-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–303（303 aa） Fragment：protein kinase	Not recorded	460 2-[5-(6-METHYLPYRIDIN-2-YL)-2,3-DIHYDRO-1H-PYRAZOL-4-YL]-1,5-NAPHTHYRIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；20% PEG 4000, 0.1M Tris HCl, 0.2 M magnesium chloride, pH 8.0, vapor diffusion/sitting drop, temperature 278K, VAPOR DIFFUSION, SITTING DROP	Resolution 2.00 Å R-free 0.275
2L5S Solution structure of the extracellular domain of the TGF-beta type I receptor Deposited 2010-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–115（85 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；300 K；Ionic strength (raw mmCIF value) 0.025；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] TbRI-1, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2PJY Structural basis for cooperative assembly of the TGF-beta signaling complex Deposited 2007-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 33–111（79 aa） Fragment：extracellular domain	Mutation：M70S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；10-20% PEG 3350, 0.4-0.65 M calcium acetate, 0.1-0.25M NaCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.297
2WOT ALK5 IN COMPLEX WITH 4-((5,6-dimethyl-2-(2-pyridyl)-3-pyridyl)oxy)-N-(3,4,5-trimethoxyphenyl)pyridin-2-amine Deposited 2009-07-28	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 200-503	Not recorded	ZZG 4-[(5,6-DIMETHYL-2,2'-BIPYRIDIN-3-YL)OXY]-N-(3,4,5-TRIMETHOXYPHENYL)PYRIDIN-2-AMINE × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；SITTING DROP METHOD. DROPS PROTEIN-PRECIPITANT 1-1, PROTEIN: 10MG/ML ALK5, PRECIPITANT: 20-30% PEG8K, 100 MM PCTP BUFFER PH 8.5-9.2, 0.2 M NAAC	Resolution 1.85 Å R-free 0.221
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503	Not recorded	ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25	Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503	Not recorded	ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25	Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503	Not recorded	ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25	Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503	Not recorded	ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25	Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503	Not recorded	ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25	Resolution 3.70 Å R-free 0.273
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503	Not recorded	55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503	Not recorded	55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503	Not recorded	55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503	Not recorded	55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503	Not recorded	55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.35 Å R-free 0.271
3GXL ALK-5 kinase complex with GW857175 Deposited 2009-04-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 201–503（303 aa） Fragment：kinase domain, residues 201-503	Not recorded	QIG N-1H-indazol-5-yl-2-(6-methylpyridin-2-yl)quinazolin-4-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；vapor diffusion	Resolution 1.80 Å R-free 0.263
3HMM Structure of Alk5 + GW855857 Deposited 2009-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 201–503（303 aa） Fragment：KINASE DOMAIN, RESIDUES 201-503	Not recorded	855 2-(6-methylpyridin-2-yl)-N-pyridin-4-ylquinazolin-4-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；VAPOR DIFFUSION	Resolution 1.70 Å R-free 0.241
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS	Not recorded	JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS	Not recorded	JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS	Not recorded	JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS	Not recorded	JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS	Not recorded	JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.80 Å R-free 0.278
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain I 31–115（85 aa） Fragment：extracellular domain Chain J 31–115（85 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K	Resolution 3.00 Å R-free 0.268
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain K 31–115（85 aa） Fragment：extracellular domain Chain L 31–115（85 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K	Resolution 3.00 Å R-free 0.268
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 31–115（85 aa） Fragment：extracellular domain Chain J 31–115（85 aa） Fragment：extracellular domain Chain K 31–115（85 aa） Fragment：extracellular domain Chain L 31–115（85 aa） Fragment：extracellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K	Resolution 3.00 Å R-free 0.268
3TZM TGF-beta Receptor type 1 in complex with SB431542 Deposited 2011-09-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：kinase domain, UNP residues 200-503	Not recorded	085 4-[5-(1,3-benzodioxol-5-yl)-4-(pyridin-2-yl)-1H-imidazol-2-yl]benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Imidazole 10% PEG 8000, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.205
4X0M Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：UNP residues 200-503	Not recorded	3WA 4-aminopyrido[2,3-d]pyrimidin-5(8H)-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5	Resolution 1.68 Å R-free 0.239
4X2F Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：UNP residues 200-503	Not recorded	3WJ 4-amino-8-(4-aminophenyl)pyrido[2,3-d]pyrimidin-5(8H)-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5	Resolution 1.49 Å R-free 0.191
4X2G Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：UNP residues 200-503	Not recorded	3WK 4-[(4-aminophenyl)amino]pyrido[2,3-d]pyrimidin-5(6H)-one × 1 SO4 SULFATE ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5	Resolution 1.51 Å R-free 0.185
4X2J Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa）	Not recorded	3WN 4-[(3-aminophenyl)amino]pyrido[2,3-d]pyrimidin-5(8H)-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5	Resolution 1.69 Å R-free 0.184
4X2K Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: MONOMERIC	Chain A 200–503（304 aa）	Not recorded	3WO 4-[(3-aminophenyl)amino]pyrido[2,3-d]pyrimidin-5(6H)-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5	Resolution 1.69 Å R-free 0.184
4X2N Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：UNP residues 200-503	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5	Resolution 1.80 Å R-free 0.201
5E8S TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (WT) Deposited 2015-10-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.45 Å R-free 0.188
5E8T TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) Deposited 2015-10-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.70 Å R-free 0.190
5E8U TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D,I211V,Y249F,S280T, Y282F,S287N,A350C,L352F) Deposited 2015-10-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D,I211V,Y249F,S280T,Y282F,S287N,A350C,L352F	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 2.03 Å R-free 0.223
5E8W TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH STAUROSPORINE Deposited 2015-10-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D	STU STAUROSPORINE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.86 Å R-free 0.186
5E8X TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D,I211V,Y249F,S280T, Y282F,S287N,A350C,L352F) IN COMPLEX WITH STAUROSPORINE Deposited 2015-10-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D,I211V,Y249F,S280T, Y282F,S287N,A350C,L352F	STU STAUROSPORINE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.45 Å R-free 0.210
5E8Z TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH 3-AMINO-6-[4-(2-HYDROXYETHYL)PHENYL]-N-[4-(MORPHOLIN-4-YL)PYRIDIN-3-YL]PYRAZINE-2-CARBOXAMIDE Deposited 2015-10-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D	5L4 3-amino-6-[4-(2-hydroxyethyl)phenyl]-N-[4-(morpholin-4-yl)pyridin-3-yl]pyrazine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.51 Å R-free 0.207
5E90 TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D,I211V,Y249F, S280T,Y282F,S287N,A350C,L352F) IN COMPLEX WITH 3-AMINO-6- [4-(2-HYDROXYETHYL)PHENYL]-N-[4-(MORPHOLIN-4-YL)PYRIDIN-3-YL]PYRAZINE-2-CARBOXAMIDE Deposited 2015-10-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D,I211V,Y249F,S280T,Y282F,S287N,A350C,L352F	5L4 3-amino-6-[4-(2-hydroxyethyl)phenyl]-N-[4-(morpholin-4-yl)pyridin-3-yl]pyrazine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 2.05 Å R-free 0.218
5FRI ALK5 in complex witha an N-(4-anilino-2-pyridyl)acetamide inhibitor. Deposited 2015-12-17	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–498（299 aa） Fragment：UNP RESIDUES 200-498	Not recorded	EDO 1,2-ETHANEDIOL × 2 ZUQ N-[4-[(6-chloro-[1,3]dioxolo[4,5-b]pyridin-7-yl)amino]-2-pyridyl]cyclopropanecarboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；SITTING DROP METHOD. DROPS PROTEIN-PRECIPITANT 1-1, PROTEIN: 10MG/ML ALK5, PRECIPITANT: 20-30% PEG8K, 100 MM PCTP BUFFER PH 8.5-9.2, 0.2 M NAAC	Resolution 2.00 Å R-free 0.193
5QIK TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-{4-[3-(6-fluoropyridin-3-yl)-4-oxo-4,5,6,7-tetrahydro-1H-pyrrolo[3,2-c]pyridin-2-yl]pyridin-2-yl}acetamide Deposited 2018-08-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D	J2M N-{4-[3-(6-fluoropyridin-3-yl)-4-oxo-4,5,6,7-tetrahydro-1H-pyrrolo[3,2-c]pyridin-2-yl]pyridin-2-yl}acetamide × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.58 Å R-free 0.190
5QIL TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-{4-[3-(6-METHOXYPYRIDIN-3-YL)-1H-PYRROLO[3,2-B]PYRIDIN-2-YL]PYRIDIN-2-YL}ACETAMIDE Deposited 2018-08-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D	J2V N-{4-[3-(6-methoxypyridin-3-yl)-1H-pyrrolo[3,2-b]pyridin-2-yl]pyridin-2-yl}acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.98 Å R-free 0.210
5QIM TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-{4-[3-(5-METHOXYPYRIDIN-2-YL)-1H-PYRROLO[3,2-B] PYRIDIN-2-YL]PYRIDIN-2-YL}ACETAMIDE Deposited 2018-08-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Not recorded	J2Y N-{4-[3-(5-methoxypyridin-2-yl)-1H-pyrrolo[3,2-b]pyridin-2-yl]pyridin-2-yl}acetamide × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.75 Å R-free 0.188
5QTZ TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH 6-[1-(2,2-DIFLUOROETHYL)-4-(6-METHYLPYRIDIN-2-YL)-1H-IMIDAZOL-5-YL]IMIDAZO[1,2-A]PYRIDINE Deposited 2019-11-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：T204D	QMY 6-[1-(2,2-difluoroethyl)-4-(6-methylpyridin-2-yl)-1H-imidazol-5-yl]imidazo[1,2-a]pyridine × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.83 Å R-free 0.200
5QU0 TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH 6-[4-(3-CHLORO-4-FLUOROPHENYL)-1-(2-HYDROXYETHYL)-1H-IMIDAZOL-5-YL]IMIDAZO[1,2-B]PYRIDAZINE-3-CARBONITRILE Deposited 2019-11-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503	Mutation：YES	QMV 6-[4-(3-chloro-4-fluorophenyl)-1-(2-hydroxyethyl)-1H-imidazol-5-yl]imidazo[1,2-b]pyridazine-3-carbonitrile × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.67 Å R-free 0.206
5USQ ALK-5 kinase inhibitor complex Deposited 2017-02-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 123–421（299 aa） Fragment：UNP residues 123-421	Not recorded	8LY N-[2-(5-chloro-2-fluorophenyl)pyridin-4-yl]-2-[(piperidin-4-yl)methyl]-2H-pyrazolo[4,3-b]pyridin-7-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.2；293 K；16 % PEG 8000 100mM CHES pH 9.2	Resolution 2.55 Å R-free 0.231
6B8Y TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-(3-fluoropyridin-4-yl)-2-[6-(trifluoromethyl)pyridin-2-yl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine Deposited 2017-10-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa） Fragment：kinase domain	Mutation：T204D	D0A N-(3-fluoropyridin-4-yl)-2-[6-(trifluoromethyl)pyridin-2-yl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol	Resolution 1.65 Å R-free 0.208
6MAC Ternary structure of GDF11 bound to ActRIIB-ECD and Alk5-ECD Deposited 2018-08-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain K 33–112（80 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；.05-.15M sodium acetate 12-24% polyethylene glycol 8000 .05-.15M sodium thiocyanate	Resolution 2.34 Å R-free 0.267
8YHF The Crystal Structure of the Type I TGF beta receptor from Biortus. Deposited 2024-02-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 162–503（342 aa）	Not recorded	A1D6I Vactosertib × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.02M K/Na PO4, 0.1M Bis-Tris propane pH6.5, 20% PEG3350	Resolution 1.40 Å R-free 0.192
8YHL The Crystal Structure of Tgf-Beta Type I Receptor (Alk5) from Biortus Deposited 2024-02-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa）	Not recorded	A1D6I Vactosertib × 1 EDO 1,2-ETHANEDIOL × 2 ACY ACETIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MgAC2, 0.1M MES pH6.5, 10% PEG10,000	Resolution 1.47 Å R-free 0.193
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 31–115（85 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000	Resolution 3.00 Å R-free 0.278
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain H 31–115（85 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000	Resolution 3.00 Å R-free 0.278
9F6X Human transforming growth factor b type I receptor in complex with kinase inhibitor SB505124 Deposited 2024-05-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–500（301 aa）	Not recorded	A1IAZ 2-[5-(1,3-benzodioxol-5-yl)-2-~{tert}-butyl-1~{H}-imidazol-4-yl]-6-methyl-pyridine × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；291 K；23%(w/v) PEG 3350, 3%(v/v) glycerol at pH 5.6	Resolution 2.68 Å R-free 0.248
9FK5 Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-06-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 30–115（86 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
9J9D Crystal structure of ALK5 kinase domain in complex with inhibitor HM-279 Deposited 2024-08-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa）	Not recorded	A1L30 2-((1-(but-2-yn-1-yl)-1H-pyrazol-4-yl)(cyclopropylmethyl)amino)-5-(4-(dimethylcarbamoyl)-1H-pyrrol-2-yl)thiazole-4-carboxamide × 1 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；20-25% PEG8000, 0.2 M Na acetate, 0.1 M Tris-HCl pH8.5	Resolution 1.34 Å R-free 0.209
9SUV Structure of an inhibitor of Human TGF-beta Type I Receptor Deposited 2025-09-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 200–503（304 aa）	Not recorded	A1JQO ~{N}-[4-[[6-(5-chloranyl-2-fluoranyl-phenyl)-3-(2-hydroxyethylsulfanyl)pyridazin-4-yl]amino]pyridin-2-yl]-3-(4-methylpiperazin-1-yl)propanamide × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2 M potassium thiocyanate 20 % w/v PEG 3350	Resolution 1.50 Å R-free 0.211

44 other PDB entries and 63 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TGFR1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–306； UniProt 200–503

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wou
Deposition date deposition_date	2009-07-28
Structure title title	ALK5 IN COMPLEX WITH 4-((4-((2,6-dimethyl-3-pyridyl)oxy)-2-pyridyl) amino)benzenesulfonamide
Keywords keywords	TRANSFERASE, SERINE/THREONINE-PROTEIN KINASE, ALK, ATP-BINDING, KINASE INHIBITOR, NUCLEOTIDE-BINDING, TGF BETA TYPE I RECEPTOR; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.54 Å
Radius of gyration Rg (electron density) rg_electron	19.38 Å
Forward intensity I(0) i0	19802900.00
Molecular weight molecular_weight	33688.0 kDa
Excluded volume excluded_volume	42137 Å³
Envelope volume envelope_volume	48894 Å³
Hydration-shell volume shell_volume	20965 Å³
Envelope diameter envelope_diameter	67.3 Å
Shell Rg shell_rg	26.10 Å
Envelope Rg envelope_rg	19.73 Å
Shape Rg shape_rg	19.38 Å
Total Rg total_rg	20.31 Å
Total atoms total_atoms	2369
Residues n_residues	299
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

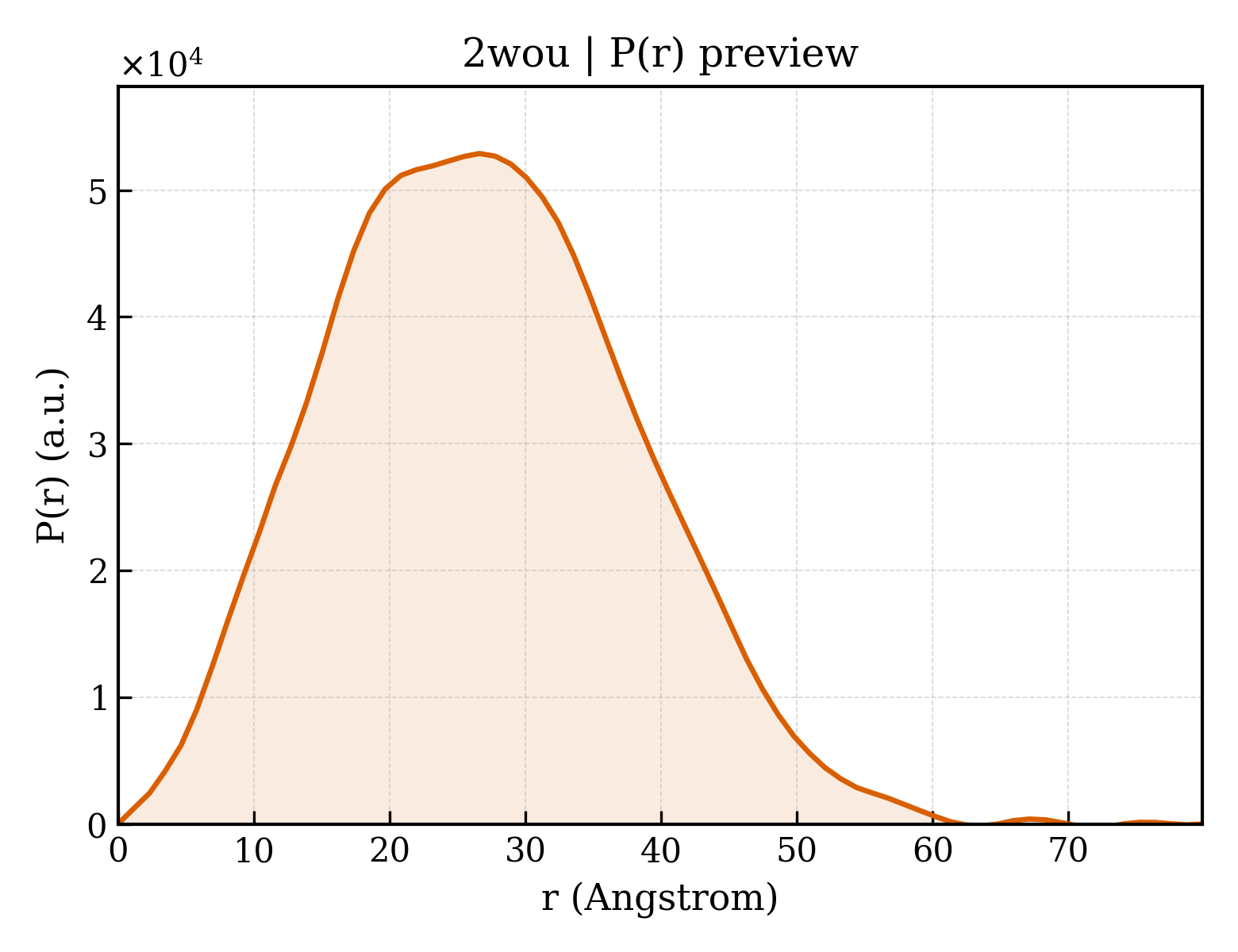

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	79.9 Å
Rg (real space) rg_real	20.45 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	1.9800e+07
I(0) uncertainty (real space) i0_real_error	2.6670e+05
Rg (reciprocal space) rg_reciprocal	20.47 Å
I(0) (reciprocal space) i0_reciprocal	19800000.0000
Solution quality estimate total_estimate	0.7179
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	26.6 Å
Skewness Skewness skewness	0.232
Kurtosis Kurtosis kurtosis	-0.350
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7334000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.492; Stabil: 0.986; Sysdev: 1.000; Positv: 1.000; Valcen: 0.895; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	TGF-BETA RECEPTOR TYPE-1
Molecular weight formula_weight	34939.2 kDa
EC 编号 ec_number	2.7.11.30
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2504

GGTIARTIVLQESIGKGRFGEVWRGKWRGEEVAVKIFSSREERSWFREAEIYQTVMLRHENILGFIAADNKDNGTWTQLWLVSDYHEHGSLFDYLNRYTVTVEGMIKLALSTASGLAHLHMEIVGTQGKPAIAHRDLKSKNILVKKNGTCCIADLGLAVRHDSATDTIDIAPNHRVGTKRYMAPEVLDDSINMKHFESFKRADIYAMGLVFWEIARRCSIGGIHEDYQLPYYDLVPSDPSVEEMRKVVCEQKLRPNIPNRWQSCEALRVMAKIMRECWYANGAARLTALRIKKTLSQLSQQEGIKM

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	4-({4-[(2,6-DIMETHYLPYRIDIN-3-YL)OXY]PYRIDIN-2-YL}AMINO)BENZENESULFONAMIDE
Molecular weight formula_weight	370.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	135

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2woua1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d2woua2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2wouA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	2wouA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.881 Å
Unit-cell length b length_b	77.042 Å
Unit-cell length c length_c	90.387 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2293
R_work r_work	0.2258
R_free r_free	0.3021
