9fk5

Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII

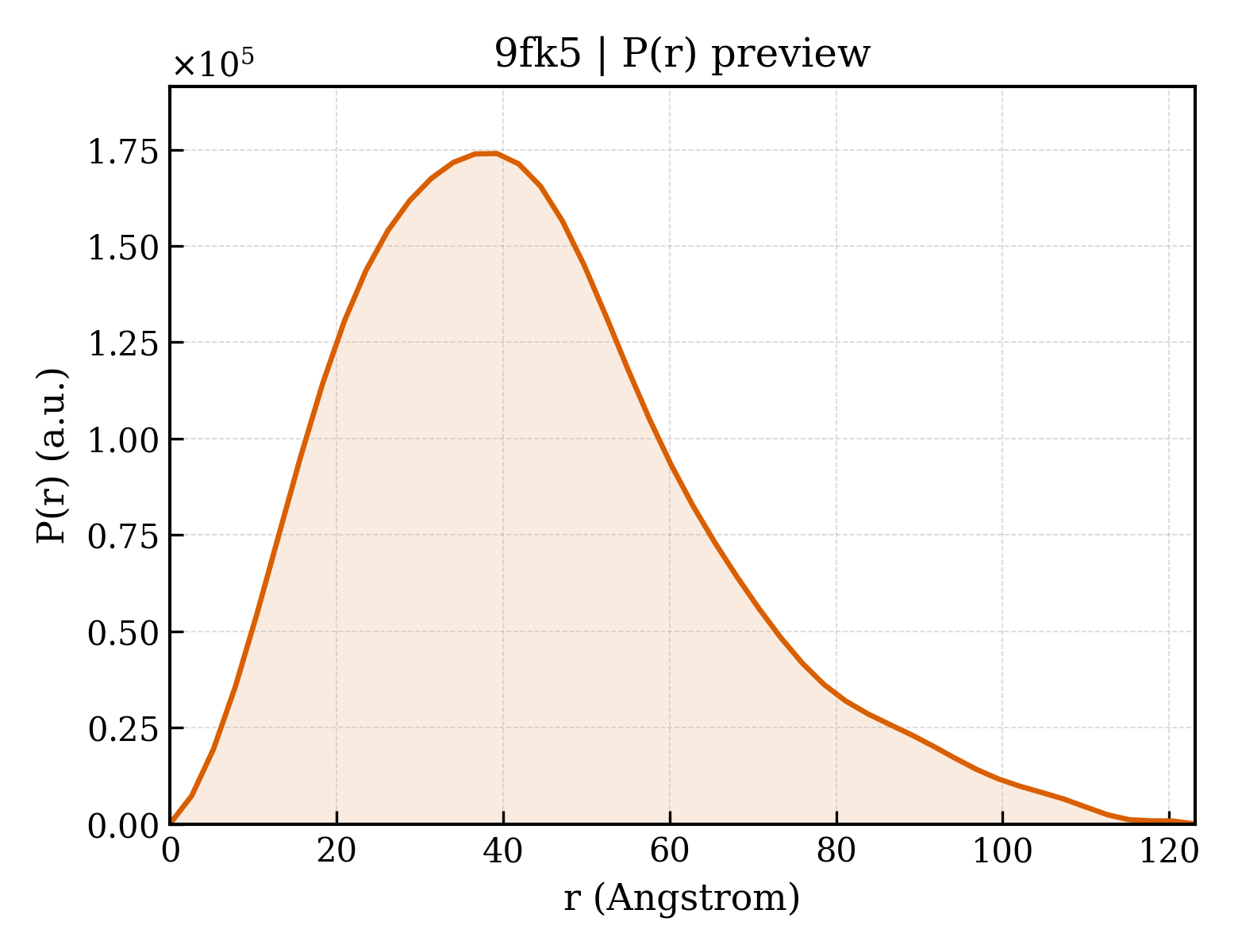

Method: ELECTRON MICROSCOPY Dmax: 123.1 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transforming growth factor beta-3

Homo sapiens

UniProt P10600

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain A； UniProt 301–412 Chain B； UniProt 301–412 Mutation：R325E,Y390A,R394E TGF-beta receptor type-1 × 1 （P36897） TGF-beta receptor type-2 × 1 （P37173） Transforming growth factor beta receptor III × 1 （A0A0H3UK16） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9FK5 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KTZ Crystal Structure of the Human TGF-beta Type II Receptor Extracellular Domain in Complex with TGF-beta3 Deposited 2002-01-18 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 301–412（112 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions HANGING DROP VAPOR DIFFUSION USING A WELL SOLUTION CONTAINING 20% (V/V) 2-METHYL-2,4-PENTANEDIOL AND 0.1 M CITRATE PH 4.0
Resolution 2.15 Å R-free 0.215
1TGJ HUMAN TRANSFORMING GROWTH FACTOR-BETA 3, CRYSTALLIZED FROM DIOXANE Deposited 1996-07-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 301–412（112 aa）
Not recorded DIO 1,4-DIETHYLENE DIOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；15% (V/V) DIOXANE, 100 MM SODIUM ACETATE, PH 5.0
Resolution 2.00 Å
1TGK HUMAN TRANSFORMING GROWTH FACTOR BETA 3, CRYSTALLIZED FROM PEG 4000 Deposited 1996-07-10 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 301–412（112 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions PEG 4000
Resolution 3.30 Å
2PJY Structural basis for cooperative assembly of the TGF-beta signaling complex Deposited 2007-04-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 301–412（112 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；10-20% PEG 3350, 0.4-0.65 M calcium acetate, 0.1-0.25M NaCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.00 Å R-free 0.297
3EO1 Structure of the Fab Fragment of GC-1008 in Complex with Transforming Growth Factor-Beta 3 Deposited 2008-09-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 301–412（112 aa） Fragment：UNP residues 301-412, receptor binding fragment
Chain F 301–412（112 aa） Fragment：UNP residues 301-412, receptor binding fragment
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；277 K；23% tert.-butanol, 0.1M sodium citrate, 0.2M phenoxyacetic acid, pH6.8, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.10 Å R-free 0.279
3EO1 Structure of the Fab Fragment of GC-1008 in Complex with Transforming Growth Factor-Beta 3 Deposited 2008-09-26 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain I 301–412（112 aa） Fragment：UNP residues 301-412, receptor binding fragment
Chain L 301–412（112 aa） Fragment：UNP residues 301-412, receptor binding fragment
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；277 K；23% tert.-butanol, 0.1M sodium citrate, 0.2M phenoxyacetic acid, pH6.8, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 3.10 Å R-free 0.279
4UM9 Crystal structure of alpha V beta 6 with peptide Deposited 2014-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 259–269（11 aa） Fragment：RESIDUES 7-17
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 2 CA CALCIUM ION × 6 MG MAGNESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 MAN alpha-D-mannopyranose × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；15% PEG 4000, 0.1 M NACACODYLATE, PH 6.0
Resolution 2.50 Å R-free 0.266
4UM9 Crystal structure of alpha V beta 6 with peptide Deposited 2014-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 259–269（11 aa） Fragment：RESIDUES 7-17
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 4 CA CALCIUM ION × 6 MG MAGNESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；15% PEG 4000, 0.1 M NACACODYLATE, PH 6.0
Resolution 2.50 Å R-free 0.266
8V52 Crystal structure of 2A10 Fab bound to Human TGF-beta3 Deposited 2023-11-30 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 301–412（112 aa）
Chain B 301–412（112 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；25% PEG 1000, 0.1M HEPES pH 7.5
Resolution 2.50 Å R-free 0.269
8VS6 L-TGF-b3/avb8 Deposited 2024-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 24–412（389 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CA CALCIUM ION × 5 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
8VSB L-TGF-b3/GARP Deposited 2024-01-23 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 24–412（389 aa）
Chain B 24–412（389 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.93 Å
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 301–412（112 aa）
Chain B 301–412（112 aa）
Mutation：R325E,Y390A,R394E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 301–412（112 aa）
Chain G 301–412（112 aa）
Mutation：R325E,Y390A,R394E No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278

10 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TGFB3_HUMAN
Isoform —
PDB entities 1, 2
Chains and sequence ranges Author chain A； PDBConstruct 1–112； UniProt 301–412 Author chain B； PDBConstruct 1–112； UniProt 301–412

TGF-beta receptor type-1

Homo sapiens

UniProt P36897

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain C； UniProt 30–115 Not recorded Transforming growth factor beta-3 × 1 （P10600） Transforming growth factor beta-3 × 1 （P10600） TGF-beta receptor type-2 × 1 （P37173） Transforming growth factor beta receptor III × 1 （A0A0H3UK16） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9FK5 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Chain D 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Chain F 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Chain H 162–503（342 aa） Fragment：CYTOPLASMIC PORTION
Not recorded SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1IAS CYTOPLASMIC DOMAIN OF UNPHOSPHORYLATED TYPE I TGF-BETA RECEPTOR CRYSTALLIZED WITHOUT FKBP12 Deposited 2001-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric
Chain A 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503)
Chain B 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503)
Chain C 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503)
Chain D 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503)
Chain E 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN (RESIDUES 162-503)
Not recorded SO4 SULFATE ION × 15 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；100 mM MES pH 5.8, 2.4 M ammonium sulfate, 10 % glycerol v/v, 150 mM NaCl, 1 mM NPC-30345, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.90 Å R-free 0.284
1PY5 Crystal Structure of TGF-beta receptor I kinase with inhibitor Deposited 2003-07-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 175–500（326 aa） Fragment：Truncated kinase domain, residues 175-500
Not recorded SO4 SULFATE ION × 1 PY1 4-(3-PYRIDIN-2-YL-1H-PYRAZOL-4-YL)QUINOLINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；Tris, ATP, MgCl2, DTT, Hexanediol, PEG4000, LiSO4, pH 7.6, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 2.30 Å R-free 0.292
1RW8 Crystal Structure of TGF-beta receptor I kinase with ATP site inhibitor Deposited 2003-12-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–500（301 aa） Fragment：Truncated kinase domain (residues 200-500)
Not recorded 580 3-(4-FLUOROPHENYL)-2-(6-METHYLPYRIDIN-2-YL)-5,6-DIHYDRO-4H-PYRROLO[1,2-B]PYRAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Tris, ATP, MgCl2, DTT, Hexanediol, PEG 4000, LiSo4, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.40 Å R-free 0.291
1VJY Crystal Structure of a Naphthyridine Inhibitor of Human TGF-beta Type I Receptor Deposited 2004-04-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–303（303 aa） Fragment：protein kinase
Not recorded 460 2-[5-(6-METHYLPYRIDIN-2-YL)-2,3-DIHYDRO-1H-PYRAZOL-4-YL]-1,5-NAPHTHYRIDINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；20% PEG 4000, 0.1M Tris HCl, 0.2 M magnesium chloride, pH 8.0, vapor diffusion/sitting drop, temperature 278K, VAPOR DIFFUSION, SITTING DROP
Resolution 2.00 Å R-free 0.275
2L5S Solution structure of the extracellular domain of the TGF-beta type I receptor Deposited 2010-11-04 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 31–115（85 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.2；300 K；Ionic strength (raw mmCIF value) 0.025；Pressure ambient
NMR sample composition 1 mM [U-100% 13C; U-100% 15N] TbRI-1, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2PJY Structural basis for cooperative assembly of the TGF-beta signaling complex Deposited 2007-04-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 33–111（79 aa） Fragment：extracellular domain
Mutation：M70S No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；10-20% PEG 3350, 0.4-0.65 M calcium acetate, 0.1-0.25M NaCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.00 Å R-free 0.297
2WOT ALK5 IN COMPLEX WITH 4-((5,6-dimethyl-2-(2-pyridyl)-3-pyridyl)oxy)-N-(3,4,5-trimethoxyphenyl)pyridin-2-amine Deposited 2009-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 200-503
Not recorded ZZG 4-[(5,6-DIMETHYL-2,2'-BIPYRIDIN-3-YL)OXY]-N-(3,4,5-TRIMETHOXYPHENYL)PYRIDIN-2-AMINE × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；SITTING DROP METHOD. DROPS PROTEIN-PRECIPITANT 1-1, PROTEIN: 10MG/ML ALK5, PRECIPITANT: 20-30% PEG8K, 100 MM PCTP BUFFER PH 8.5-9.2, 0.2 M NAAC
Resolution 1.85 Å R-free 0.221
2WOU ALK5 IN COMPLEX WITH 4-((4-((2,6-dimethyl-3-pyridyl)oxy)-2-pyridyl) amino)benzenesulfonamide Deposited 2009-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 200-503
Not recorded EDO 1,2-ETHANEDIOL × 1 ZZF 4-({4-[(2,6-DIMETHYLPYRIDIN-3-YL)OXY]PYRIDIN-2-YL}AMINO)BENZENESULFONAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；SITTING DROP METHOD. DROPS PROTEIN-PRECIPITANT 1-1, PROTEIN: 10MG/ML ALK5, PRECIPITANT: 20-30% PEG8K, 100 MM PCTP BUFFER PH 8.5-9.2, 0.2 M NAAC
Resolution 2.30 Å R-free 0.302
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503
Not recorded ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25
Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503
Not recorded ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25
Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503
Not recorded ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25
Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503
Not recorded ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25
Resolution 3.70 Å R-free 0.273
2X7O Crystal structure of TGFbRI complexed with an indolinone inhibitor Deposited 2010-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 162–503（342 aa） Fragment：CYTOPLASMIC DOMAIN, RESIDUES 162-503
Not recorded ZOP (3Z)-N-ETHYL-N-METHYL-2-OXO-3-(PHENYL{[4-(PIPERIDIN-1-YLMETHYL)PHENYL]AMINO}METHYLIDENE)-2,3-DIHYDRO-1H-INDOLE-6-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.2；1.5 M AMMONIUM SULFATE, 0.1 M GLYCINE PH 7.25
Resolution 3.70 Å R-free 0.273
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503
Not recorded 55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503
Not recorded 55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503
Not recorded 55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503
Not recorded 55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.35 Å R-free 0.271
3FAA Crystal structure of TGFbRI complexed with a 2-aminoimidazole inhibitor Deposited 2008-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 162–503（342 aa） Fragment：GS and Kinase domains: UNP residues 162-503
Not recorded 55F N-[4-(5-fluoro-6-methylpyridin-2-yl)-5-quinoxalin-6-yl-1H-imidazol-2-yl]acetamide × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Na/K phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.35 Å R-free 0.271
3GXL ALK-5 kinase complex with GW857175 Deposited 2009-04-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 201–503（303 aa） Fragment：kinase domain, residues 201-503
Not recorded QIG N-1H-indazol-5-yl-2-(6-methylpyridin-2-yl)quinazolin-4-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；vapor diffusion
Resolution 1.80 Å R-free 0.263
3HMM Structure of Alk5 + GW855857 Deposited 2009-05-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 201–503（303 aa） Fragment：KINASE DOMAIN, RESIDUES 201-503
Not recorded 855 2-(6-methylpyridin-2-yl)-N-pyridin-4-ylquinazolin-4-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；VAPOR DIFFUSION
Resolution 1.70 Å R-free 0.241
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS
Not recorded JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS
Not recorded JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS
Not recorded JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS
Not recorded JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.278
3KCF Crystal structure of TGFbRI complexed with a pyrazolone inhibitor Deposited 2009-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 162–503（342 aa） Fragment：UNP residues 162-503, GS AND KINASE DOMAINS
Not recorded JZO 4-[3-(methoxymethyl)phenyl]-1,2-dimethyl-5-quinoxalin-6-yl-1,2-dihydro-3H-pyrazol-3-one × 1 PO4 PHOSPHATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；Sodium potassium phosphate, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.80 Å R-free 0.278
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain I 31–115（85 aa） Fragment：extracellular domain
Chain J 31–115（85 aa） Fragment：extracellular domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 3.00 Å R-free 0.268
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain K 31–115（85 aa） Fragment：extracellular domain
Chain L 31–115（85 aa） Fragment：extracellular domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 3.00 Å R-free 0.268
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain I 31–115（85 aa） Fragment：extracellular domain
Chain J 31–115（85 aa） Fragment：extracellular domain
Chain K 31–115（85 aa） Fragment：extracellular domain
Chain L 31–115（85 aa） Fragment：extracellular domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 3.00 Å R-free 0.268
3TZM TGF-beta Receptor type 1 in complex with SB431542 Deposited 2011-09-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：kinase domain, UNP residues 200-503
Not recorded 085 4-[5-(1,3-benzodioxol-5-yl)-4-(pyridin-2-yl)-1H-imidazol-2-yl]benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Imidazole 10% PEG 8000, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 1.70 Å R-free 0.205
4X0M Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：UNP residues 200-503
Not recorded 3WA 4-aminopyrido[2,3-d]pyrimidin-5(8H)-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5
Resolution 1.68 Å R-free 0.239
4X2F Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：UNP residues 200-503
Not recorded 3WJ 4-amino-8-(4-aminophenyl)pyrido[2,3-d]pyrimidin-5(8H)-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5
Resolution 1.49 Å R-free 0.191
4X2G Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：UNP residues 200-503
Not recorded 3WK 4-[(4-aminophenyl)amino]pyrido[2,3-d]pyrimidin-5(6H)-one × 1 SO4 SULFATE ION × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5
Resolution 1.51 Å R-free 0.185
4X2J Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa）
Not recorded 3WN 4-[(3-aminophenyl)amino]pyrido[2,3-d]pyrimidin-5(8H)-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5
Resolution 1.69 Å R-free 0.184
4X2K Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: MONOMERIC
Chain A 200–503（304 aa）
Not recorded 3WO 4-[(3-aminophenyl)amino]pyrido[2,3-d]pyrimidin-5(6H)-one × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5
Resolution 1.69 Å R-free 0.184
4X2N Selection of fragments for kinase inhibitor design: decoration is key Deposited 2014-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：UNP residues 200-503
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Tris-HCl, 240 mM Li2SO4, 24% PEG 4000, pH 7.5
Resolution 1.80 Å R-free 0.201
5E8S TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (WT) Deposited 2015-10-14 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.45 Å R-free 0.188
5E8T TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.70 Å R-free 0.190
5E8U TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D,I211V,Y249F,S280T, Y282F,S287N,A350C,L352F) Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D,I211V,Y249F,S280T,Y282F,S287N,A350C,L352F GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 2.03 Å R-free 0.223
5E8W TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH STAUROSPORINE Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D STU STAUROSPORINE × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.86 Å R-free 0.186
5E8X TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D,I211V,Y249F,S280T, Y282F,S287N,A350C,L352F) IN COMPLEX WITH STAUROSPORINE Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D,I211V,Y249F,S280T, Y282F,S287N,A350C,L352F STU STAUROSPORINE × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.45 Å R-free 0.210
5E8Z TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH 3-AMINO-6-[4-(2-HYDROXYETHYL)PHENYL]-N-[4-(MORPHOLIN-4-YL)PYRIDIN-3-YL]PYRAZINE-2-CARBOXAMIDE Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D 5L4 3-amino-6-[4-(2-hydroxyethyl)phenyl]-N-[4-(morpholin-4-yl)pyridin-3-yl]pyrazine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.51 Å R-free 0.207
5E90 TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D,I211V,Y249F, S280T,Y282F,S287N,A350C,L352F) IN COMPLEX WITH 3-AMINO-6- [4-(2-HYDROXYETHYL)PHENYL]-N-[4-(MORPHOLIN-4-YL)PYRIDIN-3-YL]PYRAZINE-2-CARBOXAMIDE Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D,I211V,Y249F,S280T,Y282F,S287N,A350C,L352F 5L4 3-amino-6-[4-(2-hydroxyethyl)phenyl]-N-[4-(morpholin-4-yl)pyridin-3-yl]pyrazine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 2.05 Å R-free 0.218
5FRI ALK5 in complex witha an N-(4-anilino-2-pyridyl)acetamide inhibitor. Deposited 2015-12-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–498（299 aa） Fragment：UNP RESIDUES 200-498
Not recorded EDO 1,2-ETHANEDIOL × 2 ZUQ N-[4-[(6-chloro-[1,3]dioxolo[4,5-b]pyridin-7-yl)amino]-2-pyridyl]cyclopropanecarboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；SITTING DROP METHOD. DROPS PROTEIN-PRECIPITANT 1-1, PROTEIN: 10MG/ML ALK5, PRECIPITANT: 20-30% PEG8K, 100 MM PCTP BUFFER PH 8.5-9.2, 0.2 M NAAC
Resolution 2.00 Å R-free 0.193
5QIK TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-{4-[3-(6-fluoropyridin-3-yl)-4-oxo-4,5,6,7-tetrahydro-1H-pyrrolo[3,2-c]pyridin-2-yl]pyridin-2-yl}acetamide Deposited 2018-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D J2M N-{4-[3-(6-fluoropyridin-3-yl)-4-oxo-4,5,6,7-tetrahydro-1H-pyrrolo[3,2-c]pyridin-2-yl]pyridin-2-yl}acetamide × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.58 Å R-free 0.190
5QIL TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-{4-[3-(6-METHOXYPYRIDIN-3-YL)-1H-PYRROLO[3,2-B]PYRIDIN-2-YL]PYRIDIN-2-YL}ACETAMIDE Deposited 2018-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D J2V N-{4-[3-(6-methoxypyridin-3-yl)-1H-pyrrolo[3,2-b]pyridin-2-yl]pyridin-2-yl}acetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.98 Å R-free 0.210
5QIM TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-{4-[3-(5-METHOXYPYRIDIN-2-YL)-1H-PYRROLO[3,2-B] PYRIDIN-2-YL]PYRIDIN-2-YL}ACETAMIDE Deposited 2018-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Not recorded J2Y N-{4-[3-(5-methoxypyridin-2-yl)-1H-pyrrolo[3,2-b]pyridin-2-yl]pyridin-2-yl}acetamide × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.75 Å R-free 0.188
5QTZ TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH 6-[1-(2,2-DIFLUOROETHYL)-4-(6-METHYLPYRIDIN-2-YL)-1H-IMIDAZOL-5-YL]IMIDAZO[1,2-A]PYRIDINE Deposited 2019-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：T204D QMY 6-[1-(2,2-difluoroethyl)-4-(6-methylpyridin-2-yl)-1H-imidazol-5-yl]imidazo[1,2-a]pyridine × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.83 Å R-free 0.200
5QU0 TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH 6-[4-(3-CHLORO-4-FLUOROPHENYL)-1-(2-HYDROXYETHYL)-1H-IMIDAZOL-5-YL]IMIDAZO[1,2-B]PYRIDAZINE-3-CARBONITRILE Deposited 2019-11-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 200-503
Mutation：YES QMV 6-[4-(3-chloro-4-fluorophenyl)-1-(2-hydroxyethyl)-1H-imidazol-5-yl]imidazo[1,2-b]pyridazine-3-carbonitrile × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.67 Å R-free 0.206
5USQ ALK-5 kinase inhibitor complex Deposited 2017-02-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 123–421（299 aa） Fragment：UNP residues 123-421
Not recorded 8LY N-[2-(5-chloro-2-fluorophenyl)pyridin-4-yl]-2-[(piperidin-4-yl)methyl]-2H-pyrazolo[4,3-b]pyridin-7-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.2；293 K；16 % PEG 8000 100mM CHES pH 9.2
Resolution 2.55 Å R-free 0.231
6B8Y TGF-BETA RECEPTOR TYPE 1 KINASE DOMAIN (T204D) IN COMPLEX WITH N-(3-fluoropyridin-4-yl)-2-[6-(trifluoromethyl)pyridin-2-yl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine Deposited 2017-10-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa） Fragment：kinase domain
Mutation：T204D D0A N-(3-fluoropyridin-4-yl)-2-[6-(trifluoromethyl)pyridin-2-yl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.65 Å R-free 0.208
6MAC Ternary structure of GDF11 bound to ActRIIB-ECD and Alk5-ECD Deposited 2018-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain K 33–112（80 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；.05-.15M sodium acetate 12-24% polyethylene glycol 8000 .05-.15M sodium thiocyanate
Resolution 2.34 Å R-free 0.267
8YHF The Crystal Structure of the Type I TGF beta receptor from Biortus. Deposited 2024-02-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 162–503（342 aa）
Not recorded A1D6I Vactosertib × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.02M K/Na PO4, 0.1M Bis-Tris propane pH6.5, 20% PEG3350
Resolution 1.40 Å R-free 0.192
8YHL The Crystal Structure of Tgf-Beta Type I Receptor (Alk5) from Biortus Deposited 2024-02-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa）
Not recorded A1D6I Vactosertib × 1 EDO 1,2-ETHANEDIOL × 2 ACY ACETIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MgAC2, 0.1M MES pH6.5, 10% PEG10,000
Resolution 1.47 Å R-free 0.193
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 31–115（85 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 31–115（85 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278
9F6X Human transforming growth factor b type I receptor in complex with kinase inhibitor SB505124 Deposited 2024-05-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–500（301 aa）
Not recorded A1IAZ 2-[5-(1,3-benzodioxol-5-yl)-2-~{tert}-butyl-1~{H}-imidazol-4-yl]-6-methyl-pyridine × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；291 K；23%(w/v) PEG 3350, 3%(v/v) glycerol at pH 5.6
Resolution 2.68 Å R-free 0.248
9J9D Crystal structure of ALK5 kinase domain in complex with inhibitor HM-279 Deposited 2024-08-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa）
Not recorded A1L30 2-((1-(but-2-yn-1-yl)-1H-pyrazol-4-yl)(cyclopropylmethyl)amino)-5-(4-(dimethylcarbamoyl)-1H-pyrrol-2-yl)thiazole-4-carboxamide × 1 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；20-25% PEG8000, 0.2 M Na acetate, 0.1 M Tris-HCl pH8.5
Resolution 1.34 Å R-free 0.209
9SUV Structure of an inhibitor of Human TGF-beta Type I Receptor Deposited 2025-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 200–503（304 aa）
Not recorded A1JQO ~{N}-[4-[[6-(5-chloranyl-2-fluoranyl-phenyl)-3-(2-hydroxyethylsulfanyl)pyridazin-4-yl]amino]pyridin-2-yl]-3-(4-methylpiperazin-1-yl)propanamide × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2 M potassium thiocyanate 20 % w/v PEG 3350
Resolution 1.50 Å R-free 0.211

44 other PDB entries and 63 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TGFR1_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–87； UniProt 30–115

TGF-beta receptor type-2

Homo sapiens

UniProt P37173

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain D； UniProt 42–153 Not recorded Transforming growth factor beta-3 × 1 （P10600） Transforming growth factor beta-3 × 1 （P10600） TGF-beta receptor type-1 × 1 （P36897） Transforming growth factor beta receptor III × 1 （A0A0H3UK16） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9FK5 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KTZ Crystal Structure of the Human TGF-beta Type II Receptor Extracellular Domain in Complex with TGF-beta3 Deposited 2002-01-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 38–159（122 aa） Fragment：Extracellular Domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions HANGING DROP VAPOR DIFFUSION USING A WELL SOLUTION CONTAINING 20% (V/V) 2-METHYL-2,4-PENTANEDIOL AND 0.1 M CITRATE PH 4.0
Resolution 2.15 Å R-free 0.215
1M9Z CRYSTAL STRUCTURE OF HUMAN TGF-BETA TYPE II RECEPTOR LIGAND BINDING DOMAIN Deposited 2002-07-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 49–159（111 aa） Fragment：Extracellular
Mutation：Q26A,K97T GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；PEG 2000, sodium citrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K
Resolution 1.05 Å R-free 0.166
1PLO TRANSFORMING GROWTH FACTOR-BETA TYPE II RECEPTOR EXTRACELLULAR DOMAIN Deposited 2003-06-08 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 38–159（122 aa）
Mutation：N19A No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5.5；300 K；Ionic strength (raw mmCIF value) 25mM sodium acetate, 25mM NaCl, pH 5.5；Pressure ambient
NMR measurement conditions pH 5.1；300 K；Ionic strength (raw mmCIF value) 25mM sodium acetate, 25mM NaCl；Pressure ambient
NMR measurement conditions pH 5.5；313 K；Ionic strength (raw mmCIF value) 25mM sodium acetate, 25mM NaCl；Pressure ambient
NMR sample composition 1mM ecTbR2 U-15N, 25mM sodium acetate, 25mM NaCl, 95% H2O, 5% D2O | 95% H2O/5% D2O
NMR sample composition 1mM ecTbR2 U-15N, 13C, 25mM sodium acetate, 25mM NaCl, 95% H2O, 5% D2O | 95% H2O/5% D2O
NMR sample composition 1mM ecTbR2 U-15N, 13C, 25mM sodium acetate, 25mM NaCl, 99.99% D2O | 99.99% D2O
NMR sample composition 1mM ecTbR2 U-15N, 25mM sodium acetate, 25mM NaCl, 4% (w/v) 1,2-di-O-hexyl-sn-glycero-3-phosphocholine (6-O-PC) and 1,2-di-O-tetradecyl-sn-glycero-3-phosphocholine (14-O-PC) mixed in a molar ratio of 1:3, 95% H2O, 5% D2O | 95% H2O/5% D2O
NMR sample composition 1mM ecTbR2 U-15N, 13C, 25mM sodium acetate, 25mM NaCl, 4% (w/v) 1,2-di-O-hexyl-sn-glycero-3-phosphocholine (6-O-PC) and 1,2-di-O-tetradecyl-sn-glycero-3-phosphocholine (14-O-PC) mixed in a molar ratio of 1:3, 95% H2O, 5% D2O | 95% H2O/5% D2O
Resolution not provided
2PJY Structural basis for cooperative assembly of the TGF-beta signaling complex Deposited 2007-04-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 42–149（108 aa） Fragment：extracellular domain
Mutation：N42A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；10-20% PEG 3350, 0.4-0.65 M calcium acetate, 0.1-0.25M NaCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.00 Å R-free 0.297
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 38–153（116 aa） Fragment：extracellular domain
Chain F 38–153（116 aa） Fragment：extracellular domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 3.00 Å R-free 0.268
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain G 38–153（116 aa） Fragment：extracellular domain
Chain H 38–153（116 aa） Fragment：extracellular domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 3.00 Å R-free 0.268
3KFD Ternary complex of TGF-b1 reveals isoform-specific ligand recognition and receptor recruitment in the superfamily Deposited 2009-10-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 38–153（116 aa） Fragment：extracellular domain
Chain F 38–153（116 aa） Fragment：extracellular domain
Chain G 38–153（116 aa） Fragment：extracellular domain
Chain H 38–153（116 aa） Fragment：extracellular domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7；298 K；8-15% Peg 4000-8000, pH 7.0, VAPOR DIFFUSION, temperature 298K
Resolution 3.00 Å R-free 0.268
4P7U Extracellular domain of type II Transforming Growth Factor Beta receptor in complex with NDSB-201 Deposited 2014-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 75–184（110 aa） Fragment：extracellular domain, UNP residues 74-175
Mutation：Q26A K97T 1PS 3-PYRIDINIUM-1-YLPROPANE-1-SULFONATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；100 mM sodium citrate, 30% PEG 2000
Resolution 1.50 Å R-free 0.206
4XJJ Extracellular domain of type II Transforming Growth Factor Beta receptor in complex with 2-(2-Hydroxyethyl)NDSB-201 Deposited 2015-01-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 50–159（110 aa） Fragment：ligand binding domain (UNP reisudes 50-159)
Mutation：K97T 41D 3-[2-(2-hydroxyethyl)pyridinium-1-yl]propane-1-sulfonate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；100 mM sodium citrate, 30% PEG 2000
Resolution 1.40 Å R-free 0.185
5E8V TGF-BETA RECEPTOR TYPE 2 KINASE DOMAIN (E431A,R433A,E485A,K488A,R493A,R495A) Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 237–549（313 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 237-549
Mutation：E431A,R433A,E485A,K488A,R493A,R495A GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mm TRIS-HCl, PH 8.5, 150 mm MgCl2, 24%(w/v) PEG4000, 20%(v/v) glcyerol
Resolution 1.69 Å R-free 0.219
5E8Y TGF-BETA RECEPTOR TYPE 2 KINASE DOMAIN (E431A,R433A,E485A,K488A,R493A,R495A) IN COMPLEX WITH STAUROSPORINE Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 237–549（313 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 237-549
Mutation：E431A,R433A,E485A,K488A,R493A,R495A STU STAUROSPORINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mm TRIS-HCl, PH 8.5, 150 mm MgCl2, 24%(w/v) PEG4000, 20%(v/v) glcyerol
Resolution 2.05 Å R-free 0.227
5E91 TGF-BETA RECEPTOR TYPE 2 KINASE DOMAIN (E431A,R433A,E485A,K488A,R493A,R495A) IN COMPLEX WITH 3-AMINO-6-[4-(2- HYDROXYETHYL)PHENYL]-N-[4-(MORPHOLIN-4-YL)PYRIDIN-3-YL] PYRAZINE-2-CARBOXAMIDE Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 237–549（313 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 237-549
Mutation：E431A,R433A,E485A,K488A,R493A,R495A 5L4 3-amino-6-[4-(2-hydroxyethyl)phenyl]-N-[4-(morpholin-4-yl)pyridin-3-yl]pyrazine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mm TRIS-HCl, PH 8.5, 150 mm MgCl2, 24%(w/v) PEG4000, 20%(v/v) glcyerol
Resolution 2.42 Å R-free 0.242
5E92 TGF-BETA RECEPTOR TYPE 2 KINASE DOMAIN (E431A,R433A,E485A,K488A,R493A,R495A) IN COMPLEX WITH AMPPNP Deposited 2015-10-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 237–549（313 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 237-549
Mutation：E431A,R433A,E485A,K488A,R493A,R495A ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mm TRIS-HCl, PH 8.5, 150 mm MgCl2, 24%(w/v) PEG4000, 20%(v/v) glcyerol
Resolution 2.08 Å R-free 0.231
5QIN TGF-BETA RECEPTOR TYPE 2 KINASE DOMAIN IN COMPLEX WITH N- {4-[3-(6-METHOXYPYRIDIN-3-YL)-1H-PYRROLO[3,2-B]PYRIDIN-2- YL]PYRIDIN-2-YL}ACETAMIDE Deposited 2018-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 237–549（313 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 237-549
Not recorded J2V N-{4-[3-(6-methoxypyridin-3-yl)-1H-pyrrolo[3,2-b]pyridin-2-yl]pyridin-2-yl}acetamide × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；23%(w/v) PEG3350, 3%(v/v) glcyerol
Resolution 1.57 Å R-free 0.203
5TX4 Derivative of mouse TGF-beta2, with a deletion of residues 52-71 and K25R, R26K, L51R, A74K, C77S, L89V, I92V, K94R T95K, I98V single amino acid substitutions, bound to human TGF-beta type II receptor ectodomain residues 15-130 Deposited 2016-11-15 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 38–153（116 aa） Fragment：UNP residues 38-153
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M Hepes, pH 7.5, 60 % v/v (+/-)-2-Methyl-2,4-pentanediol
Resolution 1.88 Å R-free 0.222
5TY4 MicroED structure of a complex between monomeric TGF-b and its receptor, TbRII, at 2.9 A resolution Deposited 2016-11-18 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 72–174（103 aa）
Not recorded No recorded non-water small molecule ELECTRON CRYSTALLOGRAPHY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.5 ul 20 mg/mL protein + 0.25 ul mother liquor + 0.2 ul seed stock in 100 mM HEPES/NaOH pH 7.5, 45% MPD
Resolution 2.90 Å R-free 0.328
7DV6 Discovery of Functionally Selective Transforming Growth Factor beta Type II Receptor (TGF-beta RII) Inhibitors as Anti-Fibrosis Agents Deposited 2021-01-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 237–549（313 aa）
Mutation：E431A,R433A,E485A,K488A,R493A,R495A HJF 5-[(3S)-5,5-dimethyloxolan-3-yl]-6-methoxy-3-(2-methoxypyridin-4-yl)pyrazolo[1,5-a]pyrimidine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；12-22% PEG4000,3% Ethylene Glycol,16% glycerol, 160 mM MgCl2, 80 mM TrisHCl at pH 7.5-9.3,The 9.2 mg/mL of TGFbetaRII protein was incubated with 1mM compound at 277K for 1-2 hr
Resolution 2.39 Å R-free 0.224
8G4K Complex of TbRII mini protein binder bound to the TbRII ECD Deposited 2023-02-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 46–155（110 aa） Fragment：ECD (UNP residues 46-155)
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；300 K；20% PEG5000 MME, 0.2-0.4 M ammonium sulfate, 0.1 M Tris, pH 7.4, 16-32% glycerol
Resolution 1.24 Å R-free 0.196
8YGZ The Crystal Structure of TGF beta R2 kinase domain from Biortus. Deposited 2024-02-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 237–549（313 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EDO 1,2-ETHANEDIOL × 10 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M Li2SO4, 0.1M Tris-HCl pH8.5, 30% PEG4,000
Resolution 2.10 Å R-free 0.254
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 42–153（112 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain I 42–153（112 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278
9E9G Heligmosomoides polygyrus TGF-beta Mimic 6 Domain 3 (TGM6-D3) Bound to Human TGF-beta Type II Receptor Extracellular Domain Deposited 2024-11-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 38–154（117 aa） Fragment：UNP residues 38-154
Not recorded GOL GLYCEROL × 8 CL CHLORIDE ION × 2 NA SODIUM ION × 5 CAC CACODYLATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M sodium cacodylate, 25% w/v PEG4000, pH 6.5
Resolution 1.40 Å R-free 0.182
9FDY Betaglycan Orphan Domain (ratBGo) in complex with TGF-b1 and extracellular domain of TGFBRII Deposited 2024-05-17 Different construct Different mutation/modification Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 42–153（112 aa）
Chain E 42–153（112 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9FKP Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-b1 and extracellular domain of TGFBRII Deposited 2024-06-03 Different construct Different mutation/modification Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 42–153（112 aa）
Chain E 42–153（112 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.72 Å

21 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TGFR2_HUMAN
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 2–113； UniProt 42–153

Transforming growth factor beta receptor III

Danio rerio

UniProt A0A0H3UK16

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count Chain E； UniProt 29–359 Mutation：C150G,C277G Transforming growth factor beta-3 × 1 （P10600） Transforming growth factor beta-3 × 1 （P10600） TGF-beta receptor type-1 × 1 （P36897） TGF-beta receptor type-2 × 1 （P37173） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 4.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9FK5 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6MZN Zebrafish betaglycan orphan domain structure from tetragonal crystal form Deposited 2018-11-05 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–359（331 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；8% v/v PEG 5K mono methyl ether, 4% w/v PEG 20K, 0.1M MES pH 6.5
Resolution 2.38 Å R-free 0.229
6MZP Zebrafish betaglycan orphan domain structure from orthorhombic crystal form Deposited 2018-11-05 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 29–359（331 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；9.2% v/v PEG 5K mono methyl ether, 4.6% w/v PEG 20K, 0.1M MES pH 6.2
Resolution 2.10 Å R-free 0.258
6MZP Zebrafish betaglycan orphan domain structure from orthorhombic crystal form Deposited 2018-11-05 Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 29–359（331 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；9.2% v/v PEG 5K mono methyl ether, 4.6% w/v PEG 20K, 0.1M MES pH 6.2
Resolution 2.10 Å R-free 0.258
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 29–359（331 aa）
Mutation：C150G,C277G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278
9B9F Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII Deposited 2024-04-02 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain J 29–359（331 aa）
Mutation：C150G,C277G No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M lithium sulfate, 0.1 M tris pH 8.5, 30 %(w/v) polyethylene glycol 4000
Resolution 3.00 Å R-free 0.278
9FKP Zebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-b1 and extracellular domain of TGFBRII Deposited 2024-06-03 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 29–359（331 aa）
Mutation：C150G,C277G No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.72 Å

4 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name A0A0H3UK16_DANRE
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 2–332； UniProt 29–359

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9fk5

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9fk5
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9fk5
Deposition date deposition_date2024-06-02
最后修订 last_revision2025-03-12
Structure title titleZebrafish Betaglycan Orphan Domain (zfBGo) in complex with TGF-B3 and extracellular domains of TGFBRI and TGFBRII
Keywords keywordsComplex, Betaglycan, TGFBR3, TGFb, TGFBR1, TGFBR2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier33.61 Å
Radius of gyration Rg (electron density) rg_electron33.62 Å
Forward intensity I(0) i0110992000.00
Molecular weight molecular_weight82378.0 kDa
Excluded volume excluded_volume102550 ų
Envelope volume envelope_volume138750 ų
Hydration-shell volume shell_volume37260 ų
Envelope diameter envelope_diameter130.3 Å
Shell Rg shell_rg37.04 Å
Envelope Rg envelope_rg33.42 Å
Shape Rg shape_rg33.65 Å
Total Rg total_rg33.78 Å
Total atoms total_atoms5765
Residues n_residues735
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax123.1 Å
Rg (real space) rg_real33.89 Å
Rg uncertainty (real space) rg_real_error1.49 Å
I(0) (real space) i0_real1.1100e+08
I(0) uncertainty (real space) i0_real_error1.9760e+06
Rg (reciprocal space) rg_reciprocal33.72 Å
I(0) (reciprocal space) i0_reciprocal111000000.0000
Solution quality estimate total_estimate0.8103
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary39.3 Å
Skewness Skewness skewness0.649
Kurtosis Kurtosis kurtosis0.191
Angular range angular_range— – 0.2350 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha13320000.0000
Real-space data points n_real_points48
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.654; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.713; Smooth: 0.855
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

▶

8. Citations (1)

▶

9. Files and Curves (10)
