SAXSdb — 2wqz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NEUROLIGIN 4, X-LINKED

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	NEUREXIN-1-BETA × 1 （Q63373） 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CALCIUM ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	NEUREXIN-1-BETA × 1 （Q63373） CALCIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NLGNX_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 12–588； UniProt 43–619 Author chain B； PDBConstruct 12–588； UniProt 43–619

NEUREXIN-1-BETA

RATTUS NORVEGICUS

UniProt Q63373

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	NEUROLIGIN 4, X-LINKED × 1 （Q8N0W4） 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CALCIUM ION × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	NEUROLIGIN 4, X-LINKED × 1 （Q8N0W4） CALCIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NRX1B_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–121； UniProt 80–200 Author chain C； PDBConstruct 122–179； UniProt 201–258 Author chain D； PDBConstruct 1–121； UniProt 80–200 Author chain D； PDBConstruct 122–179； UniProt 201–258

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wqz
Deposition date deposition_date	2009-08-28
Structure title title	Crystal structure of synaptic protein neuroligin-4 in complex with neurexin-beta 1: alternative refinement
Keywords keywords	;TRANSMEMBRANE, DISULFIDE BOND, ALPHA/BETA-HYDROLASE CHOLINESTERASE AUTISM BRAIN, ALTERNATIVE PROMOTER USAGE, MEMBRANE, GLYCOPROTEIN, CELL ADHESION ;; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2wqz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2wqz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

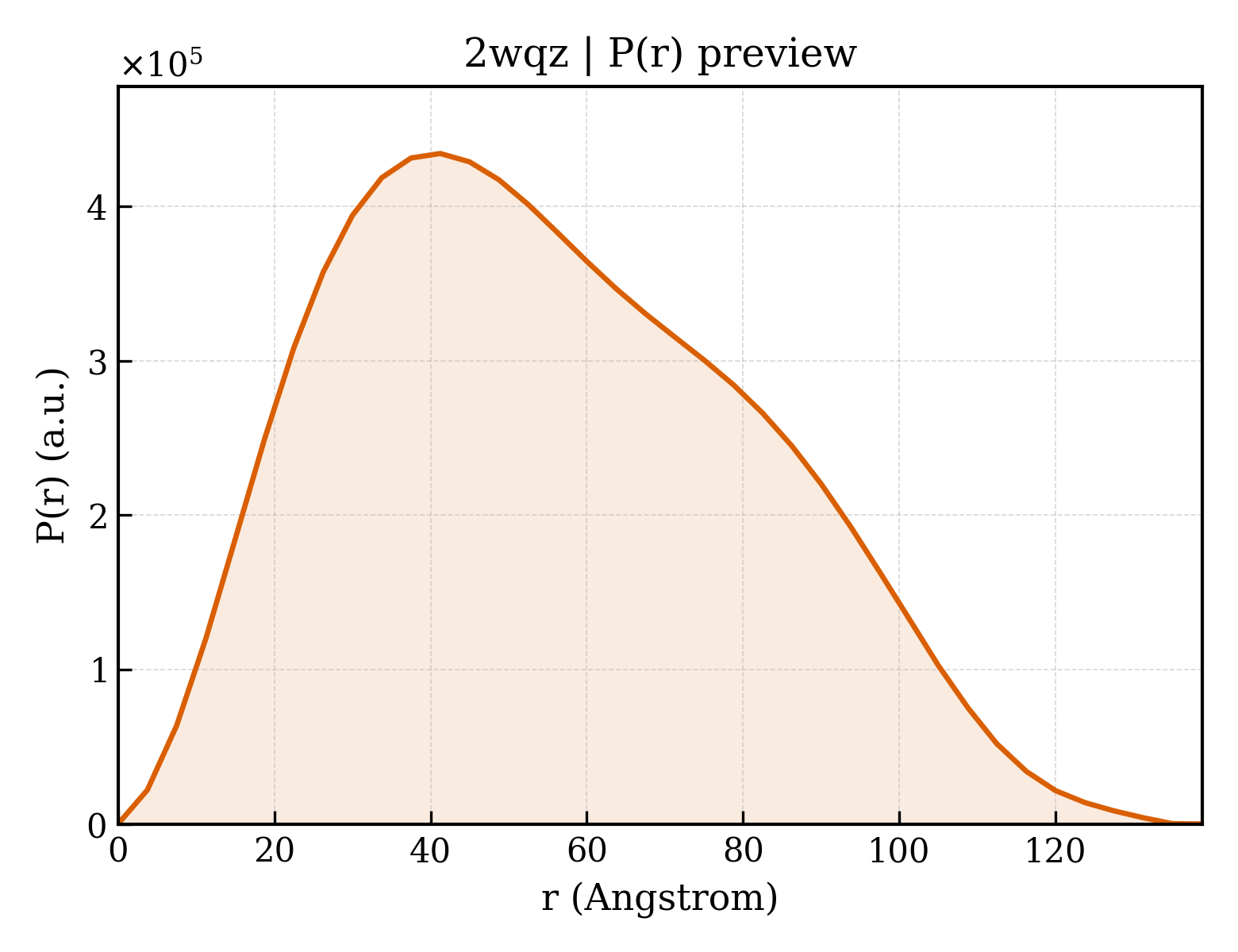

2wqz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.21 Å
Rg (electron density)	28.26 Å
Total Rg	29.05 Å
Atom count	5698
Residues	722
Excluded volume	101000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2wqz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2wqz__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NEUROLIGIN 4, X-LINKED
Molecular weight formula_weight	66230.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	11360

DYKDDDDKLAAAQYPVVNTNYGKIRGLRTPLPNEILGPVEQYLGVPYASPPTGERRFQPPEPPSSWTGIRNTTQFAAVCPQHLDERSLLHDMLPIWFTANLDTLMTYVQDQNEDCLYLNIYVPTEDDIHDQNSKKPVMVYIHGGSYMEGTGNMIDGSILASYGNVIVITINYRLGILGFLSTGDQAAKGNYGLLDQIQALRWIEENVGAFGGDPKRVTIFGSGAGASCVSLLTLSHYSEGLFQKAIIQSGTALSSWAVNYQPAKYTRILADKVGCNMLDTTDMVECLRNKNYKELIQQTITPATYHIAFGPVIDGDVIPDDPQILMEQGEFLNYDIMLGVNQGEGLKFVDGIVDNEDGVTPNDFDFSVSNFVDNLYGYPEGKDTLRETIKFMYTDWADKENPETRRKTLVALFTDHQWVAPAVATADLHAQYGSPTYFYAFYHHCQSEMKPSWADSAHGDEVPYVFGIPMIGPTELFSCNFSKNDVMLSAVVMTYWTNFAKTGDPNQPVPQDTKFIHTKPNRFEEVAWSRYNPKDQLYLHIGLKPRVRDHYRATKVAFWLELVPHLHNLNEIFQYVSTTTKVPPPDMT

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	HOMO SAPIENS

Entity 2 Entity 2 polymer

Description description	NEUREXIN-1-BETA
Molecular weight formula_weight	19367.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GGHAGTTYIFSKGGGQITYKWPPNDRPSTRADRLAIGFSTVQKEAVLVRVDSSSGLGDYLELHIHQGKIGVKFNVGTDDIAIEESNAIINDGKYHVVRFTRSGGNATLQVDSWPVIERYPAGRQLTIFNSQATIIIGGKEQGQPFQGQLSGLYYNGLKVLNMAAENDANIAIVGNVRLV

Source Source

Source organism organism	RATTUS NORVEGICUS
Common name common_name	NORWAY RAT
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	ESCHERICHIA COLI (BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2wqzc_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.4 — Laminin G-like module

Domain ID domain_id	d2wqzd_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.4 — Laminin G-like module

CATH v4.4 (4 domains)

Domain ID domain_id	2wqzA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2wqzB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	2wqzC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	2wqzD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	158.520 Å
Unit-cell length b length_b	198.670 Å
Unit-cell length c length_c	85.740 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2080
R_work r_work	0.2050
R_free r_free	0.2760
