SAXSdb — 2x9d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TETRACYCLINE REPRESSOR PROTEIN CLASS D

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ISO-7-CHLORTETRACYCLINE × 2 CHLORIDE ION × 8 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TETR4_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–207； UniProt 2–208

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2x9d
Deposition date deposition_date	2010-03-15
Structure title title	Tet repressor (class D) in complex with iso-7-chlortetracycline
Keywords keywords	TRANSCRIPTION, GENE REGULATION, HTH-MOTIF, DNA-BINDING PROTEIN, ANTIBIOTIC RESISTANCE; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2x9d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2x9d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

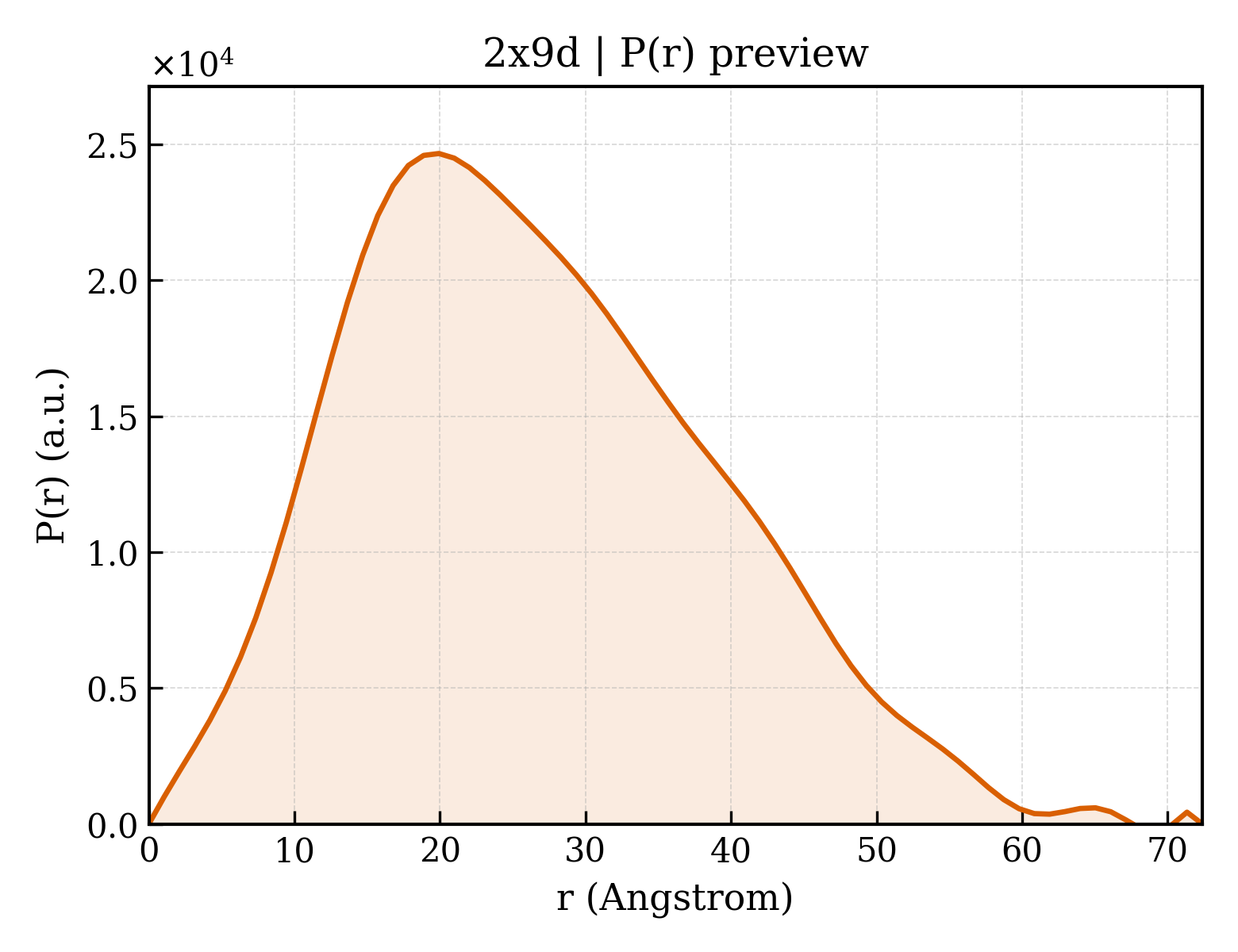

2x9d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.27 Å
Rg (electron density)	22.31 Å
Total Rg	23.29 Å
Atom count	3162
Residues	390
Excluded volume	56152 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2x9d__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	TETRACYCLINE REPRESSOR PROTEIN CLASS D
Molecular weight formula_weight	23288.3 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1645

SRLNRESVIDAALELLNETGIDGLTTRKLAQKLGIEQPTLYWHVKNKRALLDALAVEILARHHDYSLPAAGESWQSFLRNNAMSFRRALLRYRDGAKVHLGTRPDEKQYDTVETQLRFMTENGFSLRDGLYAISAVSHFTLGAVLEQQEHTAALTDRPAAPDENLPPLLREALQIMDSDDGEQAFLHGLESLIRGFEVQLTALLQIV

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ISO-7-CHLORTETRACYCLINE
Molecular weight formula_weight	478.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	64

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2x9da1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.9 — Tetracyclin repressor-like, N-terminal domain

Domain ID domain_id	d2x9da2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.1 — Tetracyclin repressor-like, C-terminal domain

CATH v4.4 (2 domains)

Domain ID domain_id	2x9dA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	2x9dA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

▶

Unit-cell length a length_a	68.253 Å
Unit-cell length b length_b	68.253 Å
Unit-cell length c length_c	179.271 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.340 Å
Low-resolution limit resolution_low	63.760 Å
R factor r_factor	0.2383
R_work r_work	0.2337
R_free r_free	0.2797
