SAXSdb — 2y5y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LACTOSE PERMEASE

ESCHERICHIA COLI

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–417 Chain B； UniProt 1–417	Mutation：YES	BA BARIUM ION × 2 TGA 2-sulfanylethyl beta-D-galactopyranoside × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；PH 6	Resolution 3.38 Å R-free 0.303

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2Y5Y	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1PV6 Crystal structure of lactose permease Deposited 2003-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–417（417 aa）	Mutation：C154G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；PEG 400, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.337
1PV6 Crystal structure of lactose permease Deposited 2003-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–417（417 aa）	Mutation：C154G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；PEG 400, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.50 Å R-free 0.337
1PV7 Crystal structure of lactose permease with TDG Deposited 2003-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–417（417 aa）	Mutation：C154G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；PEG 400, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.60 Å R-free 0.296
1PV7 Crystal structure of lactose permease with TDG Deposited 2003-06-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–417（417 aa）	Mutation：C154G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；PEG 400, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.60 Å R-free 0.296
2CFP Sugar Free Lactose Permease at acidic pH Deposited 2006-02-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–417（417 aa）	Mutation：YES	HG MERCURY (II) ION × 5	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.30 Å R-free 0.328
2CFQ Sugar Free Lactose Permease at neutral pH Deposited 2006-02-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–417（417 aa）	Mutation：YES	HG MERCURY (II) ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.50	Resolution 2.95 Å R-free 0.298
2V8N Wild-type Structure of Lactose Permease Deposited 2007-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–417（417 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 3.60 Å R-free 0.333
2V8N Wild-type Structure of Lactose Permease Deposited 2007-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–417（417 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 3.60 Å R-free 0.333
4ZYR Crystal structure of E. coli Lactose permease G46W/G262W bound to p-nitrophenyl alpha-D-galactopyranoside (alpha-NPG) Deposited 2015-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–417（417 aa）	Mutation：G46W, G262W	9PG 4-nitrophenyl alpha-D-galactopyranoside × 1 BNG nonyl beta-D-glucopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；1.0 M NaCl 0.05 M Tris (pH8.0) 26% PEG 600	Resolution 3.31 Å R-free 0.278
4ZYR Crystal structure of E. coli Lactose permease G46W/G262W bound to p-nitrophenyl alpha-D-galactopyranoside (alpha-NPG) Deposited 2015-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–417（417 aa）	Mutation：G46W, G262W	9PG 4-nitrophenyl alpha-D-galactopyranoside × 1 BNG nonyl beta-D-glucopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；1.0 M NaCl 0.05 M Tris (pH8.0) 26% PEG 600	Resolution 3.31 Å R-free 0.278
5GXB crystal structure of a LacY/Nanobody complex Deposited 2016-09-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–417（417 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；100mM MES pH 6.0, 100mM (NH4)2C4H4O6, 43% PEG 400	Resolution 3.30 Å R-free 0.346
6C9W Crystal Structure of a ligand bound LacY/Nanobody Complex Deposited 2018-01-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–417（417 aa） Fragment：Full	Mutation：G46W, G262W	9PG 4-nitrophenyl alpha-D-galactopyranoside × 1 BNG nonyl beta-D-glucopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；295 K；0.1 M MgCl2, 28% PEG1000, 0.1 M Tris-HCl, pH 8.5	Resolution 3.00 Å R-free 0.295
8Y9Y Structure of the SecA-SecY complex with the substrate FtsQ-LacY(+1C) Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 315–334（20 aa）	Mutation：T1M,R2A,L3K,A4K,G5T,C53A	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.29 Å
8YA0 Structure of the SecA-SecY complex with the substrate FtsQ-LacY(+7C) Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 316–332（17 aa）	Mutation：R2A, L3K, A4K, G5T, C14T, F17L	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.97 Å
8YA2 Structure of the SecA-SecY complex with the substrate FtsQ-LacY(+20C) Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 315–334（20 aa）	Mutation：T1M,R2A,L3K,A4K,G5T,E45C,C53A	MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.84 Å
8YA3 Structure of the SecA-SecY complex with the substrate FtsQ-LacY(+7C) treated with DTT Deposited 2024-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 315–334（20 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.27 Å
9XOU CryoEM structure of LacY with Trimbody Deposited 2025-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 1–417（417 aa） Chain H 1–417（417 aa） Chain I 1–417（417 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å

13 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LACY_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–417； UniProt 1–417 Author chain B； PDBConstruct 1–417； UniProt 1–417

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2y5y
Deposition date deposition_date	2011-01-19
Structure title title	Crystal structure of LacY in complex with an affinity inactivator
Keywords keywords	TRANSPORT PROTEIN, AFFINITY INACTIVATION; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.02 Å
Radius of gyration Rg (electron density) rg_electron	32.78 Å
Forward intensity I(0) i0	91732100.00
Molecular weight molecular_weight	87768.0 kDa
Excluded volume excluded_volume	114410 Å³
Envelope volume envelope_volume	143890 Å³
Hydration-shell volume shell_volume	37416 Å³
Envelope diameter envelope_diameter	117.9 Å
Shell Rg shell_rg	38.71 Å
Envelope Rg envelope_rg	32.42 Å
Shape Rg shape_rg	32.76 Å
Total Rg total_rg	33.41 Å
Total atoms total_atoms	6209
Residues n_residues	780
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

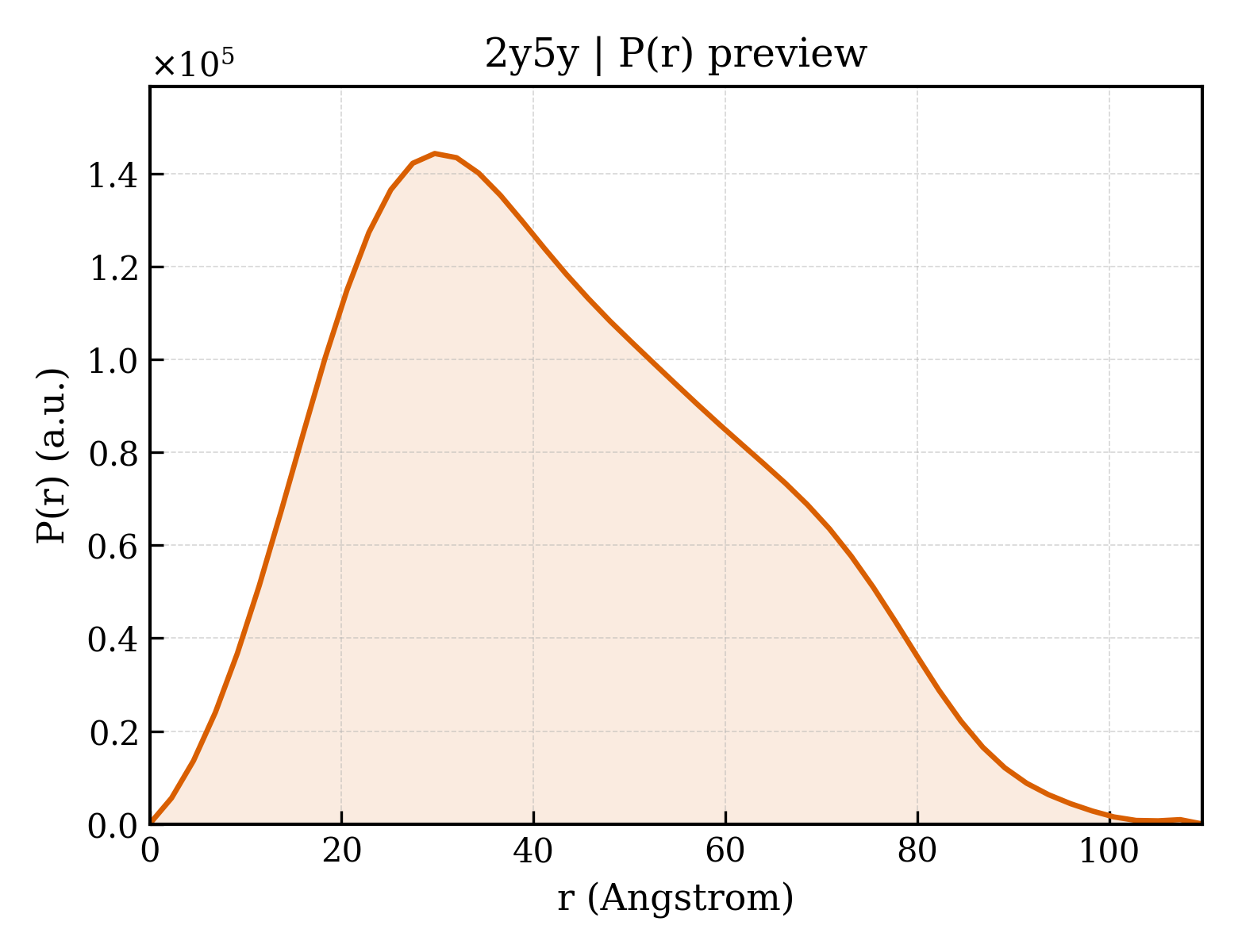

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	109.7 Å
Rg (real space) rg_real	33.19 Å
Rg uncertainty (real space) rg_real_error	0.87 Å
I(0) (real space) i0_real	9.1730e+07
I(0) uncertainty (real space) i0_real_error	1.6450e+06
Rg (reciprocal space) rg_reciprocal	33.13 Å
I(0) (reciprocal space) i0_reciprocal	91730000.0000
Solution quality estimate total_estimate	0.8688
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.7 Å
Skewness Skewness skewness	0.384
Kurtosis Kurtosis kurtosis	-0.573
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	28690000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.883; Smooth: 0.939

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	LACTOSE PERMEASE
Molecular weight formula_weight	47271.5 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6209

MYYLKNTNFWMFGLFFFFYFFIMGAYFPFFPIWLHDINHISKSDTGIIFAAISLFSLLFQPLFGLLSDKLGLRKYLLWIITGMLVMFAPFFIFIFGPLLQYNILVGSIVGGIYLGFSFNAGCPAVEAFIEKVSRRSNFEFGRARMFGAVGWALVASIVGIMFTINNQFVFWLGSGMALILAVLLFFAKTDAPSSATVANAVGANHSAFSLKLALELFRQPKLWFLSLYVIGVSSTYDVFDQQFANFFTSFFATGEQGTRVFGYVTTMGELLNASIMFFAPLIINRIGGKNALLLAGTIMSVRIIGSSFATSALEVVILKTLHMFEVPFLLVGSFKYITSQFEVRFSATIYLVAFAFFKQLAMIFMSVLAGNMYESIGFQGAYLVLGLVALGFTLISVFTLSGPGPLSLLRRQVNEVAHHHHHH

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	BARIUM ION
Molecular weight formula_weight	137.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	2-sulfanylethyl beta-D-galactopyranoside
Molecular weight formula_weight	240.3 kDa
Source method src_method	syn
Copy count entity_count	2

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	2y5yA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

Domain ID domain_id	2y5yA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

Domain ID domain_id	2y5yB01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

Domain ID domain_id	2y5yB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

▶

8. Citations (2)

▶

Unit-cell length a length_a	102.560 Å
Unit-cell length b length_b	127.840 Å
Unit-cell length c length_c	189.870 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.380 Å
Low-resolution limit resolution_low	28.280 Å
R factor r_factor	0.2872
R_work r_work	0.2864
R_free r_free	0.3027

fit	/app/data/saxs_computation/y5/2y5y/2y5y.fit
pddf	/app/data/pr_computation/y5/2y5y/2y5y.pr.out
profile	/app/data/saxs_computation/y5/2y5y/2y5y.dat
