SAXSdb — 1pv6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lactose permease

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LACY_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–417； UniProt 1–417 Author chain B； PDBConstruct 1–417； UniProt 1–417

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1pv6
Deposition date deposition_date	2003-06-26
Structure title title	Crystal structure of lactose permease
Keywords keywords	Transport, Sugar transport, Symport, membrane protein, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1pv6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1pv6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

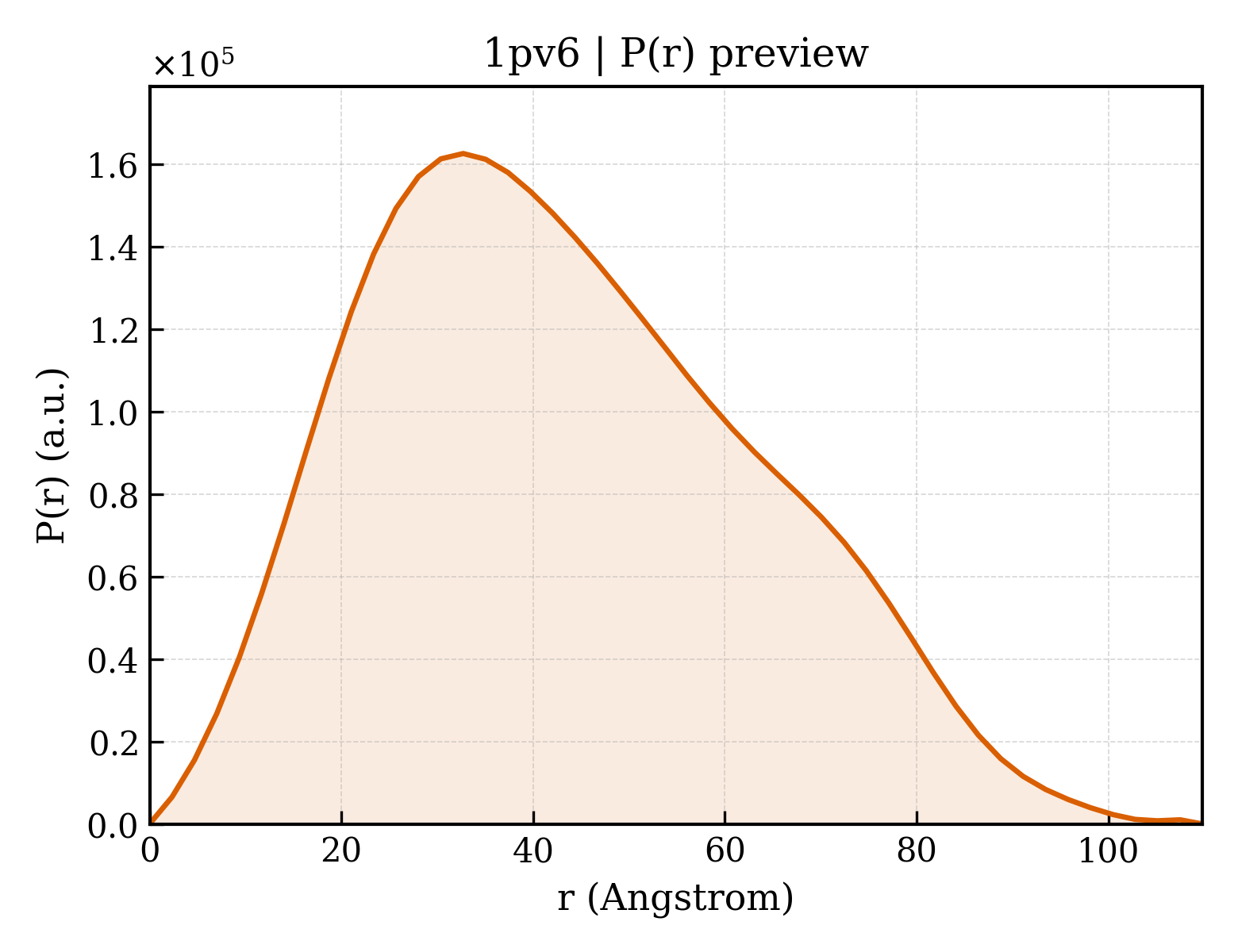

1pv6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.78 Å
Rg (electron density)	21.80 Å
Total Rg	22.89 Å
Atom count	3290
Residues	417
Excluded volume	60395 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1pv6__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1pv6__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1pv6a_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.38 — MFS general substrate transporter
Superfamily Superfamily superfamily	f.38.1 — MFS general substrate transporter
Family Family family	f.38.1.2 — LacY-like proton/sugar symporter

Domain ID domain_id	d1pv6b_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.38 — MFS general substrate transporter
Superfamily Superfamily superfamily	f.38.1 — MFS general substrate transporter
Family Family family	f.38.1.2 — LacY-like proton/sugar symporter

CATH v4.4 (4 domains)

Domain ID domain_id	1pv6A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

Domain ID domain_id	1pv6A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

Domain ID domain_id	1pv6B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

Domain ID domain_id	1pv6B02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	20 — MFS general substrate transporter like domains

▶

Unit-cell length a length_a	101.351 Å
Unit-cell length b length_b	125.845 Å
Unit-cell length c length_c	188.118 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2940
R_work r_work	0.2940
R_free r_free	0.3370

Description description	Lactose permease
Molecular weight formula_weight	46484.8 kDa
Mutation mutation	C154G
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6580

Crystal structure of lactose permease

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lactose permease

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1pv6__assembly_1__model_1

1pv6__assembly_1__model_1 | I(q)

1pv6__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli
