2zit

Structure of the eEF2-ExoA-NAD+ complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Elongation factor 2

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Exotoxin A × 1 （P11439） NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Exotoxin A × 1 （P11439） NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Exotoxin A × 1 （P11439） NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EF2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–842； UniProt 1–842 Author chain C； PDBConstruct 1–842； UniProt 1–842 Author chain E； PDBConstruct 1–842； UniProt 1–842

Exotoxin A

Pseudomonas aeruginosa

UniProt P11439

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Elongation factor 2 × 1 （P32324） NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Elongation factor 2 × 1 （P32324） NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Elongation factor 2 × 1 （P32324） NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOXA_PSEAE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–207； UniProt 425–630 Author chain D； PDBConstruct 2–207； UniProt 425–630 Author chain F； PDBConstruct 2–207； UniProt 425–630

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2zit
Deposition date deposition_date	2008-02-24
Structure title title	Structure of the eEF2-ExoA-NAD+ complex
Keywords keywords	;elongation factor, toxin, ADP-ribosylation, toxin-substrate complex, Cytoplasm, GTP-binding, Nucleotide-binding, Phosphoprotein, Protein biosynthesis, RNA-binding, rRNA-binding, Glycosyltransferase, NAD, Transferase, BIOSYNTHETIC PROTEIN-TRANSFERASE COMPLEX ;; BIOSYNTHETIC PROTEIN/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2zit__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2zit__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

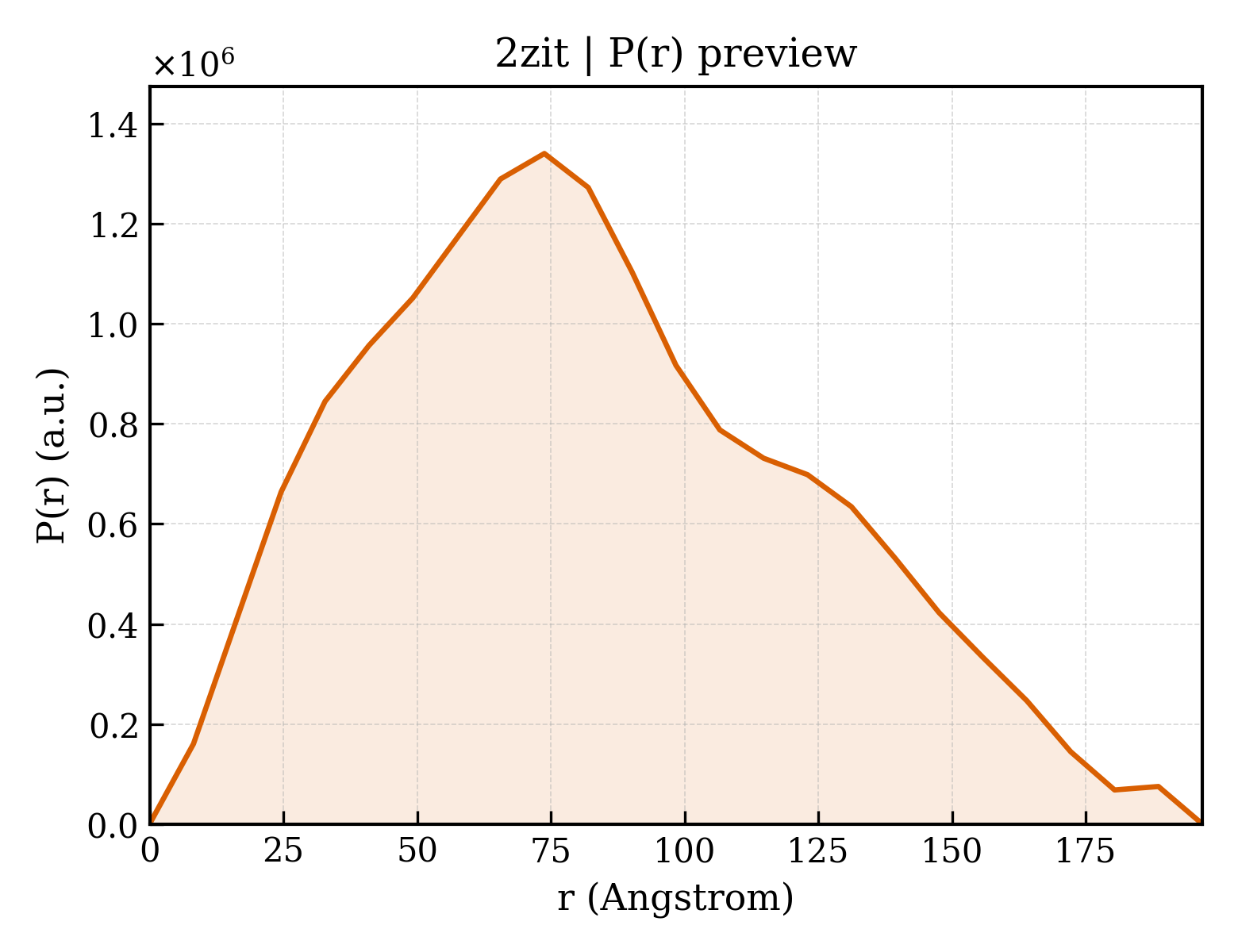

2zit__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.25 Å
Rg (electron density)	38.58 Å
Total Rg	38.66 Å
Atom count	8037
Residues	1029
Excluded volume	143340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2zit__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2zit__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2zit__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Elongation factor 2
Molecular weight formula_weight	93549.3 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	24121

MVAFTVDQMRSLMDKVTNVRNMSVIAHVDHGKSTLTDSLVQRAGIISAAKAGEARFTDTRKDEQERGITIKSTAISLYSEMSDEDVKEIKQKTDGNSFLINLIDSPGHVDFSSEVTAALRVTDGALVVVDTIEGVCVQTETVLRQALGERIKPVVVINKVDRALLELQVSKEDLYQTFARTVESVNVIVSTYADEVLGDVQVYPARGTVAFGSGLHGWAFTIRQFATRYAKKFGVDKAKMMDRLWGDSFFNPKTKKWTNKDTDAEGKPLERAFNMFILDPIFRLFTAIMNFKKDEIPVLLEKLEIVLKGDEKDLEGKALLKVVMRKFLPAADALLEMIVLHLPSPVTAQAYRAEQLYEGPADDANCIAIKNCDPKADLMLYVSKMVPTSDKGRFYAFGRVFAGTVKSGQKVRIQGPNYVPGKKDDLFIKAIQRVVLMMGRFVEPIDDCPAGNIIGLVGIDQFLLKTGTLTTSETAHNMKVMKFSVSPVVQVAVEVKNANDLPKLVEGLKRLSKSDPCVLTYMSESGEHIVAGTGELHLEICLQDLEHDHAGVPLKISPPVVAYRETVESESSQTALSKSPNKHNRIYLKAEPIDEEVSLAIENGIINPRDDFKARARIMADDYGWDVTDARKIWCFGPDGNGPNLVIDQTKAVQYLHEIKDSVVAAFQWATKEGPIFGEEMRSVRVNILDVTLHADAIHRGGGQIIPTMRRATYAGFLLADPKIQEPVFLVEIQCPEQAVGGIYSVLNKKRGQVVSEEQRPGTPLFTVKAYLPVNESFGFTGELRQATGGQAFPQMVFDHWSTLGSDPLDPTSKAGEIVLAARKRHGMKEEVPGWQEYYDKL

Entity 2 Entity 2 polymer

Description description	Exotoxin A
Molecular weight formula_weight	22438.0 kDa
EC 编号 ec_number	2.4.2.-
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

AFLGDGGDVSFSTRGTQNWTVERLLQAHRQLEERGYVFVGYHGTFLEAAQSIVFGGVRARSQDLDAIWRGFYIAGDPALAYGYAQDQEPDARGRIRNGALLRVYVPRSSLPGFYRTSLTLAAPEAAGEVERLIGHPLPLRLDAITGPEEEGGRLETILGWPLAERTVVIPSAIPTDPRNVGGDLDPSSIPDKEQAISALPDYASQPG

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	3

▼

6. Fold Classification (SCOP + CATH) 42 domains

SCOP 2.08 (21 domains)

Domain ID domain_id	d2zita1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d2zita2
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.0 — automated matches

Domain ID domain_id	d2zita3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.11 — EF-G C-terminal domain-like
Family Family family	d.58.11.0 — automated matches

Domain ID domain_id	d2zita4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.0 — automated matches

Domain ID domain_id	d2zita5
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.11 — EF-G C-terminal domain-like
Family Family family	d.58.11.0 — automated matches

Domain ID domain_id	d2zitb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d2zitb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2zitc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d2zitc2
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.0 — automated matches

Domain ID domain_id	d2zitc3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.11 — EF-G C-terminal domain-like
Family Family family	d.58.11.0 — automated matches

Domain ID domain_id	d2zitc4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.0 — automated matches

Domain ID domain_id	d2zitc5
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.11 — EF-G C-terminal domain-like
Family Family family	d.58.11.0 — automated matches

Domain ID domain_id	d2zitd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d2zitd3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2zite1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d2zite2
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.0 — automated matches

Domain ID domain_id	d2zite3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.11 — EF-G C-terminal domain-like
Family Family family	d.58.11.0 — automated matches

Domain ID domain_id	d2zite4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.0 — automated matches

Domain ID domain_id	d2zite5
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.11 — EF-G C-terminal domain-like
Family Family family	d.58.11.0 — automated matches

Domain ID domain_id	d2zitf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d2zitf3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (21 domains)

Domain ID domain_id	2zitA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2zitA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1430 — Yeast translation eEF2 (G' domain)
Homologous superfamily homologous superfamily	10 — Yeast translation eEF2 (G' domain)

Domain ID domain_id	2zitA03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	2zitA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	870 — Elongation Factor G (Translational Gtpase), domain 3

Domain ID domain_id	2zitA05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2zitA06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	240 —

Domain ID domain_id	2zitB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	175 — Diphtheria Toxin; domain 1
Homologous superfamily homologous superfamily	10 — Diphtheria Toxin, domain 1

Domain ID domain_id	2zitC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2zitC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1430 — Yeast translation eEF2 (G' domain)
Homologous superfamily homologous superfamily	10 — Yeast translation eEF2 (G' domain)

Domain ID domain_id	2zitC03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	2zitC04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	870 — Elongation Factor G (Translational Gtpase), domain 3

Domain ID domain_id	2zitC05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2zitC06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	240 —

Domain ID domain_id	2zitD00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	175 — Diphtheria Toxin; domain 1
Homologous superfamily homologous superfamily	10 — Diphtheria Toxin, domain 1

Domain ID domain_id	2zitE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	2zitE02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1430 — Yeast translation eEF2 (G' domain)
Homologous superfamily homologous superfamily	10 — Yeast translation eEF2 (G' domain)

Domain ID domain_id	2zitE03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	2zitE04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	870 — Elongation Factor G (Translational Gtpase), domain 3

Domain ID domain_id	2zitE05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2zitE06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	240 —

Domain ID domain_id	2zitF00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	175 — Diphtheria Toxin; domain 1
Homologous superfamily homologous superfamily	10 — Diphtheria Toxin, domain 1

▶

Unit-cell length a length_a	326.920 Å
Unit-cell length b length_b	69.241 Å
Unit-cell length c length_c	190.483 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.30 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	19.899 Å
R factor r_factor	0.2200
R_work r_work	0.2200
R_free r_free	0.2660

Structure of the eEF2-ExoA-NAD+ complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Elongation factor 2

State in the Current Structure

Other States of the Same Protein in the Database

Exotoxin A

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2zit__assembly_1__model_1

2zit__assembly_1__model_1 | I(q)

2zit__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 42 domains

SCOP 2.08 (21 domains)

CATH v4.4 (21 domains)

7. Citations (1)

Structure of the eEF2-ExoA-NAD+ complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Elongation factor 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Exotoxin A

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2zit__assembly_1__model_1

2zit__assembly_1__model_1 | I(q)

2zit__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 42 domains

SCOP 2.08 (21 domains)

CATH v4.4 (21 domains)

7. Citations (1)
