SAXSdb — 30hu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Acetyl-/propionyl-coenzyme A carboxylase AccE5 × 1 （A0QTE6） ADENOSINE-5'-TRIPHOSPHATE × 1 5-(HEXAHYDRO-2-OXO-1H-THIENO[3,4-D]IMIDAZOL-6-YL)PENTANAL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0QTE1_MYCS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A3a； PDBConstruct 1–598； UniProt 1–598 Author chain A3b； PDBConstruct 1–598； UniProt 1–598 Author chain A3c； PDBConstruct 1–598； UniProt 1–598 Author chain A3d； PDBConstruct 1–598； UniProt 1–598

Acetyl-/propionyl-coenzyme A carboxylase AccE5

OrganismNot specified

UniProt A0QTE6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit × 4 （A0QTE1） ADENOSINE-5'-TRIPHOSPHATE × 1 5-(HEXAHYDRO-2-OXO-1H-THIENO[3,4-D]IMIDAZOL-6-YL)PENTANAL × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0QTE6_MYCS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E5a； PDBConstruct 1–94； UniProt 1–94

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	30hu
Deposition date deposition_date	2026-04-27
Structure title title	cryo-EM structure of AccA3-AccE5 complex in the presence of Arachidyl-CoA
Keywords keywords	Bio-dependent acyl-CoA carboxylase, AccA3-AccE5 complex, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

30hu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

30hu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

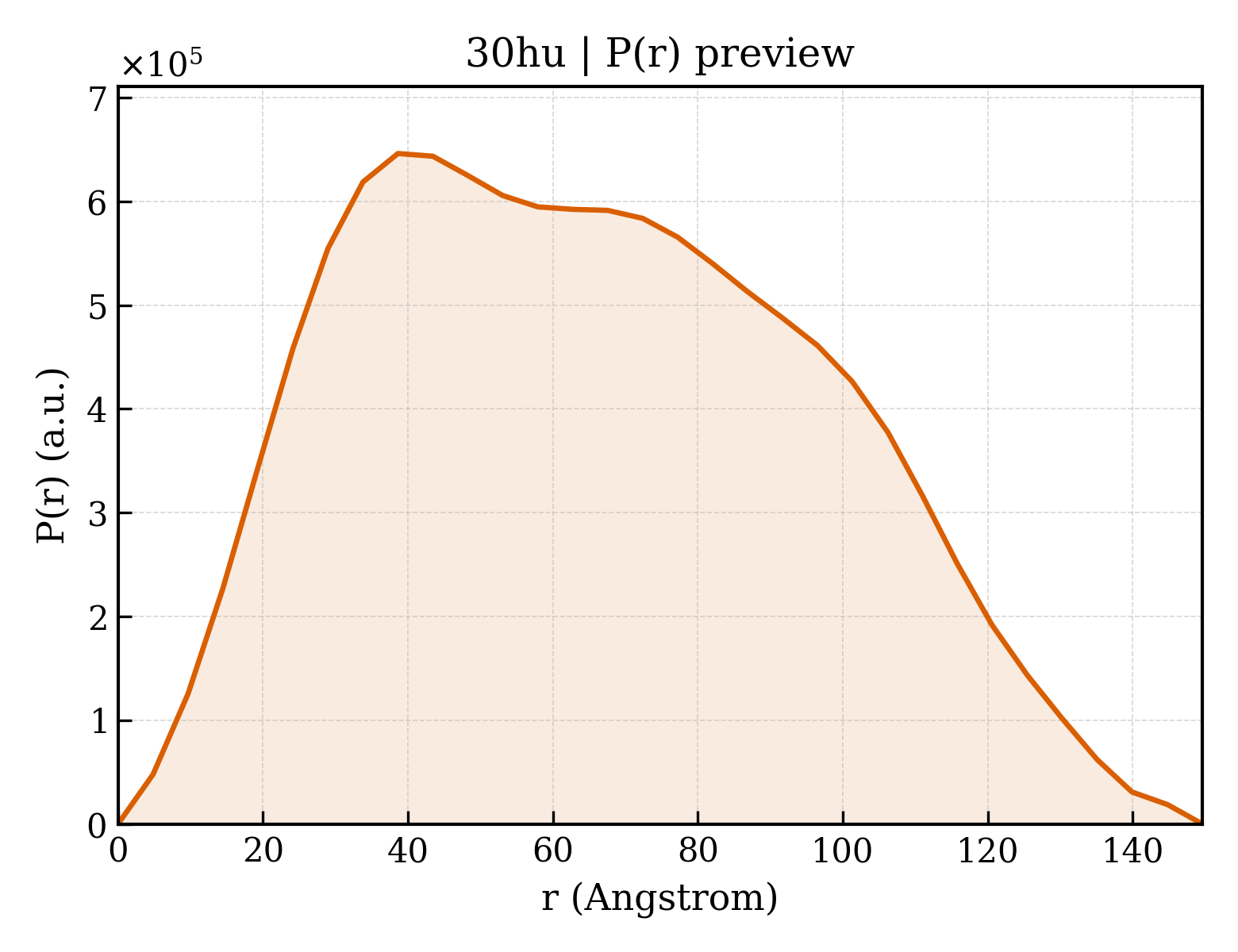

30hu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.95 Å
Rg (electron density)	50.91 Å
Total Rg	50.99 Å
Atom count	15502
Residues	2045
Excluded volume	274220 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`30hu__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit
Molecular weight formula_weight	63215.2 kDa
EC 编号 ec_number	6.3.4.14
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A3a,A3b,A3c,A3d
Atom count atom_count	15502

MANHASSKISKVLVANRGEIAVRVIRAAKDAGLASVAVYAEPDADAPHVRLADEAFALGGQTSAESYLVFEKILDAAEKSGANAIHPGYGFLSENADFAQAVIDAGLIWIGPSPQSIRDLGDKVTARHIAARAKAPLVPGTPDPVKDADEVVAFAKEHGVPVAIKAAFGGGGRGMKVARTLEEIPELFESATREAIAAFGRGECFVERYLDKPRHVEAQVIADQHGNVVVAGTRDCSLQRRFQKLVEEAPAPFLTDAQRKEIHESAKRICKEAGYYGAGTVEYLVGQDGLISFLEVNTRLQVEHPVTEETSGIDLVRQQFKIANGEPLDITEDPTPRGHSFEFRINGEDAGRGFLPAPGPVTKFVAPTGPGVRMDSGVETGSVIGGQFDSMLAKLIVTGATREEALERSRRALAEFTVEGLATVIPFHRAVVSDPAFIGDGEKFDVHTRWIETEWNNTVEPFTGGDPIEEEDTVPRQTVVVEVGGRRLEVSLPGDLAIGGGGGAAAPGVVRKKPKPRKRGGGGAKAASGDAVTAPMQGTVVKVAVEEGQEVSAGDLVVVLEAMKMENPVTAHKDGTITGLAVEAGAAITQGTVIAEIK

Entity 2 Entity 2 polymer

Description description	Acetyl-/propionyl-coenzyme A carboxylase AccE5
Molecular weight formula_weight	10357.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E5a

MSGANDSTTVSGEVQADVTDEAKADHEAHIKVLRGEPTPEEMAALMAVLASAGGGPAEPVKKERNMWGHPVDKLRYSVFSWQRVTLLERTHMRR

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	5-(HEXAHYDRO-2-OXO-1H-THIENO[3,4-D]IMIDAZOL-6-YL)PENTANAL
Molecular weight formula_weight	228.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	375.200 Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	76111

cryo-EM structure of AccA3-AccE5 complex in the presence of Arachidyl-CoA
