9yx2

Structure of the long chain acyl-CoA carboxylase complex from Mycobacterium smegmatis with ATP, bicarbonate, and propionyl-CoA

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	Acetyl-/propionyl-coenzyme A carboxylase AccE5 × 2 （A0QTE6） Propionyl-CoA carboxylase beta chain × 2 （A0R616） Propionyl-CoA carboxylase beta chain × 4 （A0QTE7） BIOTIN × 6 BICARBONATE ION × 8 ADENOSINE-5'-TRIPHOSPHATE × 8 MAGNESIUM ION × 8 propionyl Coenzyme A × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0QTE1_MYCS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–598； UniProt 1–598 Author chain B； PDBConstruct 1–598； UniProt 1–598 Author chain C； PDBConstruct 1–598； UniProt 1–598 Author chain D； PDBConstruct 1–598； UniProt 1–598 Author chain I； PDBConstruct 1–598； UniProt 1–598 Author chain J； PDBConstruct 1–598； UniProt 1–598 Author chain K； PDBConstruct 1–598； UniProt 1–598 Author chain L； PDBConstruct 1–598； UniProt 1–598 Author chain Q； PDBConstruct 1–598； UniProt 1–598 Author chain R； PDBConstruct 1–598； UniProt 1–598 Author chain S； PDBConstruct 1–598； UniProt 1–598 Author chain T； PDBConstruct 1–598； UniProt 1–598

Acetyl-/propionyl-coenzyme A carboxylase AccE5

OrganismNot specified

UniProt A0QTE6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit × 12 （A0QTE1） Propionyl-CoA carboxylase beta chain × 2 （A0R616） Propionyl-CoA carboxylase beta chain × 4 （A0QTE7） BIOTIN × 6 BICARBONATE ION × 8 ADENOSINE-5'-TRIPHOSPHATE × 8 MAGNESIUM ION × 8 propionyl Coenzyme A × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0QTE6_MYCS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–94； UniProt 1–94 Author chain P； PDBConstruct 1–94； UniProt 1–94

Propionyl-CoA carboxylase beta chain

OrganismNot specified

UniProt A0R616

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit × 12 （A0QTE1） Acetyl-/propionyl-coenzyme A carboxylase AccE5 × 2 （A0QTE6） Propionyl-CoA carboxylase beta chain × 4 （A0QTE7） BIOTIN × 6 BICARBONATE ION × 8 ADENOSINE-5'-TRIPHOSPHATE × 8 MAGNESIUM ION × 8 propionyl Coenzyme A × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0R616_MYCS2
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–517； UniProt 1–517 Author chain O； PDBConstruct 1–517； UniProt 1–517

Propionyl-CoA carboxylase beta chain

OrganismNot specified

UniProt A0QTE7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit × 12 （A0QTE1） Acetyl-/propionyl-coenzyme A carboxylase AccE5 × 2 （A0QTE6） Propionyl-CoA carboxylase beta chain × 2 （A0R616） BIOTIN × 6 BICARBONATE ION × 8 ADENOSINE-5'-TRIPHOSPHATE × 8 MAGNESIUM ION × 8 propionyl Coenzyme A × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0QTE7_MYCS2
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–542； UniProt 1–542 Author chain H； PDBConstruct 1–542； UniProt 1–542 Author chain M； PDBConstruct 1–542； UniProt 1–542 Author chain N； PDBConstruct 1–542； UniProt 1–542

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9yx2
Deposition date deposition_date	2025-10-26
Structure title title	Structure of the long chain acyl-CoA carboxylase complex from Mycobacterium smegmatis with ATP, bicarbonate, and propionyl-CoA
Keywords keywords	Carboxylase, transferase, lipid synthesis, mycolic acid synthesis, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9yx2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9yx2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

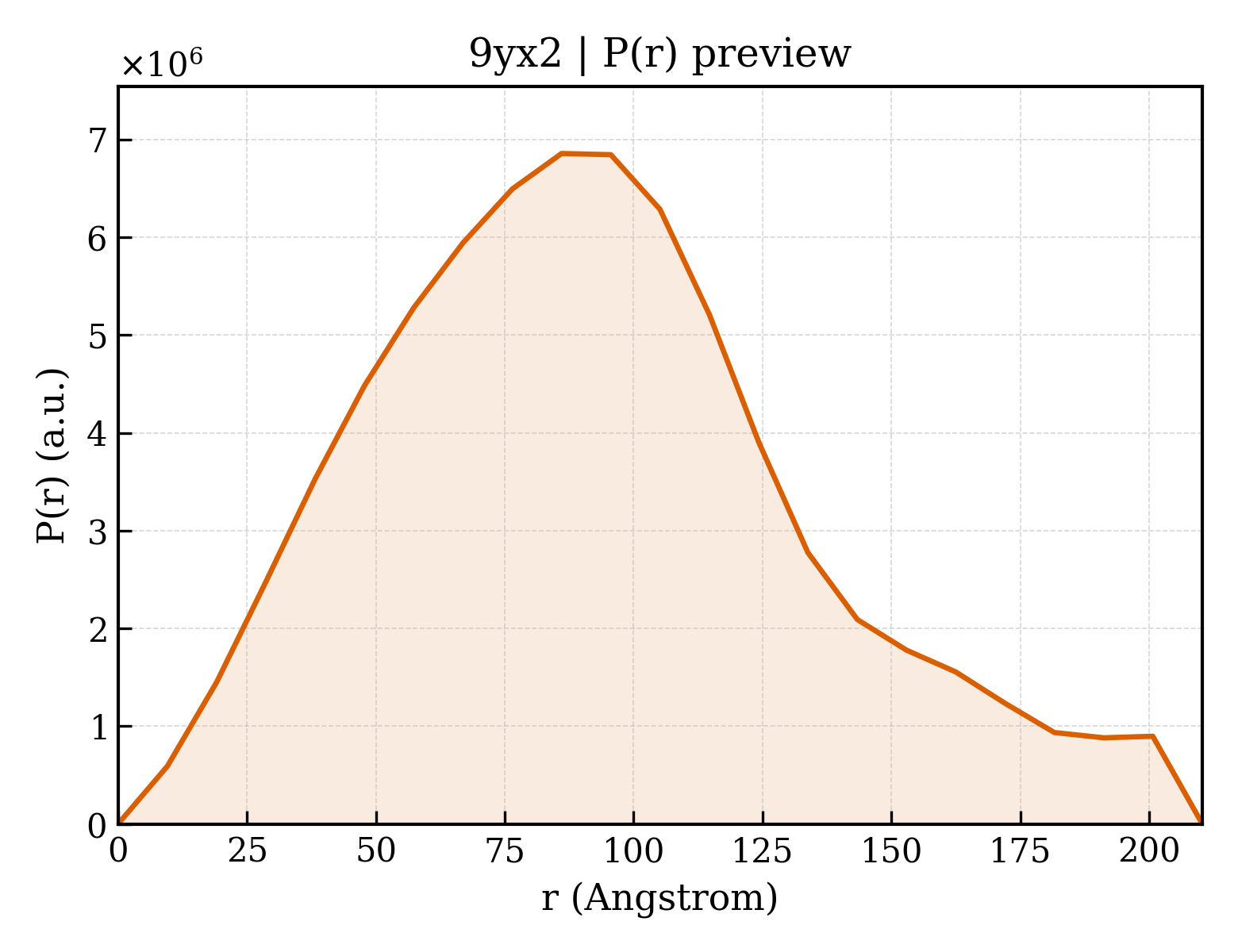

9yx2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	71.36 Å
Rg (electron density)	71.00 Å
Total Rg	70.68 Å
Atom count	54893
Residues	7657
Excluded volume	971400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9yx2__assembly_1__model_1`	20-meric （20）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Biotin-dependent acyl-coenzyme A carboxylase alpha3 subunit
Molecular weight formula_weight	63215.2 kDa
EC 编号 ec_number	6.3.4.14
Source method src_method	nat
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,I,J,K,L,Q,R,S,T
Atom count atom_count	54893

MANHASSKISKVLVANRGEIAVRVIRAAKDAGLASVAVYAEPDADAPHVRLADEAFALGGQTSAESYLVFEKILDAAEKSGANAIHPGYGFLSENADFAQAVIDAGLIWIGPSPQSIRDLGDKVTARHIAARAKAPLVPGTPDPVKDADEVVAFAKEHGVPVAIKAAFGGGGRGMKVARTLEEIPELFESATREAIAAFGRGECFVERYLDKPRHVEAQVIADQHGNVVVAGTRDCSLQRRFQKLVEEAPAPFLTDAQRKEIHESAKRICKEAGYYGAGTVEYLVGQDGLISFLEVNTRLQVEHPVTEETSGIDLVRQQFKIANGEPLDITEDPTPRGHSFEFRINGEDAGRGFLPAPGPVTKFVAPTGPGVRMDSGVETGSVIGGQFDSMLAKLIVTGATREEALERSRRALAEFTVEGLATVIPFHRAVVSDPAFIGDGEKFDVHTRWIETEWNNTVEPFTGGDPIEEEDTVPRQTVVVEVGGRRLEVSLPGDLAIGGGGGAAAPGVVRKKPKPRKRGGGGAKAASGDAVTAPMQGTVVKVAVEEGQEVSAGDLVVVLEAMKMENPVTAHKDGTITGLAVEAGAAITQGTVIAEIK

Entity 2 Entity 2 polymer

Description description	Acetyl-/propionyl-coenzyme A carboxylase AccE5
Molecular weight formula_weight	10357.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,P

MSGANDSTTVSGEVQADVTDEAKADHEAHIKVLRGEPTPEEMAALMAVLASAGGGPAEPVKKERNMWGHPVDKLRYSVFSWQRVTLLERTHMRR

Entity 3 Entity 3 polymer

Description description	Propionyl-CoA carboxylase beta chain
Molecular weight formula_weight	56234.1 kDa
EC 编号 ec_number	6.4.1.3
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,O

MTNKTTAELLAELREKLELAKEPGGEKAVAKREKKGIPSARARINALLDPGSFIEIGALAKTPGDPNALYGDGVVTGRGTIDGRPVGVFSHDQTVFQGSVGEMFGRKVARLMEWVAMVGCPIIGINDSAGARIQDAVTSLAWYAELGRRHEMLRGLVPEISLIFGKCAGGAVYSPIQTDLLVAVRDQGYMFITGPDVIKDVTGEDVTFDELGGADEQAKRGNIHKVVNSEAEAYQYVRDYLSFLPSNHFDNPPIVNPGMEPEITPHDLELDSIVPDADNMAYDMHEILLRIFDDGDVFEIAEQRGPAMITAFARVDGHPVGVIANQPMVLSGAIDNEASDKAASFIRFCDSYNLPLVFVVDTPGAMPGVAEEKGGIIKRGGRFFNAIVEADVPKVTVIIRKAYGGGYAVMGSKQLSADLNFAWPTARIAVIGAEGAAQLLVKRFPDPNAPEVQKIRDDFIEGYNLNMATPWIAAERGYIDAVIQPHETRLLLRKSLRLLRDKQNGPKVQRKHGLLPL

Entity 4 Entity 4 polymer

Description description	Propionyl-CoA carboxylase beta chain
Molecular weight formula_weight	58488.1 kDa
EC 编号 ec_number	6.4.1.3
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,M,N

MTSVTEPSAEHQVDIHTTAGKLADLKRRTEETLHPVGEAAVDKVHAKGKLTARERILALLDEGSFVELDALAKHRSTNFGLEKNRPLGDGVITGYGTIDGRDVCIFSQDATVFGGSLGEVYGEKIVKVQELAIKTGRPLIGINDGAGARIQEGVVSLGLYSRIFHNNIKASGVIPQISLIMGAAAGGHVYSPALTDFVVMVDQTSQMFITGPDVIKTVTGEDVTMEELGGAHTHMAKSGTAHYVASGEQDAFDYVRDLLSYLPPNNYADPPLYPVAIPEGSIEETLTDEDLELDTLIPDSPNQPYDMHEVITRILDDDEFLEVQAGYAGNIVVGFGRVEGRPVGIVANQPTQFAGCLDINASEKAARFIRTCDCFNIPIVLLVDVPGFLPGTDQEYNGIIRRGAKLLYAYGEATVAKVTVITRKSYGGAYCVMGSKDMGADVVVAWPTAQIAVMGASGAVGFVYRQQLKEAAKNGEDVDALRLELQQTYEDTLVNPYIAAERGYVDAVIPPSHTRGYVANALRLLERKIVQMPPKKHGNIPL

Entity 5 Entity 5 non-polymer

Description description	BIOTIN
Molecular weight formula_weight	244.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 non-polymer

Description description	BICARBONATE ION
Molecular weight formula_weight	61.0 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 7 Entity 7 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 9 Entity 9 non-polymer

Description description	propionyl Coenzyme A
Molecular weight formula_weight	823.6 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	46806
