SAXSdb — 3a8n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-lymphoma invasion and metastasis-inducing protein 1

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TIAM1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–279； UniProt 429–702

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3a8n
Deposition date deposition_date	2009-10-07
Structure title title	Crystal structure of the Tiam1 PHCCEx domain
Keywords keywords	guanine nucleotide exchange factor, Guanine-nucleotide releasing factor, Lipoprotein, Myristate, Phosphoprotein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3a8n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3a8n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

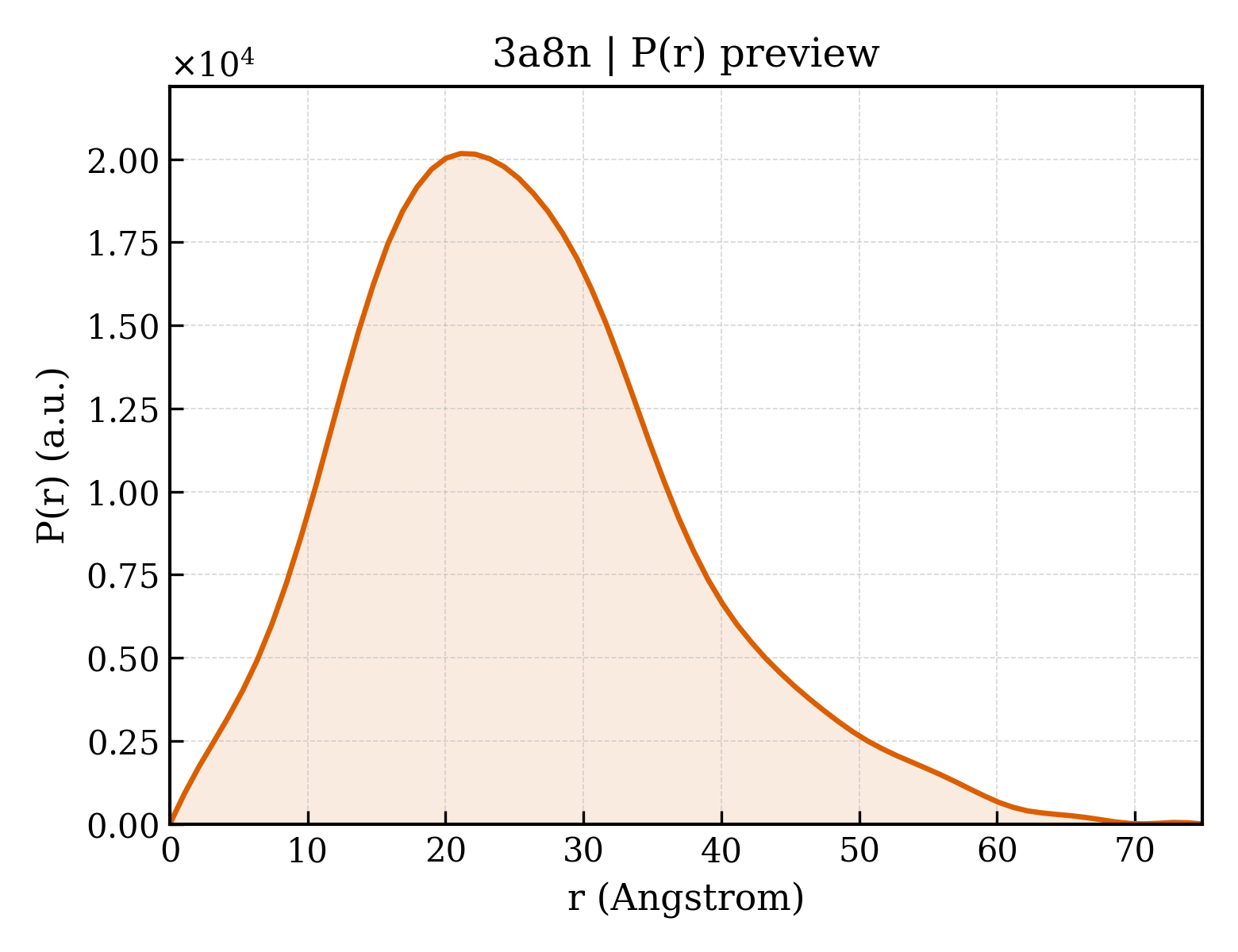

3a8n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.60 Å
Rg (electron density)	19.22 Å
Total Rg	19.90 Å
Atom count	1142
Residues	230
Excluded volume	18482 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3a8n__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	113.470 Å
Unit-cell length b length_b	113.470 Å
Unit-cell length c length_c	113.837 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64 2 2
Space-group number int_tables_number	181
Crystal system crystal_system	—

Resolution resolution	4.500 Å
Low-resolution limit resolution_low	49.250 Å
R factor r_factor	0.3060
R_work r_work	0.3060
R_free r_free	0.3960

Description description	T-lymphoma invasion and metastasis-inducing protein 1
Molecular weight formula_weight	31623.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1142

Crystal structure of the Tiam1 PHCCEx domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

T-lymphoma invasion and metastasis-inducing protein 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3a8n__assembly_1__model_1

3a8n__assembly_1__model_1 | I(q)

3a8n__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Source organism organism	Mus musculus
Common name common_name	mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli
