3agl

Complex of PKA with the bisubstrate protein kinase inhibitor ARC-1039

Method: X-RAY DIFFRACTION D_max: 117.2 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

cAMP-dependent protein kinase catalytic subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–351	Non-standard monomer：Yes (specific site not provided by mmCIF)	A03 (10R,20R,23R)-1-[(2S,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-3,4-dihydroxytetrahydrofuran-2-yl]-20,23-bis(3-carbamimidamido propyl)-10-methyl-1,8,11,18,21-pentaoxo-2,9,12,19,22-pentaazatetracosan-24-amide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；80 mM Mes-BisTris, 75 mM LiCl, 1.5 mM octanoyl-N-methylglucamide; mixed 2:1 with and equilibrated against 40%(v/v) MPD, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.237
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–351	Non-standard monomer：Yes (specific site not provided by mmCIF)	A03 (10R,20R,23R)-1-[(2S,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-3,4-dihydroxytetrahydrofuran-2-yl]-20,23-bis(3-carbamimidamido propyl)-10-methyl-1,8,11,18,21-pentaoxo-2,9,12,19,22-pentaazatetracosan-24-amide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；80 mM Mes-BisTris, 75 mM LiCl, 1.5 mM octanoyl-N-methylglucamide; mixed 2:1 with and equilibrated against 40%(v/v) MPD, pH 6.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.237

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3AGL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2GU8 Discovery of 2-Pyrimidyl-5-Amidothiophenes as Novel and Potent Inhibitors for AKT: Synthesis and SAR Studies Deposited 2006-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 15–351（337 aa） Fragment：catalytic subunit	Non-standard monomer：Yes (specific site not provided by mmCIF)	796 N-[(1S)-2-AMINO-1-(2,4-DICHLOROBENZYL)ETHYL]-5-[2-(METHYLAMINO)PYRIMIDIN-4-YL]THIOPHENE-2-CARBOXAMIDE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.261
3AGM Complex of PKA with the bisubstrate protein kinase inhibitor ARC-670 Deposited 2010-04-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；25 mM Tris-HCl, 25 mM NaCl, 1.5 mM octanoyl-N-methylglucamide, equilibrated against 12-15 % (v/v) methanol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.265
3AMA Protein kinase A sixfold mutant model of Aurora B with inhibitor JNJ-7706621 Deposited 2010-08-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Mutation：K47R, L95Q, M120L, V123A, Q181K, T183A Non-standard monomer：Yes (specific site not provided by mmCIF)	SKE 4-({5-amino-1-[(2,6-difluorophenyl)carbonyl]-1H-1,2,4-triazol-3-yl}amino)benzenesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；25mM Tris-HCl, 25mM NaCl, 1.5mM octanoyl-N-methylglucamide, 1mM (5-24)-PKI,12-20% (v/v) methanol, 2-methyl 2,4-pentanediol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.223
3AMB Protein kinase A sixfold mutant model of Aurora B with inhibitor VX-680 Deposited 2010-08-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Mutation：K47R, L95Q, M120L, V123A, Q181K, T183A Non-standard monomer：Yes (specific site not provided by mmCIF)	VX6 CYCLOPROPANECARBOXYLIC ACID {4-[4-(4-METHYL-PIPERAZIN-1-YL)-6-(5-METHYL-2H-PYRAZOL-3-YLAMINO)-PYRIMIDIN-2-YLSULFANYL]-PHENYL}-AMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；25mM Tris-HCl, 25mM NaCl, 1.5mM octanoyl-N-methylglucamide, 1mM (5-24)-PKI, 12-20% (v/v) methanol, 2-methyl-2,4-pentanediol 30%, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.25 Å R-free 0.256
3L9L Crystal structure of pka with compound 36 Deposited 2010-01-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	L9L 5-[2-({(2S)-2-amino-3-[4-(trifluoromethyl)phenyl]propyl}amino)-1,3-thiazol-5-yl]-1,3-dihydro-2H-indol-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.262
3L9L Crystal structure of pka with compound 36 Deposited 2010-01-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	L9L 5-[2-({(2S)-2-amino-3-[4-(trifluoromethyl)phenyl]propyl}amino)-1,3-thiazol-5-yl]-1,3-dihydro-2H-indol-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.262
3L9M Crystal structure of PKAB3 (pka triple mutant V123A, L173M, Q181K) with compound 18 Deposited 2010-01-05	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Mutation：V123A, L173M, Q181K Non-standard monomer：Yes (specific site not provided by mmCIF)	L9M (2S)-N~1~-[5-(3-methyl-1H-indazol-5-yl)-1,3,4-thiadiazol-2-yl]-3-(4-methylphenyl)propane-1,2-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.270
3L9M Crystal structure of PKAB3 (pka triple mutant V123A, L173M, Q181K) with compound 18 Deposited 2010-01-05	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–351（351 aa）	Mutation：V123A, L173M, Q181K Non-standard monomer：Yes (specific site not provided by mmCIF)	L9M (2S)-N~1~-[5-(3-methyl-1H-indazol-5-yl)-1,3,4-thiadiazol-2-yl]-3-(4-methylphenyl)propane-1,2-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.270
3L9N crystal structure of PKAB3 (pka triple mutant V123A, L173M, Q181K) with compound 27 Deposited 2010-01-05	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Mutation：V123A, L173M, Q181K Non-standard monomer：Yes (specific site not provided by mmCIF)	L9N (2S)-N~1~-[5-(1H-indazol-5-yl)-1,3,4-thiadiazol-2-yl]-3-(4-methylphenyl)propane-1,2-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；1.0 M LiCl, 20-30% PEG6K, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.257
3MVJ Human cyclic AMP-dependent protein kinase PKA inhibitor complex Deposited 2010-05-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XFE (3R)-1-(5-methyl-7H-pyrrolo[2,3-d]pyrimidin-4-yl)pyrrolidin-3-amine × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.49 Å R-free 0.304
3MVJ Human cyclic AMP-dependent protein kinase PKA inhibitor complex Deposited 2010-05-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.49 Å R-free 0.304
3MVJ Human cyclic AMP-dependent protein kinase PKA inhibitor complex Deposited 2010-05-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XFE (3R)-1-(5-methyl-7H-pyrrolo[2,3-d]pyrimidin-4-yl)pyrrolidin-3-amine × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.49 Å R-free 0.304
3NX8 human cAMP dependent protein kinase in complex with phenol Deposited 2010-07-13	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IPH PHENOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.00 Å R-free 0.288
3OOG human cAMP-dependent protein kinase in complex with a small fragment Deposited 2010-08-31	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	YTP 1-(4-hydroxy-3-methylphenyl)ethanone × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.00 Å R-free 0.276
3OVV Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	1SB N'-[(1E)-(4-hydroxyphenyl)methylidene]-2-(3-methoxyphenyl)acetohydrazide × 1 BUD (2S,3S)-butane-2,3-diol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.58 Å R-free 0.232
3OWP Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	2SB (2S)-2-amino-N'-[(1E)-(3-bromo-4-hydroxyphenyl)methylidene]-2-phenylethanehydrazide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5 mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.88 Å R-free 0.211
3OXT Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	3SB (2S)-2-amino-N'-[(1E)-(2,4-dihydroxy-6-methylphenyl)methylidene]-2-phenylethanehydrazide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1 mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.239
3P0M Human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-09-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	4SB (2R)-4-amino-N'-[(1E)-(3-bromo-4-hydroxyphenyl)methylidene]-2-phenylbutanehydrazide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；277 K；5mM MES, 5mM BisTris-propane, 75mM LiCl, 1mM DTT, 0.1mM EDTA, equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.03 Å R-free 0.205
3POO human cAMP-dependent protein kinase in complex with an inhibitor Deposited 2010-11-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	S69 N'-[(E)-(2,4-dihydroxy-6-methylphenyl)methylidene]-2-(3-methoxyphenyl)acetohydrazide × 1 BUD (2S,3S)-butane-2,3-diol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；289 K；5mM MES, 5mM BisTris-propane, 75mM LiCl, 1ml DTT, 0.1mM EDTA equilibrated against water/ethanol, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K, temperature 289K	Resolution 1.60 Å R-free 0.212
3VQH Bromine SAD partially resolves multiple binding modes for PKA inhibitor H-89 Deposited 2012-03-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IQB N-[2-(4-BROMOCINNAMYLAMINO)ETHYL]-5-ISOQUINOLINE SULFONAMIDE × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；277 K；10mg/ml protein, 25mM BisTris/MES pH6.9, 50mM KCl, 1.5mM octanoyl-N-methylglucamide, 1mM Protein kinase inhibitor peptide, 5mM H-89 in MeOH', VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.95 Å R-free 0.234
4AE6 Structure and Function of the Human Sperm-Specific Isoform of Protein Kinase A (PKA) Catalytic Subunit Calpha 2 Deposited 2012-01-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–343（343 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 20 % PEG 3350, 0.2 M POTASSIUM ACETATE, 5 % POLYPROPYLENE GLYCOL P400	Resolution 2.10 Å R-free 0.283
4AE6 Structure and Function of the Human Sperm-Specific Isoform of Protein Kinase A (PKA) Catalytic Subunit Calpha 2 Deposited 2012-01-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–343（343 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 20 % PEG 3350, 0.2 M POTASSIUM ACETATE, 5 % POLYPROPYLENE GLYCOL P400	Resolution 2.10 Å R-free 0.283
4AE9 Structure and function of the Human Sperm-Specific Isoform of Protein Kinase A (PKA) Catalytic Subunit C alpha 2 Deposited 2012-01-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–343（343 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 20 % PEG 3350, 0.2 M POTASSIUM ACETATE, 5 % POLYPROPYLENE GLYCOL P400	Resolution 2.30 Å R-free 0.264
4AE9 Structure and function of the Human Sperm-Specific Isoform of Protein Kinase A (PKA) Catalytic Subunit C alpha 2 Deposited 2012-01-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–343（343 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 20 % PEG 3350, 0.2 M POTASSIUM ACETATE, 5 % POLYPROPYLENE GLYCOL P400	Resolution 2.30 Å R-free 0.264
4UJ1 Protein Kinase A in complex with an Inhibitor Deposited 2015-04-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NVX 7-[(3S,4R)-4-(3-chlorophenyl)carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K	Resolution 1.77 Å R-free 0.201
4UJ2 Protein Kinase A in complex with an Inhibitor Deposited 2015-04-07	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NVV 7-[(3S,4R)-4-(3-iodanylphenyl)carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K	Resolution 2.02 Å R-free 0.209
4UJ9 Protein Kinase A in complex with an Inhibitor Deposited 2015-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 1-351	Non-standard monomer：Yes (specific site not provided by mmCIF)	S3N 7-[(3S,4R)-4-[4-(trifluoromethyl)phenyl]carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K	Resolution 1.87 Å R-free 0.206
4UJA Protein Kinase A in complex with an Inhibitor Deposited 2015-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 1-351	Non-standard monomer：Yes (specific site not provided by mmCIF)	4L7 7-{(3S,4R)-4-[(5-bromothiophen-2-yl)carbonyl]pyrrolidin-3-yl}quinazolin-4(3H)-one × 1 BR BROMIDE ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K	Resolution 1.93 Å R-free 0.206
4UJB Protein Kinase A in complex with an Inhibitor Deposited 2015-04-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa） Fragment：KINASE DOMAIN, UNP RESIDUES 1-351	Non-standard monomer：Yes (specific site not provided by mmCIF)	8BQ 7-[(3S,4R)-4-(3-fluorophenyl)carbonylpyrrolidin-3-yl]-3H-quinazolin-4-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10MG/ML PROTEIN, 25MM BISTRIS/MES PH6.9, 50MM KCL, 1.5MM OCTANOYL-N-METHYLGLUCAMIDE, 1MM PROTEIN KINASE INHIBITOR PEPTIDE, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 277K	Resolution 1.95 Å R-free 0.190
4WB5 Crystal structure of human cAMP-dependent protein kinase A (catalytic alpha subunit) Deposited 2014-09-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；10% PEG 6000, 0.1M HEPES pH 7.5	Resolution 1.64 Å R-free 0.196
4WB6 Crystal structure of a L205R mutant of human cAMP-dependent protein kinase A (catalytic alpha subunit) Deposited 2014-09-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；10% PEG 8000, 0.1M HEPES pH 7.5	Resolution 2.10 Å R-free 0.237
4WB6 Crystal structure of a L205R mutant of human cAMP-dependent protein kinase A (catalytic alpha subunit) Deposited 2014-09-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；10% PEG 8000, 0.1M HEPES pH 7.5	Resolution 2.10 Å R-free 0.237
4WB7 Crystal structure of a chimeric fusion of human DnaJ (Hsp40) and cAMP-dependent protein kinase A (catalytic alpha subunit) Deposited 2014-09-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa） Fragment：UNP P25685 residues 2-70,UNP P17612 residues 16-351	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；70mM sodium cacodylate pH 6.5, 150mM magnesium acetate, 20mM zinc chloride, 5% glycerol, 11.5% PEG 8000	Resolution 1.90 Å R-free 0.188
4WB7 Crystal structure of a chimeric fusion of human DnaJ (Hsp40) and cAMP-dependent protein kinase A (catalytic alpha subunit) Deposited 2014-09-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–351（336 aa） Fragment：UNP P25685 residues 2-70,UNP P17612 residues 16-351	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；70mM sodium cacodylate pH 6.5, 150mM magnesium acetate, 20mM zinc chloride, 5% glycerol, 11.5% PEG 8000	Resolution 1.90 Å R-free 0.188
4WB8 Crystal structure of human cAMP-dependent protein kinase A (catalytic alpha subunit), exon 1 deletion Deposited 2014-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa） Fragment：UNP residues 16-351	Mutation：none Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；10% PEG 8000, 0.1M HEPES pH 7.5	Resolution 1.55 Å R-free 0.184
5BX6 PKA in complex with a halogenated phthalazinone fragment compound. Deposited 2015-06-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	495 4-chlorophthalazin-1(2H)-one × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；The droplets, containing 10 mg/ml PKA. 25 mM Bis-Tris-HCl, pH 7.0, 150 mM KCl, 1.5mM octanoyl-N-methylglucamide and 0.8 mM PKI peptide, were equilibrated against 12-26 % (v/v) methanol.	Resolution 1.89 Å R-free 0.218
5BX7 PKA in complex with a benzothiophene fragment compound. Deposited 2015-06-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–350（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	4W1 1-benzothiophen-3-ylmethanol × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；The droplets, containing 10 mg/ml PKA. 25 mM Bis-Tris-HCl, pH 7.0, 150 mM KCl, 1.5mM octanoyl-N-methylglucamide and 0.8 mM PKI peptide, were equilibrated against 12-26 % (v/v) methanol.	Resolution 1.89 Å R-free 0.226
5IZF Complex of PKA with the bisubstrate protein kinase inhibitor ARC-1408 Deposited 2016-03-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277.15 K；0.1M BisTris pH7.0, 0.2M amminium sulfate, 20%-24% PEG 3350	Resolution 2.10 Å R-free 0.270
5IZJ Complex of PKA with the bisubstrate protein kinase inhibitor ARC-1411 Deposited 2016-03-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PO4 PHOSPHATE ION × 13 6J9 4-(piperazin-1-yl)-7H-pyrrolo[2,3-d]pyrimidine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277.15 K；0.4M lithium sulfate, 0.1M phosphate citrate pH 4.5, 17%-19% PEG 1.5K	Resolution 1.85 Å R-free 0.226
5IZJ Complex of PKA with the bisubstrate protein kinase inhibitor ARC-1411 Deposited 2016-03-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PO4 PHOSPHATE ION × 13 6J9 4-(piperazin-1-yl)-7H-pyrrolo[2,3-d]pyrimidine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277.15 K；0.4M lithium sulfate, 0.1M phosphate citrate pH 4.5, 17%-19% PEG 1.5K	Resolution 1.85 Å R-free 0.226
5J5X Complex of PKA with the bisubstrate protein kinase inhibitor ARC-1416 Deposited 2016-04-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3 6J9 4-(piperazin-1-yl)-7H-pyrrolo[2,3-d]pyrimidine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277.15 K；18% PEG3350, 0.2M LiSO4	Resolution 2.60 Å R-free 0.309
5N23 Protein kinase A mutants as surrogate model for Aurora B with AT9283 inhibitor Deposited 2017-02-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Mutation：K47R, L95Q, M120L, V123A, Q181K,T183A Non-standard monomer：Yes (specific site not provided by mmCIF)	35R 1-cyclopropyl-3-{3-[5-(morpholin-4-ylmethyl)-1H-benzimidazol-2-yl]-1H-pyrazol-4-yl}urea × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；12-26 % (v/v) methanol	Resolution 2.09 Å R-free 0.239
5UZK Crystal Structure of PKA bound to an pyrrolo pyridine inhibitor Deposited 2017-02-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa） Fragment：kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	504 2-{3-[3-(piperidin-4-yl)propoxy]phenyl}-N-[4-(1H-pyrrolo[2,3-b]pyridin-3-yl)-1,3-thiazol-2-yl]acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；277 K；2% MPD, VAPOR DIFFUSION, HANGING DROP	Resolution 2.30 Å R-free 0.253
6BYR Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PKAc alpha Deposited 2017-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 16–351（336 aa） Chain C 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM NaCl, 16-18% pentaerythritol propoxylate and 10% dimethyl sulfoxide	Resolution 3.66 Å R-free 0.249
6BYR Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PKAc alpha Deposited 2017-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM NaCl, 16-18% pentaerythritol propoxylate and 10% dimethyl sulfoxide	Resolution 3.66 Å R-free 0.249
6BYR Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PKAc alpha Deposited 2017-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM NaCl, 16-18% pentaerythritol propoxylate and 10% dimethyl sulfoxide	Resolution 3.66 Å R-free 0.249
6BYS Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PRKAc alpha Deposited 2017-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–351（350 aa） Chain G 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM HEPES sodium-MOPS (acid) pH 7.5, 90 mM NPS (30 mM sodium nitrate, 30 mM sodium phosphate dibasic, 30 mM ammonium sulfate), 40-42% Precipitant Mix 2 (40% ethylene glycol; 20% PEG 8000), 3% D-(+)-Glucose monohydrate	Resolution 4.75 Å R-free 0.255
6BYS Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PRKAc alpha Deposited 2017-12-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–351（350 aa） Chain E 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM HEPES sodium-MOPS (acid) pH 7.5, 90 mM NPS (30 mM sodium nitrate, 30 mM sodium phosphate dibasic, 30 mM ammonium sulfate), 40-42% Precipitant Mix 2 (40% ethylene glycol; 20% PEG 8000), 3% D-(+)-Glucose monohydrate	Resolution 4.75 Å R-free 0.255
6BYS Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PRKAc alpha Deposited 2017-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM HEPES sodium-MOPS (acid) pH 7.5, 90 mM NPS (30 mM sodium nitrate, 30 mM sodium phosphate dibasic, 30 mM ammonium sulfate), 40-42% Precipitant Mix 2 (40% ethylene glycol; 20% PEG 8000), 3% D-(+)-Glucose monohydrate	Resolution 4.75 Å R-free 0.255
6BYS Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PRKAc alpha Deposited 2017-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM HEPES sodium-MOPS (acid) pH 7.5, 90 mM NPS (30 mM sodium nitrate, 30 mM sodium phosphate dibasic, 30 mM ammonium sulfate), 40-42% Precipitant Mix 2 (40% ethylene glycol; 20% PEG 8000), 3% D-(+)-Glucose monohydrate	Resolution 4.75 Å R-free 0.255
6BYS Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PRKAc alpha Deposited 2017-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM HEPES sodium-MOPS (acid) pH 7.5, 90 mM NPS (30 mM sodium nitrate, 30 mM sodium phosphate dibasic, 30 mM ammonium sulfate), 40-42% Precipitant Mix 2 (40% ethylene glycol; 20% PEG 8000), 3% D-(+)-Glucose monohydrate	Resolution 4.75 Å R-free 0.255
6BYS Structures of the PKA RI alpha holoenzyme with the FLHCC driver J-PKAc alpha or native PRKAc alpha Deposited 2017-12-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100 mM HEPES sodium-MOPS (acid) pH 7.5, 90 mM NPS (30 mM sodium nitrate, 30 mM sodium phosphate dibasic, 30 mM ammonium sulfate), 40-42% Precipitant Mix 2 (40% ethylene glycol; 20% PEG 8000), 3% D-(+)-Glucose monohydrate	Resolution 4.75 Å R-free 0.255
6C0U Crystal structure of cAMP-dependent protein kinase Calpha subunit bound with N46 Deposited 2018-01-02	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EE4 N-[(3R,4R)-4-{[4-(2-fluoro-3-methoxy-6-propoxybenzene-1-carbonyl)benzene-1-carbonyl]amino}pyrrolidin-3-yl]-1H-indazole-5-carboxamide × 1 DMS DIMETHYL SULFOXIDE × 3 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；16% (w/v) PEG8000, 0.04 M potassium phosphate (monobasic), 20% (v/v) glycerol	Resolution 2.65 Å R-free 0.243
6FRX PKA variant as Aurora B mimic in complex with a dianilinopyrimidine inhibitor Deposited 2018-02-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	E3Z ~{N}-[3-[(5-chloranyl-2-phenylazanyl-pyrimidin-4-yl)amino]phenyl]prop-2-enamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PKA-AU6 at 10mg/ml in 25mM BisTRIS/HCl (pH7.0), 150mM KCl, 1.5mM octanoyl-N-methylglucamide and 0.8mM PKI was equilibrated against 12-26% (v/v) methanol.	Resolution 1.88 Å R-free 0.226
6NO7 Crystal Structure of the full-length wild-type PKA RIa Holoenzyme Deposited 2019-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–351（350 aa） Chain C 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；mixing 1 ul of the protein solution (7.5 mg/ml) and 1 ul of the reservoir solution (100 mM imidazole/MES pH=7.0, 100 mM NPS, 16.8% v/v Ethylene glycol, 8.4 % w/v PEG 8000).	Resolution 3.55 Å R-free 0.269
6NO7 Crystal Structure of the full-length wild-type PKA RIa Holoenzyme Deposited 2019-01-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 2–351（350 aa） Chain G 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；mixing 1 ul of the protein solution (7.5 mg/ml) and 1 ul of the reservoir solution (100 mM imidazole/MES pH=7.0, 100 mM NPS, 16.8% v/v Ethylene glycol, 8.4 % w/v PEG 8000).	Resolution 3.55 Å R-free 0.269
6QJ7 Difluorophenyl diacylhydrazides: Potent inhibitors of Serum- and Glucocorticoid-inducible Kinase 1 (SGK1) Deposited 2019-01-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	J4B ~{N}'-[(2~{S})-2-[3,5-bis(fluoranyl)phenyl]-2-oxidanyl-ethanoyl]-2-ethyl-3-methyl-4-oxidanyl-benzohydrazide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；5mM MES, 5mM Bis-Tris-propane, 75mM LiCl, 1mM DTT, 0.1mM EDTA, 1.4mM PKA-peptide, 1.4mM MEGA-8, 14% Et-OH as well solution	Resolution 1.69 Å R-free 0.214
6WJF PKA RIIbeta holoenzyme with DnaJB1-PKAc fusion in fibrolamellar hepatoceullar carcinoma Deposited 2020-04-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 8–343（336 aa） Chain B 8–343（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 5.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.50 Å
6WJG PKA RIIbeta holoenzyme with DnaJB1-PKAc fusion in fibrolamellar hepatoceullar carcinoma Deposited 2020-04-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 8–343（336 aa） Chain B 8–343（336 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 5.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
7Y1G Crystal structure of human PRKACA complexed with DS01080522 Deposited 2022-06-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	I5G 1-chloranyl-~{N}-[(~{S})-(3-chloranyl-4-cyano-phenyl)-[(2~{R},4~{S})-4-oxidanylpyrrolidin-2-yl]methyl]-7-methoxy-isoquinoline-6-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；25 mM Tris, pH 8.4/ 20% PEG3350/ 0.05 M Zn Acetate/ 25 mM Glycine	Resolution 2.30 Å R-free 0.237
7Y1G Crystal structure of human PRKACA complexed with DS01080522 Deposited 2022-06-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	I5G 1-chloranyl-~{N}-[(~{S})-(3-chloranyl-4-cyano-phenyl)-[(2~{R},4~{S})-4-oxidanylpyrrolidin-2-yl]methyl]-7-methoxy-isoquinoline-6-carboxamide × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；25 mM Tris, pH 8.4/ 20% PEG3350/ 0.05 M Zn Acetate/ 25 mM Glycine	Resolution 2.30 Å R-free 0.237
8FE2 Structure of J-PKAc chimera complexed with Aplithianine A Deposited 2022-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XTI 6-[(6M)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-9H-purine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 20% PEG 3350	Resolution 2.34 Å R-free 0.251
8FE2 Structure of J-PKAc chimera complexed with Aplithianine A Deposited 2022-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XTI 6-[(6M)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-9H-purine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 20% PEG 3350	Resolution 2.34 Å R-free 0.251
8FE5 Structure of J-PKAc chimera complexed with Aplithianine B Deposited 2022-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XTT 6-[(6P)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7,9-dihydro-8H-purin-8-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium Sulfate, 100 mM HEPES 7.5, 25% PEG 3350	Resolution 2.51 Å R-free 0.243
8FE5 Structure of J-PKAc chimera complexed with Aplithianine B Deposited 2022-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XTT 6-[(6P)-6-(1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7,9-dihydro-8H-purin-8-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium Sulfate, 100 mM HEPES 7.5, 25% PEG 3350	Resolution 2.51 Å R-free 0.243
8FEC Structure of J-PKAc chimera complexed with Aplithianine derivative Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XU0 6-[(6P)-6-(4-bromo-1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7H-purine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 25% PEG 3350	Resolution 2.70 Å R-free 0.287
8FEC Structure of J-PKAc chimera complexed with Aplithianine derivative Deposited 2022-12-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	XU0 6-[(6P)-6-(4-bromo-1-methyl-1H-imidazol-5-yl)-2,3-dihydro-4H-1,4-thiazin-4-yl]-7H-purine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM HEPES 7.5, 25% PEG 3350	Resolution 2.70 Å R-free 0.287
8X5L The Crystal Structure of PRKACA from Biortus. Deposited 2023-11-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	RKD (2S)-2-(4-chlorophenyl)-2-hydroxy-2-[4-(1H-pyrazol-4-yl)phenyl]ethanaminium × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M NaAC, 0.1M Na3citrate pH5.5, 10% PEG 4000, 40% v/v Polypropylene glycol P 400	Resolution 2.75 Å R-free 0.255
8X5L The Crystal Structure of PRKACA from Biortus. Deposited 2023-11-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–351（351 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	RKD (2S)-2-(4-chlorophenyl)-2-hydroxy-2-[4-(1H-pyrazol-4-yl)phenyl]ethanaminium × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M NaAC, 0.1M Na3citrate pH5.5, 10% PEG 4000, 40% v/v Polypropylene glycol P 400	Resolution 2.75 Å R-free 0.255
9DC6 Structure of J-PKAc chimera in complex with Aplithianine e1 Deposited 2024-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	A1A3I N-(2-aminoethyl)-4-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazine-6-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM Hepes pH 7.5, 20 % PEG 3350	Resolution 2.70 Å R-free 0.311
9DC6 Structure of J-PKAc chimera in complex with Aplithianine e1 Deposited 2024-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	A1A3I N-(2-aminoethyl)-4-(7H-pyrrolo[2,3-d]pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazine-6-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；200 mM Lithium sulfate, 100 mM Hepes pH 7.5, 20 % PEG 3350	Resolution 2.70 Å R-free 0.311
9DCD Structure of J-PKAc chimera in complex with Aplithianine d2 Deposited 2024-08-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	A1A3J N-(2-aminoethyl)-4-(7H-purin-6-yl)-3,4-dihydro-2H-1,4-thiazine-6-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；277.15 K；0.2 M LiCl, 0.1 M Mes pH:6.0, 20% PEG 6000	Resolution 2.70 Å R-free 0.191
9EDC Reset Type-I Protein Kinase A Holoenzyme Deposited 2024-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
9EDD Reset Type-I Protein Kinase A Holoenzyme Deposited 2024-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.30 Å
9EDE Reset Type-I Protein Kinase A Holoenzyme Deposited 2024-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–351（350 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.90 Å
9NFS Structure of J-PKAc chimera in complex with Aplithianine j1 Deposited 2025-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	A1BX1 (4P)-4-[4-(pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazin-6-yl]-1H-pyrrolo[2,3-b]pyridine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；277.15 K；0.2 M LiCl, 0.1 M hopes, pH 7.6, 25% PEG 3350	Resolution 2.45 Å R-free 0.334
9NFS Structure of J-PKAc chimera in complex with Aplithianine j1 Deposited 2025-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–351（336 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	A1BX1 (4P)-4-[4-(pyrimidin-4-yl)-3,4-dihydro-2H-1,4-thiazin-6-yl]-1H-pyrrolo[2,3-b]pyridine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；277.15 K；0.2 M LiCl, 0.1 M hopes, pH 7.6, 25% PEG 3350	Resolution 2.45 Å R-free 0.334

53 other PDB entries and 77 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KAPCA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–351； UniProt 1–351 Author chain B； PDBConstruct 1–351； UniProt 1–351

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

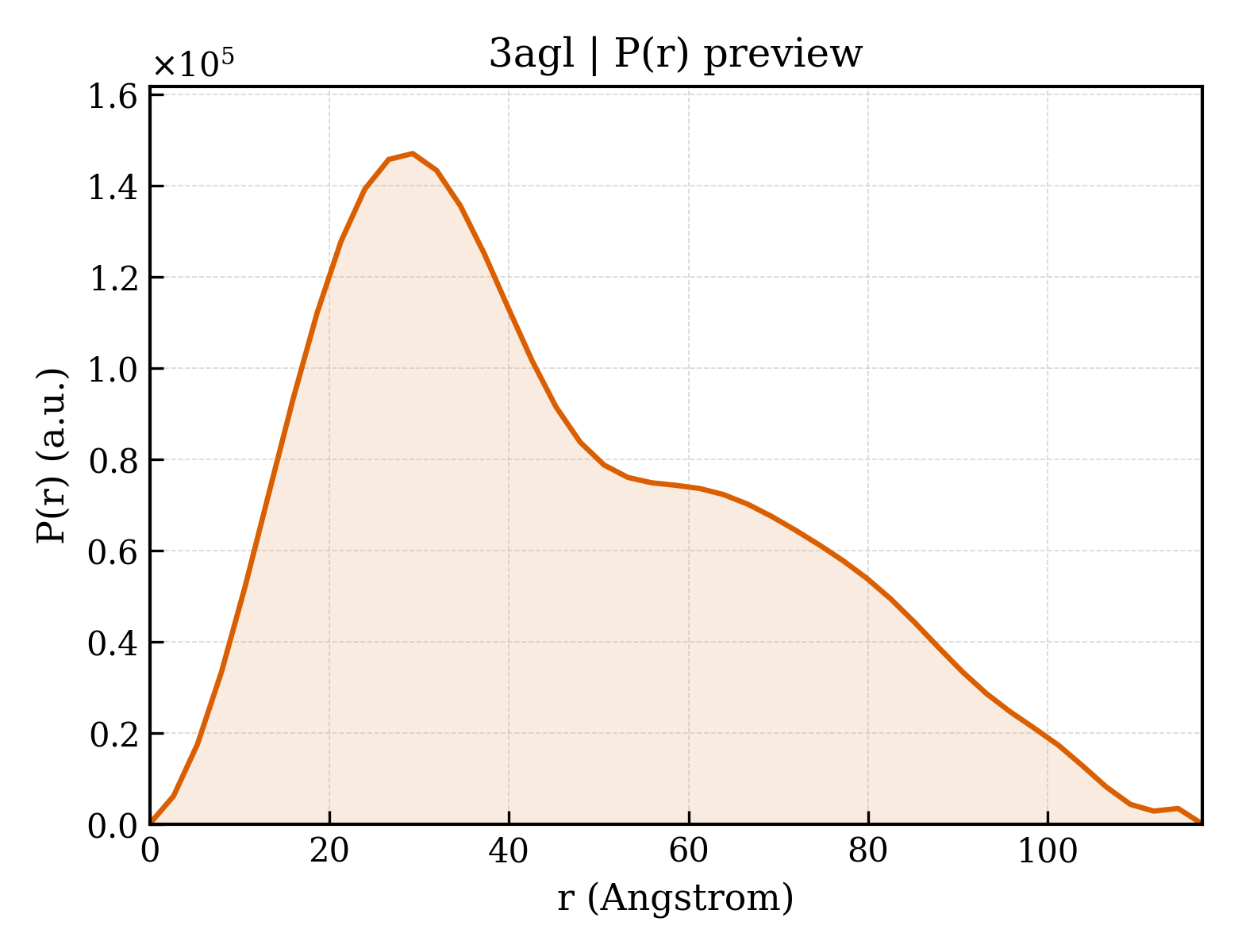

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3agl
Deposition date deposition_date	2010-04-02
Structure title title	Complex of PKA with the bisubstrate protein kinase inhibitor ARC-1039
Keywords keywords	PKA, protein kinase A, bisubstrate inhibitor, ARC-1039, TRANSFERASE-TRANSFERASE INHIBITOR COMPLEX; TRANSFERASE/TRANSFERASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.00 Å
Radius of gyration Rg (electron density) rg_electron	36.04 Å
Forward intensity I(0) i0	95442200.00
Molecular weight molecular_weight	81098.0 kDa
Excluded volume excluded_volume	102570 Å³
Envelope volume envelope_volume	130130 Å³
Hydration-shell volume shell_volume	32234 Å³
Envelope diameter envelope_diameter	126.9 Å
Shell Rg shell_rg	39.03 Å
Envelope Rg envelope_rg	35.96 Å
Shape Rg shape_rg	36.02 Å
Total Rg total_rg	36.36 Å
Total atoms total_atoms	5733
Residues n_residues	673
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	117.2 Å
Rg (real space) rg_real	36.48 Å
Rg uncertainty (real space) rg_real_error	1.18 Å
I(0) (real space) i0_real	9.5440e+07
I(0) uncertainty (real space) i0_real_error	1.6270e+06
Rg (reciprocal space) rg_reciprocal	36.18 Å
I(0) (reciprocal space) i0_reciprocal	95420000.0000
Solution quality estimate total_estimate	0.7259
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.3 Å
Skewness Skewness skewness	0.545
Kurtosis Kurtosis kurtosis	-0.585
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	40080000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.551; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.548; Smooth: 0.231

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	cAMP-dependent protein kinase catalytic subunit alpha
Molecular weight formula_weight	40888.5 kDa
EC 编号 ec_number	2.7.11.11
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5968

MGNAAAAKKGSEQESVKEFLAKAKEDFLKKWESPAQNTAHLDQFERIKTLGTGSFGRVMLVKHKETGNHYAMKILDKQKVVKLKQIEHTLNEKRILQAVNFPFLVKLEFSFKDNSNLYMVMEYVPGGEMFSHLRRIGRFSEPHARFYAAQIVLTFEYLHSLDLIYRDLKPENLLIDQQGYIQVTDFGFAKRVKGRTWTLCGTPEYLAPEIILSKGYNKAVDWWALGVLIYEMAAGYPPFFADQPIQIYEKIVSGKVRFPSHFSSDLKDLLRNLLQVDLTKRFGNLKNGVNDIKNHKWFATTDWIAIYQRKVEAPFIPKFKGPGDTSNFDDYEEEEIRVSINEKCGKEFSEF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;(10R,20R,23R)-1-[(2S,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-3,4-dihydroxytetrahydrofuran-2-yl]-20,23-bis(3-carbamimidamido propyl)-10-methyl-1,8,11,18,21-pentaoxo-2,9,12,19,22-pentaazatetracosan-24-amide ;
Molecular weight formula_weight	890.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	235

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3agla_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d3aglb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (4 domains)

Domain ID domain_id	3aglA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3aglA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	3aglB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	3aglB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	73.180 Å
Unit-cell length b length_b	105.170 Å
Unit-cell length c length_c	106.470 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	52.320 Å
R factor r_factor	0.2000
R_work r_work	0.1980
R_free r_free	0.2370

fit	/app/data/saxs_computation/ag/3agl/3agl.fit
pddf	/app/data/pr_computation/ag/3agl/3agl.pr.out
profile	/app/data/saxs_computation/ag/3agl/3agl.dat
