3b5n

Structure of the yeast plasma membrane SNARE complex

Method: X-RAY DIFFRACTION D_max: 126.2 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Synaptobrevin homolog 1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 27–86	Fragment：Residues 27-86	Protein SSO1 × 1 （P32867） Protein transport protein SEC9 × 1 （P40357） Protein transport protein SEC9 × 1 （P40357）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 27–86	Fragment：Residues 27-86	Protein SSO1 × 1 （P32867） Protein transport protein SEC9 × 1 （P40357） Protein transport protein SEC9 × 1 （P40357）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain I； UniProt 27–86	Fragment：Residues 27-86	Protein SSO1 × 1 （P32867） Protein transport protein SEC9 × 1 （P40357） Protein transport protein SEC9 × 1 （P40357）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3B5N	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9CRU Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 1 Deposited 2024-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain J 1–93（93 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.89 Å
9CRX Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 3 Deposited 2024-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–93（93 aa） Fragment：cytoplasmic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9N22 Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 2 Deposited 2025-01-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–93（93 aa） Fragment：cytoplasmic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.91 Å
9NG2 Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 4 Deposited 2025-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–93（93 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.61 Å
9NLU Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 5 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–93（93 aa） Fragment：cytoplasmic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.29 Å
9NLW Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 6 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–93（93 aa） Fragment：cytoplasmic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9NLY Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 7 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–93（93 aa） Fragment：cytoplasmic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.75 Å
9NLZ Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 8 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain J 1–93（93 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SNC1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–61； UniProt 27–86 Author chain E； PDBConstruct 2–61； UniProt 27–86 Author chain I； PDBConstruct 2–61； UniProt 27–86

Protein SSO1

Saccharomyces cerevisiae

UniProt P32867

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 189–257	Fragment：Residues 189-257	Synaptobrevin homolog 1 × 1 （P31109） Protein transport protein SEC9 × 1 （P40357） Protein transport protein SEC9 × 1 （P40357）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain F； UniProt 189–257	Fragment：Residues 189-257	Synaptobrevin homolog 1 × 1 （P31109） Protein transport protein SEC9 × 1 （P40357） Protein transport protein SEC9 × 1 （P40357）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain J； UniProt 189–257	Fragment：Residues 189-257	Synaptobrevin homolog 1 × 1 （P31109） Protein transport protein SEC9 × 1 （P40357） Protein transport protein SEC9 × 1 （P40357）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3B5N	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FIO CRYSTAL STRUCTURE OF YEAST T-SNARE PROTEIN SSO1 Deposited 2000-08-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–225（195 aa） Fragment：CYTOPLASMIC DOMAIN	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Hepes, PEG 4000, isopropanol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.265
9CRU Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 1 Deposited 2024-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain K 1–265（265 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.89 Å
9CRX Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 3 Deposited 2024-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–265（265 aa） Fragment：cytoplasmic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9N22 Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 2 Deposited 2025-01-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–265（265 aa） Fragment：cytoplasmic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.91 Å
9NG2 Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 4 Deposited 2025-02-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–265（265 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.61 Å
9NLU Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 5 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–265（265 aa） Fragment：residues 1-265	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.29 Å
9NLW Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 6 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–265（265 aa） Fragment：residues 1-265	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9NLY Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 7 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–265（265 aa） Fragment：residues 1-265	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.75 Å
9NLZ Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 8 Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain K 1–265（265 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å
9NM1 Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - All Merge (Class 9, focused on D1/D2) Deposited 2025-03-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain K 1–265（265 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SSO1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–69； UniProt 189–257 Author chain F； PDBConstruct 1–69； UniProt 189–257 Author chain J； PDBConstruct 1–69； UniProt 189–257

Protein transport protein SEC9

Saccharomyces cerevisiae

UniProt P40357

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 433–499 Chain D； UniProt 589–650	Fragment：Residues 433-499 Fragment：Residues 589-650	Synaptobrevin homolog 1 × 1 （P31109） Protein SSO1 × 1 （P32867）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain G； UniProt 433–499 Chain H； UniProt 589–650	Fragment：Residues 433-499 Fragment：Residues 589-650	Synaptobrevin homolog 1 × 1 （P31109） Protein SSO1 × 1 （P32867）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain K； UniProt 433–499 Chain L； UniProt 589–650	Fragment：Residues 433-499 Fragment：Residues 589-650	Synaptobrevin homolog 1 × 1 （P31109） Protein SSO1 × 1 （P32867）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.25；298 K；100 mM MES pH 6.25, 30 % MPD, 200 mM Sodium bromide, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.248

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3B5N	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9CRU Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 1 Deposited 2024-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain L 433–650（218 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.89 Å
9CRX Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 3 Deposited 2024-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 433–650（218 aa） Fragment：t-SNARE coiled-coil homology domains	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9N22 Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 2 Deposited 2025-01-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 433–650（218 aa） Fragment：t-SNARE coiled-coil homology domains	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.91 Å
9NG2 Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 4 Deposited 2025-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 433–650（218 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.61 Å
9NLU Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 5 Deposited 2025-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 433–650（218 aa） Fragment：t-SNARE coiled-coil homology domains	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.29 Å
9NLW Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 6 Deposited 2025-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 433–650（218 aa） Fragment：t-SNARE coiled-coil homology domains	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
9NLY Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 7 Deposited 2025-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 433–650（218 aa） Fragment：t-SNARE coiled-coil homology domains	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.75 Å
9NLZ Y20S (Sec18-Sec17-Sec9-Sso1-Snc1) EDTA - Class 8 Deposited 2025-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 433–650（218 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SEC9_YEAST
Isoform	—
PDB entities	3, 4
Chains and sequence ranges	Author chain C； PDBConstruct 3–69； UniProt 433–499 Author chain G； PDBConstruct 3–69； UniProt 433–499 Author chain K； PDBConstruct 3–69； UniProt 433–499 Author chain D； PDBConstruct 3–64； UniProt 589–650 Author chain H； PDBConstruct 3–64； UniProt 589–650 Author chain L； PDBConstruct 3–64； UniProt 589–650

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

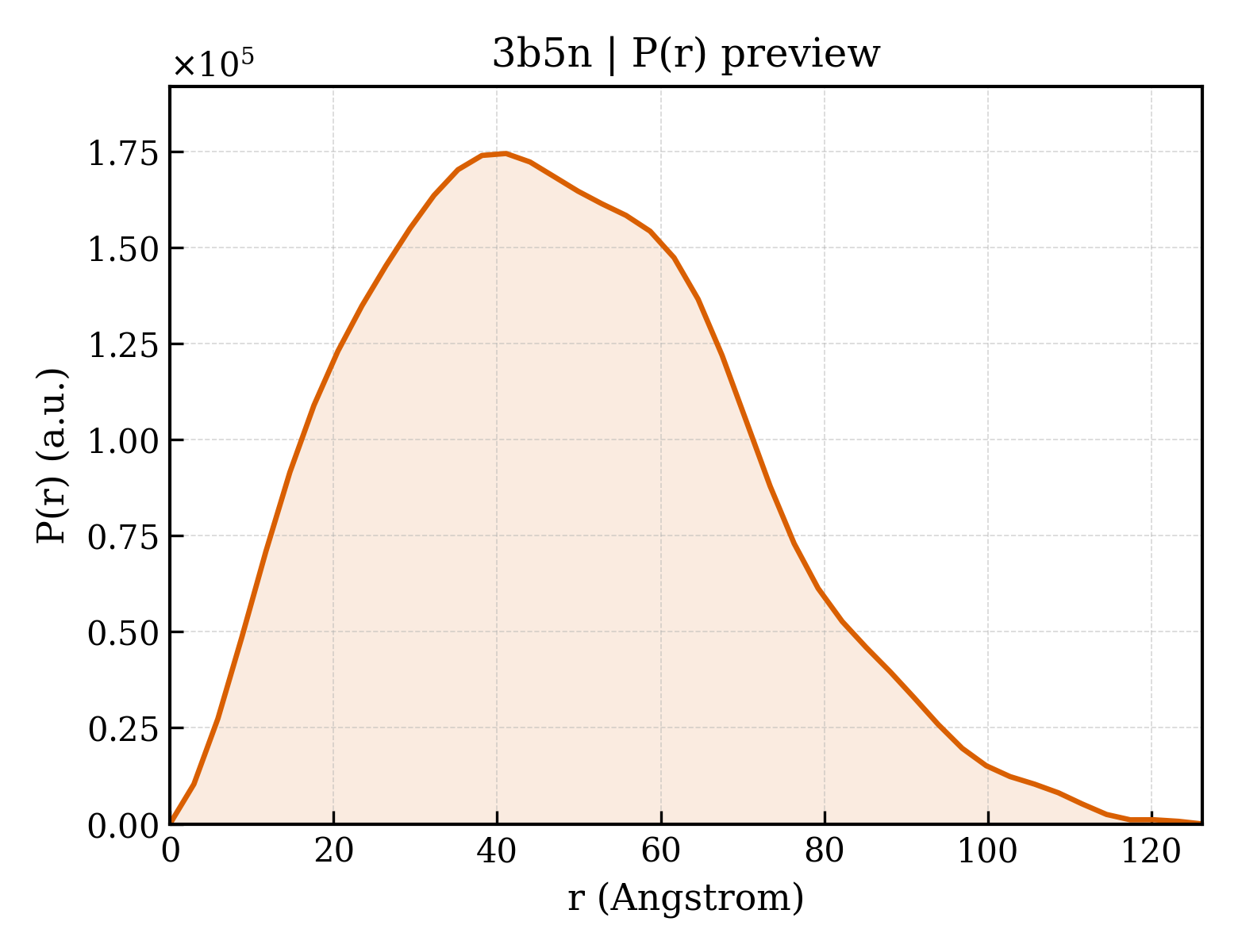

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3b5n
Deposition date deposition_date	2007-10-26
Structure title title	Structure of the yeast plasma membrane SNARE complex
Keywords keywords	;SNARE complex, syntaxin, synaptobrevin, snap-25, Sso1p, Snc1p, Sec9p, Sec9, Sso1, Snc1, Coiled coil, Lipoprotein, Membrane, Palmitate, Transmembrane, Ubl conjugation, Phosphorylation, Protein transport, Transport, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.75 Å
Radius of gyration Rg (electron density) rg_electron	37.03 Å
Forward intensity I(0) i0	132116000.00
Molecular weight molecular_weight	86447.0 kDa
Excluded volume excluded_volume	106170 Å³
Envelope volume envelope_volume	147450 Å³
Hydration-shell volume shell_volume	35302 Å³
Envelope diameter envelope_diameter	132.4 Å
Shell Rg shell_rg	39.96 Å
Envelope Rg envelope_rg	37.06 Å
Shape Rg shape_rg	37.01 Å
Total Rg total_rg	37.30 Å
Total atoms total_atoms	6035
Residues n_residues	771
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	126.2 Å
Rg (real space) rg_real	36.88 Å
Rg uncertainty (real space) rg_real_error	1.57 Å
I(0) (real space) i0_real	1.3210e+08
I(0) uncertainty (real space) i0_real_error	2.4850e+06
Rg (reciprocal space) rg_reciprocal	36.80 Å
I(0) (reciprocal space) i0_reciprocal	132100000.0000
Solution quality estimate total_estimate	0.8702
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.1 Å
Skewness Skewness skewness	0.355
Kurtosis Kurtosis kurtosis	-0.335
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5697000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.865; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.882; Smooth: 0.832

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Synaptobrevin homolog 1
Molecular weight formula_weight	6771.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E,I
Atom count atom_count	6656

GSRTAELQAEIDDTVGIMRDNINKVAERGERLTSIEDKADNLAVSAQGFKRGANRVRKAMW

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Protein SSO1
Molecular weight formula_weight	7797.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F,J

ALAEVQARHQELLKLEKSMAELTQLFNDMEELVIEQQENVDVIDKNVEDAQLDVEQGVGHTDKAVKSAR

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Protein transport protein SEC9
Molecular weight formula_weight	7685.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G,K

GSIKFTKQSSVASTRNTLKMAQDAERAGMNTLGMLGHQSEQLNNVEGNLDLMKVQNKVADEKVAELKKLQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Protein transport protein SEC9
Molecular weight formula_weight	7349.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H,L

GSEMELEIDRNLDQIQQVSNRLKKMALTTGKELDSQQKRLNNIEESTDDLDINLHMNTNRLAGI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	592

▼

7. Fold Classification (SCOP + CATH) 25 domains

SCOP 2.08 (13 domains)

Domain ID domain_id	d3b5na2
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5na3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3b5nb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5nc2
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5nc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3b5nc4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3b5ne_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5nf_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5ng1
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5ng2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3b5ni_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5nj_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

Domain ID domain_id	d3b5nk_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.15 — SNARE fusion complex
Family Family family	h.1.15.1 — SNARE fusion complex

CATH v4.4 (12 domains)

Domain ID domain_id	3b5nA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nD00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nE00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nF00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nG00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nH00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nI00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nJ00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nK00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3b5nL00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	76.956 Å
Unit-cell length b length_b	48.113 Å
Unit-cell length c length_c	110.265 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.77 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	34.571 Å
R factor r_factor	—
R_work r_work	0.2060
R_free r_free	0.2480

fit	/app/data/saxs_computation/b5/3b5n/3b5n.fit
pddf	/app/data/pr_computation/b5/3b5n/3b5n.pr.out
profile	/app/data/saxs_computation/b5/3b5n/3b5n.dat

Structure of the yeast plasma membrane SNARE complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Synaptobrevin homolog 1

State in the Current Structure

Other States of the Same Protein in the Database

Protein SSO1

State in the Current Structure

Other States of the Same Protein in the Database

Protein transport protein SEC9

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 25 domains

SCOP 2.08 (13 domains)

CATH v4.4 (12 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
