SAXSdb — 3cbh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CELLOBIOHYDROLASE II CORE PROTEIN

Hypocrea jecorina

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 107–471	Not recorded	No other associated polymer	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3CBH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CB2 CELLOBIOHYDROLASE II, CATALYTIC DOMAIN, MUTANT Y169F Deposited 1995-11-25	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 107–471（365 aa） Fragment：CATALYTIC	Mutation：Y169F	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.232
1CB2 CELLOBIOHYDROLASE II, CATALYTIC DOMAIN, MUTANT Y169F Deposited 1995-11-25	Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 107–471（365 aa） Fragment：CATALYTIC	Mutation：Y169F	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.232
1HGW CEL6A D175A mutant Deposited 2000-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 107–471（365 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 83-447	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG6000, 20MM MES BUFFER PH 10MM COCL2.	Resolution 2.10 Å R-free 0.225
1HGW CEL6A D175A mutant Deposited 2000-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 107–471（365 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 83-447	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG6000, 20MM MES BUFFER PH 10MM COCL2.	Resolution 2.10 Å R-free 0.225
1HGY CEL6A D221A mutant Deposited 2000-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 107–471（365 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 83-447	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 6 BMA beta-D-mannopyranose × 1 GLC alpha-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG6000, 10MM MES BUFFER., pH 6.00	Resolution 2.20 Å R-free 0.258
1HGY CEL6A D221A mutant Deposited 2000-12-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 107–471（365 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 83-447	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG6000, 10MM MES BUFFER., pH 6.00	Resolution 2.20 Å R-free 0.258
1QJW CEL6A (Y169F) WITH A NON-HYDROLYSABLE CELLOTETRAOSE Deposited 1999-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 107–471（365 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 83-447	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 CD CADMIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；20% PEG6000, 20MM MES BUFFER PH6.0, 10MM CDCL2., pH 6.00	Resolution 1.90 Å R-free 0.208
1QJW CEL6A (Y169F) WITH A NON-HYDROLYSABLE CELLOTETRAOSE Deposited 1999-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 107–471（365 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 83-447	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 CD CADMIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；20% PEG6000, 20MM MES BUFFER PH6.0, 10MM CDCL2., pH 6.00	Resolution 1.90 Å R-free 0.208
1QK0 CEL6A WITH A NON-HYDROLYSABLE CELLOTETRAOSE Deposited 1999-07-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 85-447	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 CO COBALT (II) ION × 1 IOB 3-IODO-BENZYL ALCOHOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；20% PEG6000, 20MM MES BUFFER PH6.0, 10MM COCL2., pH 6.00	Resolution 2.10 Å R-free 0.221
1QK0 CEL6A WITH A NON-HYDROLYSABLE CELLOTETRAOSE Deposited 1999-07-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 85-447	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 CO COBALT (II) ION × 1 IOB 3-IODO-BENZYL ALCOHOL × 1 IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；20% PEG6000, 20MM MES BUFFER PH6.0, 10MM COCL2., pH 6.00	Resolution 2.10 Å R-free 0.221
1QK2 WILD TYPE CEL6A WITH A NON-HYDROLYSABLE CELLOTETRAOSE Deposited 1999-07-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 85-447	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；20% PEG6000, 20MM MES BUFFER PH6.0, 10MM COCL2., pH 6.00	Resolution 2.00 Å R-free 0.222
1QK2 WILD TYPE CEL6A WITH A NON-HYDROLYSABLE CELLOTETRAOSE Deposited 1999-07-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 85-447	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；20% PEG6000, 20MM MES BUFFER PH6.0, 10MM COCL2., pH 6.00	Resolution 2.00 Å R-free 0.222
4AU0 Hypocrea jecorina Cel6A D221A mutant soaked with 6-chloro-4- methylumbelliferyl-beta-cellobioside Deposited 2012-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 8 XZZ 6-chloro-7-hydroxy-4-methyl-2H-chromen-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG5000 MONOMETHYL ETHER, 20MM NA -MES BUFFER PH6.0	Resolution 1.70 Å R-free 0.235
4AU0 Hypocrea jecorina Cel6A D221A mutant soaked with 6-chloro-4- methylumbelliferyl-beta-cellobioside Deposited 2012-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 XZZ 6-chloro-7-hydroxy-4-methyl-2H-chromen-2-one × 1 BGC beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG5000 MONOMETHYL ETHER, 20MM NA -MES BUFFER PH6.0	Resolution 1.70 Å R-free 0.235
4AX6 HYPOCREA JECORINA CEL6A D221A MUTANT SOAKED WITH 6-CHLORO-4- PHENYLUMBELLIFERYL-BETA-CELLOBIOSIDE Deposited 2012-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 UWU 6-chloranyl-7-oxidanyl-4-phenyl-chromen-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG 5000 MONOMETHYL ETHER (FLUKA) AND 20 MM SODIUM MES BUFFER, PH 6.0	Resolution 2.30 Å R-free 0.254
4AX6 HYPOCREA JECORINA CEL6A D221A MUTANT SOAKED WITH 6-CHLORO-4- PHENYLUMBELLIFERYL-BETA-CELLOBIOSIDE Deposited 2012-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 5 UWU 6-chloranyl-7-oxidanyl-4-phenyl-chromen-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG 5000 MONOMETHYL ETHER (FLUKA) AND 20 MM SODIUM MES BUFFER, PH 6.0	Resolution 2.30 Å R-free 0.254
4AX7 Hypocrea jecorina Cel6A D221A mutant soaked with 4-Methylumbelliferyl- beta-D-cellobioside Deposited 2012-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 4MU 7-hydroxy-4-methyl-2H-chromen-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG 5000 MONOMETHYL ETHER (FLUKA) AND 20 MM SODIUM MES BUFFER, PH 6.0	Resolution 1.70 Å R-free 0.221
4AX7 Hypocrea jecorina Cel6A D221A mutant soaked with 4-Methylumbelliferyl- beta-D-cellobioside Deposited 2012-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 4MU 7-hydroxy-4-methyl-2H-chromen-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG 5000 MONOMETHYL ETHER (FLUKA) AND 20 MM SODIUM MES BUFFER, PH 6.0	Resolution 1.70 Å R-free 0.221
4AX7 Hypocrea jecorina Cel6A D221A mutant soaked with 4-Methylumbelliferyl- beta-D-cellobioside Deposited 2012-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 6 4MU 7-hydroxy-4-methyl-2H-chromen-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG 5000 MONOMETHYL ETHER (FLUKA) AND 20 MM SODIUM MES BUFFER, PH 6.0	Resolution 1.70 Å R-free 0.221
4AX7 Hypocrea jecorina Cel6A D221A mutant soaked with 4-Methylumbelliferyl- beta-D-cellobioside Deposited 2012-06-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain D 109–471（363 aa） Fragment：CATALYTIC DOMAIN, RESIDUES 109-471	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MAN alpha-D-mannopyranose × 7 4MU 7-hydroxy-4-methyl-2H-chromen-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；20% PEG 5000 MONOMETHYL ETHER (FLUKA) AND 20 MM SODIUM MES BUFFER, PH 6.0	Resolution 1.70 Å R-free 0.221
4I5R Crystal structure of a fungal chimeric cellobiohydrolase Cel6A Deposited 2012-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 158–331（174 aa） Chain A 425–471（47 aa）	Not recorded	PGE TRIETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 5 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.75；pH 5.75, VAPOR DIFFUSION, SITTING DROP	Resolution 1.50 Å R-free 0.181
4I5U Crystal structure of a fungal chimeric cellobiohydrolase Cel6A Deposited 2012-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 158–331（174 aa） Chain A 425–471（47 aa）	Not recorded	ACT ACETATE ION × 2 EDO 1,2-ETHANEDIOL × 10 PG4 TETRAETHYLENE GLYCOL × 1 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；pH 6.0, VAPOR DIFFUSION, SITTING DROP	Resolution 1.22 Å R-free 0.158

11 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GUX2_TRIRE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–365； UniProt 107–471

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3cbh
Deposition date deposition_date	1990-08-06
Structure title title	THREE-DIMENSIONAL STRUCTURE OF CELLOBIOHYDROLASE FROM TRICHODERMA REESEI
Keywords keywords	HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.98 Å
Radius of gyration Rg (electron density) rg_electron	19.02 Å
Forward intensity I(0) i0	25816700.00
Molecular weight molecular_weight	39033.0 kDa
Excluded volume excluded_volume	47438 Å³
Envelope volume envelope_volume	35486 Å³
Hydration-shell volume shell_volume	16828 Å³
Envelope diameter envelope_diameter	57.4 Å
Shell Rg shell_rg	23.42 Å
Envelope Rg envelope_rg	17.74 Å
Shape Rg shape_rg	19.28 Å
Total Rg total_rg	19.48 Å
Total atoms total_atoms	—
Residues n_residues	—
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	67.7 Å
Rg (real space) rg_real	19.78 Å
Rg uncertainty (real space) rg_real_error	0.40 Å
I(0) (real space) i0_real	2.5820e+07
I(0) uncertainty (real space) i0_real_error	3.3440e+05
Rg (reciprocal space) rg_reciprocal	19.81 Å
I(0) (reciprocal space) i0_reciprocal	25820000.0000
Solution quality estimate total_estimate	0.7792
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	26.7 Å
Skewness Skewness skewness	0.026
Kurtosis Kurtosis kurtosis	-0.509
Angular range angular_range	— – 0.4000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6938000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.710; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3cbha_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.6 — 7-stranded beta/alpha barrel
Superfamily Superfamily superfamily	c.6.1 — Glycosyl hydrolases family 6, cellulases
Family Family family	c.6.1.1 — Glycosyl hydrolases family 6, cellulases

▶

8. Citations (2)

▶

Unit-cell length a length_a	49.100 Å
Unit-cell length b length_b	75.800 Å
Unit-cell length c length_c	92.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.20 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.1550
R_free r_free	—

Description description	CELLOBIOHYDROLASE II CORE PROTEIN
Molecular weight formula_weight	39055.3 kDa
EC 编号 ec_number	3.2.1.91
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	365

THREE-DIMENSIONAL STRUCTURE OF CELLOBIOHYDROLASE FROM TRICHODERMA REESEI

1. Protein Identity and Related Structures Protein Identity & Related Structures

CELLOBIOHYDROLASE II CORE PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

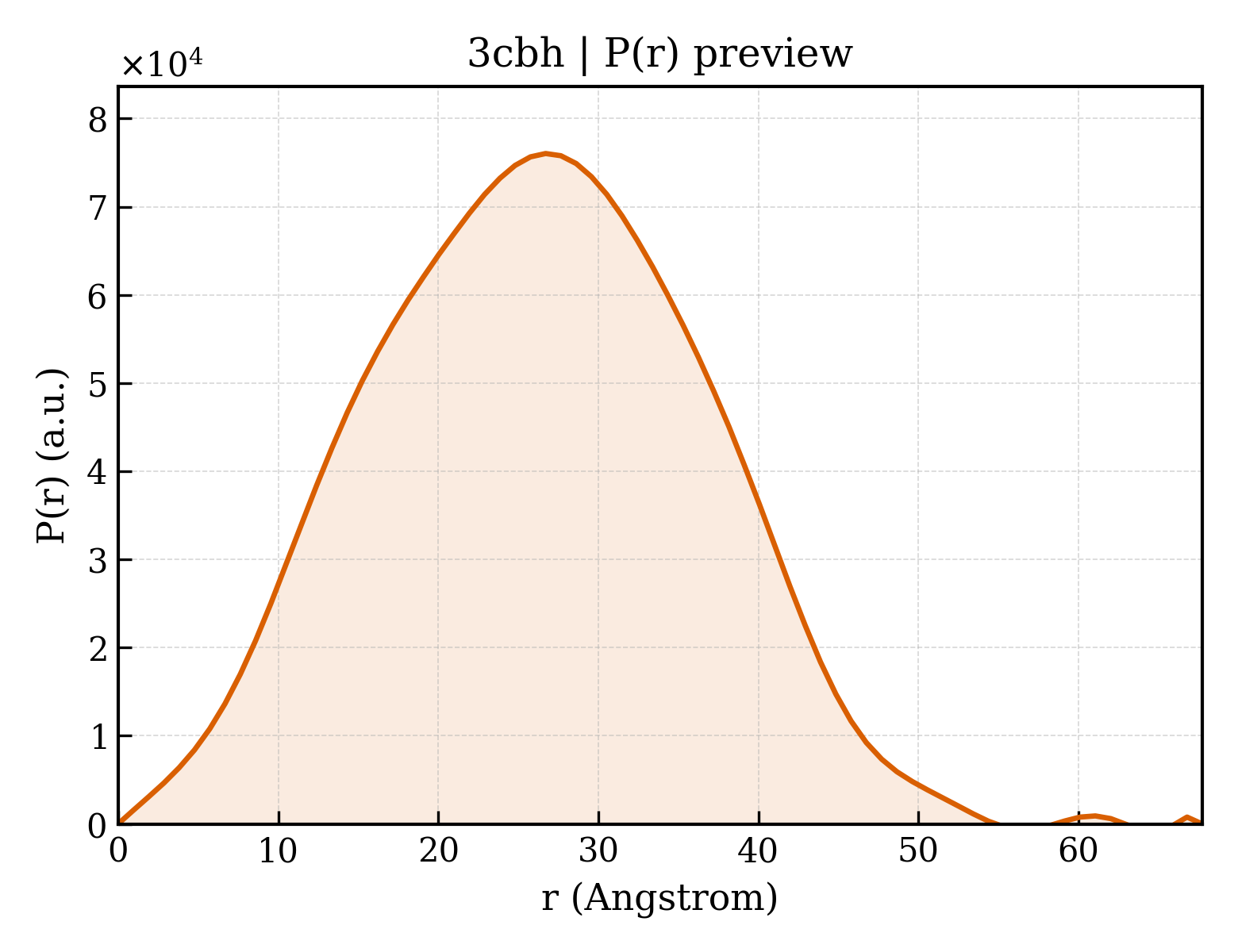

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Hypocrea jecorina
NCBI Class编号 ncbi_taxonomy_id	51453

fit	/app/data/saxs_computation/cb/3cbh/3cbh.fit
pddf	/app/data/pr_computation/cb/3cbh/3cbh.pr.out
profile	/app/data/saxs_computation/cb/3cbh/3cbh.dat
