SAXSdb — 3cxd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

a peptide from osteopontin

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain P； UniProt 40–51	Not recorded	Fab fragment of anti-osteopontin antibody 23C3, Light chain × 1 Fab fragment of anti-osteopontin antibody 23C3, Heavy chain × 1 ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；0.2M di-sodium tartrate, 20% PEG3350, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.292

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3CXD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3DSF Crystal structure of anti-osteopontin antibody 23C3 in complex with W43A mutated epitope peptide Deposited 2008-07-12	Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 40–51（12 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；277 K；0.2M di-ammonium hydrogen phosphate, 20% PEG3350, pH 7.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.297
9EOU Crystal Structure of the b1b2 domains from Human Neuropilin-1 in complex with a peptide. Deposited 2024-03-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 153–168（16 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.1 M sodium malonate pH 6.0, 9% w/v PEG 3350	Resolution 1.55 Å R-free 0.202

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	OSTP_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain P； PDBConstruct 1–12； UniProt 40–51

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3cxd
Deposition date deposition_date	2008-04-24
Structure title title	Crystal structure of anti-osteopontin antibody 23C3 in complex with its epitope peptide
Keywords keywords	Fab, osteopontin, OPN, antibody-antigen complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.17 Å
Radius of gyration Rg (electron density) rg_electron	25.30 Å
Forward intensity I(0) i0	39728600.00
Molecular weight molecular_weight	47941.0 kDa
Excluded volume excluded_volume	59529 Å³
Envelope volume envelope_volume	75364 Å³
Hydration-shell volume shell_volume	25282 Å³
Envelope diameter envelope_diameter	100.2 Å
Shell Rg shell_rg	31.88 Å
Envelope Rg envelope_rg	25.28 Å
Shape Rg shape_rg	25.28 Å
Total Rg total_rg	26.11 Å
Total atoms total_atoms	3373
Residues n_residues	438
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

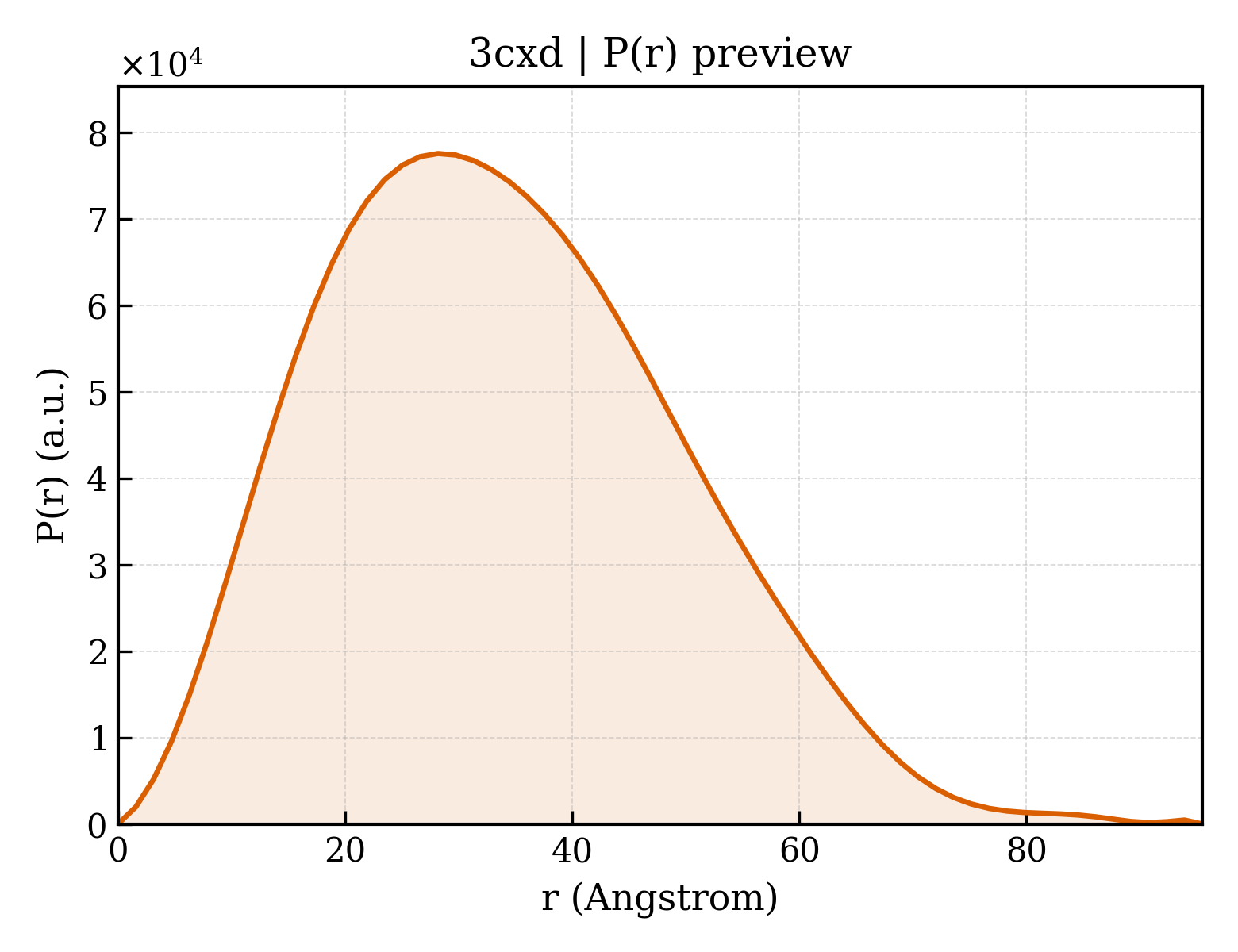

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.5 Å
Rg (real space) rg_real	26.23 Å
Rg uncertainty (real space) rg_real_error	0.89 Å
I(0) (real space) i0_real	3.9730e+07
I(0) uncertainty (real space) i0_real_error	6.3030e+05
Rg (reciprocal space) rg_reciprocal	26.21 Å
I(0) (reciprocal space) i0_reciprocal	39730000.0000
Solution quality estimate total_estimate	0.8460
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.2 Å
Skewness Skewness skewness	0.399
Kurtosis Kurtosis kurtosis	-0.214
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8286000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.738; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.842; Smooth: 0.939

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Fab fragment of anti-osteopontin antibody 23C3, Light chain
Molecular weight formula_weight	23070.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3373

YIQMTQSPASLSVSVGETVTITCRASENIYSFLAWYQQKQGKSPQLLVYAATNLADGVPSRFSGSGSGTQFSLKINSLQSEDFGTYYCQHFWGTPFTFGSGTKLEIKRSDAAPTVSIFPPSAAQLSSGGGSVVCFLNNFYPKDINVKWKIDGAERGNGVLNSWTSQDSADSTYSMSSTLTSGGDEYERHNSYTCEATHKTSTSPIVKSFNRAA

Entity 2 Entity 2 polymer

Description description	Fab fragment of anti-osteopontin antibody 23C3, Heavy chain
Molecular weight formula_weight	23132.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESGGGLVQPKGSLKISCAASGFTFNIYAMNWVRQAPGKGLEWVARIRSQSNNYTTYYADSVKDRFTISRDDSQSMLYLQMNNLKTEDTAMYYCVRQMGDYWGQGTTLTVSSAVKTPPSVYPLAPGGGAISNSMVTLGCLVNGYFPEPVTVTWNAGSLGSGVHTFPAVLQSDLYTLSSSVTVPVSTWPSEAVTCNVAHPASATSVDKAISPV

Entity 3 Entity 3 polymer

Description description	a peptide from osteopontin
Molecular weight formula_weight	1356.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

VATWLNPDPSQK

Entity 4 Entity 4 branched

Description description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	3cxdH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3cxdH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3cxdL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3cxdL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.318 Å
Unit-cell length b length_b	92.020 Å
Unit-cell length c length_c	122.483 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2510
R_work r_work	0.2480
R_free r_free	0.2920

fit	/app/data/saxs_computation/cx/3cxd/3cxd.fit
pddf	/app/data/pr_computation/cx/3cxd/3cxd.pr.out
profile	/app/data/saxs_computation/cx/3cxd/3cxd.dat
