SAXSdb — 3fhp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulin

Sus scrofa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 12	ZINC ION × 6 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INS_PIG
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–21； UniProt 88–108 Author chain C； PDBConstruct 1–21； UniProt 88–108 Author chain B； PDBConstruct 1–30； UniProt 25–54 Author chain D； PDBConstruct 1–30； UniProt 25–54

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3fhp
Deposition date deposition_date	2008-12-09
Structure title title	A neutron crystallographic analysis of a porcine 2Zn insulin at 2.0 A resolution
Keywords keywords	;2Zn insulin, neutron crystallography, protonation, H/D exchange, Carbohydrate metabolism, Cleavage on pair of basic residues, Glucose metabolism, Hormone, Secreted ;; HORMONE
Experimental Method method	NEUTRON DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3fhp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3fhp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

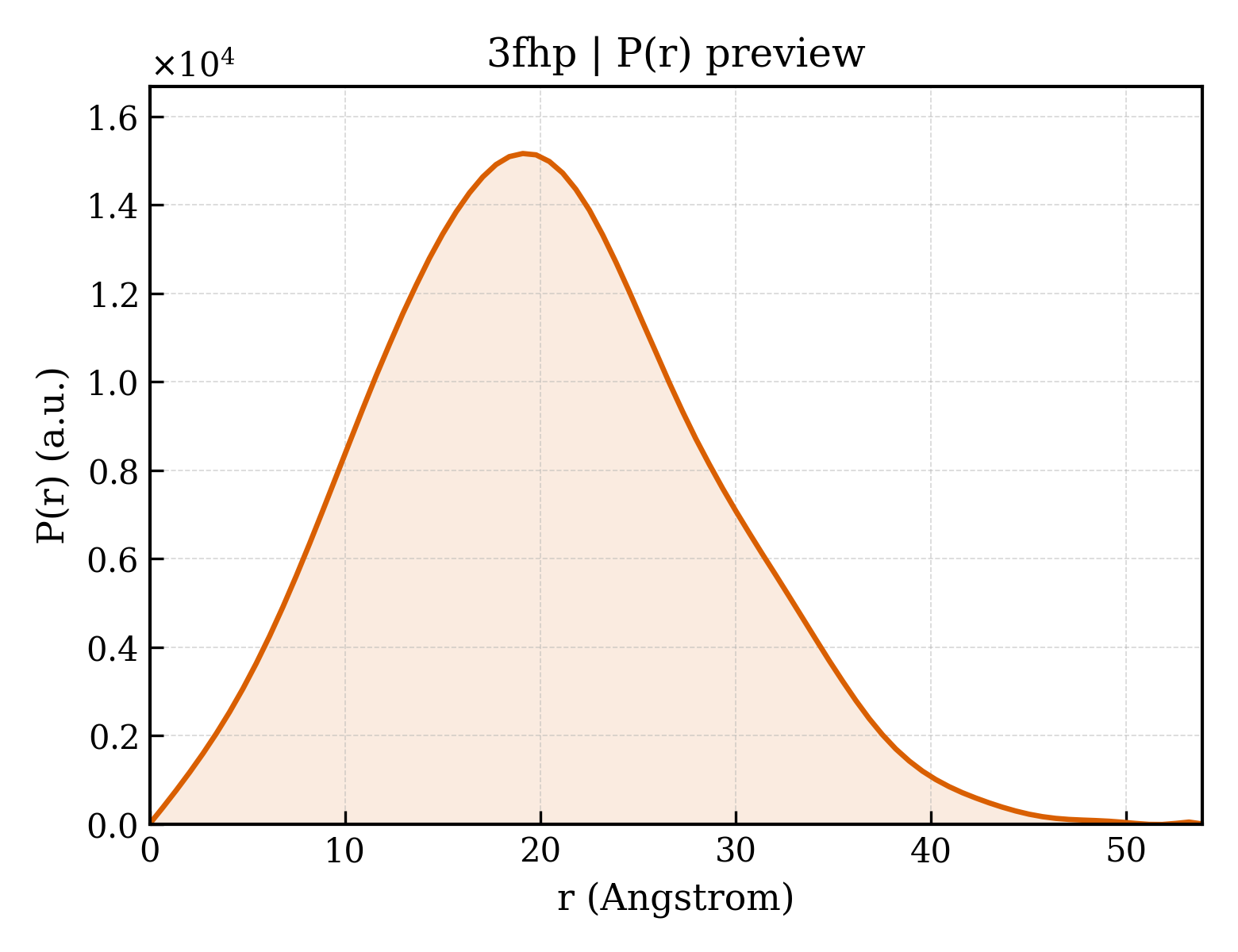

3fhp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.29 Å
Rg (electron density)	19.19 Å
Total Rg	18.81 Å
Atom count	5446
Residues	306
Excluded volume	49492 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3fhp__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Insulin
Molecular weight formula_weight	2383.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	1923

GIVEQCCTSICSLYQLENYCN

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Insulin
Molecular weight formula_weight	3403.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

FVNQHLCGSHLVEALYLVCGERGFFYTPKA

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	89

▶

Unit-cell length a length_a	82.849 Å
Unit-cell length b length_b	82.849 Å
Unit-cell length c length_c	34.173 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	41.430 Å
R factor r_factor	0.1680
R_work r_work	0.1680
R_free r_free	0.2470

A neutron crystallographic analysis of a porcine 2Zn insulin at 2.0 A resolution
