SAXSdb — 3fp4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TPR repeat-containing protein YHR117W

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 107–639	Fragment：UNP residues 107-639	Ssa1 × 1 CL CHLORIDE ION × 11 NA SODIUM ION × 3 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG6K, 5% Ethylene Glyco, 0.15M NaCl, Tris 10mM, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.14 Å R-free 0.261

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3FP4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FP2 Crystal structure of Tom71 complexed with Hsp82 C-terminal fragment Deposited 2009-01-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–639（533 aa） Fragment：UNP residues 107-639	Not recorded	CL CHLORIDE ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG6K, Ethylene Glyco 5%, NaCl 0.15M, Tris 10mM, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.98 Å R-free 0.236
3FP3 Crystal structure of Tom71 Deposited 2009-01-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 107–639（533 aa） Fragment：UNP residues 107-639	Not recorded	SO4 SULFATE ION × 3 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；PEG4K, NaCl 0.15M, Tris 10mM, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.98 Å R-free 0.227
3LCA Structure of Tom71 complexed with Hsp70 Ssa1 C terminal tail indicating conformational plasticity Deposited 2010-01-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 107–639（533 aa） Fragment：TPR repeats 1-9, UNP residues 107-639	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；20% Ethylene Glycol, 20% PEG 6000, 0.1M Tris, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.19 Å R-free 0.271

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	YHR7_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–537； UniProt 107–639

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3fp4
Deposition date deposition_date	2009-01-03
Structure title title	Crystal structure of Tom71 complexed with Ssa1 C-terminal fragment
Keywords keywords	Tom71, Hsp70, Mitochondria, translocation, Chaperone, Phosphoprotein, TPR repeat, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.52 Å
Radius of gyration Rg (electron density) rg_electron	32.76 Å
Forward intensity I(0) i0	50160200.00
Molecular weight molecular_weight	56244.0 kDa
Excluded volume excluded_volume	70571 Å³
Envelope volume envelope_volume	90965 Å³
Hydration-shell volume shell_volume	26078 Å³
Envelope diameter envelope_diameter	116.0 Å
Shell Rg shell_rg	35.03 Å
Envelope Rg envelope_rg	32.53 Å
Shape Rg shape_rg	32.81 Å
Total Rg total_rg	32.80 Å
Total atoms total_atoms	3946
Residues n_residues	490
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

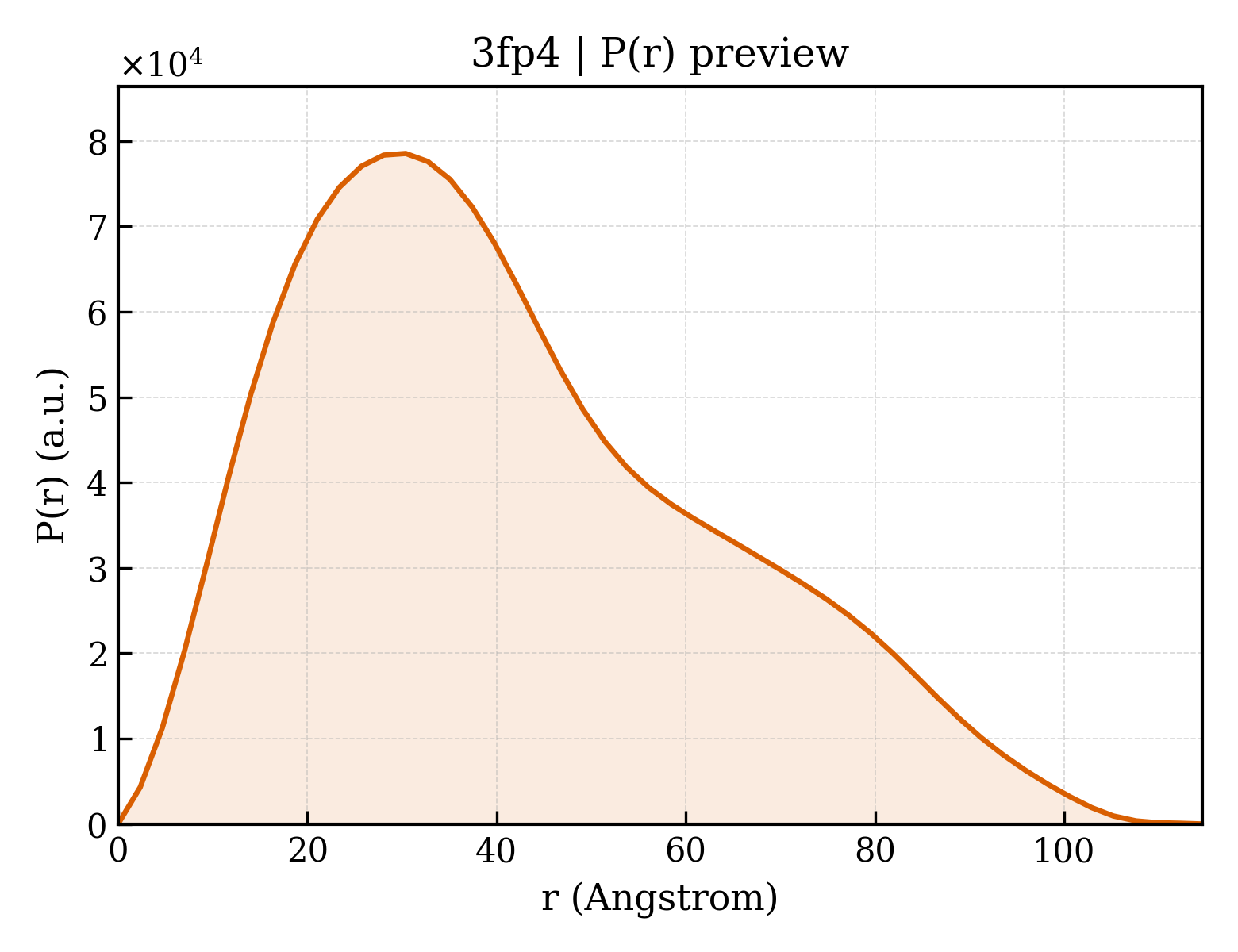

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	114.6 Å
Rg (real space) rg_real	33.06 Å
Rg uncertainty (real space) rg_real_error	1.36 Å
I(0) (real space) i0_real	5.0160e+07
I(0) uncertainty (real space) i0_real_error	9.1160e+05
Rg (reciprocal space) rg_reciprocal	32.84 Å
I(0) (reciprocal space) i0_reciprocal	50150000.0000
Solution quality estimate total_estimate	0.7912
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	30.4 Å
Skewness Skewness skewness	0.578
Kurtosis Kurtosis kurtosis	-0.403
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3350000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.648; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.531; Smooth: 0.807

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	TPR repeat-containing protein YHR117W
Molecular weight formula_weight	60571.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4391

GSHMNGEPDIAQLKGLSPSQRQAYAVQLKNRGNHFFTAKNFNEAIKYYQYAIELDPNEPVFYSNISACYISTGDLEKVIEFTTKALEIKPDHSKALLRRASANESLGNFTDAMFDLSVLSLNGDFDGASIEPMLERNLNKQAMKVLNENLSKDEGRGSQVLPSNTSLASFFGIFDSHLEVSSVNTSSNYDTAYALLSDALQRLYSATDEGYLVANDLLTKSTDMYHSLLSANTVDDPLRENAALALCYTGIFHFLKNNLLDAQVLLQESINLHPTPNSYIFLALTLADKENSQEFFKFFQKAVDLNPEYPPTYYHRGQMYFILQDYKNAKEDFQKAQSLNPENVYPYIQLACLLYKQGKFTESEAFFNETKLKFPTLPEVPTFFAEILTDRGDFDTAIKQYDIAKRLEEVQEKIHVGIGPLIGKATILARQSSQDPTQLDEEKFNAAIKLLTKACELDPRSEQAKIGLAQLKLQMEKIDEAIELFEDSAILARTMDEKLQATTFAEAAKIQKRLRADPIISAKMELTLARYRAKGML

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	yeast
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ssa1
Molecular weight formula_weight	1202.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

GADNGPTVEEVD

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	264

▶

8. Citations (1)

▶

Unit-cell length a length_a	47.820 Å
Unit-cell length b length_b	116.025 Å
Unit-cell length c length_c	150.649 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.140 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2104
R_work r_work	0.2077
R_free r_free	0.2613

fit	/app/data/saxs_computation/fp/3fp4/3fp4.fit
pddf	/app/data/pr_computation/fp/3fp4/3fp4.pr.out
profile	/app/data/saxs_computation/fp/3fp4/3fp4.dat
