SAXSdb — 3lca

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein TOM71

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Heat shock protein SSA1 × 1 （P10591） GLYCEROL × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOM71_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–533； UniProt 107–639

Heat shock protein SSA1

OrganismNot specified

UniProt P10591

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Protein TOM71 × 1 （P38825） GLYCEROL × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSP71_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain Q； PDBConstruct 1–12； UniProt 631–642

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3lca
Deposition date deposition_date	2010-01-10
Structure title title	Structure of Tom71 complexed with Hsp70 Ssa1 C terminal tail indicating conformational plasticity
Keywords keywords	;Chaperone, conformational plasticity, Membrane, Mitochondrion, Mitochondrion outer membrane, TPR repeat, Transmembrane, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3lca__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3lca__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

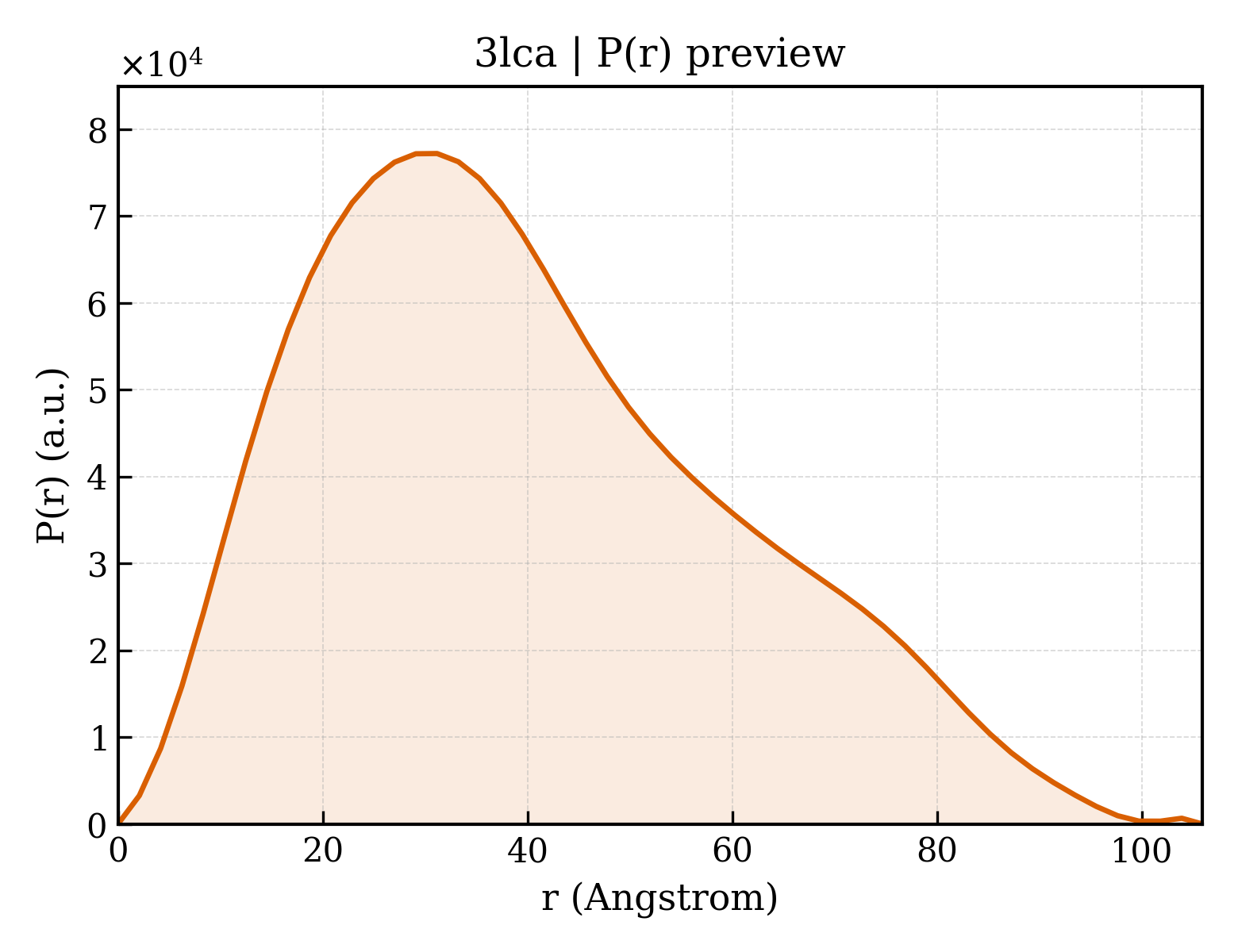

3lca__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.17 Å
Rg (electron density)	31.10 Å
Total Rg	31.34 Å
Atom count	3905
Residues	486
Excluded volume	69945 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3lca__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Protein TOM71
Molecular weight formula_weight	60157.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4147

NGEPDIAQLKGLSPSQRQAYAVQLKNRGNHFFTAKNFNEAIKYYQYAIELDPNEPVFYSNISACYISTGDLEKVIEFTTKALEIKPDHSKALLRRASANESLGNFTDAMFDLSVLSLNGDFDGASIEPMLERNLNKQAMKVLNENLSKDEGRGSQVLPSNTSLASFFGIFDSHLEVSSVNTSSNYDTAYALLSDALQRLYSATDEGYLVANDLLTKSTDMYHSLLSANTVDDPLRENAALALCYTGIFHFLKNNLLDAQVLLQESINLHPTPNSYIFLALTLADKENSQEFFKFFQKAVDLNPEYPPTYYHRGQMYFILQDYKNAKEDFQKAQSLNPENVYPYIQLACLLYKQGKFTESEAFFNETKLKFPTLPEVPTFFAEILTDRGDFDTAIKQYDIAKRLEEVQEKIHVGIGPLIGKATILARQSSQDPTQLDEEKFNAAIKLLTKACELDPRSEQAKIGLAQLKLQMEKIDEAIELFEDSAILARTMDEKLQATTFAEAAKIQKRLRADPIISAKMELTLARYRAKGML

Entity 2 Entity 2 polymer

Description description	Heat shock protein SSA1
Molecular weight formula_weight	1271.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

PEAEGPTVEEVD

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	242

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3lcaA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	10 — Tetratricopeptide repeat domain

▶

Unit-cell length a length_a	51.148 Å
Unit-cell length b length_b	97.971 Å
Unit-cell length c length_c	129.102 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.190 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2294
R_work r_work	0.2273
R_free r_free	0.2711

Structure of Tom71 complexed with Hsp70 Ssa1 C terminal tail indicating conformational plasticity
