SAXSdb — 3g6d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-13

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 21–132	Fragment：UNP residues 21-132	CNTO607 Fab Light chain × 1 CNTO607 Fab Heavy chain × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.5；293 K；0.1 M Sodium acetate pH 4.5, 4.9 M Sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.263
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 21–132	Fragment：UNP residues 21-132	CNTO607 Fab Light chain × 1 CNTO607 Fab Heavy chain × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.5；293 K；0.1 M Sodium acetate pH 4.5, 4.9 M Sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3G6D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GA3 NMR STRUCTURE OF INTERLEUKIN-13 Deposited 2000-11-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–146（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；298 K；Ionic strength (raw mmCIF value) 50mM NaCl；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] IL-13, 25 mM phosphate buffer, 50 mM sodium chloride, 1 mM EDTA, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
1IJZ Solution Structure of Human IL-13 Deposited 2001-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–132（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR sample composition 1mM interleukin-13 U-15N; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl; 100% D2O; pH 6.0 \| 100% D2O	Resolution not provided
1IK0 Solution Structure of Human IL-13 Deposited 2001-05-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–132（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR sample composition 1mM interleukin-13 U-15N; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl; 100% D2O; pH 6.0 \| 100% D2O	Resolution not provided
3L5W Crystal structure of the complex between IL-13 and C836 FAB Deposited 2009-12-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 35–146（112 aa） Fragment：UNP residues 35-146	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293 K；0.1 M HEPES PH 7.5, 20% PEG 3350, 0.2 M SODIUM TARTRATE; CRYO CONDITIONS: MOTHER LIQUOR + 18% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.253
3L5W Crystal structure of the complex between IL-13 and C836 FAB Deposited 2009-12-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 35–146（112 aa） Fragment：UNP residues 35-146	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293 K；0.1 M HEPES PH 7.5, 20% PEG 3350, 0.2 M SODIUM TARTRATE; CRYO CONDITIONS: MOTHER LIQUOR + 18% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.253
3L5X Crystal structure of the complex between IL-13 and H2L6 FAB Deposited 2009-12-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 35–146（112 aa） Fragment：UNP residues 35-146	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1 M MES PH 6.5, 14% PEG 3350, 0.2 M AMMONIUM TARTRATE. CRYO CONDITIONS: 0.1 M MES PH 6.5, 20% PEG 3K, 0.2 M AMM TARTRATE, 15% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.247
3LB6 The structure of IL-13 in complex with IL-13Ralpha2 Deposited 2010-01-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 15–146（132 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；100 mM MES, pH 6.0, 200 mM CaCl2, 20% PEG-6000, and 4% v/v polypropylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.05 Å R-free 0.269
3LB6 The structure of IL-13 in complex with IL-13Ralpha2 Deposited 2010-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 15–146（132 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；100 mM MES, pH 6.0, 200 mM CaCl2, 20% PEG-6000, and 4% v/v polypropylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.05 Å R-free 0.269
4I77 Lebrikizumab Fab bound to IL-13 Deposited 2012-11-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 35–146（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；15% w/v PEG1000, 0.05 M sodium malonate, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.90 Å R-free 0.219
4PS4 Crystal structure of the complex between IL-13 and M1295 FAB Deposited 2014-03-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 35–146（112 aa） Fragment：UNP RESIDUES 35-146	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1 M SODIUM ACETATE PH 4.5, 25% PEG 8K, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.80 Å R-free 0.271
5E4E Engineered Interleukin-13 bound to receptor Deposited 2015-10-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 34–146（113 aa） Fragment：UNP residues 34-146	Mutation：L10V, V18I, L39R, D87S, T88S, L101F, K104R, K105T	SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.2；293 K；lithium sulfate, phosphate/citrate pH 4.2, PEG 1000	Resolution 3.00 Å R-free 0.288
5L6Y il13 in complex with tralokinumab Deposited 2016-06-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 35–146（112 aa）	Not recorded	FMT FORMIC ACID × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；sodium formate	Resolution 1.99 Å R-free 0.211

10 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL13_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 2–113； UniProt 21–132

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3g6d
Deposition date deposition_date	2009-02-06
Structure title title	Crystal structure of the complex between CNTO607 Fab and IL-13
Keywords keywords	IL-13, antibody, complex, epitope, Cytokine, Glycoprotein, Secreted, MONOCLONAL ANTIBODY, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.96 Å
Radius of gyration Rg (electron density) rg_electron	28.65 Å
Forward intensity I(0) i0	55787700.00
Molecular weight molecular_weight	57710.0 kDa
Excluded volume excluded_volume	71859 Å³
Envelope volume envelope_volume	91899 Å³
Hydration-shell volume shell_volume	28502 Å³
Envelope diameter envelope_diameter	108.3 Å
Shell Rg shell_rg	33.69 Å
Envelope Rg envelope_rg	28.81 Å
Shape Rg shape_rg	28.59 Å
Total Rg total_rg	29.30 Å
Total atoms total_atoms	4059
Residues n_residues	539
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

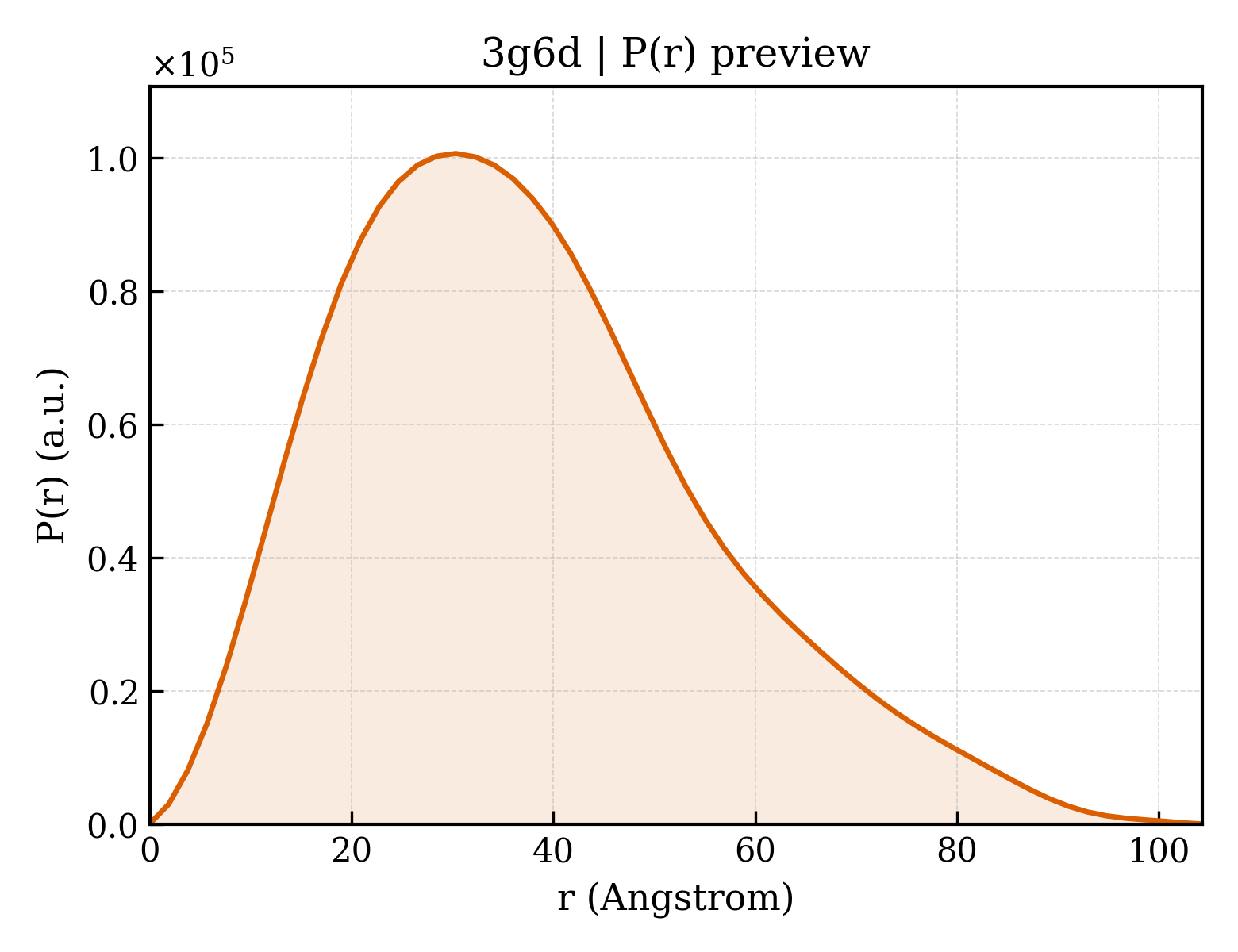

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	104.3 Å
Rg (real space) rg_real	29.18 Å
Rg uncertainty (real space) rg_real_error	0.85 Å
I(0) (real space) i0_real	5.5790e+07
I(0) uncertainty (real space) i0_real_error	9.9100e+05
Rg (reciprocal space) rg_reciprocal	29.08 Å
I(0) (reciprocal space) i0_reciprocal	55780000.0000
Solution quality estimate total_estimate	0.8227
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	30.3 Å
Skewness Skewness skewness	0.594
Kurtosis Kurtosis kurtosis	-0.023
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	12740000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.687; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.683; Smooth: 0.948

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CNTO607 Fab Light chain
Molecular weight formula_weight	22619.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	4059

SYELTQPPSVSVAPGQTARISCSGDNIGGTFVSWYQQKPGQAPVLVIYDDNDRPSGIPERFSGSNSGNTATLTISGTQAEDEADYYCGTWDMVTNNVFGGGTKLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	CNTO607 Fab Heavy chain
Molecular weight formula_weight	24461.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLVESGGGLVQPGGSLRLSCAASGFTFNSYWINWVRQAPGKGLEWVSGIAYDSSNTLYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCARGLGAFHWDMQPDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Interleukin-13
Molecular weight formula_weight	12490.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MGPVPPSTALRELIEELVNITQNQKAPLCNGSMVWSINLTAGMYCAALESLINVSGCSAIEKTQRMLSGFCPHKVSAGQFSSLHVRDTKIEVAQFVKDLLLHLKKLFREGRFN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d3g6da_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.2 — Short-chain cytokines

Domain ID domain_id	d3g6dh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d3g6dh2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d3g6dl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d3g6dl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (5 domains)

Domain ID domain_id	3g6dA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3g6dH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3g6dH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3g6dL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3g6dL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	66.540 Å
Unit-cell length b length_b	68.030 Å
Unit-cell length c length_c	182.350 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2634

fit	/app/data/saxs_computation/g6/3g6d/3g6d.fit
pddf	/app/data/pr_computation/g6/3g6d/3g6d.pr.out
profile	/app/data/saxs_computation/g6/3g6d/3g6d.dat
