SAXSdb — 5e4e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-13

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 34–146	Fragment：UNP residues 34-146 Mutation：L10V, V18I, L39R, D87S, T88S, L101F, K104R, K105T	Interleukin-4 receptor subunit alpha × 1 （P24394） Interleukin-13 receptor subunit alpha-1 × 1 （P78552） SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 4.2；293 K；lithium sulfate, phosphate/citrate pH 4.2, PEG 1000	Resolution 3.00 Å R-free 0.288

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5E4E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GA3 NMR STRUCTURE OF INTERLEUKIN-13 Deposited 2000-11-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 35–146（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；298 K；Ionic strength (raw mmCIF value) 50mM NaCl；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N] IL-13, 25 mM phosphate buffer, 50 mM sodium chloride, 1 mM EDTA, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
1IJZ Solution Structure of Human IL-13 Deposited 2001-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–132（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR sample composition 1mM interleukin-13 U-15N; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl; 100% D2O; pH 6.0 \| 100% D2O	Resolution not provided
1IK0 Solution Structure of Human IL-13 Deposited 2001-05-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–132（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR measurement conditions pH 6；298 K；Ionic strength (raw mmCIF value) 40 mM sodium phosphate, 2 mM NaN3, 40 mM NaCl；Pressure ambient NMR sample composition 1mM interleukin-13 U-15N; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl 90% H2O, 10% D2O; pH 6.0 \| 90% H2O/10% D2O NMR sample composition 1mM interleukin-13 U-15N,U-13C; 40mM phosphate buffer; 2mM NaN3; 40 mM NaCl; 100% D2O; pH 6.0 \| 100% D2O	Resolution not provided
3G6D Crystal structure of the complex between CNTO607 Fab and IL-13 Deposited 2009-02-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 21–132（112 aa） Fragment：UNP residues 21-132	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；293 K；0.1 M Sodium acetate pH 4.5, 4.9 M Sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.263
3G6D Crystal structure of the complex between CNTO607 Fab and IL-13 Deposited 2009-02-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 21–132（112 aa） Fragment：UNP residues 21-132	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；293 K；0.1 M Sodium acetate pH 4.5, 4.9 M Sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.263
3L5W Crystal structure of the complex between IL-13 and C836 FAB Deposited 2009-12-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 35–146（112 aa） Fragment：UNP residues 35-146	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293 K；0.1 M HEPES PH 7.5, 20% PEG 3350, 0.2 M SODIUM TARTRATE; CRYO CONDITIONS: MOTHER LIQUOR + 18% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.253
3L5W Crystal structure of the complex between IL-13 and C836 FAB Deposited 2009-12-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 35–146（112 aa） Fragment：UNP residues 35-146	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；293 K；0.1 M HEPES PH 7.5, 20% PEG 3350, 0.2 M SODIUM TARTRATE; CRYO CONDITIONS: MOTHER LIQUOR + 18% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.253
3L5X Crystal structure of the complex between IL-13 and H2L6 FAB Deposited 2009-12-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 35–146（112 aa） Fragment：UNP residues 35-146	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1 M MES PH 6.5, 14% PEG 3350, 0.2 M AMMONIUM TARTRATE. CRYO CONDITIONS: 0.1 M MES PH 6.5, 20% PEG 3K, 0.2 M AMM TARTRATE, 15% GLYCEROL, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.247
3LB6 The structure of IL-13 in complex with IL-13Ralpha2 Deposited 2010-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 15–146（132 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；100 mM MES, pH 6.0, 200 mM CaCl2, 20% PEG-6000, and 4% v/v polypropylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.05 Å R-free 0.269
3LB6 The structure of IL-13 in complex with IL-13Ralpha2 Deposited 2010-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 15–146（132 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；100 mM MES, pH 6.0, 200 mM CaCl2, 20% PEG-6000, and 4% v/v polypropylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.05 Å R-free 0.269
4I77 Lebrikizumab Fab bound to IL-13 Deposited 2012-11-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 35–146（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；291 K；15% w/v PEG1000, 0.05 M sodium malonate, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.90 Å R-free 0.219
4PS4 Crystal structure of the complex between IL-13 and M1295 FAB Deposited 2014-03-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 35–146（112 aa） Fragment：UNP RESIDUES 35-146	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1 M SODIUM ACETATE PH 4.5, 25% PEG 8K, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.80 Å R-free 0.271
5L6Y il13 in complex with tralokinumab Deposited 2016-06-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 35–146（112 aa）	Not recorded	FMT FORMIC ACID × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；sodium formate	Resolution 1.99 Å R-free 0.211

10 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL13_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–113； UniProt 34–146

Interleukin-4 receptor subunit alpha

Homo sapiens

UniProt P24394

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 26–228	Fragment：UNP residues 26-228	Interleukin-13 × 1 （P35225） Interleukin-13 receptor subunit alpha-1 × 1 （P78552） SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 4.2；293 K；lithium sulfate, phosphate/citrate pH 4.2, PEG 1000	Resolution 3.00 Å R-free 0.288

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5E4E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IAR INTERLEUKIN-4 / RECEPTOR ALPHA CHAIN COMPLEX Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 26–232（207 aa） Fragment：EXTRACELLULAR DOMAIN	Mutation：M1F, C182A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.30 Å R-free 0.289
1IRS IRS-1 PTB DOMAIN COMPLEXED WITH A IL-4 RECEPTOR PHOSPHOPEPTIDE, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1996-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 489–499（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
3BPL Crystal structure of the IL4-IL4R-Common Gamma ternary complex Deposited 2007-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 27–227（201 aa） Fragment：Extracellular domain, residues 27-227	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；10% PEG8K, 8% ethylene glycol, 0.1M HEPES pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.93 Å R-free 0.297
3BPN Crystal structure of the IL4-IL4R-IL13Ra ternary complex Deposited 2007-12-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 27–227（201 aa） Fragment：Extracellular domain, residues 27-227	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；10% PEG8K, 0.1M cacodylate pH 6.5, 0.16M calcium acetate, 20% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.02 Å R-free 0.304
3BPO Crystal structure of the IL13-IL4R-IL13Ra ternary complex Deposited 2007-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 27–227（201 aa） Fragment：Extracellular domain, residues 27-227	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；12% PEG8K, 8% ethlyene glycol, 0.1M ammonium citrate pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.00 Å R-free 0.312
6OEL Engineered Fab bound to IL-4 receptor Deposited 2019-03-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 27–224（198 aa） Fragment：UNP residues 27-224	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；22.5% PurePEG (Microlytic), 0.1 M sodium citrate, pH 5.5, 0.6 M ammonium nitrate	Resolution 3.10 Å R-free 0.256
6WGL Dupilumab fab with Crystal Kappa design complexed with human IL-4 receptor Deposited 2020-04-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 26–232（207 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；100mM Hepes pH 7.5, 25% PEG MME 550	Resolution 2.82 Å R-free 0.304
8Z8L structure of IL-4Ra in complex with an nanobody 4E9 Deposited 2024-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 26–232（207 aa）	Mutation：C182A	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；298 K；1.4 M Sodium malonate dibasic monohydrate pH 6.0	Resolution 3.96 Å R-free 0.334

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL4RA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–203； UniProt 26–228

Interleukin-13 receptor subunit alpha-1

Homo sapiens

UniProt P78552

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 23–340	Fragment：UNP residues 23-340	Interleukin-13 × 1 （P35225） Interleukin-4 receptor subunit alpha × 1 （P24394） SO4 SULFATE ION × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 4.2；293 K；lithium sulfate, phosphate/citrate pH 4.2, PEG 1000	Resolution 3.00 Å R-free 0.288

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5E4E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3BPN Crystal structure of the IL4-IL4R-IL13Ra ternary complex Deposited 2007-12-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 29–342（314 aa） Fragment：Extracellular domain, residues 29-342	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；10% PEG8K, 0.1M cacodylate pH 6.5, 0.16M calcium acetate, 20% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.02 Å R-free 0.304
3BPO Crystal structure of the IL13-IL4R-IL13Ra ternary complex Deposited 2007-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 29–342（314 aa） Fragment：Extracellular domain, residues 29-342	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295 K；12% PEG8K, 8% ethlyene glycol, 0.1M ammonium citrate pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.00 Å R-free 0.312
4HWB Crystal structure of ectodomain 3 of the IL-13 receptor alpha 1 in complex with a human neutralizing monoclonal antibody fragment Deposited 2012-11-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 223–336（114 aa）	Not recorded	SO4 SULFATE ION × 13 NHE 2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；298 K；1.6-2.0 M Li2SO4 0.1M CHES pH9.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.61 Å R-free 0.224

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	I13R1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–318； UniProt 23–340

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5e4e
Deposition date deposition_date	2015-10-05
Structure title title	Engineered Interleukin-13 bound to receptor
Keywords keywords	agonist-receptor complex, protein engineering, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.08 Å
Radius of gyration Rg (electron density) rg_electron	29.23 Å
Forward intensity I(0) i0	77851100.00
Molecular weight molecular_weight	67328.0 kDa
Excluded volume excluded_volume	83218 Å³
Envelope volume envelope_volume	109210 Å³
Hydration-shell volume shell_volume	31923 Å³
Envelope diameter envelope_diameter	102.7 Å
Shell Rg shell_rg	35.51 Å
Envelope Rg envelope_rg	29.24 Å
Shape Rg shape_rg	29.21 Å
Total Rg total_rg	29.89 Å
Total atoms total_atoms	4723
Residues n_residues	597
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

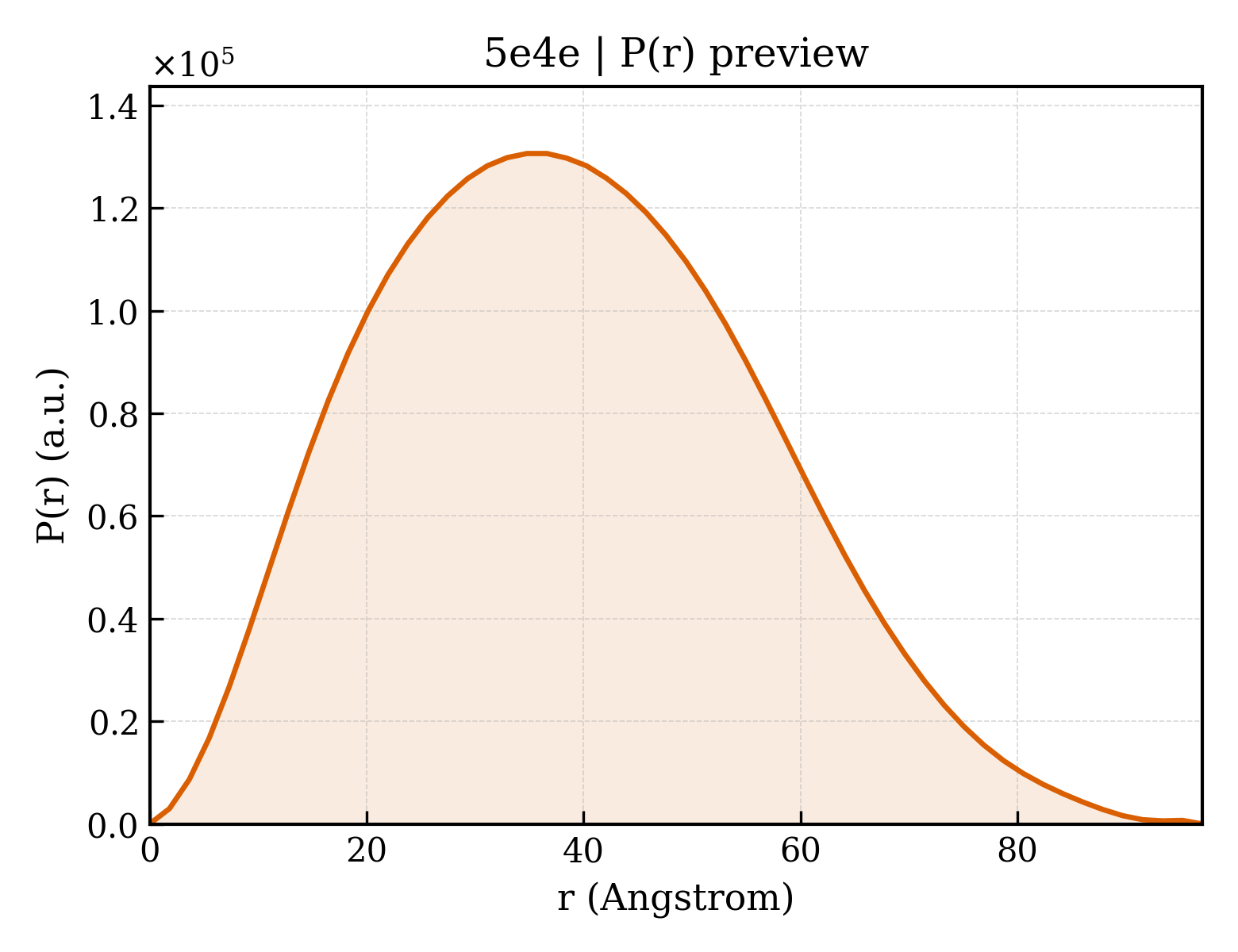

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.0 Å
Rg (real space) rg_real	30.06 Å
Rg uncertainty (real space) rg_real_error	0.78 Å
I(0) (real space) i0_real	7.7850e+07
I(0) uncertainty (real space) i0_real_error	1.1750e+06
Rg (reciprocal space) rg_reciprocal	30.07 Å
I(0) (reciprocal space) i0_reciprocal	77850000.0000
Solution quality estimate total_estimate	0.8992
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	95.2 Å
Skewness Skewness skewness	0.272
Kurtosis Kurtosis kurtosis	-0.467
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11870000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.883

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Interleukin-13
Molecular weight formula_weight	12463.4 kDa
Mutation mutation	L10V, V18I, L39R, D87S, T88S, L101F, K104R, K105T
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4723

PGPVPPSTAVRELIEELINITQNQKAPLCNGSMVWSINRTAGMYCAALESLINVSGCSAIEKTQRMLSGFCPHKVSAGQFSSLHVRSSKIEVAQFVKDLLFHLRTLFREGQFN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Interleukin-4 receptor subunit alpha
Molecular weight formula_weight	23212.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKVLQEPTCVSDYMSISTCEWKMNGPTNCSTELRLLYQLVFLLSEAHTCIPENNGGAGCVCHLLMDDVVSADNYTLDLWAGQQLLWKGSFKPSEHVKPRAPGNLTVHTNVSDTLLLTWSNPYPPDNYLYNHLTYAVNIWSENDPADFRIYNVTYLEPSLRIAASTLKSGISYRARVRAWAQCYNTTWSEWSPSTKWHNSYREP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Interleukin-13 receptor subunit alpha-1
Molecular weight formula_weight	36571.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GGGAAPTETQPPVTNLSVSVENLCTVIWTWNPPEGASSNCSLWYFSHFGDKQDKKIAPETRRSIEVPLNERICLQVGSQCSTNESEKPSILVEKCISPPEGDPESAVTELQCIWHNLSYMKCSWLPGRNTSPDTNYTLYYWHRSLEKIHQCENIFREGQYFGCSFDLTKVKDSSFEQHSVQIMVKDNAGKIKPSFNIVPLTSRVKPDPPHIKNLSFHNDDLYVQWENPQNFISRCLFYEVEVNNSQTETHNVFYVQEAKCENPEFERNVENTSCFMVPGVLPDTLNTVRIRVKTNKLCYEDDKLWSNWSQEMSIGKKR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

▼

7. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d5e4ea_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.2 — Short-chain cytokines

Domain ID domain_id	d5e4eb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d5e4eb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

CATH v4.4 (6 domains)

Domain ID domain_id	5e4eA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5e4eB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5e4eB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5e4eC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5e4eC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	5e4eC03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.590 Å
Unit-cell length b length_b	69.370 Å
Unit-cell length c length_c	186.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	38.740 Å
R factor r_factor	0.2366
R_work r_work	0.2338
R_free r_free	0.2885

fit	/app/data/saxs_computation/e4/5e4e/5e4e.fit
pddf	/app/data/pr_computation/e4/5e4e/5e4e.pr.out
profile	/app/data/saxs_computation/e4/5e4e/5e4e.dat

Engineered Interleukin-13 bound to receptor

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-13

State in the Current Structure

Other States of the Same Protein in the Database

Interleukin-4 receptor subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

Interleukin-13 receptor subunit alpha-1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

7. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

CATH v4.4 (6 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
