Saccharomyces cerevisiae
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 6 | SULFATE ION × 30 GLYCEROL × 12 water × 6 | Consistent with protein count |
| UniProt name | BLH1_YEAST |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 20–470； UniProt 3–453 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 3gcb |
| Deposition date deposition_date | 1998-02-27 |
| Structure title title | GAL6 (YEAST BLEOMYCIN HYDROLASE) MUTANT C73A/DELTAK454 |
| Keywords keywords | BLEOMYCIN HYDROLASE, PEPTIDASE, PROTEASE, DNA-BINDING PROTEIN, SELF-COMPARTMENTALIZING PROTEASE, HYDROLASE; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

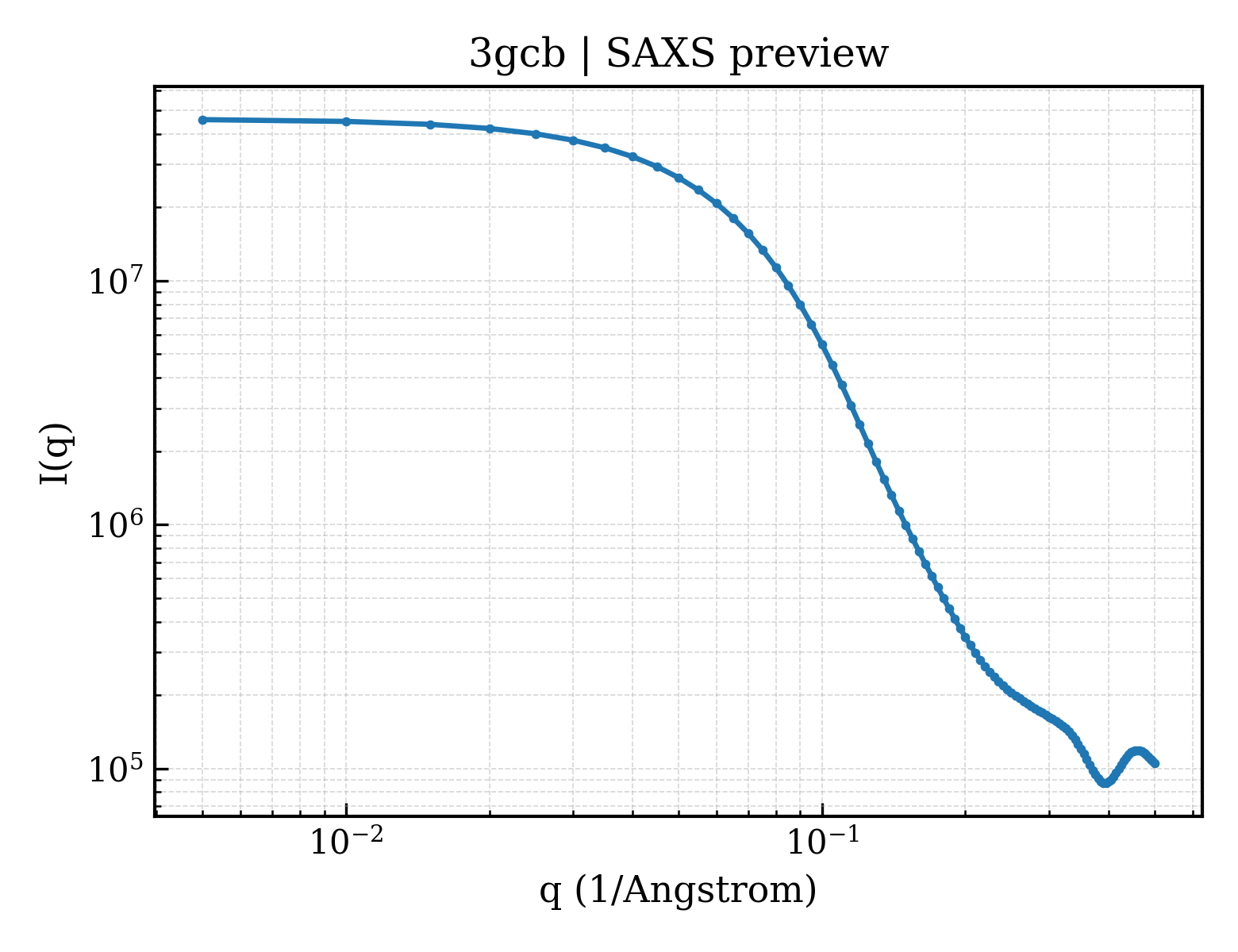

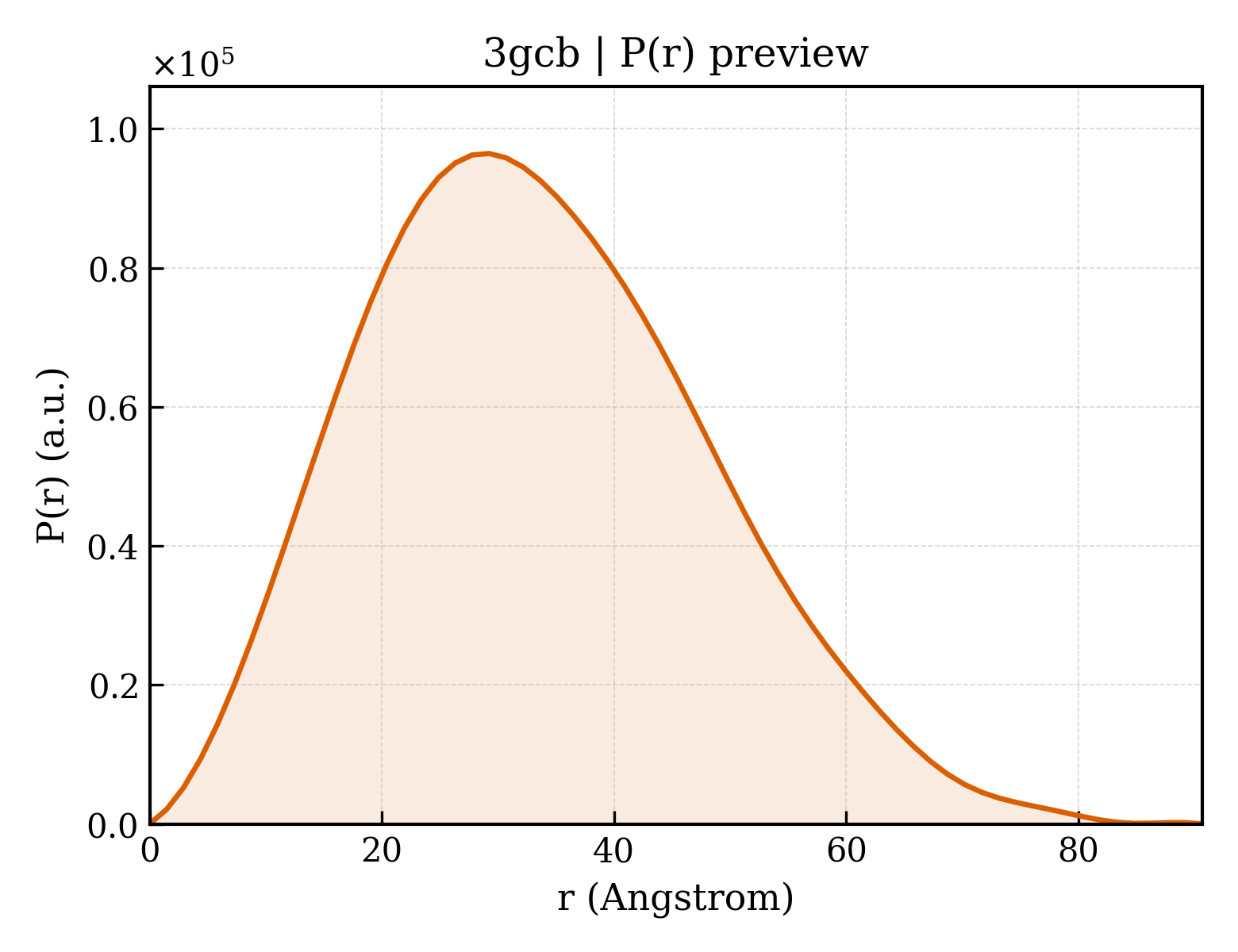

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 43.40 Å |
| Rg (electron density) | 42.69 Å |
| Total Rg | 43.19 Å |
| Atom count | 22386 |
| Residues | 2748 |
| Excluded volume | 399870 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d3gcba_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.3 — Cysteine proteinases |
| Superfamily Superfamily superfamily | d.3.1 — Cysteine proteinases |
| Family Family family | d.3.1.1 — Papain-like |
| Domain ID domain_id | 3gcbA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 70 — Cathepsin B; Chain A |
| Homologous superfamily homologous superfamily | 10 — Cysteine proteinases |
