SAXSdb — 3hxi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic translation initiation factor 4E-binding protein 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Eukaryotic Translation Initiation 4E × 1 7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-GUANOSINE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	4EBP1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 5–21； UniProt 51–67

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3hxi
Deposition date deposition_date	2009-06-20
Structure title title	Crystal structure of Schistosome eIF4E complexed with m7GpppG and 4E-BP
Keywords keywords	protein-mRNA cap complex, Acetylation, Phosphoprotein, Protein synthesis inhibitor, Translation regulation, TRANSLATION; TRANSLATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3hxi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3hxi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

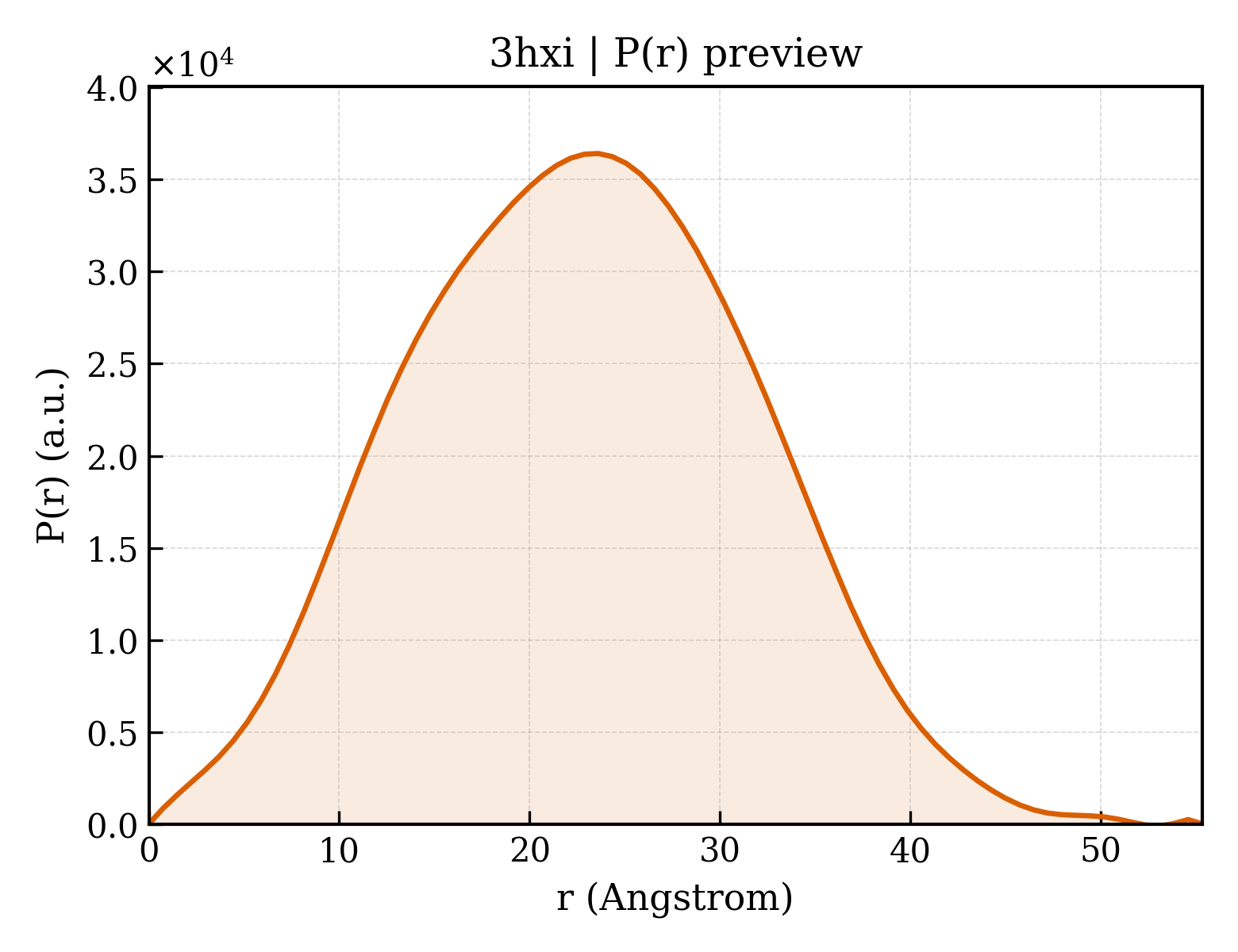

3hxi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.41 Å
Rg (electron density)	16.02 Å
Total Rg	17.09 Å
Atom count	1675
Residues	196
Excluded volume	29378 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3hxi__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Eukaryotic Translation Initiation 4E
Molecular weight formula_weight	22237.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1809

GPLGSPEFPHPLQDSWSYYLFQFRKALDWDECLEKVATFSTIEDFWSVLTHTVRPREITYGKDLYMFKSDIMPKWEDPKNENGGRWLINVTARQDVDFLWDELLMLLIGSDWDTDEEDRQICGAVFQPRSRGSKLSVWLTSDNEEETILSIGRRIKERLELEDTIYFQPVSDQRSQTRGSDICTGKYEI

Source Source

Source organism organism	Schistosoma mansoni
NCBI taxonomy ID ncbi_taxonomy_id	6183
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Eukaryotic translation initiation factor 4E-binding protein 1
Molecular weight formula_weight	2432.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SGSGRIIYDRKFLMECRNSPV

Entity 3 Entity 3 non-polymer

Description description	7-METHYL-GUANOSINE-5'-TRIPHOSPHATE-5'-GUANOSINE
Molecular weight formula_weight	803.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	112

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3hxia1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.86 — eIF4e-like
Superfamily Superfamily superfamily	d.86.1 — eIF4e-like
Family Family family	d.86.1.0 — automated matches

Domain ID domain_id	d3hxia2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	3hxiA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	760 — RNA Cap, Translation Initiation Factor Eif4e
Homologous superfamily homologous superfamily	10 — RNA Cap, Translation Initiation Factor Eif4e

▶

Unit-cell length a length_a	45.311 Å
Unit-cell length b length_b	125.330 Å
Unit-cell length c length_c	37.330 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	24.000 Å
R factor r_factor	0.2235
R_work r_work	0.2183
R_free r_free	0.2716
