SAXSdb — 3jsy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acidic ribosomal protein P0 homolog

Methanocaldococcus jannaschii

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 10–221	Fragment：N-terminal fragment, residues in UNP 10-221	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；KSCN, PEG4000, NaAcetate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.233
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 10–221	Fragment：N-terminal fragment, residues in UNP 10-221	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；KSCN, PEG4000, NaAcetate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.60 Å R-free 0.233

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3JSY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5D6G CRYSTAL STRUCTURE OF FRAGMENT OF RIBOSOMAL PROTEIN P0 IN COMPLEX WITH 74NT 23S RNA FROM METHANOCOCCUS JANNASCHII Deposited 2015-08-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 10–221（212 aa）	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；50 mM Sodium Cacodylate, pH 6.5, 0.2 M KCl, 0.1 M Magnesium acetate, 9% PEG 6000, 0.5 mM CTAB	Resolution 3.30 Å R-free 0.298
5D8H CRYSTAL STRUCTURE OF THE BASE OF THE RIBOSOMAL P STALK FROM METHANOCOCCUS JANNASCHII WITH ANTIBIOTIC THIOSTREPTON Deposited 2015-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: tetrameric	Chain B 9–221（213 aa） Fragment：UNP residues 9-221	Mutation：Met changed to SeMet Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 11 NA SODIUM ION × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；0.1 mM Tris-HCl, pH 7.5, 10% PEG 8000, 20% glycerol, 1 mM TCEP (tris(2-carboxyethyl)phosphine), 0.125 mM CTAB	Resolution 2.80 Å R-free 0.245
5DAR CRYSTAL STRUCTURE OF THE BASE OF THE RIBOSOMAL P STALK FROM METHANOCOCCUS JANNASCHII Deposited 2015-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain B 9–221（213 aa）	Not recorded	MG MAGNESIUM ION × 5 CL CHLORIDE ION × 2 K POTASSIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；50 mM Tris-HCl, pH 7.5, 0.15 M KCl, 20 mM MgCl2, 15% PEG 4000	Resolution 2.90 Å R-free 0.297
5DAR CRYSTAL STRUCTURE OF THE BASE OF THE RIBOSOMAL P STALK FROM METHANOCOCCUS JANNASCHII Deposited 2015-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Heteromer；Protein × 2 PDB declaration: trimeric	Chain E 9–221（213 aa）	Not recorded	MG MAGNESIUM ION × 3 CL CHLORIDE ION × 1 K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；50 mM Tris-HCl, pH 7.5, 0.15 M KCl, 20 mM MgCl2, 15% PEG 4000	Resolution 2.90 Å R-free 0.297

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RLA0_METJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–213； UniProt 10–221 Author chain B； PDBConstruct 2–213； UniProt 10–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3jsy
Deposition date deposition_date	2009-09-11
Structure title title	N-terminal fragment of ribosomal protein L10 from Methanococcus jannaschii
Keywords keywords	ribosomal protein, L10, Ribonucleoprotein; RIBOSOMAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.07 Å
Radius of gyration Rg (electron density) rg_electron	28.97 Å
Forward intensity I(0) i0	30076500.00
Molecular weight molecular_weight	45721.0 kDa
Excluded volume excluded_volume	58944 Å³
Envelope volume envelope_volume	76476 Å³
Hydration-shell volume shell_volume	24392 Å³
Envelope diameter envelope_diameter	98.7 Å
Shell Rg shell_rg	32.66 Å
Envelope Rg envelope_rg	29.08 Å
Shape Rg shape_rg	28.95 Å
Total Rg total_rg	29.45 Å
Total atoms total_atoms	3207
Residues n_residues	418
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.4 Å
Rg (real space) rg_real	29.26 Å
Rg uncertainty (real space) rg_real_error	0.89 Å
I(0) (real space) i0_real	3.0080e+07
I(0) uncertainty (real space) i0_real_error	4.3100e+05
Rg (reciprocal space) rg_reciprocal	29.18 Å
I(0) (reciprocal space) i0_reciprocal	30070000.0000
Solution quality estimate total_estimate	0.8647
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	28.3 Å
Skewness Skewness skewness	0.470
Kurtosis Kurtosis kurtosis	-0.403
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4005000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.861; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.767; Smooth: 0.888

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	3jsyA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1730 — Ribosomal protein L10, N-terminal RNA-binding domain

Domain ID domain_id	3jsyA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	105 — Molybdopterin biosynthesis moea protein, domain 2
Homologous superfamily homologous superfamily	20 — Ribosomal protein L10, N-terminal fragment, domain II

Domain ID domain_id	3jsyB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1730 — Ribosomal protein L10, N-terminal RNA-binding domain

Domain ID domain_id	3jsyB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	105 — Molybdopterin biosynthesis moea protein, domain 2
Homologous superfamily homologous superfamily	20 — Ribosomal protein L10, N-terminal fragment, domain II

▶

8. Citations (1)

▶

Unit-cell length a length_a	57.000 Å
Unit-cell length b length_b	70.080 Å
Unit-cell length c length_c	97.960 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.1841
R_work r_work	0.1816
R_free r_free	0.2332

Description description	Acidic ribosomal protein P0 homolog
Molecular weight formula_weight	23353.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3640

N-terminal fragment of ribosomal protein L10 from Methanococcus jannaschii

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acidic ribosomal protein P0 homolog

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

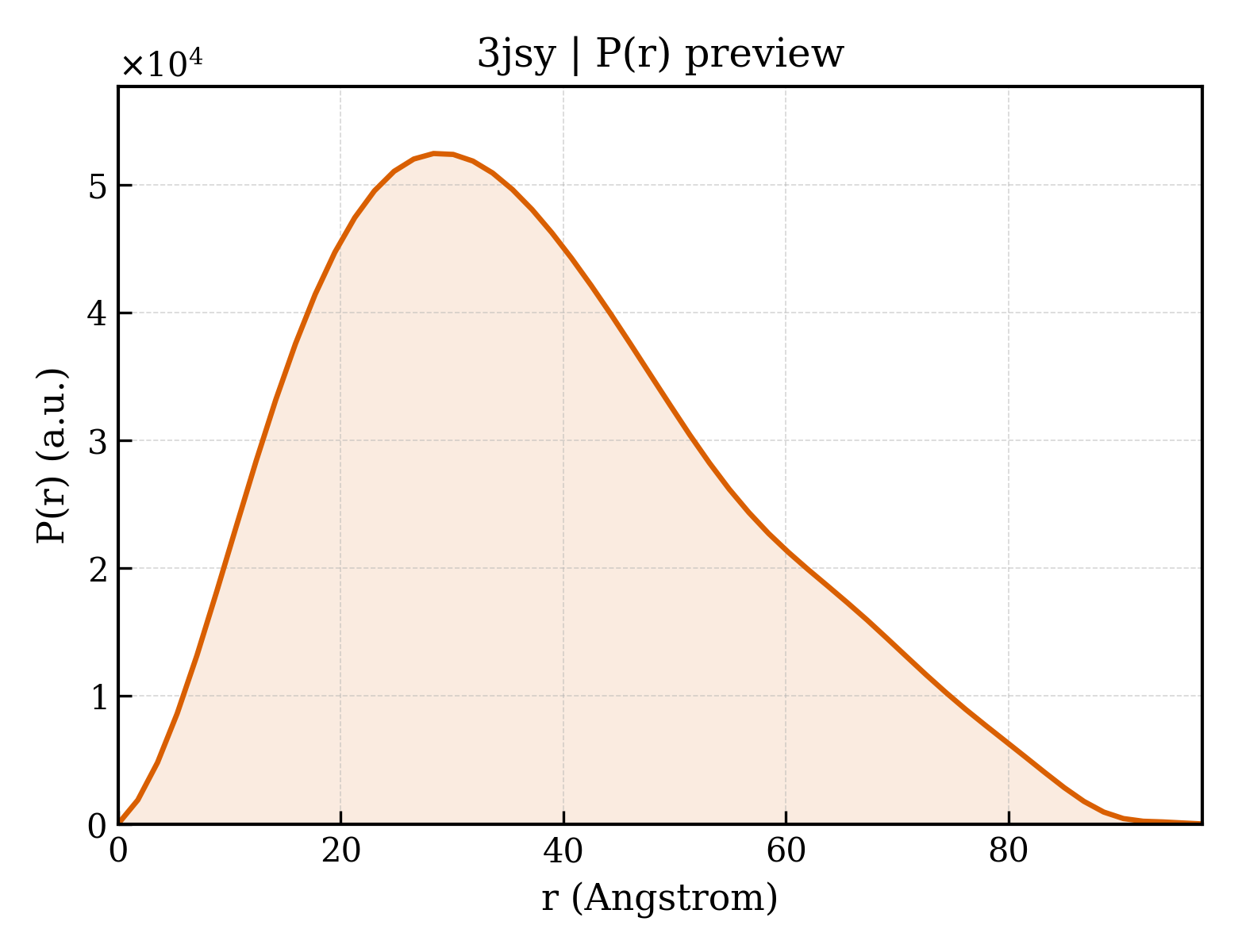

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Methanocaldococcus jannaschii
NCBI Class编号 ncbi_taxonomy_id	2190
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	392

fit	/app/data/saxs_computation/js/3jsy/3jsy.fit
pddf	/app/data/pr_computation/js/3jsy/3jsy.pr.out
profile	/app/data/saxs_computation/js/3jsy/3jsy.dat
