SAXSdb — 5d6g

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

50S ribosomal protein L10

Methanocaldococcus jannaschii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Monomer	Protein 1 RNA 1	23S ribosomal RNA × 1 MAGNESIUM ION × 2 water × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RL10_METJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–213； UniProt 10–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5d6g
Deposition date deposition_date	2015-08-12
Structure title title	CRYSTAL STRUCTURE OF FRAGMENT OF RIBOSOMAL PROTEIN P0 IN COMPLEX WITH 74NT 23S RNA FROM METHANOCOCCUS JANNASCHII
Keywords keywords	Archaeal Proteins, Methanococcus, Protein Structure, RNA, Ribosomal Proteins, Ribosomes, translation; TRANSLATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5d6g__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

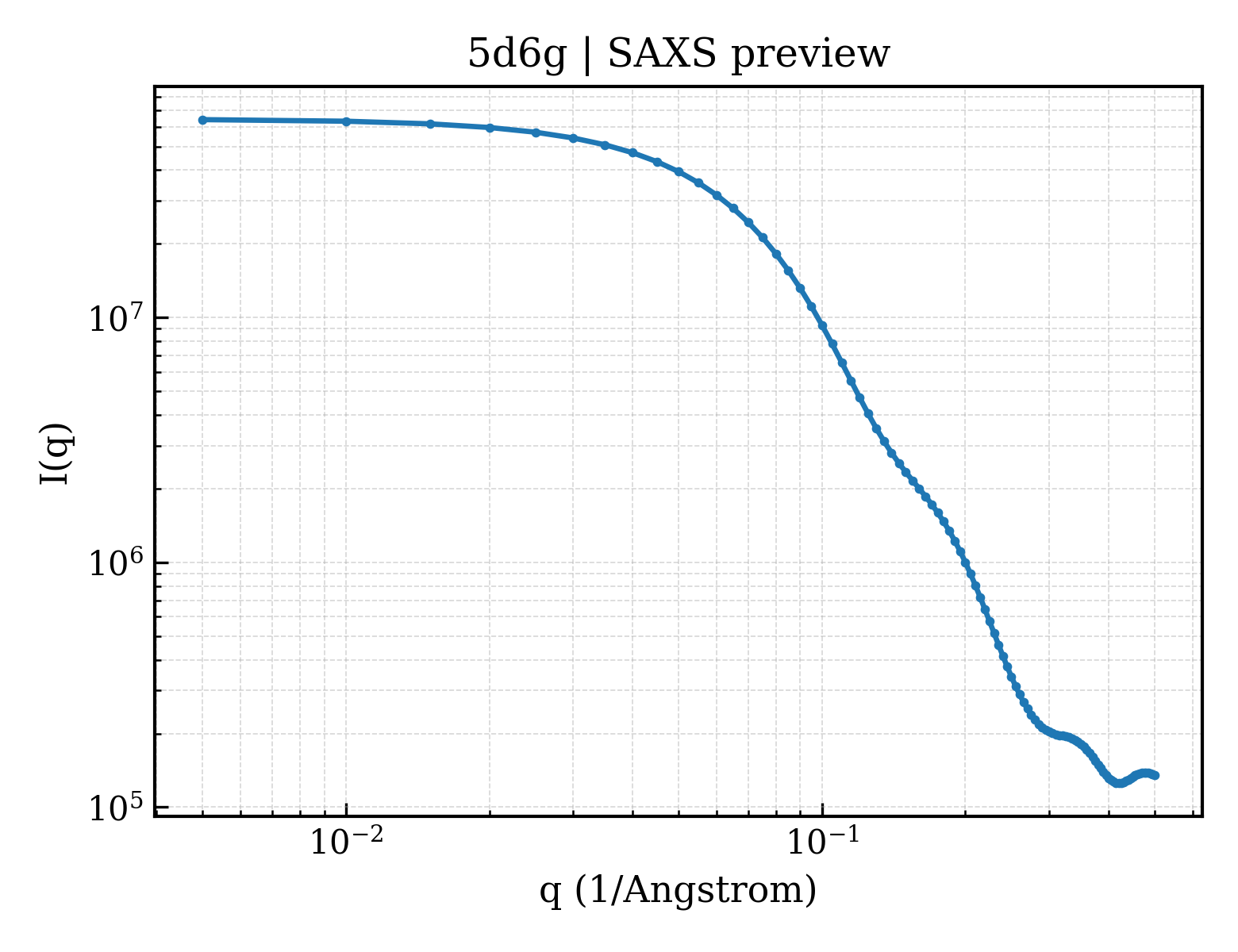

5d6g__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5d6g__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.34 Å
Rg (electron density)	24.36 Å
Total Rg	24.95 Å
Atom count	3162
Residues	279
Excluded volume	51303 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5d6g__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	50S ribosomal protein L10
Molecular weight formula_weight	23353.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3167

MAPWKIEEVKTLKGLIKSKPVVAIVDMMDVPAPQLQEIRDKIRDKVKLRMSRNTLIIRALKEAAEELNNPKLAELANYVERGAAILVTDMNPFKLYKLLEENKSPAPVRGGQIAPCDIKVEKGSTGMPPGPFLGELKSVGIPAAIEKGKIAIKEDKVVVKKGEVVSPKLAAVLDRLGIKPIKVGLNILAVYEDGIIYTPDVLKVDEEKLLADI

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	23S ribosomal RNA
Molecular weight formula_weight	23928.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	0

GCCUAAGACAGCGGGGAGGUUGGCUUAGAAGCAGCCAUCCUUUAAAGAGUGCGUAACAGCUCACCCGUCGAGGC

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5d6gA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1730 — Ribosomal protein L10, N-terminal RNA-binding domain

Domain ID domain_id	5d6gA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	105 — Molybdopterin biosynthesis moea protein, domain 2
Homologous superfamily homologous superfamily	20 — Ribosomal protein L10, N-terminal fragment, domain II

▶

Unit-cell length a length_a	104.230 Å
Unit-cell length b length_b	108.310 Å
Unit-cell length c length_c	112.950 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	24.827 Å
R factor r_factor	0.2475
R_work r_work	0.2450
R_free r_free	0.2985

CRYSTAL STRUCTURE OF FRAGMENT OF RIBOSOMAL PROTEIN P0 IN COMPLEX WITH 74NT 23S RNA FROM METHANOCOCCUS JANNASCHII
