1. Protein Identity and Related Structures Protein Identity & Related Structures

Fab NC-1 kappa light chain

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 130–235	Not recorded	Fab NC-1 IgG2a heavy chain × 1 （P01863） GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；295 K；1.13M sodium citrate, 0.1M sodium borate, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.60 Å R-free 0.233

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3OZ9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4NJ9 Crystal structure of Fab 8B10 in complex with MPTS Deposited 2013-11-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 130–236（107 aa）	Not recorded	ZN ZINC ION × 6 2M9 8-methoxypyrene-1,3,6-trisulfonic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2M zinc acetate, 18% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K	Resolution 1.95 Å R-free 0.264
4NJA Crystal structure of Fab 6C8 in complex with MPTS Deposited 2013-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 130–236（107 aa）	Not recorded	ZN ZINC ION × 2 ACT ACETATE ION × 2 2M9 8-methoxypyrene-1,3,6-trisulfonic acid × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；20mM zinc acetate, 12% PEG 8000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298.0K	Resolution 2.20 Å R-free 0.265

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q52L95_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 106–211； UniProt 130–235

Fab NC-1 IgG2a heavy chain

OrganismNot specified

UniProt P01863

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 1–100	Not recorded	Fab NC-1 kappa light chain × 1 （Q52L95） GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；295 K；1.13M sodium citrate, 0.1M sodium borate, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.60 Å R-free 0.233

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3OZ9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GGI CRYSTAL STRUCTURE OF AN HIV-1 NEUTRALIZING ANTIBODY 50.1 IN COMPLEX WITH ITS V3 LOOP PEPTIDE ANTIGEN Deposited 1993-04-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1GGI CRYSTAL STRUCTURE OF AN HIV-1 NEUTRALIZING ANTIBODY 50.1 IN COMPLEX WITH ITS V3 LOOP PEPTIDE ANTIGEN Deposited 1993-04-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 1–107（107 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1IGT STRUCTURE OF IMMUNOGLOBULIN Deposited 1996-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–326（326 aa） Chain D 1–326（326 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；291 K；7 MICROLITERS OF 4.3 MG/ML MAB231, 3 MICROLITERS 50 MILLIMOLAR TRIS PH 8.0, AND 7 MICROLITERS 4% PEG 3350 EQUILIBRATED AGAINST 25 ML RESERVOIRS OF 4% PEG 3350, AT 18 DEGREE CELSIUS (SANDWICH PLATE)., temperature 291K	Resolution 2.80 Å R-free 0.297
1YEC STRUCTURE OF A CATALYTIC ANTIBODY IGG2A FAB FRAGMENT (D2.3) Deposited 1997-04-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa）	Not recorded	ZN ZINC ION × 7 PNB 4-NITRO-BENZYLPHOSPHONOBUTANOYL-GLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 1.90 Å R-free 0.252
1YEC STRUCTURE OF A CATALYTIC ANTIBODY IGG2A FAB FRAGMENT (D2.3) Deposited 1997-04-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa）	Not recorded	ZN ZINC ION × 7 PNB 4-NITRO-BENZYLPHOSPHONOBUTANOYL-GLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 1.90 Å R-free 0.252
1YEF STRUCTURE OF IGG2A FAB FRAGMENT (D2.3) COMPLEXED WITH SUBSTRATE ANALOGUE Deposited 1997-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa）	Not recorded	ZN ZINC ION × 8 PNC PARA-NITROBENZYL GLUTARYL GLYCINIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP METHOD. PRECIPITANT: 30% (W/V) PEG 600, 100MM CACODYLATE PH7.5, 40MM ZN ACETATE., vapor diffusion - hanging drop	Resolution 2.00 Å R-free 0.248
1YEG STRUCTURE OF IGG2A FAB FRAGMENT (D2.3) COMPLEXED WITH REACTION PRODUCT Deposited 1997-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa）	Not recorded	ZN ZINC ION × 7 BPN PARANITROBENZYL ALCOHOL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP METHOD. PRECIPITANT: 30% (W/V) PEG 600, 100MM CACODYLATE PH7.5, 40MM ZN ACETATE., vapor diffusion - hanging drop	Resolution 2.00 Å R-free 0.240
1YEG STRUCTURE OF IGG2A FAB FRAGMENT (D2.3) COMPLEXED WITH REACTION PRODUCT Deposited 1997-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa）	Not recorded	ZN ZINC ION × 7 BPN PARANITROBENZYL ALCOHOL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP METHOD. PRECIPITANT: 30% (W/V) PEG 600, 100MM CACODYLATE PH7.5, 40MM ZN ACETATE., vapor diffusion - hanging drop	Resolution 2.00 Å R-free 0.240
1YEH STRUCTURE OF IGG2A FAB FRAGMENT Deposited 1997-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa）	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP METHOD. PRECIPITANT: 35% (W/V) PEG 600, 100MM CACODYLATE PH7.5, 40MM ZN ACETATE., vapor diffusion - hanging drop	Resolution 2.55 Å R-free 0.231
1YEH STRUCTURE OF IGG2A FAB FRAGMENT Deposited 1997-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa）	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP METHOD. PRECIPITANT: 35% (W/V) PEG 600, 100MM CACODYLATE PH7.5, 40MM ZN ACETATE., vapor diffusion - hanging drop	Resolution 2.55 Å R-free 0.231
3ZO0 Mouse IgG2a in complex with mouse TRIM21 PRYSPRY Deposited 2013-02-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 120–327（208 aa） Fragment：FC, RESIDUES 120-327	Not recorded	MAN alpha-D-mannopyranose × 2 FUC alpha-L-fucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.99 Å R-free 0.253
5VAA Crystal structure of mouse IgG2a Fc T370K mutant Deposited 2017-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 107–330（224 aa） Fragment：UNP residues 107-330 Chain B 107–330（224 aa） Fragment：UNP residues 107-330	Mutation：T370K Mutation：T370K	GOL GLYCEROL × 3 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；40% (w/v) PEG 200, 0.1 M MES, pH 6.5	Resolution 1.55 Å R-free 0.195
8AQW BA.4/5 SARS-CoV-2 Spike bound to mouse ACE2 (local) Deposited 2022-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 98–330（233 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9RBQ Semliki Forest virus trimer 1 in complex with ApoER2 LA5 Deposited 2025-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 13 PDB declaration: 13-meric	Chain A 99–330（232 aa）	Not recorded	CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å

10 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GCAA_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 120–219； UniProt 1–100

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3oz9
Deposition date deposition_date	2010-09-24
Structure title title	Crystal Structure of anti-gp41 Fab NC-1
Keywords keywords	immunoglobulin fold, non-neutralizing antibody, HIV-1 gp41 6-helix bundle core, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.08 Å
Radius of gyration Rg (electron density) rg_electron	24.11 Å
Forward intensity I(0) i0	37538600.00
Molecular weight molecular_weight	46982.0 kDa
Excluded volume excluded_volume	58490 Å³
Envelope volume envelope_volume	70662 Å³
Hydration-shell volume shell_volume	24518 Å³
Envelope diameter envelope_diameter	80.6 Å
Shell Rg shell_rg	31.12 Å
Envelope Rg envelope_rg	23.88 Å
Shape Rg shape_rg	24.10 Å
Total Rg total_rg	24.93 Å
Total atoms total_atoms	3307
Residues n_residues	424
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.6 Å
Rg (real space) rg_real	25.05 Å
Rg uncertainty (real space) rg_real_error	0.50 Å
I(0) (real space) i0_real	3.7540e+07
I(0) uncertainty (real space) i0_real_error	4.8460e+05
Rg (reciprocal space) rg_reciprocal	25.06 Å
I(0) (reciprocal space) i0_reciprocal	37540000.0000
Solution quality estimate total_estimate	0.9107
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.7 Å
Skewness Skewness skewness	0.261
Kurtosis Kurtosis kurtosis	-0.532
Angular range angular_range	— – 0.3150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8566000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.981

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Fab NC-1 kappa light chain
Molecular weight formula_weight	23102.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3833

QIVLTQSPVIMSASLGEEITLTCSASSSVSYMHWYQQKSGTSPKLLIYSTSNLASGVPSRFSGSGSGTFYSLTISSVEAEDAADYYCHQWSGFYTFGGGTKLEIQRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNE

Entity 2 Entity 2 polymer

Description description	Fab NC-1 IgG2a heavy chain
Molecular weight formula_weight	23584.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQSGTELMKPGSSVKISCKATGYRFSSYWVEWVKQRPGHGLEWIGKILPGIGSTSYNEKFKGKATFTADTSSNTAYMQLSSLTSEDSAVYYCARGYYGPTWFAYWGQGTLVTVSSAKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEPR

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	485

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3oz9h1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d3oz9h2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3oz9l1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d3oz9l2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	3oz9H01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3oz9H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3oz9L01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3oz9L02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.373 Å
Unit-cell length b length_b	61.539 Å
Unit-cell length c length_c	154.373 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	24.380 Å
R factor r_factor	0.1922
R_work r_work	0.1900
R_free r_free	0.2330

fit	/app/data/saxs_computation/oz/3oz9/3oz9.fit
pddf	/app/data/pr_computation/oz/3oz9/3oz9.pr.out
profile	/app/data/saxs_computation/oz/3oz9/3oz9.dat

Crystal Structure of anti-gp41 Fab NC-1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fab NC-1 kappa light chain

State in the Current Structure

Other States of the Same Protein in the Database

Fab NC-1 IgG2a heavy chain

State in the Current Structure

Other States of the Same Protein in the Database

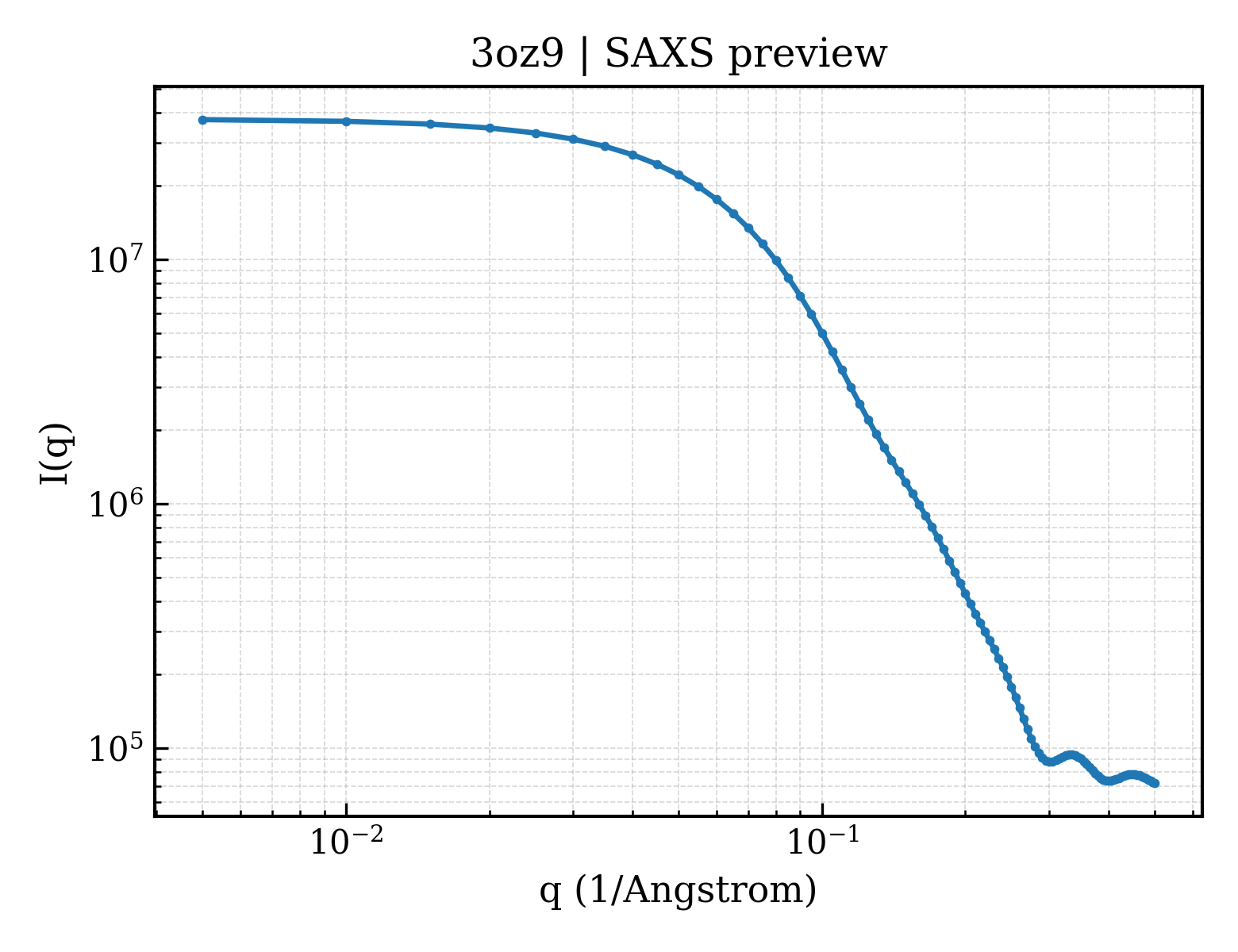

SAXS scattering curve SAXS Profile

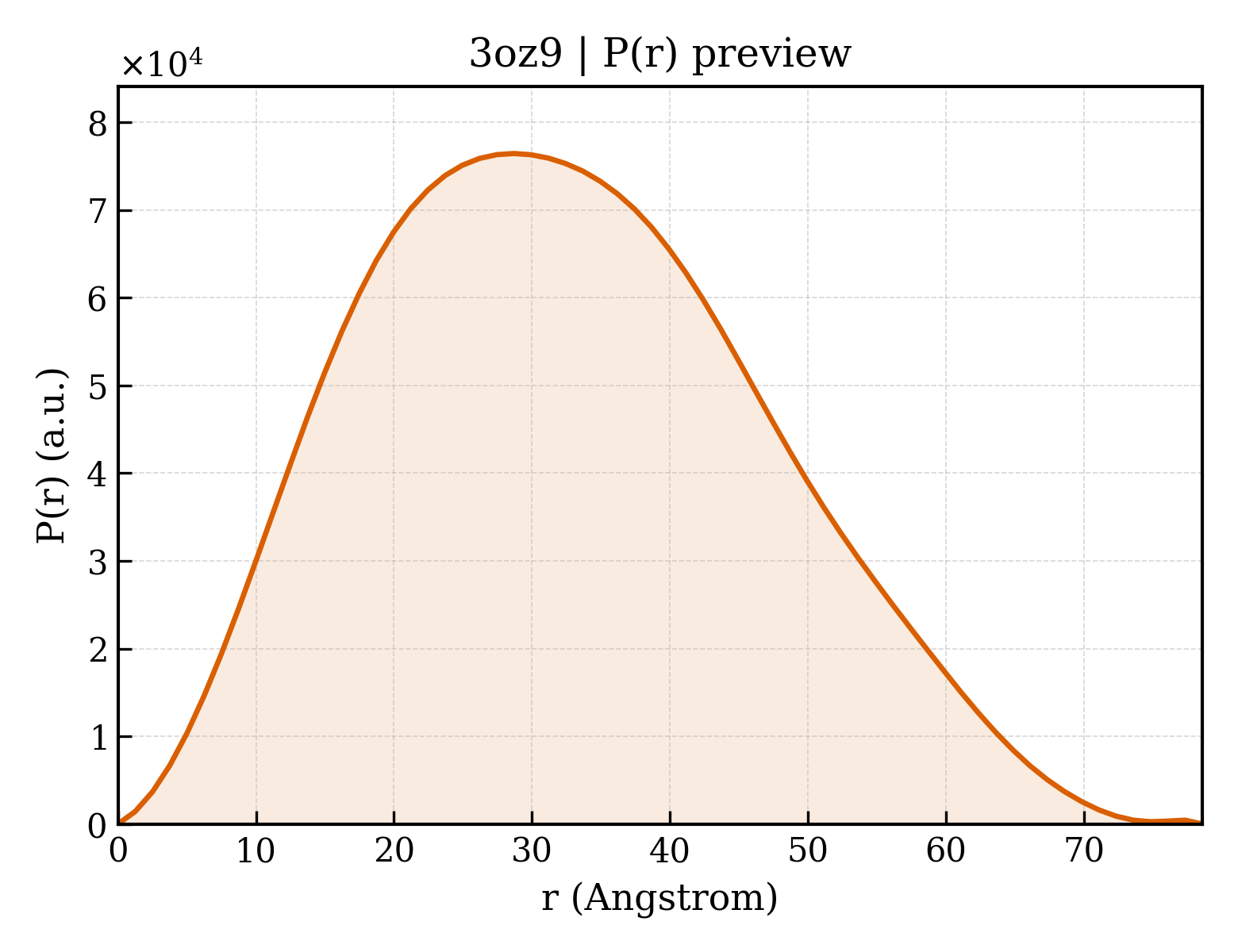

P(r) Distance Distribution P(r) Distribution
