SAXSdb — 3pxe

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Breast cancer type 1 susceptibility protein

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	phospho peptide × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	phospho peptide × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	phospho peptide × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	phospho peptide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRCA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–214； UniProt 1646–1859 Author chain B； PDBConstruct 1–214； UniProt 1646–1859 Author chain C； PDBConstruct 1–214； UniProt 1646–1859 Author chain D； PDBConstruct 1–214； UniProt 1646–1859

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3pxe
Deposition date deposition_date	2010-12-09
Structure title title	Impact of BRCA1 BRCT domain missense substitutions on phospho-peptide recognition: E1836K
Keywords keywords	BRCA1 protein, Missense, Protein binding, phosphopeptide recognition, BRCT domain, Phospho-peptide binding, nuclear protein; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3pxe__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3pxe__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

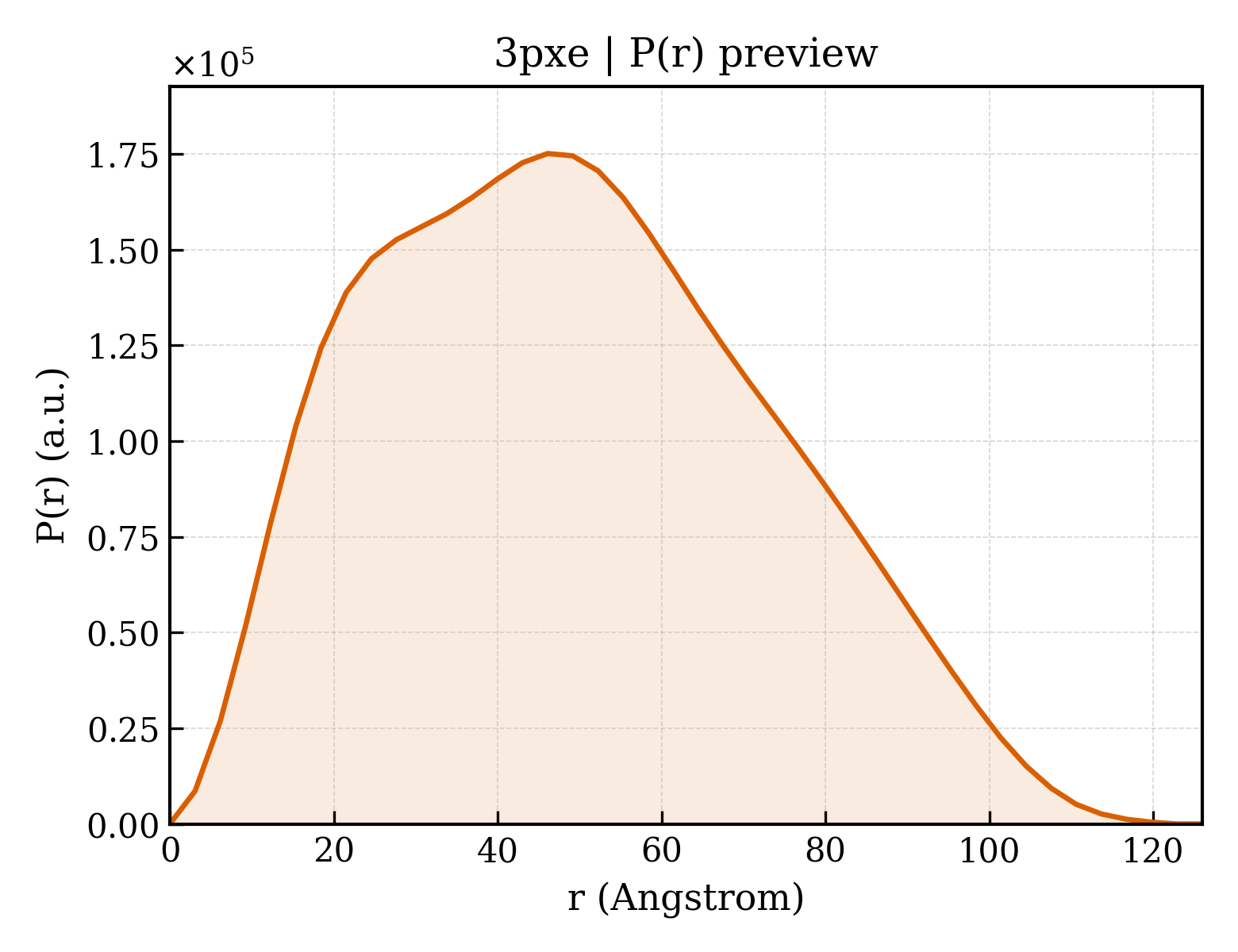

3pxe__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.45 Å
Rg (electron density)	18.77 Å
Total Rg	19.60 Å
Atom count	1728
Residues	217
Excluded volume	30886 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3pxe__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3pxe__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`3pxe__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`3pxe__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Breast cancer type 1 susceptibility protein
Molecular weight formula_weight	24531.3 kDa
EC 编号 ec_number	6.3.2.-
Mutation mutation	E1836K
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6831

VNKRMSMVVSGLTPEEFMLVYKFARKHHITLTNLITEETTHVVMKTDAEFVCERTLKYFLGIAGGKWVVSYFWVTQSIKERKMLNEHDFEVRGDVVNGRNHQGPKRARESQDRKIFRGLEICCYGPFTNMPTDQLEWMVQLCGASVVKELSSFTLGTGVHPIVVVQPDAWTEDNGFHAIGQMCEAPVVTRKWVLDSVALYQCQELDTYLIPQIP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	phospho peptide
Molecular weight formula_weight	1206.2 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

SRSTSPTFNK

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	16

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	3pxeA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3pxeA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3pxeB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3pxeB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3pxeC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3pxeC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3pxeD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

Domain ID domain_id	3pxeD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10190 — BRCT domain

▶

Unit-cell length a length_a	115.820 Å
Unit-cell length b length_b	131.050 Å
Unit-cell length c length_c	180.840 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	44.363 Å
R factor r_factor	0.2226
R_work r_work	0.2202
R_free r_free	0.2660
