SAXSdb — 3pyc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase SMURF1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 13–140	Fragment：C2 domain, UNP residues 13-140	SO4 SULFATE ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M HEPES (pH 6.5), 2M ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.96 Å R-free 0.241

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3PYC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LAZ Structure of the first WW domain of human Smurf1 in complex with a mono-phosphorylated human Smad1 derived peptide Deposited 2011-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 235–267（33 aa） Fragment：residues 235-267	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；285 K；Ionic strength (raw mmCIF value) 0.420；Pressure ambient NMR sample composition 1 mM NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LB0 Structure of the first WW domain of human Smurf1 in complex with a di-phosphorylated human Smad1 derived peptide Deposited 2011-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 235–267（33 aa） Fragment：residues 235-267	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；285 K；Ionic strength (raw mmCIF value) 0.420；Pressure ambient NMR sample composition 1 mM NEDD4LWW3-1, 3 mM SMAD3-2, 20 mM sodium phosphate-3, 100 mM sodium chloride-4, 2 mM sodium azide-5, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] NEDD4LWW3-6, 3 mM SMAD3-7, 20 mM sodium phosphate-8, 100 mM sodium chloride-9, 2 mM sodium azide-10, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW3-11, 3 mM SMAD3-12, 20 mM sodium phosphate-13, 100 mM sodium chloride-14, 2 mM sodium azide-15, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LB1 Structure of the second domain of human Smurf1 in complex with a human Smad1 derived peptide Deposited 2011-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 305–340（36 aa） Fragment：residues 305-339	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；285 K；Ionic strength (raw mmCIF value) 0.420；Pressure ambient NMR sample composition 1 mM NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] NEDD4LWW3, 3 mM SMAD3, 20 mM sodium phosphate, 100 mM sodium chloride, 2 mM sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2LTX Smurf1 WW2 domain in complex with a Smad7 derived peptide Deposited 2012-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 306–340（35 aa） Fragment：WW2 domain (UNP residues 306-340)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；285 K；Pressure ambient NMR sample composition 1 mM SMURF1WW2, 2 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1 mM [U-100% 13C; U-100% 15N] SMURF1WW2, 3 mM SMAD7, 20 mM [U-100% 2H] TRIS, 100 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
9FSJ Crystal structure of the HECT domain of Smurf 1 in complex with inhibitor 8 Deposited 2024-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 377–751（375 aa）	Not recorded	TJQ ethyl 5-[1,3-benzodioxol-5-ylmethyl(ethyl)carbamoyl]-2,4-dimethyl-1~{H}-pyrrole-3-carboxylate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% PEG1500, 100 mM SPG pH 9	Resolution 2.05 Å R-free 0.279
9FSK Crystal structure of the HECT domain of Smurf1 Deposited 2024-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 377–751（375 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25 % PEG 3350, 0.1 M Bis Tris pH 5.9, 0.2 M MgCl2, 0.02 M NH4OAc	Resolution 2.75 Å R-free 0.301
9FSK Crystal structure of the HECT domain of Smurf1 Deposited 2024-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 377–751（375 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25 % PEG 3350, 0.1 M Bis Tris pH 5.9, 0.2 M MgCl2, 0.02 M NH4OAc	Resolution 2.75 Å R-free 0.301
9FSK Crystal structure of the HECT domain of Smurf1 Deposited 2024-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 377–751（375 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25 % PEG 3350, 0.1 M Bis Tris pH 5.9, 0.2 M MgCl2, 0.02 M NH4OAc	Resolution 2.75 Å R-free 0.301
9FSK Crystal structure of the HECT domain of Smurf1 Deposited 2024-06-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 377–751（375 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25 % PEG 3350, 0.1 M Bis Tris pH 5.9, 0.2 M MgCl2, 0.02 M NH4OAc	Resolution 2.75 Å R-free 0.301

6 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SMUF1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–132； UniProt 13–140

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3pyc
Deposition date deposition_date	2010-12-13
Structure title title	Crystal structure of human SMURF1 C2 domain
Keywords keywords	phospholipid binding, membrane associate, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.12 Å
Radius of gyration Rg (electron density) rg_electron	15.04 Å
Forward intensity I(0) i0	4520780.00
Molecular weight molecular_weight	14977.0 kDa
Excluded volume excluded_volume	18700 Å³
Envelope volume envelope_volume	21432 Å³
Hydration-shell volume shell_volume	12397 Å³
Envelope diameter envelope_diameter	60.5 Å
Shell Rg shell_rg	20.41 Å
Envelope Rg envelope_rg	15.53 Å
Shape Rg shape_rg	15.06 Å
Total Rg total_rg	16.06 Å
Total atoms total_atoms	1049
Residues n_residues	132
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

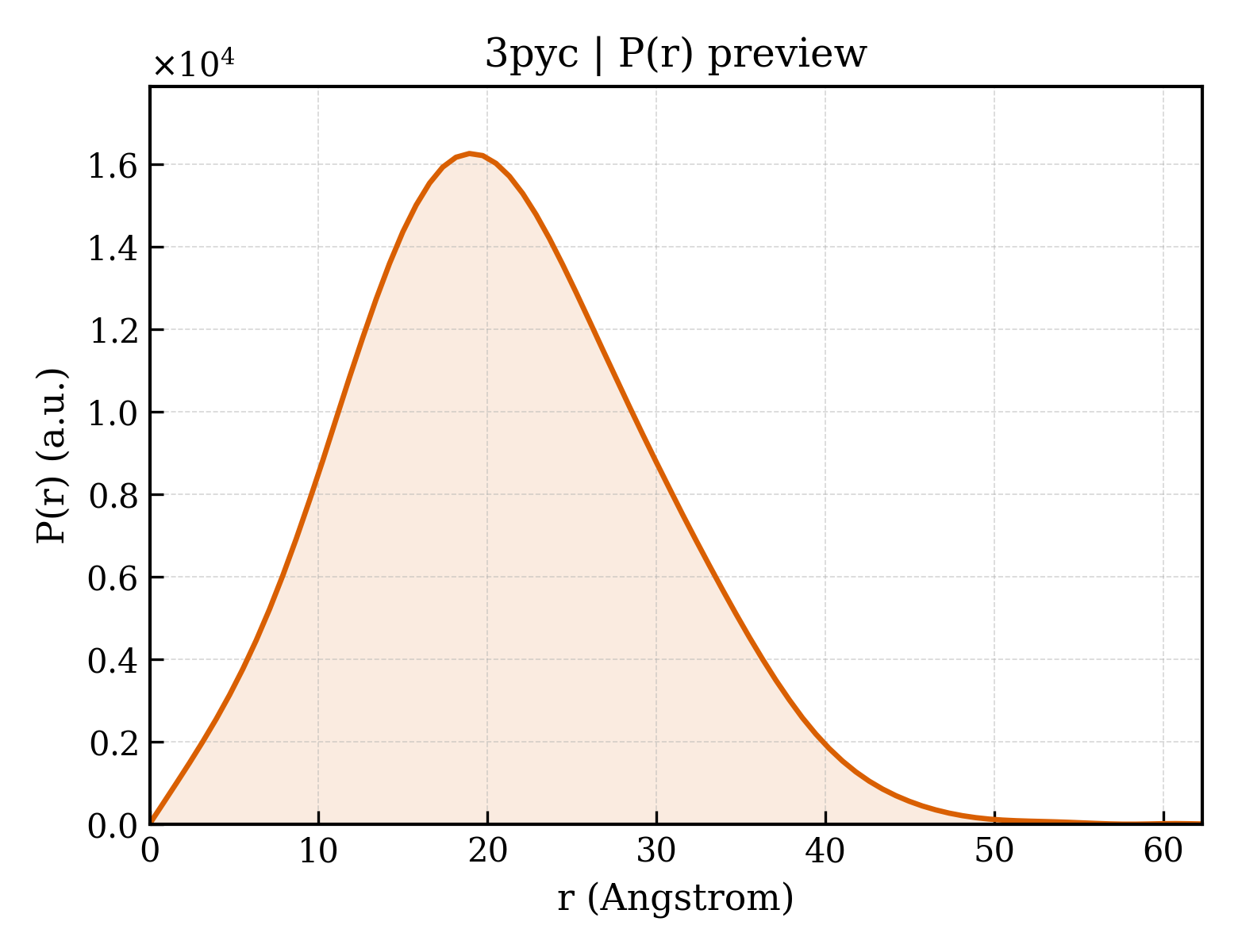

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	62.3 Å
Rg (real space) rg_real	16.08 Å
Rg uncertainty (real space) rg_real_error	0.51 Å
I(0) (real space) i0_real	4.5210e+06
I(0) uncertainty (real space) i0_real_error	6.0400e+04
Rg (reciprocal space) rg_reciprocal	16.09 Å
I(0) (reciprocal space) i0_reciprocal	4521000.0000
Solution quality estimate total_estimate	0.7957
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.9 Å
Skewness Skewness skewness	0.310
Kurtosis Kurtosis kurtosis	-0.167
Angular range angular_range	— – 0.4950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	794100.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.503; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.833; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase SMURF1
Molecular weight formula_weight	14841.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1113

GSEFIKIRLTVLCAKNLAKKDFFRLPDPFAKIVVDGSGQCHSTDTVKNTLDPKWNQHYDLYVGKTDSITISVWNHKKIHKKQGAGFLGCVRLLSNAISRLKDTGYQRLDLCKLNPSDTDAVRGQIVVSLQTR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	54

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3pycA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	30.959 Å
Unit-cell length b length_b	47.048 Å
Unit-cell length c length_c	91.266 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.960 Å
Low-resolution limit resolution_low	32.760 Å
R factor r_factor	0.2058
R_work r_work	0.2041
R_free r_free	0.2412
