1. Protein Identity and Related Structures Protein Identity & Related Structures

Multidrug-efflux transporter 1 regulator

Bacillus subtilis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 1–276	Not recorded	23 bp promoter DNA × 2 M4A 2-methylquinolin-4-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；1.0 M Sodium Malonate, 0.05% Jeffamine-M600, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.272

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3Q1M	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BOW MULTIDRUG-BINDING DOMAIN OF TRANSCRIPTION ACTIVATOR BMRR (APO FORM) Deposited 1998-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 121–279（159 aa） Fragment：MULTIDRUG-BINDING DOMAIN	Not recorded	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.70 Å R-free 0.270
1EXI CRYSTAL STRUCTURE OF TRANSCRIPTION ACTIVATOR BMRR, FROM B. SUBTILIS, BOUND TO 21 BASE PAIR BMR OPERATOR AND TPSB Deposited 2000-05-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	ZN ZINC ION × 2 118 TETRAPHENYLANTIMONIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1 M imidazole, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 3.12 Å R-free 0.317
1EXJ CRYSTAL STRUCTURE OF TRANSCRIPTION ACTIVATOR BMRR, FROM B. SUBTILIS, BOUND TO 21 BASE PAIR BMR OPERATOR AND TPP Deposited 2000-05-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	NA SODIUM ION × 2 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1 M imidazole, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.00 Å R-free 0.315
1R8E Crystal Structure of BmrR Bound to DNA at 2.4A Resolution Deposited 2003-10-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	GOL GLYCEROL × 10 P4P TETRAPHENYLPHOSPHONIUM × 2 IMD IMIDAZOLE × 22	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；Imidazole, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 2.40 Å R-free 0.267
2BOW MULTIDRUG-BINDING DOMAIN OF TRANSCRIPTION ACTIVATOR BMRR IN COMPLEX WITH A LIGAND, TETRAPHENYLPHOSPHONIUM Deposited 1998-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 121–279（159 aa） Fragment：MULTIDRUG-BINDING DOMAIN	Not recorded	MN MANGANESE (II) ION × 2 SO4 SULFATE ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.80 Å R-free 0.320
2BOW MULTIDRUG-BINDING DOMAIN OF TRANSCRIPTION ACTIVATOR BMRR IN COMPLEX WITH A LIGAND, TETRAPHENYLPHOSPHONIUM Deposited 1998-08-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 121–279（159 aa） Fragment：MULTIDRUG-BINDING DOMAIN	Not recorded	MN MANGANESE (II) ION × 2 SO4 SULFATE ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.80 Å R-free 0.320
3D6Y Crystal structure of R275E mutant of BMRR bound to DNA and berberine Deposited 2008-05-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa） Fragment：residues 1-278	Mutation：R275E, A277L, E278D	BER BERBERINE × 2 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.0 M Sodium Malonate, 0.05% Jeffamine-M600, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.259
3D6Z Crystal structure of R275E mutant of BMRR bound to DNA and rhodamine Deposited 2008-05-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa） Fragment：residues 1-278	Mutation：R275E, A277L, E278D	GOL GLYCEROL × 8 RHQ RHODAMINE 6G × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；SODIUM MALONATE, JEFFAMINE-M600, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.263
3D70 Crystal structure of E253A mutant of BMRR bound to 22-bp oligonucleotide Deposited 2008-05-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	IMD IMIDAZOLE × 12 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；SODIUM CITRATE, IMIDAZOLE, TRIFLUOROETHANOL, pH 8.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.273
3D71 Crystal structure of E253Q BMRR bound to 22 base pair promoter site Deposited 2008-05-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa） Fragment：residues 1-278	Mutation：E253Q, A277L, E278D	ZN ZINC ION × 2 FLC CITRATE ANION × 2 PGO S-1,2-PROPANEDIOL × 6 ETF TRIFLUOROETHANOL × 2 IMD IMIDAZOLE × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；SODIUM CITRATE, IMIDAZOLE, TRIFLUOROETHANOL, pH 8.00, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.248
3IAO Conformational plasticity of the coiled coil domain of BmrR is required for bmr promoter binding-the unliganded structure of BmrR Deposited 2009-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–278（278 aa）	Mutation：R275E, E253Q	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；30% PEG 4000, 0.2 M Lithium Sulfate, 0.1M Tris HCl, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.275
3Q2Y Crystal Structure of BmrR bound to ethidium Deposited 2010-12-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	ET ETHIDIUM × 2 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；1.0 M Sodium Malonate, 0.05% jeffamine pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.95 Å R-free 0.246
3Q3D Crystal structure of BmrR bound to puromycin Deposited 2010-12-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	PUY PUROMYCIN × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；291 K；1.0 M Sodium Malonate ) 0.05% jeffamine-M600 pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.79 Å R-free 0.262
3Q5P Crystal structure of BmrR bound to Tetracycline Deposited 2010-12-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	TAC TETRACYCLINE × 2 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；1.0 M Sodium Malonate 0.05% jeffamine pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.94 Å R-free 0.262
3Q5R Crystal structure of BmrR bound to Kanamycin Deposited 2010-12-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	KAN KANAMYCIN A × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；1.0 M Sodium Malonate pH 7.0, 0.05% jeffamine M600, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.05 Å R-free 0.247
3Q5S Crystal structure of BmrR bound to Acetylcholine Deposited 2010-12-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 1–278（278 aa）	Not recorded	ACH ACETYLCHOLINE × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；291 K；1.0 M Sodium Malonate ph 7.0 0.05% Jeffamine M600, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.10 Å R-free 0.276
7CKQ The cryo-EM structure of B. subtilis BmrR transcription activation complex Deposited 2020-07-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain G 1–278（278 aa） Chain I 1–278（278 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å

16 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BMRR_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 1–276

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3q1m
Deposition date deposition_date	2010-12-17
Structure title title	Crystal Structure of BmrR Dimer bound to DNA and the ligand 4-amino-quinaldine
Keywords keywords	Protein-DNA complex, transcription regulator, multi-drug binding, TRANSCRIPTION-DNA complex; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

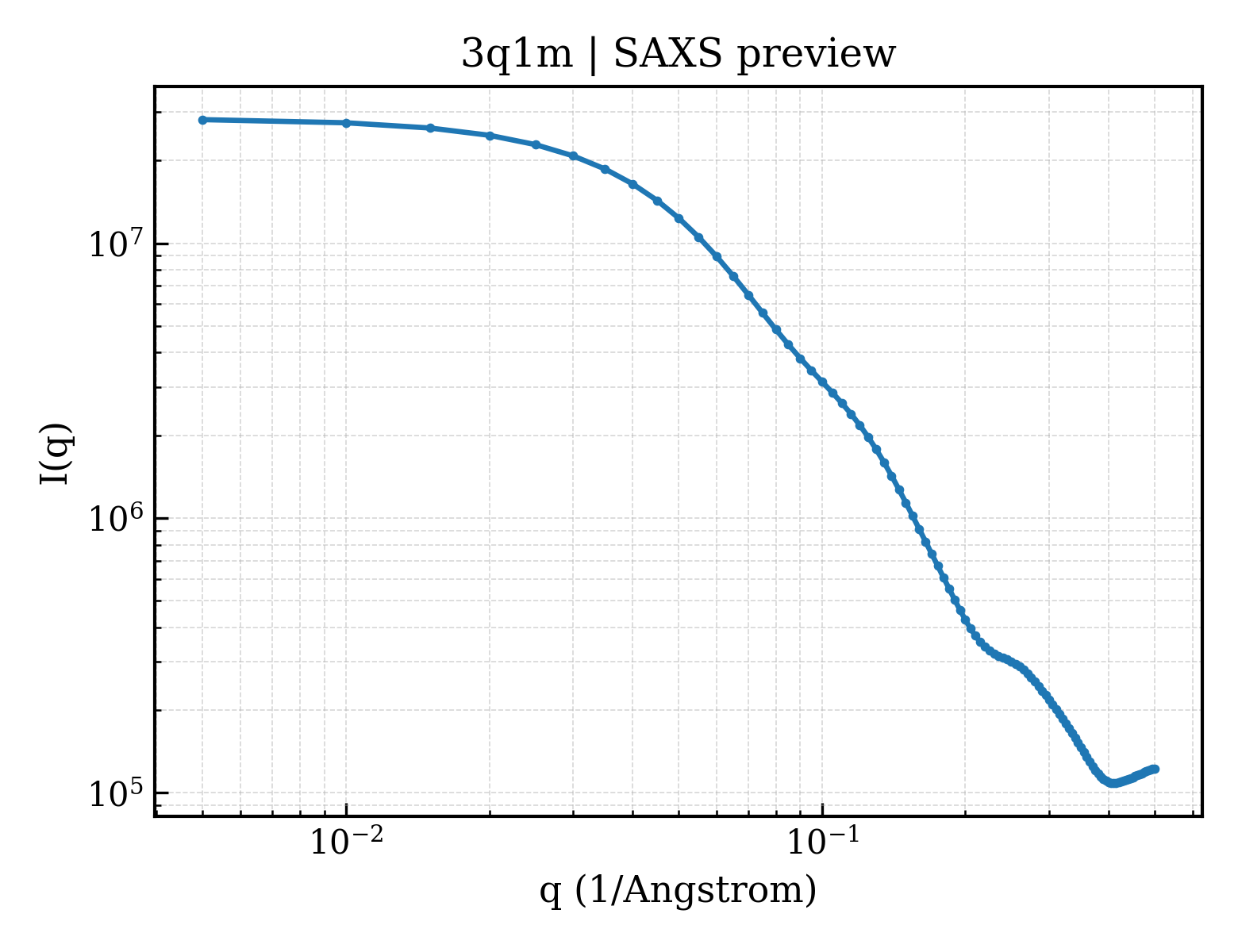

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.26 Å
Radius of gyration Rg (electron density) rg_electron	32.07 Å
Forward intensity I(0) i0	28422600.00
Molecular weight molecular_weight	38048.0 kDa
Excluded volume excluded_volume	45980 Å³
Envelope volume envelope_volume	71402 Å³
Hydration-shell volume shell_volume	20172 Å³
Envelope diameter envelope_diameter	110.1 Å
Shell Rg shell_rg	36.14 Å
Envelope Rg envelope_rg	30.77 Å
Shape Rg shape_rg	32.07 Å
Total Rg total_rg	32.45 Å
Total atoms total_atoms	2658
Residues n_residues	299
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

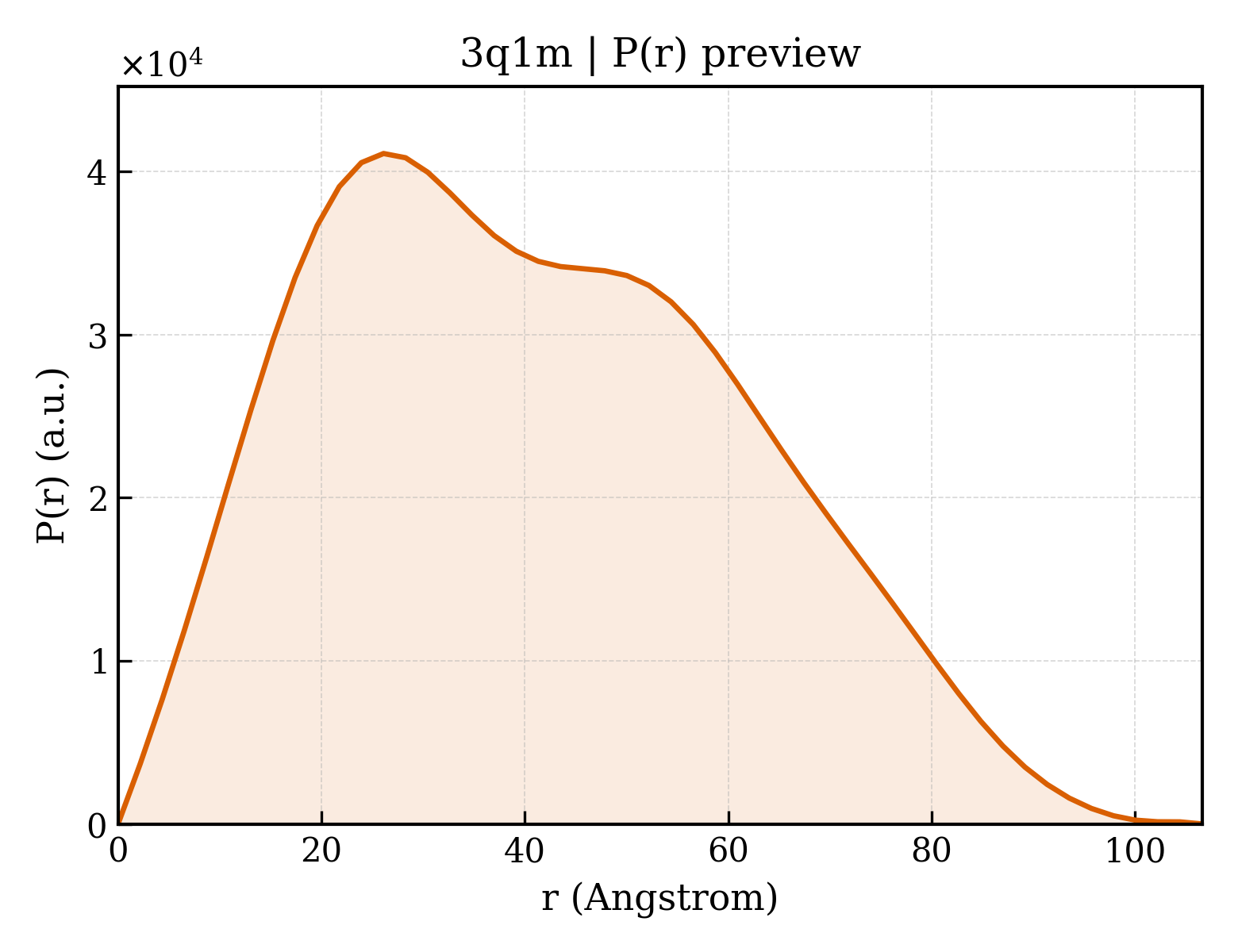

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	106.6 Å
Rg (real space) rg_real	32.48 Å
Rg uncertainty (real space) rg_real_error	1.00 Å
I(0) (real space) i0_real	2.8420e+07
I(0) uncertainty (real space) i0_real_error	4.9730e+05
Rg (reciprocal space) rg_reciprocal	32.39 Å
I(0) (reciprocal space) i0_reciprocal	28420000.0000
Solution quality estimate total_estimate	0.8688
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	26.1 Å
Skewness Skewness skewness	0.310
Kurtosis Kurtosis kurtosis	-0.692
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1824000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.758; Smooth: 0.852

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Multidrug-efflux transporter 1 regulator
Molecular weight formula_weight	33478.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2661

MKESYYSIGEVSKLANVSIKALRYYDKIDLFKPAYVDPDTSYRYYTDSQLIHLDLIKSLKYIGTPLEEMKKAQDLEMEELFAFYTEQERQIREKLDFLSALEQTISLVKKRMKRQMEYPALGEVFVLDEEEIRIIQTEAEGLGPENVLNASYSKLKKFIESADGFTNNSYGATFSFQPYTSIDEMTYRHIFTPVLTNKQISSITPDMEITTIPKGRYACIAYNFSPEHYFLNLQKLIKYIADRQLTVVSDVYELIIPIHYSPKKQEEYRVEMKIRILDHHHHHH

来源 Source

来源生物 organism	Bacillus subtilis
NCBI Class编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	23 bp promoter DNA
Molecular weight formula_weight	7058.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B

GACCCTCCCCTTAGGGGAGGGTC

Entity 3 Entity 3 non-polymer

Description description	2-methylquinolin-4-amine
Molecular weight formula_weight	158.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	3q1mA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1660 — Multidrug-efflux Transporter Regulator; Chain: A; Domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3q1mA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	490 — Single helix bin

Domain ID domain_id	3q1mA03
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	80 — Multidrug-efflux Transporter 1 Regulator Bmrr; Chain A
Homologous superfamily homologous superfamily	10 — Regulatory factor, effector binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	106.525 Å
Unit-cell length b length_b	106.525 Å
Unit-cell length c length_c	146.469 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 2 2
Space-group number int_tables_number	95
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	43.080 Å
R factor r_factor	0.2310
R_work r_work	0.2288
R_free r_free	0.2724

fit	/app/data/saxs_computation/q1/3q1m/3q1m.fit
pddf	/app/data/pr_computation/q1/3q1m/3q1m.pr.out
profile	/app/data/saxs_computation/q1/3q1m/3q1m.dat
