1exj

CRYSTAL STRUCTURE OF TRANSCRIPTION ACTIVATOR BMRR, FROM B. SUBTILIS, BOUND TO 21 BASE PAIR BMR OPERATOR AND TPP

Method: X-RAY DIFFRACTION D_max: 105.6 Å Quality: GOOD

SAXS Profile

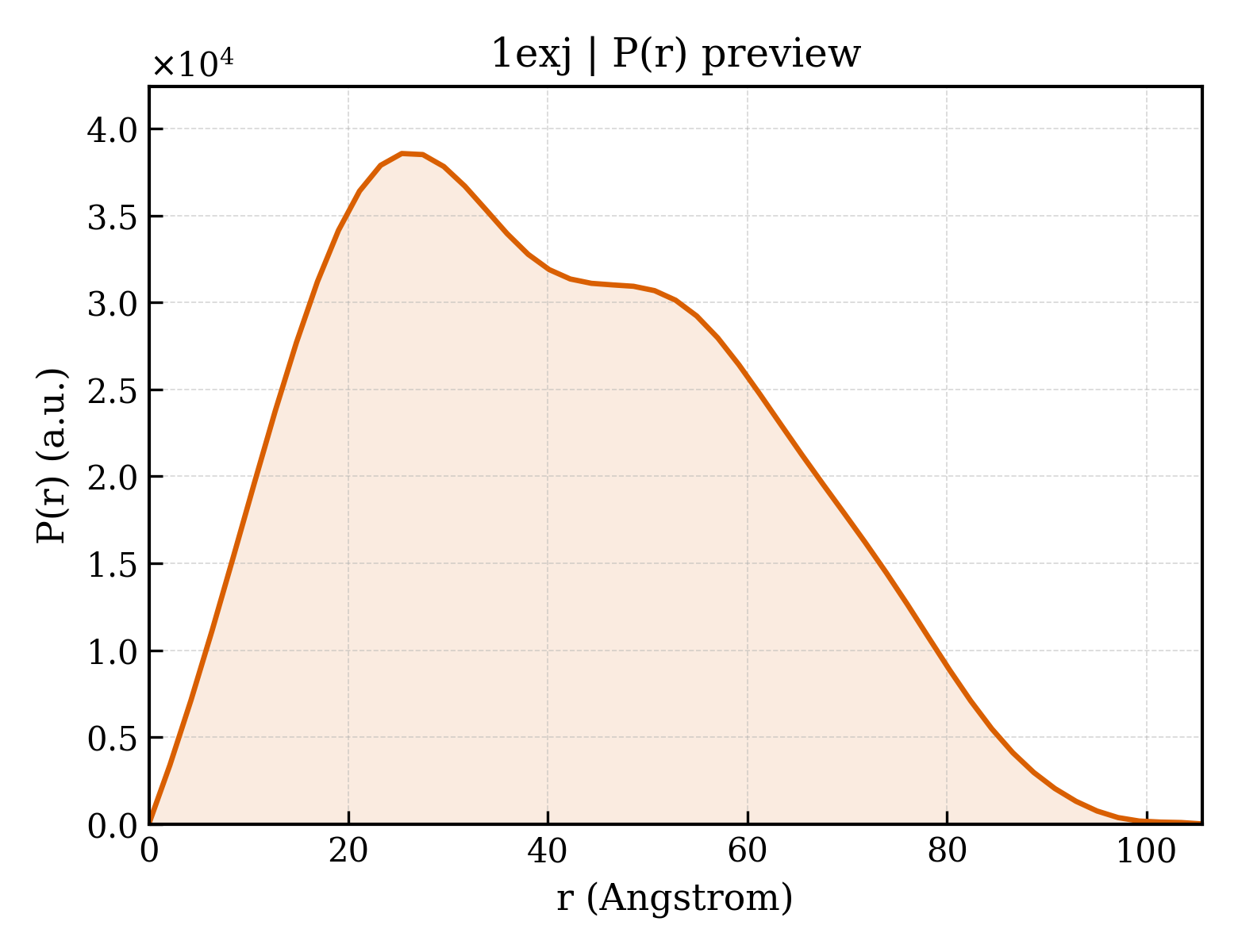

P(r) Distribution

▼

1. Structure Basics

entry_id	1exj
deposition_date	2000-05-02
title	CRYSTAL STRUCTURE OF TRANSCRIPTION ACTIVATOR BMRR, FROM B. SUBTILIS, BOUND TO 21 BASE PAIR BMR OPERATOR AND TPP
keywords	Protein-DNA Complex, MerR-family transcription activator, multidrug-binding protein, Transcription-DNA COMPLEX; Transcription/DNA
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.97 Å
rg_electron	32.06 Å
i0	26434300.00
molecular_weight	36512.0 kDa
excluded_volume	43973 Å³
envelope_volume	67710 Å³
shell_volume	19253 Å³
envelope_diameter	109.1 Å
shell_rg	35.96 Å
envelope_rg	30.55 Å
shape_rg	32.08 Å
total_rg	32.37 Å
total_atoms	2552
n_residues	296
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	105.6 Å
rg_real	32.19 Å
rg_real_error	1.05 Å
i0_real	2.6430e+07
i0_real_error	4.2940e+05
rg_reciprocal	32.10 Å
i0_reciprocal	26430000.0000
total_estimate	0.8697
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	25.4 Å
skewness	0.302
kurtosis	-0.731
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	1624000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.762; Smooth: 0.889

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	;DNA (5'-D(APCPCPCPTPCPCPCPCPTPTPAPGPGPGPGPAPGPGPGP*T)-3') ;
formula_weight	6440.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	M
atom_count	2557

ACCCTCCCCTTAGGGGAGGGT

Entity 2 polymer

description	MULTIDRUG-EFFLUX TRANSPORTER REGULATOR
formula_weight	32621.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MKESYYSIGEVSKLANVSIKALRYYDKIDLFKPAYVDPDTSYRYYTDSQLIHLDLIKSLKYIGTPLEEMKKAQDLEMEELFAFYTEQERQIREKLDFLSALEQTISLVKKRMKRQMEYPALGEVFVLDEEEIRIIQTEAEGIGPENVLNASYSKLKKFIESADGFTNNSYGATFSFQPYTSIDEMTYRHIFTPVLTNKQISSITPDMEITTIPKGRYACIAYNFSPEHYFLNLQKLIKYIADRQLTVVSDVYELIIPIHYSPKKQEEYRVEMKIRIAE

Source

organism	Bacillus subtilis
ncbi_taxonomy_id	1423
host_organism	Escherichia coli

Entity 3 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	TETRAPHENYLPHOSPHONIUM
formula_weight	339.4 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	5

▶

6. Citations (1)

▶

length_a	109.490 Å
length_b	109.490 Å
length_c	144.320 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 2 2
int_tables_number	95
crystal_system	—

resolution	3.000 Å
resolution_low	16.000 Å
r_factor	—
r_work	0.2400
r_free	0.3150

fit	/app/data/saxs_computation/ex/1exj/1exj.fit
pddf	/app/data/pr_computation/ex/1exj/1exj.pr.out
profile	/app/data/saxs_computation/ex/1exj/1exj.dat
