3d71

Crystal structure of E253Q BMRR bound to 22 base pair promoter site

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Multidrug-efflux transporter 1 regulator

Bacillus subtilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	BMR promoter DNA × 2 ZINC ION × 2 CITRATE ANION × 2 S-1,2-PROPANEDIOL × 6 TRIFLUOROETHANOL × 2 IMIDAZOLE × 10 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BMRR_BACSU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–278； UniProt 1–278

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3d71
Deposition date deposition_date	2008-05-20
Structure title title	Crystal structure of E253Q BMRR bound to 22 base pair promoter site
Keywords keywords	;TRANSCRIPTION REGULATOR, PROTEIN-DNA COMPLEX, MULTIDRUG BINDING PROTEIN, MERR FAMILY, WINGED-HELIX, Activator, DNA-binding, Transcription regulation, TRANSCRIPTION REGULATOR-DNA COMPLEX ;; TRANSCRIPTION REGULATOR/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3d71__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3d71__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

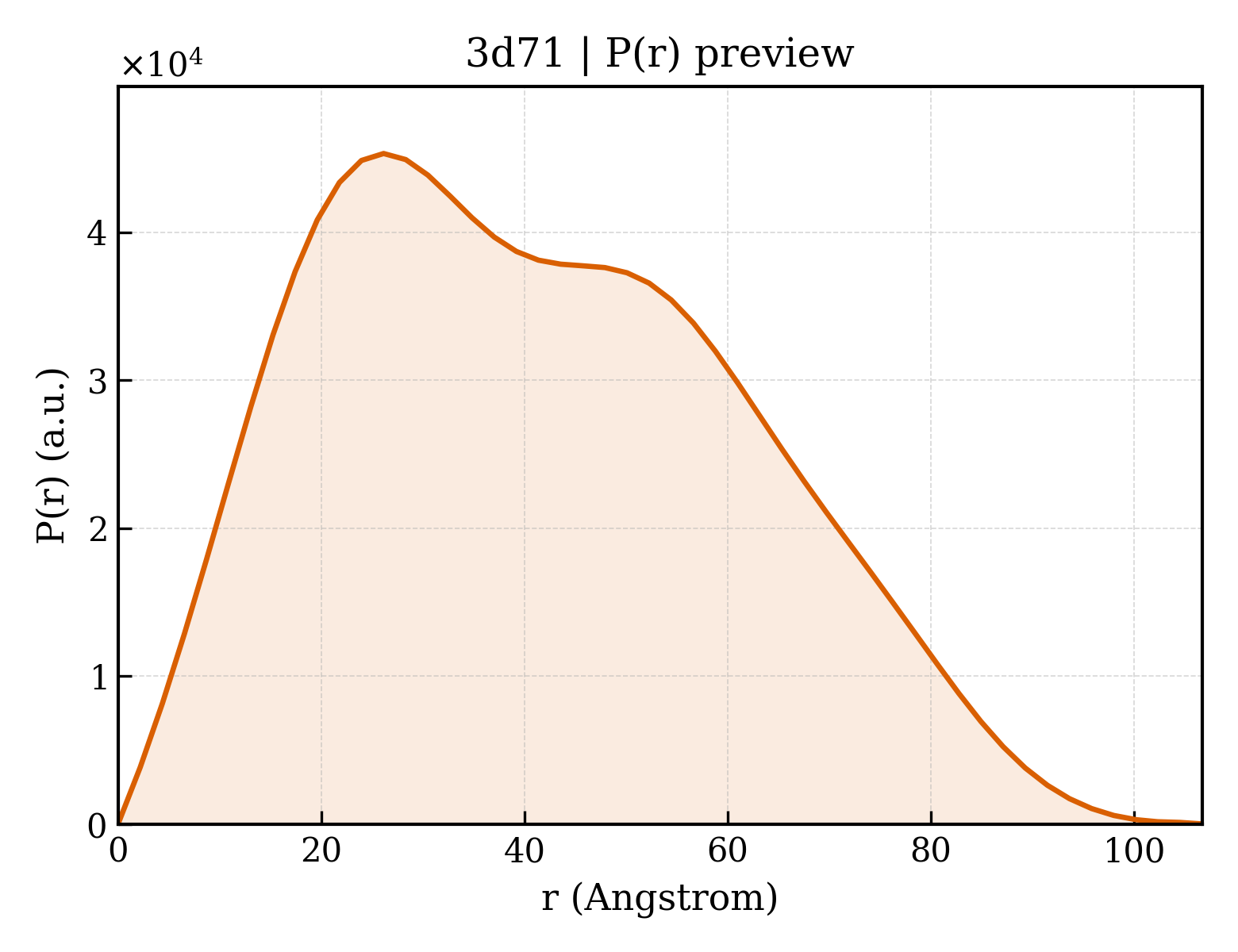

3d71__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.33 Å
Rg (electron density)	34.34 Å
Total Rg	34.63 Å
Atom count	5626
Residues	600
Excluded volume	97953 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3d71__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	BMR promoter DNA
Molecular weight formula_weight	7362.7 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	M
Atom count atom_count	2868

TGACCCTCCCCTTAGGGGAGGGTC

Entity 2 Entity 2 polymer

Description description	Multidrug-efflux transporter 1 regulator
Molecular weight formula_weight	33477.2 kDa
Mutation mutation	E253Q, A277L, E278D
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MKESYYSIGEVSKLANVSIKALRYYDKIDLFKPAYVDPDTSYRYYTDSQLIHLDLIKSLKYIGTPLEEMKKAQDLEMEELFAFYTEQERQIREKLDFLSALEQTISLVKKRMKRQMEYPALGEVFVLDEEEIRIIQTEAEGIGPENVLNASYSKLKKFIESADGFTNNSYGATFSFQPYTSIDEMTYRHIFTPVLTNKQISSITPDMEITTIPKGRYACIAYNFSPEHYFLNLQKLIKYIADRQLTVVSDVYQLIIPIHYSPKKQEEYRVEMKIRILDHHHHHH

Source Source

Source organism organism	Bacillus subtilis
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CITRATE ANION
Molecular weight formula_weight	189.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	S-1,2-PROPANEDIOL
Molecular weight formula_weight	76.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	TRIFLUOROETHANOL
Molecular weight formula_weight	100.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	IMIDAZOLE
Molecular weight formula_weight	69.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	55

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3d71a1
Class class	a — All alpha proteins
Fold Fold fold	a.6 — Putative DNA-binding domain
Superfamily Superfamily superfamily	a.6.1 — Putative DNA-binding domain
Family Family family	a.6.1.3 — DNA-binding N-terminal domain of transcription activators

Domain ID domain_id	d3d71a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.60 — Probable bacterial effector-binding domain
Superfamily Superfamily superfamily	d.60.1 — Probable bacterial effector-binding domain
Family Family family	d.60.1.1 — Multidrug-binding domain of transcription activator BmrR

CATH v4.4 (3 domains)

Domain ID domain_id	3d71A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1660 — Multidrug-efflux Transporter Regulator; Chain: A; Domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3d71A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	490 — Single helix bin

Domain ID domain_id	3d71A03
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	80 — Multidrug-efflux Transporter 1 Regulator Bmrr; Chain A
Homologous superfamily homologous superfamily	10 — Regulatory factor, effector binding domain

▶

Unit-cell length a length_a	105.480 Å
Unit-cell length b length_b	105.480 Å
Unit-cell length c length_c	147.330 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 2 2
Space-group number int_tables_number	95
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	47.170 Å
R factor r_factor	0.2250
R_work r_work	0.2250
R_free r_free	0.2480
