SAXSdb — 3qb7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin 4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 25–153	Fragment：UNP residues 25-153 Mutation：K117R, T118V, R121Q, E122S, Y124W, S125F, S128G, S129A	Cytokine receptor common subunit gamma × 1 （P31785） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.3；298 K；100 mM (NH4)2SO4, 100 mM Cacodylate, 20% PEG-3350, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.25 Å R-free 0.292
2	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 25–153	Fragment：UNP residues 25-153 Mutation：K117R, T118V, R121Q, E122S, Y124W, S125F, S128G, S129A	Cytokine receptor common subunit gamma × 1 （P31785） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.3；298 K；100 mM (NH4)2SO4, 100 mM Cacodylate, 20% PEG-3350, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.25 Å R-free 0.292

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	D4HNR6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–132； UniProt 25–153 Author chain B； PDBConstruct 4–132； UniProt 25–153

Cytokine receptor common subunit gamma

Homo sapiens

UniProt P31785

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 55–254	Fragment：UNP residues 55-254 Mutation：N53Q	Interleukin 4 × 1 （D4HNR6） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.3；298 K；100 mM (NH4)2SO4, 100 mM Cacodylate, 20% PEG-3350, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.25 Å R-free 0.292
2	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 55–254	Fragment：UNP residues 55-254 Mutation：N53Q	Interleukin 4 × 1 （D4HNR6） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.3；298 K；100 mM (NH4)2SO4, 100 mM Cacodylate, 20% PEG-3350, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.25 Å R-free 0.292

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3QB7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2B5I cytokine receptor complex Deposited 2005-09-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 56–254（199 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.1；293 K；29% Pentaerythritol Ethoxylate 15/4; 50 mM Ammonium Sulfate; 50 mM Bis Tris, pH 6.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.269
2ERJ Crystal structure of the heterotrimeric interleukin-2 receptor in complex with interleukin-2 Deposited 2005-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 23–255（233 aa）	Mutation：N58Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.1；295.5 K；MPEG 550, sodium acetate, sodium citrate, phenol, pH 5.1, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K	Resolution 3.00 Å R-free 0.263
2ERJ Crystal structure of the heterotrimeric interleukin-2 receptor in complex with interleukin-2 Deposited 2005-10-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 23–255（233 aa）	Mutation：N58Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.1；295.5 K；MPEG 550, sodium acetate, sodium citrate, phenol, pH 5.1, VAPOR DIFFUSION, SITTING DROP, temperature 295.5K	Resolution 3.00 Å R-free 0.263
3BPL Crystal structure of the IL4-IL4R-Common Gamma ternary complex Deposited 2007-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 56–254（199 aa） Fragment：Extracellular domain, residues 56-254	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；10% PEG8K, 8% ethylene glycol, 0.1M HEPES pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.93 Å R-free 0.297
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain d 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain g 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain j 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain O 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain U 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain X 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
3QAZ IL-2 mutant D10 ternary complex Deposited 2011-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain a 56–254（199 aa） Fragment：unp residues 56-254	Mutation：N75Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；100 mM Bis-Tris, 200 mM NH4SO4, 25% PEG-3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.80 Å R-free 0.344
4GS7 Structure of the Interleukin-15 quaternary complex Deposited 2012-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 55–254（200 aa）	Mutation：N75Q Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.75；298 K；22.5% PEG3350, 0.1M BIS-TRIS propane, 0.2M sodium acetate, pH 8.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.227
5M5E Crystal structure of a interleukin-2 variant in complex with interleukin-2 receptor Deposited 2016-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 23–262（240 aa）	Not recorded	MAN alpha-D-mannopyranose × 1 SO4 SULFATE ION × 4 CYS CYSTEINE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1M HEPES, pH 7.0, 2M ammonium sulfate	Resolution 2.30 Å R-free 0.235
6OEL Engineered Fab bound to IL-4 receptor Deposited 2019-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 61–249（189 aa） Fragment：UNP residues 61-249	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；22.5% PurePEG (Microlytic), 0.1 M sodium citrate, pH 5.5, 0.6 M ammonium nitrate	Resolution 3.10 Å R-free 0.256
7S2R nanobody bound to IL-2Rg Deposited 2021-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 55–254（200 aa） Fragment：extracellular domain	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 8 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；295 K；2M ammonium sulfate, 0.2M BIS-Tris pH5.5	Resolution 2.49 Å R-free 0.271
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 55–254（200 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 55–254（200 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8ENT Interleukin-21 signaling complex with IL-21R and IL-2Rg Deposited 2022-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 55–254（200 aa）	Mutation：N53Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1M Tris pH 8, 20% PEG 6000	Resolution 2.83 Å R-free 0.300
8EPA Structure of interleukin receptor common gamma chain (IL2Rgamma) in complex with two antibodies Deposited 2022-10-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 23–262（240 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9E2T Structure of a de novo designed interleukin-21 mimetic complex with IL-21R and IL-2Rg Deposited 2024-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 55–254（200 aa） Fragment：residues 55-254	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242
9E2T Structure of a de novo designed interleukin-21 mimetic complex with IL-21R and IL-2Rg Deposited 2024-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 55–254（200 aa） Fragment：residues 55-254	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；0.2M Potassium thiocyanate, 0.1M Bis-Tris propane, pH 6.5, 20% w/v PEG 3350	Resolution 2.28 Å R-free 0.242
9JQT Structure of interleukin receptor common gamma chain (IL2Rgamma/CD132) in complex with 2D4 Deposited 2024-09-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 23–262（240 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9KMC Cryo-EM structure of the heterotrimeric interleukin-2 receptor in complex with interleukin-2 and anti-CD25 Fab S417 Deposited 2024-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 23–255（233 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.97 Å

13 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL2RG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 4–203； UniProt 55–254 Author chain D； PDBConstruct 4–203； UniProt 55–254

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3qb7
Deposition date deposition_date	2011-01-12
Structure title title	Interleukin-4 mutant RGA bound to cytokine receptor common gamma
Keywords keywords	cytokine signaling, IL-4Ralpha, CYTOKINE-CYTOKINE RECEPTOR complex; CYTOKINE/CYTOKINE RECEPTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.14 Å
Radius of gyration Rg (electron density) rg_electron	26.97 Å
Forward intensity I(0) i0	96478700.00
Molecular weight molecular_weight	75499.0 kDa
Excluded volume excluded_volume	93907 Å³
Envelope volume envelope_volume	123560 Å³
Hydration-shell volume shell_volume	37002 Å³
Envelope diameter envelope_diameter	87.2 Å
Shell Rg shell_rg	35.39 Å
Envelope Rg envelope_rg	26.74 Å
Shape Rg shape_rg	26.95 Å
Total Rg total_rg	27.90 Å
Total atoms total_atoms	5316
Residues n_residues	622
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

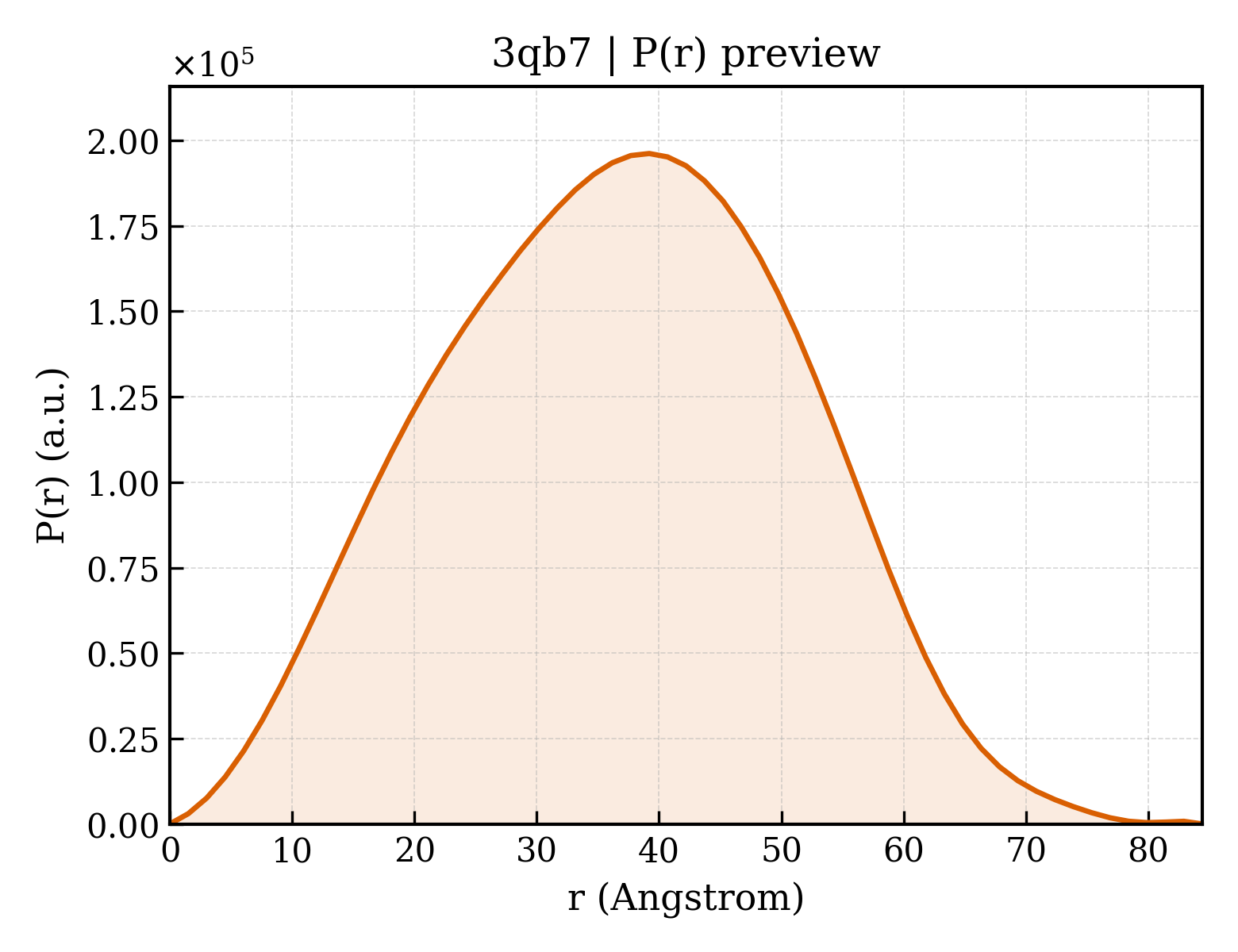

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.4 Å
Rg (real space) rg_real	27.88 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	9.6480e+07
I(0) uncertainty (real space) i0_real_error	1.2880e+06
Rg (reciprocal space) rg_reciprocal	27.96 Å
I(0) (reciprocal space) i0_reciprocal	96480000.0000
Solution quality estimate total_estimate	0.9038
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	39.2 Å
Skewness Skewness skewness	0.005
Kurtosis Kurtosis kurtosis	-0.549
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	20150000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.926; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Interleukin 4
Molecular weight formula_weight	15264.6 kDa
Mutation mutation	K117R, T118V, R121Q, E122S, Y124W, S125F, S128G, S129A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5337

ADPHKCDITLQEIIKTLNSLTEQKTLCTELTVTDIFAASKNTTEKETFCRAATVLRQFYSHHEKDTRCLGATAQQFHRHKQLIRFLKRLDRNLWGLAGLNSCPVKEANQSTLENFLERLRVIMQSKWFKCGA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Cytokine receptor common subunit gamma
Molecular weight formula_weight	24309.1 kDa
Mutation mutation	N53Q
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

ADPLPLPEVQCFVFNVEYMNCTWQSSSEPQPTNLTLHYWYKNSDNDKVQKCSHYLFSEEITSGCQLQKKEIHLYQTFVVQLQDPREPRRQATQMLKLQNLVIPWAPENLTLHKLSESQLELNWNNRFLNHCLEHLVQYRTDWDHSWTEQSVDYRHKFSLPSVDGQKRYTFRVRSRFNPLCGSAQHWSEWSHPIHWGSNTSKEN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	3qb7A00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3qb7B00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3qb7C01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qb7C02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qb7D01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qb7D02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.969 Å
Unit-cell length b length_b	105.879 Å
Unit-cell length c length_c	121.093 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.245 Å
Low-resolution limit resolution_low	48.507 Å
R factor r_factor	0.2339
R_work r_work	0.2309
R_free r_free	0.2922

fit	/app/data/saxs_computation/qb/3qb7/3qb7.fit
pddf	/app/data/pr_computation/qb/3qb7/3qb7.pr.out
profile	/app/data/saxs_computation/qb/3qb7/3qb7.dat
