SAXSdb — 3rnj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Brain-specific angiogenesis inhibitor 1-associated protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 375–436	Fragment：SH3 domain, UNP residues 375-436	EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 EDO 1,2-ETHANEDIOL × 3 IPA ISOPROPYL ALCOHOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.2M ammonium acetate, 0.1M Tris-HCl pH 8.5, 30% isopropanol, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.50 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3RNJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1WDZ Crystal structure of RCB domain of IRSp53 Deposited 2004-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–228（228 aa） Fragment：N-terminal domain Chain B 1–228（228 aa） Fragment：N-terminal domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；27% PEG4000, 0.09M Tris pH8.5, 0.19M Sodium acetate, 3.5% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.63 Å R-free 0.297
1Y2O Structure of N-terminal domain IRSp53/BAIAP2 Deposited 2004-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–250（250 aa） Fragment：N-terminal domain Chain B 1–250（250 aa） Fragment：N-terminal domain	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.267
2YKT Crystal structure of the I-BAR domain of IRSp53 (BAIAP2) in complex with an EHEC derived Tir peptide Deposited 2011-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–250（250 aa） Fragment：I-BAR DOMAIN, RESIDUES 1-250	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 16% (W/V) PEG 3350, 0.3M AMMONIUM SULPHATE	Resolution 2.11 Å R-free 0.276
4JS0 Complex of Cdc42 with the CRIB-PR domain of IRSp53 Deposited 2013-03-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 260–291（32 aa） Fragment：CRIB-PR domain	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 2 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；18-20% PEG 4000, 0.2M magnesium chloride, 0.004M betain hydrochloride, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.90 Å R-free 0.199
6BD2 Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and S366 Deposited 2017-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 335–372（38 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PEG DI(HYDROXYETHYL)ETHER × 1 1PE PENTAETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.90 Å R-free 0.254
6BQT Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and T360 Deposited 2017-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 335–366（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 1PE PENTAETHYLENE GLYCOL × 3 EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
6BQT Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and T360 Deposited 2017-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 335–366（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 PG4 TETRAETHYLENE GLYCOL × 2 PGE TRIETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
6BQT Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and T360 Deposited 2017-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 335–366（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	1PE PENTAETHYLENE GLYCOL × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
6BQT Complex of 14-3-3 theta with an IRSp53 peptide doubly-phosphorylated at T340 and T360 Deposited 2017-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 335–366（32 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	1PE PENTAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291.15 K；0.1 M CaCl2, 13% Peg 3350	Resolution 2.80 Å R-free 0.287
6ZEG Structure of PP1-IRSp53 chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% (w/v) polyethylene glycol 3350, 0.2 M KSCN and 0.1 M BIS-Tris propane pH 8.5	Resolution 1.09 Å R-free 0.140
6ZEG Structure of PP1-IRSp53 chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 2 16P 3,6,9,12,15,18-HEXAOXAICOSANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% (w/v) polyethylene glycol 3350, 0.2 M KSCN and 0.1 M BIS-Tris propane pH 8.5	Resolution 1.09 Å R-free 0.140
6ZEI Structure of PP1-IRSp53 S455E chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 GOL GLYCEROL × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；20% (w/v) polyethylene glycol 3350 and 0.2 M NaBr	Resolution 1.39 Å R-free 0.158
6ZEI Structure of PP1-IRSp53 S455E chimera [PP1(7-304) + linker (G/S)x9 + IRSp53(449-465)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 448–464（17 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 GOL GLYCEROL × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.4；293 K；20% (w/v) polyethylene glycol 3350 and 0.2 M NaBr	Resolution 1.39 Å R-free 0.158

8 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BAIP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–67； UniProt 375–436

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3rnj
Deposition date deposition_date	2011-04-22
Structure title title	Crystal structure of the SH3 domain from IRSp53 (BAIAP2)
Keywords keywords	;Structural Genomics, Structural Genomics Consortium, SGC, Beta barrel, Protein interaction domain, Proline-rich motifs, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.35 Å
Radius of gyration Rg (electron density) rg_electron	11.90 Å
Forward intensity I(0) i0	1481430.00
Molecular weight molecular_weight	8041.0 kDa
Excluded volume excluded_volume	10064 Å³
Envelope volume envelope_volume	11732 Å³
Hydration-shell volume shell_volume	8744 Å³
Envelope diameter envelope_diameter	45.4 Å
Shell Rg shell_rg	17.08 Å
Envelope Rg envelope_rg	12.55 Å
Shape Rg shape_rg	11.83 Å
Total Rg total_rg	13.44 Å
Total atoms total_atoms	566
Residues n_residues	67
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.2 Å
Rg (real space) rg_real	13.31 Å
Rg uncertainty (real space) rg_real_error	0.41 Å
I(0) (real space) i0_real	1.4810e+06
I(0) uncertainty (real space) i0_real_error	1.6580e+04
Rg (reciprocal space) rg_reciprocal	13.32 Å
I(0) (reciprocal space) i0_reciprocal	1481000.0000
Solution quality estimate total_estimate	0.8135
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.5 Å
Skewness Skewness skewness	0.277
Kurtosis Kurtosis kurtosis	-0.141
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	362000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.553; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.915; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Brain-specific angiogenesis inhibitor 1-associated protein 2
Molecular weight formula_weight	7512.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	676

GPLGSGRMRVKAIFSHAAGDNSTLLSFKEGDLITLLVPEARDGWHYGESEKTKMRGWFPFSYTRVLD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	{[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID
Molecular weight formula_weight	292.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	86

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3rnja1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

Domain ID domain_id	d3rnja2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	3rnjA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (1)

▶

Unit-cell length a length_a	29.960 Å
Unit-cell length b length_b	36.640 Å
Unit-cell length c length_c	58.110 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	23.200 Å
R factor r_factor	0.1980
R_work r_work	0.1970
R_free r_free	0.2190

fit	/app/data/saxs_computation/rn/3rnj/3rnj.fit
pddf	/app/data/pr_computation/rn/3rnj/3rnj.pr.out
profile	/app/data/saxs_computation/rn/3rnj/3rnj.dat

Crystal structure of the SH3 domain from IRSp53 (BAIAP2)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Brain-specific angiogenesis inhibitor 1-associated protein 2

State in the Current Structure

Other States of the Same Protein in the Database

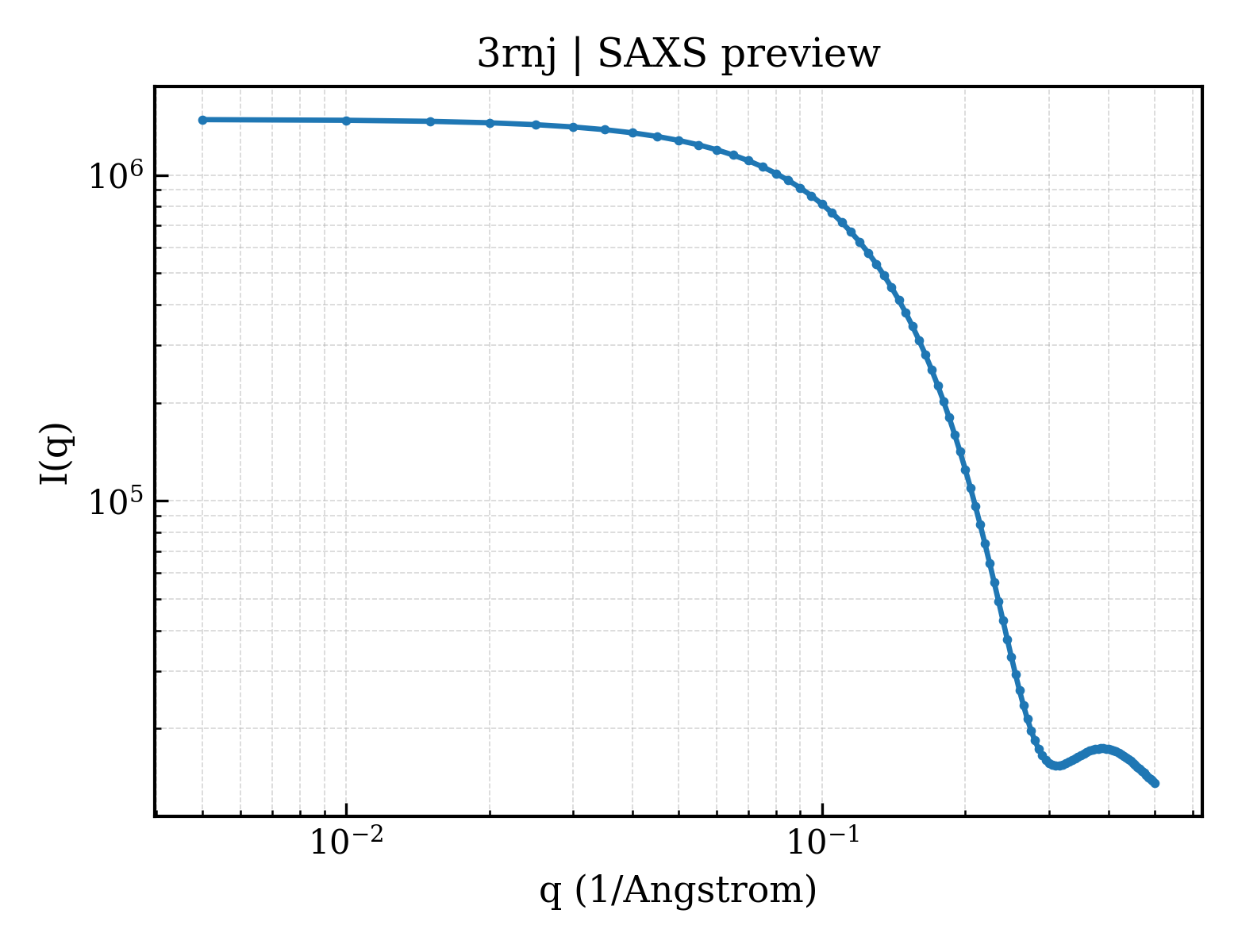

SAXS scattering curve SAXS Profile

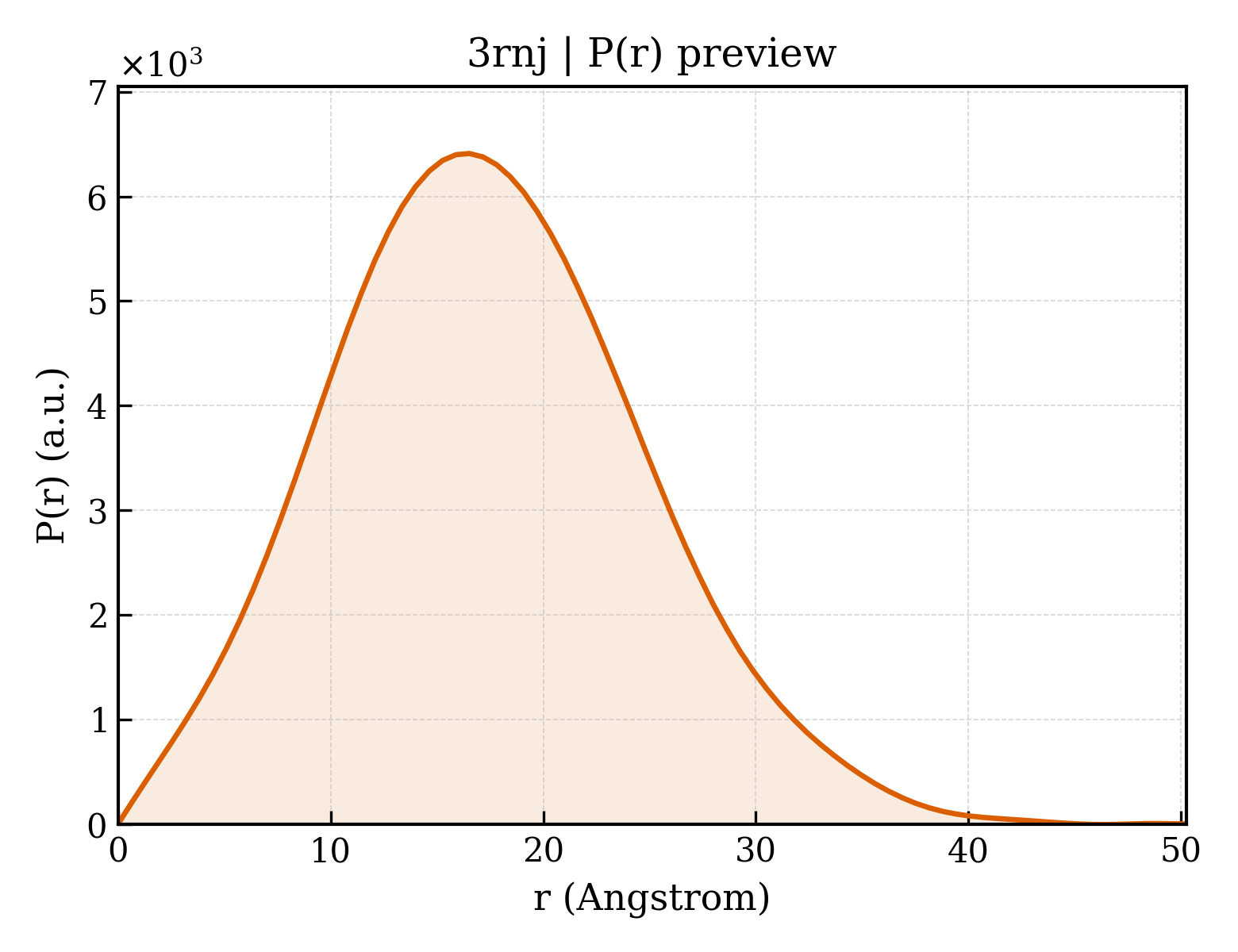

P(r) Distance Distribution P(r) Distribution
